Connector Terminal Identification
>>
Transaxle Range Switch C1 & C2
Transaxle Range Switch C1 & C2

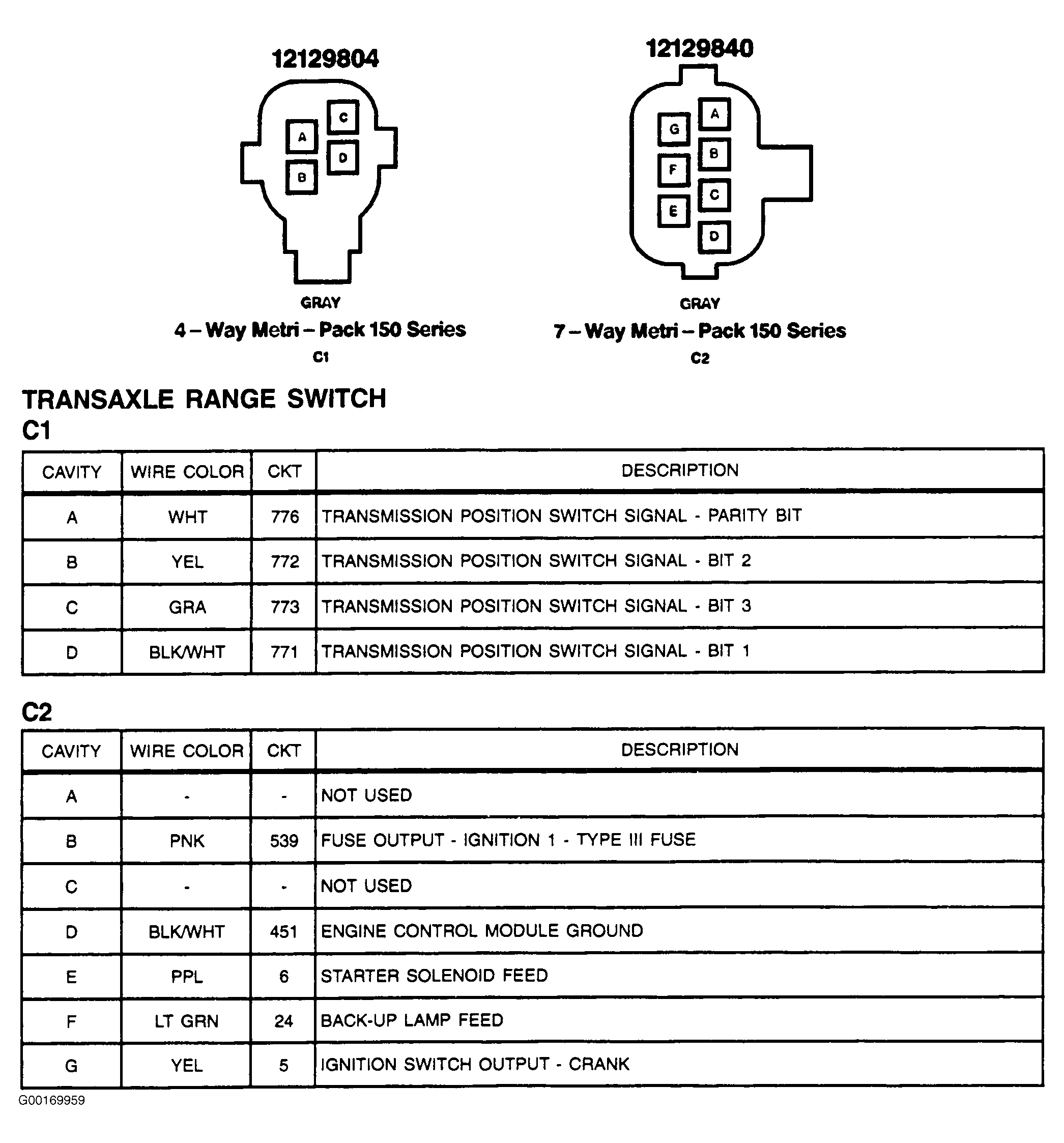

Fig 1: Transaxle Range Switch C1 & C2 - 4-Pin Connector (Gray) & 7-Pin Connector (Gray)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
