Home >> Pontiac >> 2001 >> Aztek Base, FWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Window System >> Removal & Installation >> Rear Window Switch >> Installation

Rear Window Switch: Installation

  1. Install power window switch (1) to mounting plate. See Fig 1 .
  2. Connect harness connector.
  3. Insert front of mounting plate into trim panel.
  4. Press down on rear of mounting plate until plate is fully seated.

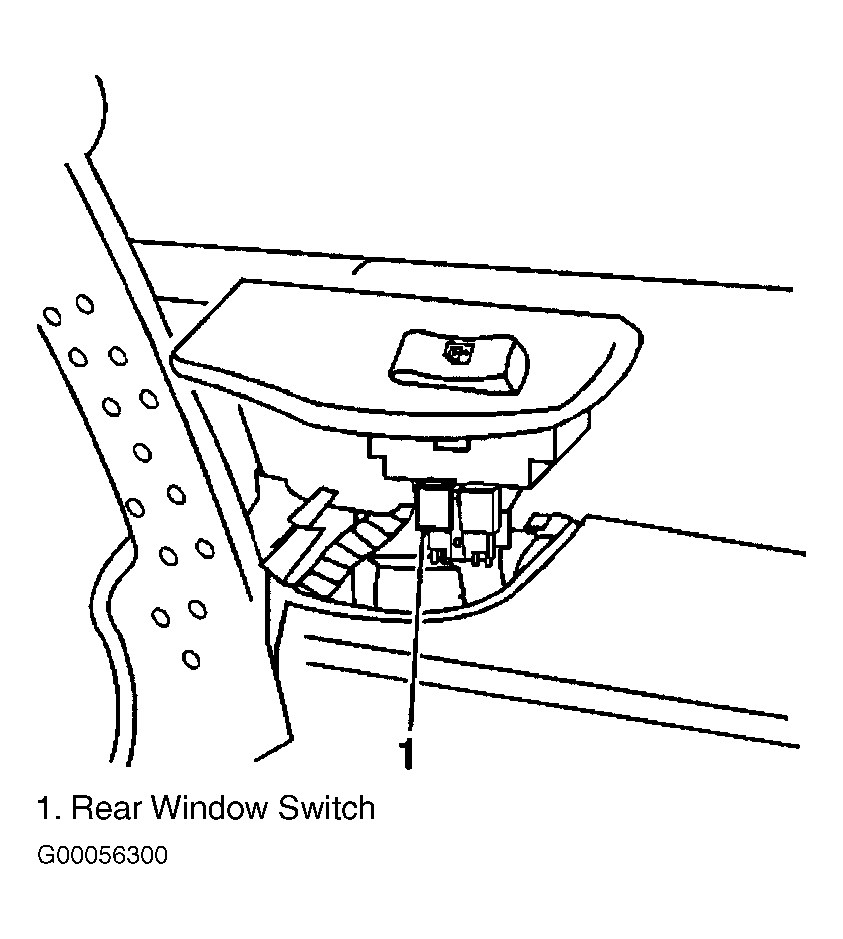

Fig 1: Removing & Installing Rear Power Window Switch
G00056300Courtesy of GENERAL MOTORS CORP.
