Home >> Pontiac >> 2002 >> Firebird Formula, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Shift Interlock Systems >> Removal & Installation >> STOPLAMP Switch >> Installation

STOPLAMP Switch: Installation

  1. Install the stoplamp and TCC switch to the bracket. See Fig 1 .
  2. Connect the electrical connector to the switch. Adjust the stoplamp and TCC switch. See ADJUSTMENTS  .
  3. Install the left side instrument panel insulator. See INSULATOR PANEL (LEFT SIDE)  .

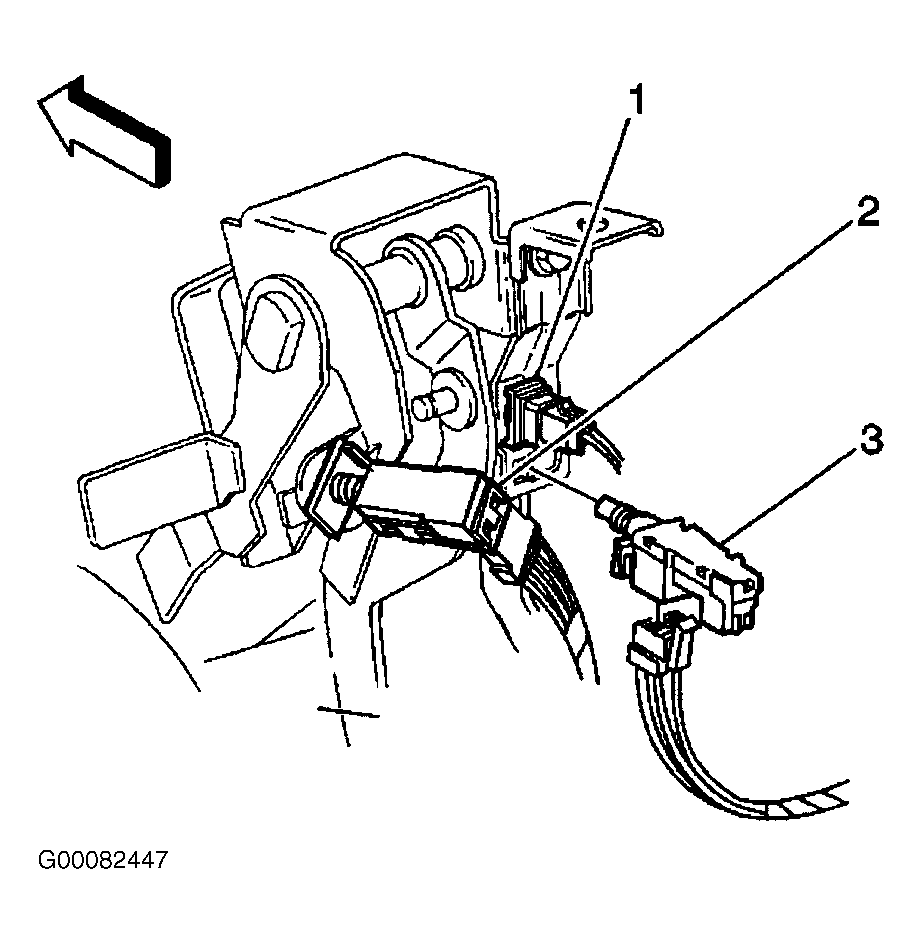

Fig 1: Removing & Installing Stoplamp Switch
G00082447Courtesy of GENERAL MOTORS CORP.
