Shift Lock Solenoid: Installation

Snap the shift lock solenoid to the transmission control base. See Fig 2 . Connect the shift lock solenoid electrical connector (1). See Fig 1 . Install the front floor console trim plate.

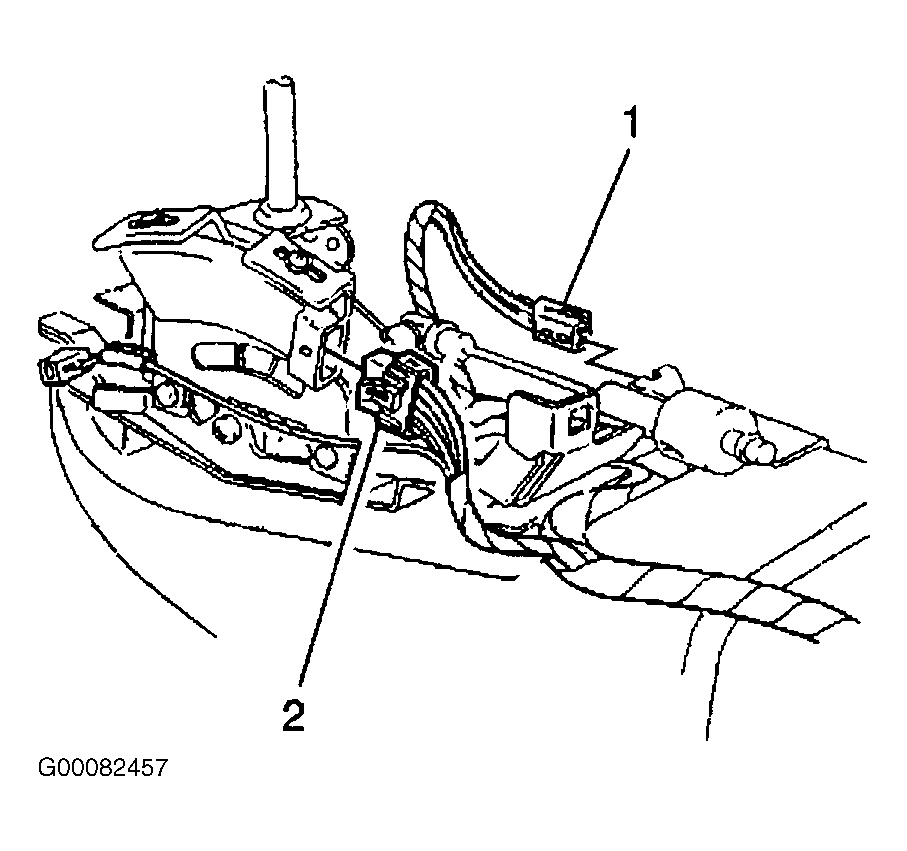

Fig 1: Removing & Installing Shift Lock Solenoid Harness Connector

Courtesy of GENERAL MOTORS CORP.

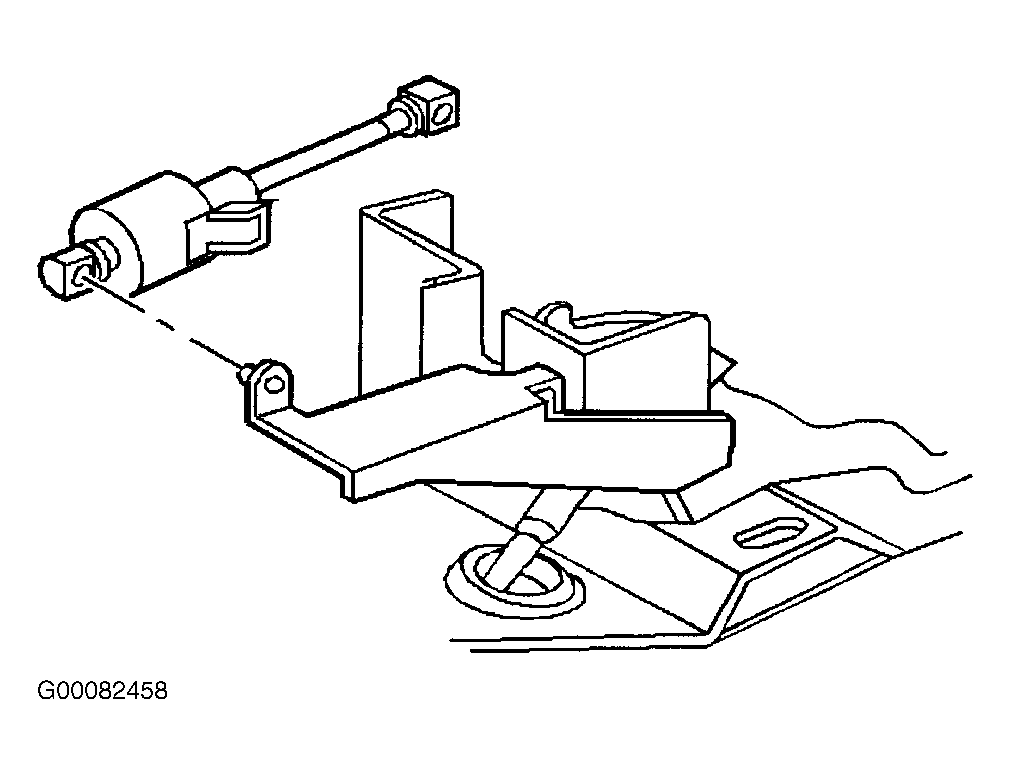

Fig 2: Removing & Installing Shift Lock Solenoid

Courtesy of GENERAL MOTORS CORP.
