Schematic and Routing Diagrams

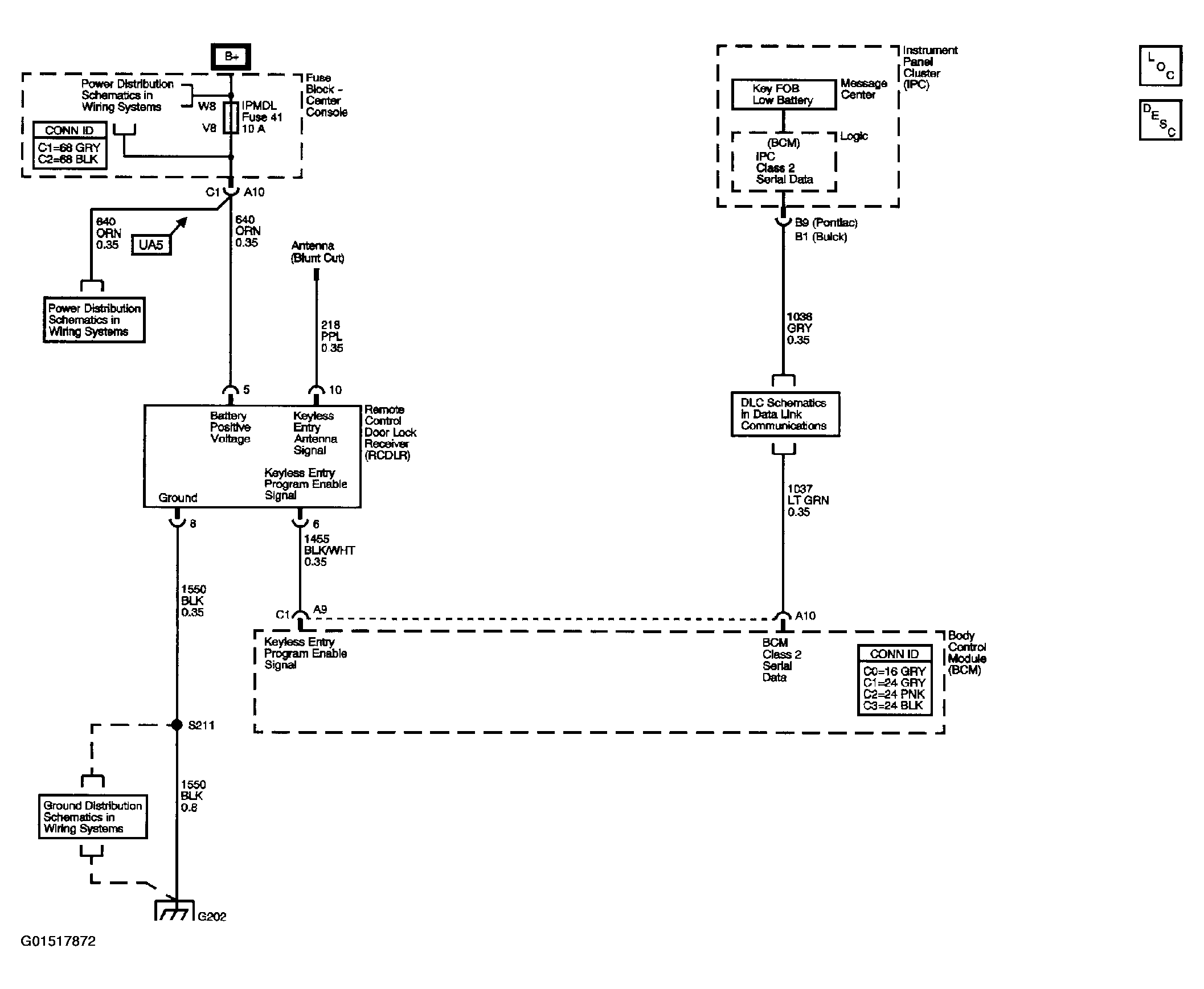

Fig 1: Keyless Entry Schematics
G01517872Courtesy of GENERAL MOTORS CORP.
