Electronic Ignition System: Notes

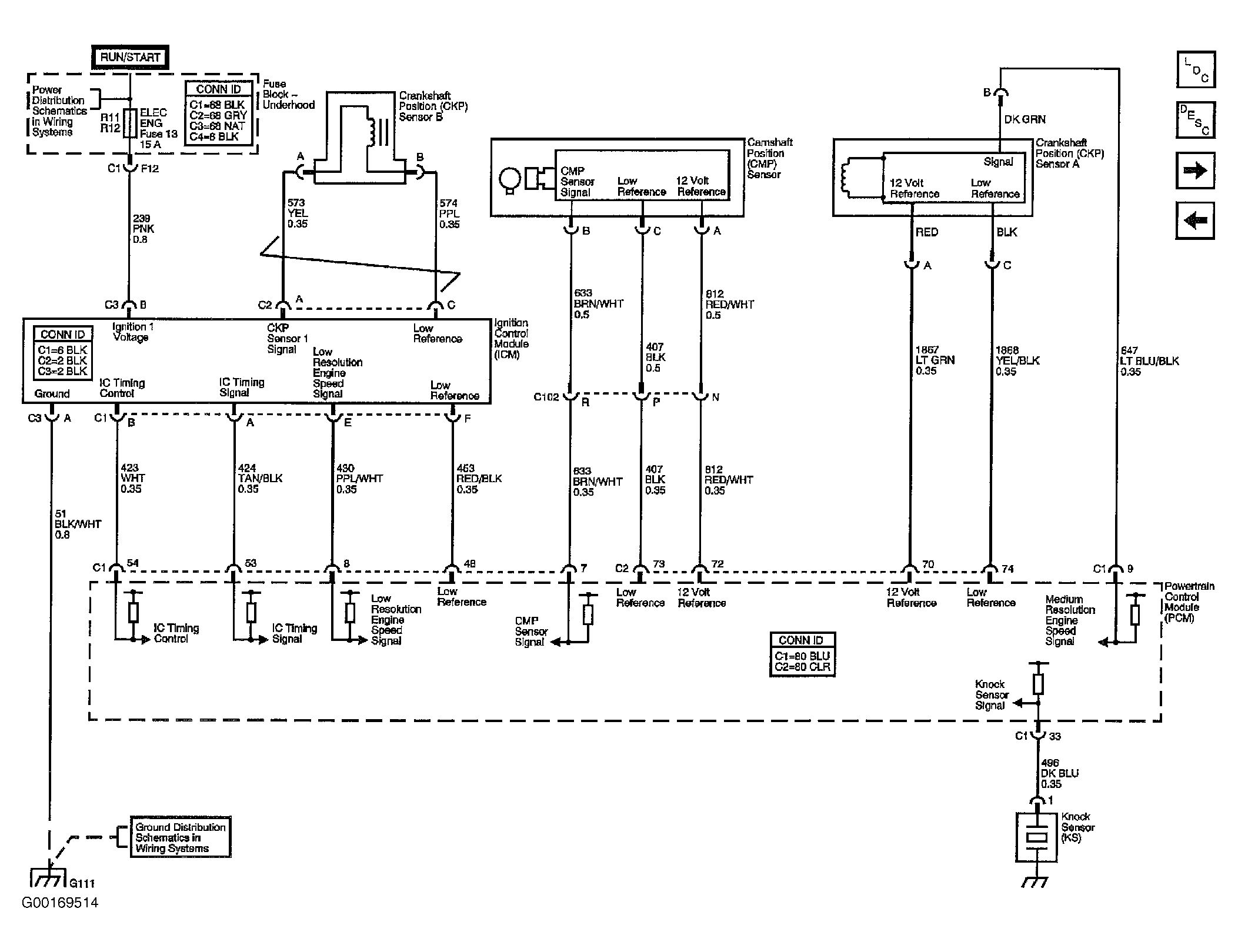

Fig 1: Electronic Ignition Electrical Schematic
G00169514Courtesy of GENERAL MOTORS CORP.
Fig 2: Locating Crankshaft Position Sensor "A" (24X)
G00028468Courtesy of GENERAL MOTORS CORP.
Fig 3: Locating Crankshaft Position Sensor "B" (7X)
G00028469Courtesy of GENERAL MOTORS CORP.
