Component Locations

NOTE: For CNG related components, see SELF-DIAGNOSTICS - 2.2L CAVALIER - BI-FUEL - CNG/GASOLINE article.

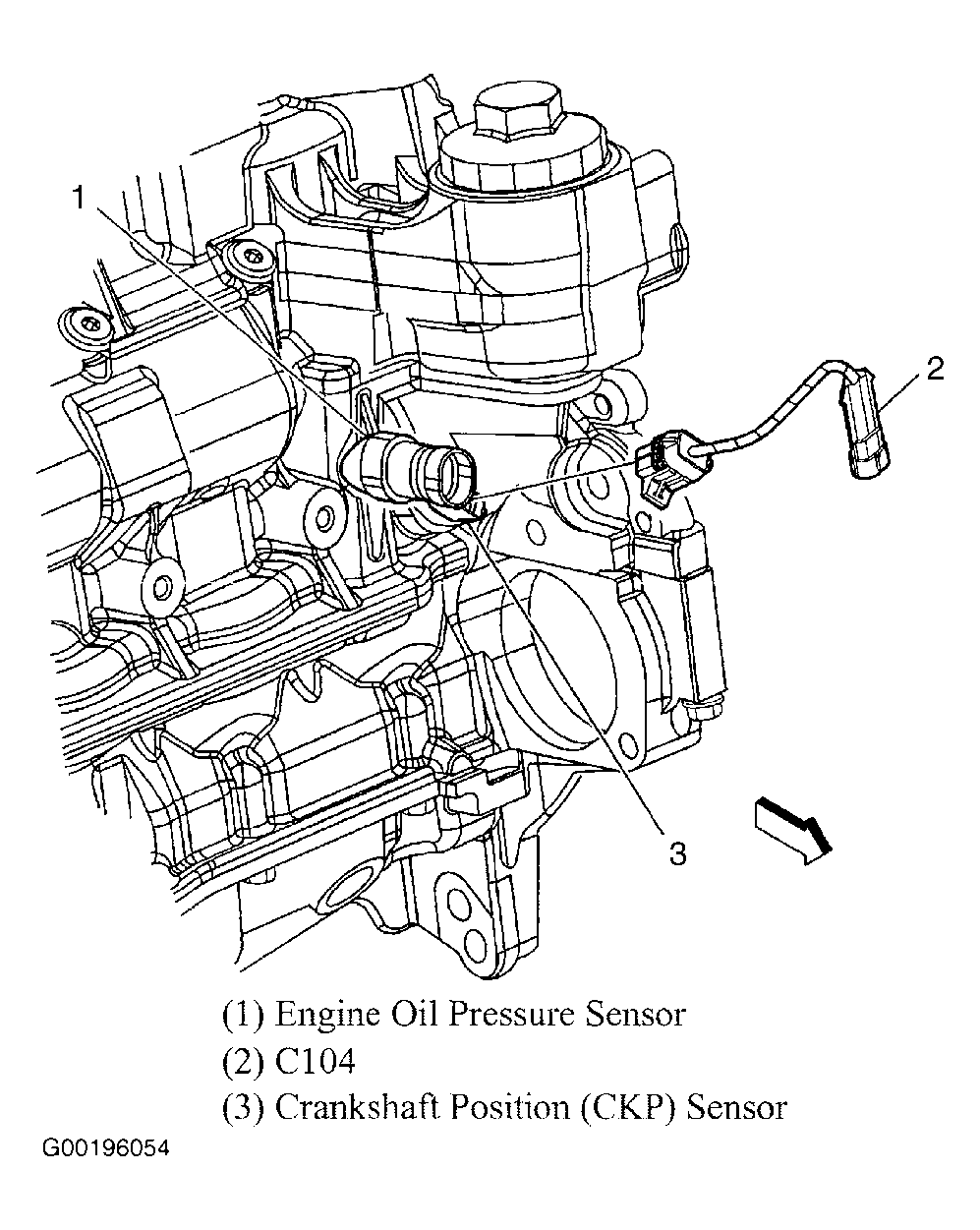

Fig 1: Locating CKP & Oil Pressure Sensors (Cavalier & Sunfire)

G00196054

Courtesy of GENERAL MOTORS CORP.

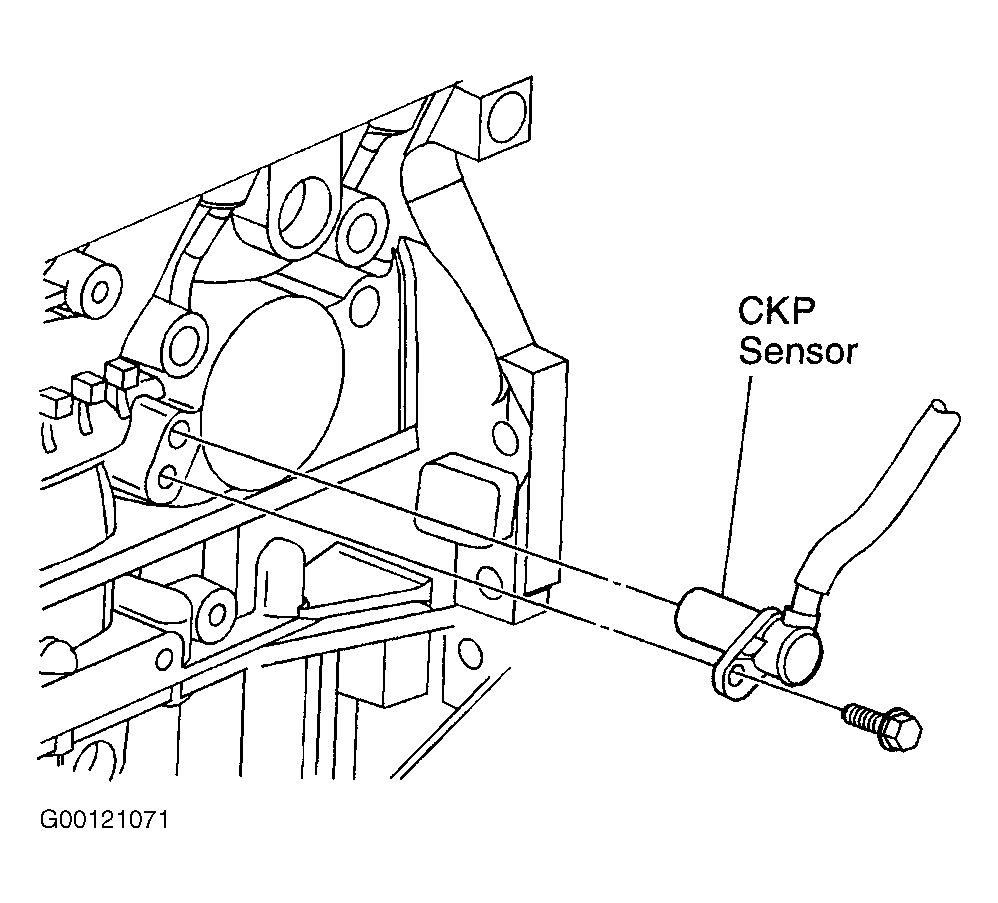

Fig 2: Locating Crankshaft Position Sensor (Alero & Grand Am)

G00121071

Courtesy of GENERAL MOTORS CORP.

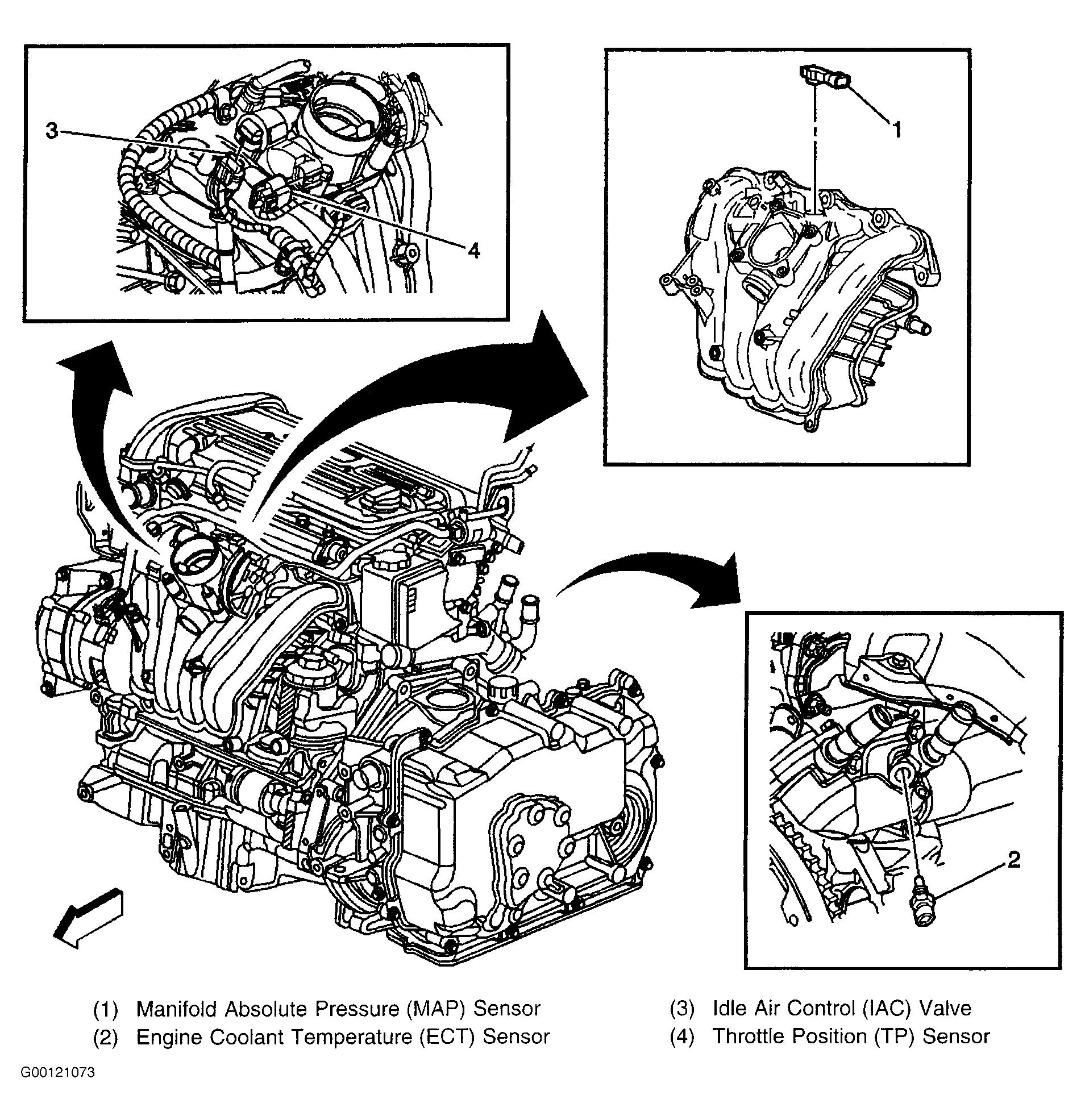

Fig 3: Locating ECT, IAT, MAP & TP Sensors

G00121073

Courtesy of GENERAL MOTORS CORP.

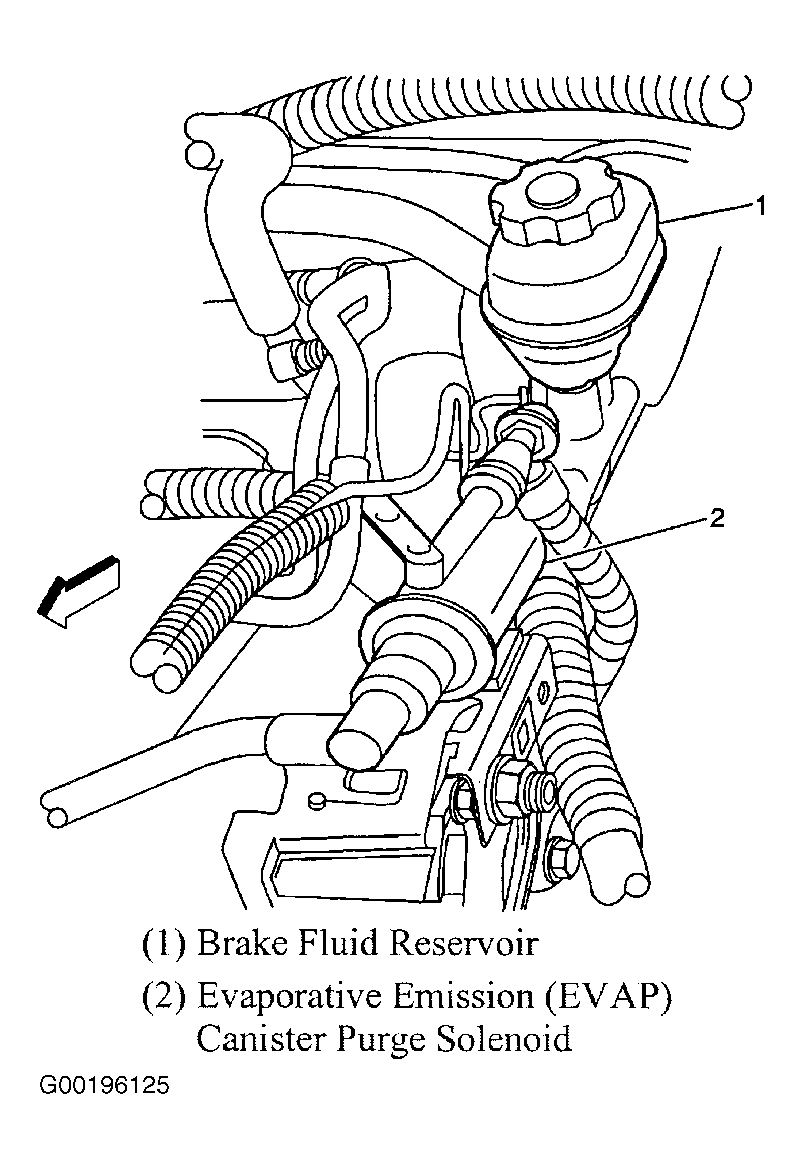

Fig 4: Locating EVAP Canister Purge Solenoid

G00196125

Courtesy of GENERAL MOTORS CORP.

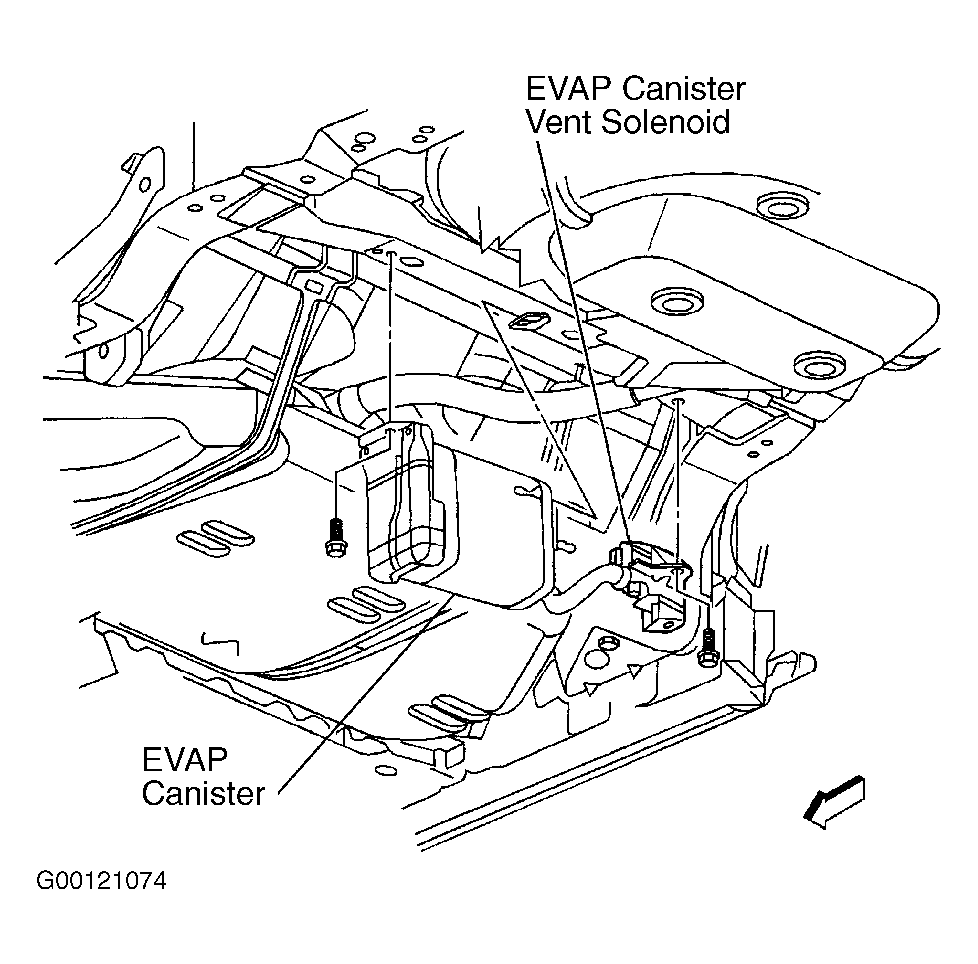

Fig 5: Locating EVAP Canister & Vent Solenoid

G00121074

Courtesy of GENERAL MOTORS CORP.

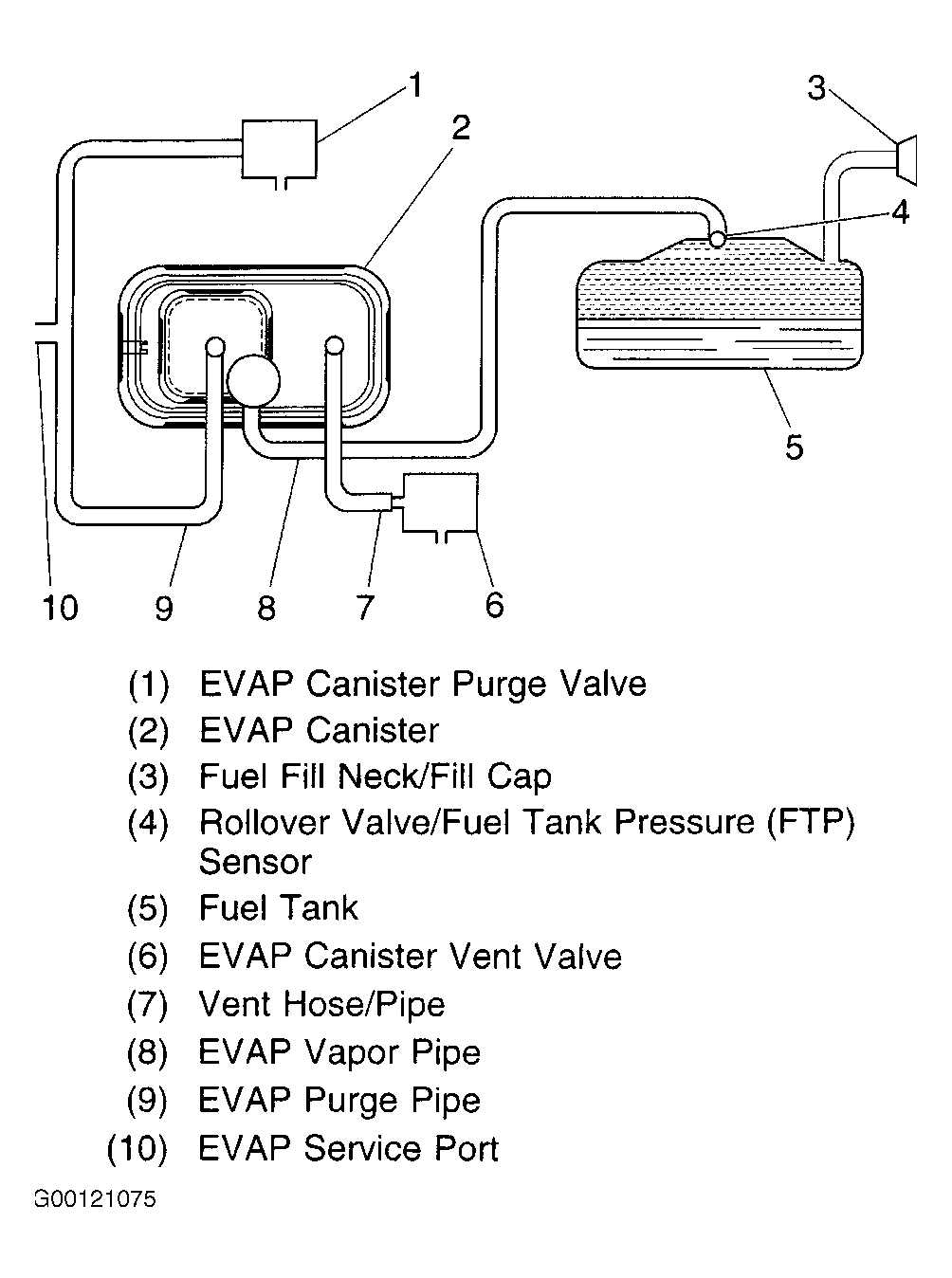

Fig 6: Locating EVAP Hose Components & Routing

G00121075

Courtesy of GENERAL MOTORS CORP.

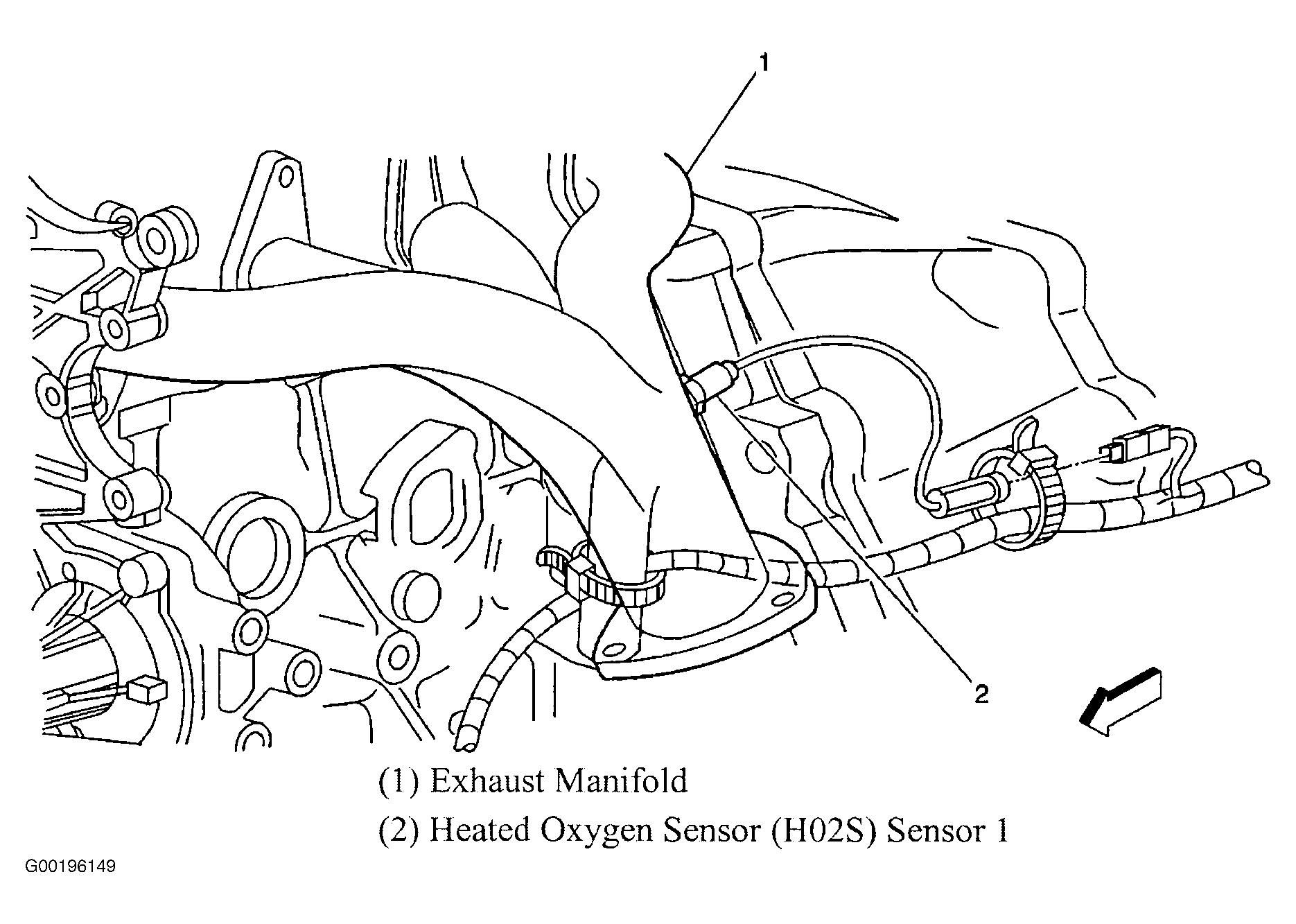

Fig 7: Locating HO2S 1

G00196149

Courtesy of GENERAL MOTORS CORP.

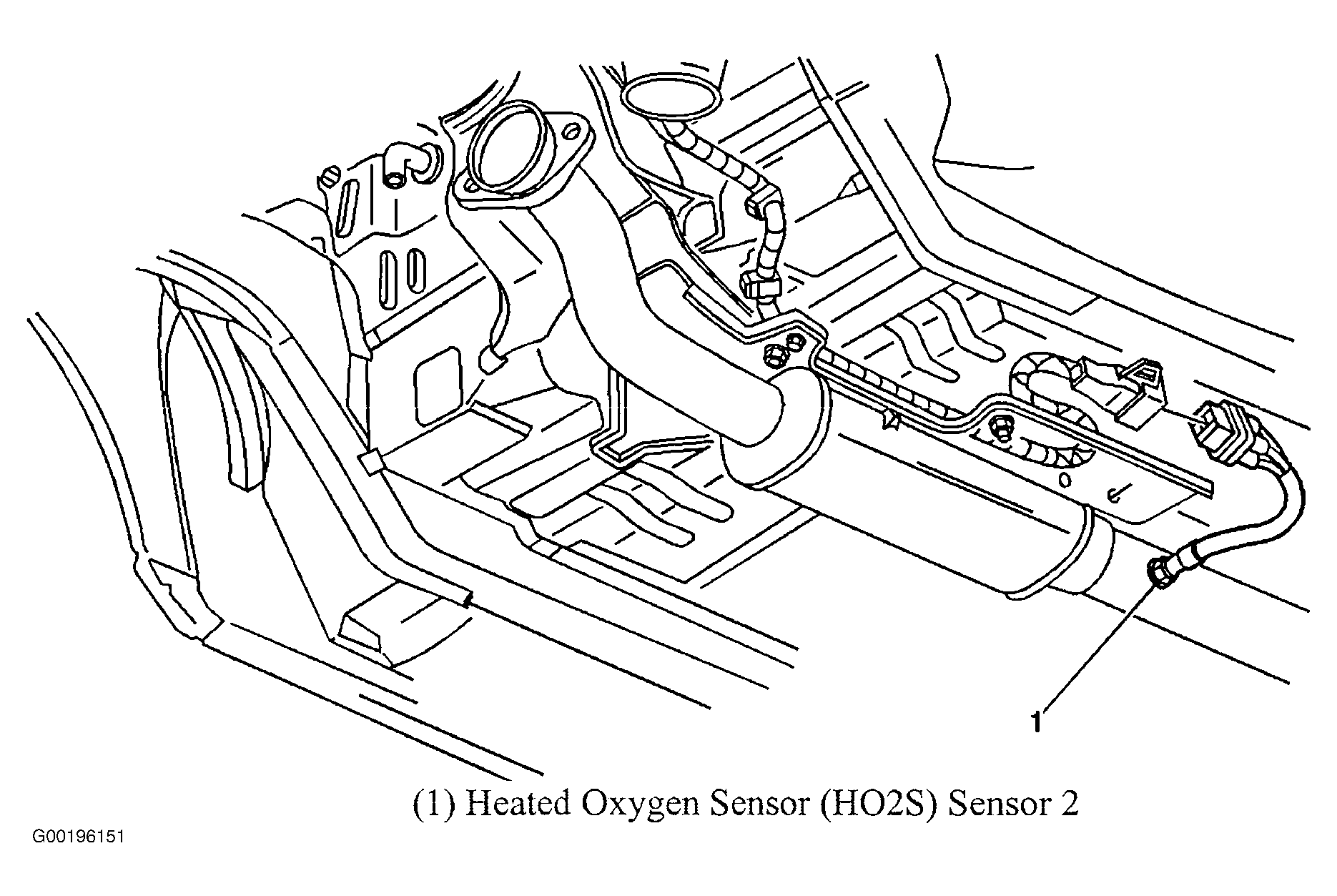

Fig 8: Locating HO2S 2 (Alero & Grand Am)

G00196151

Courtesy of GENERAL MOTORS CORP.

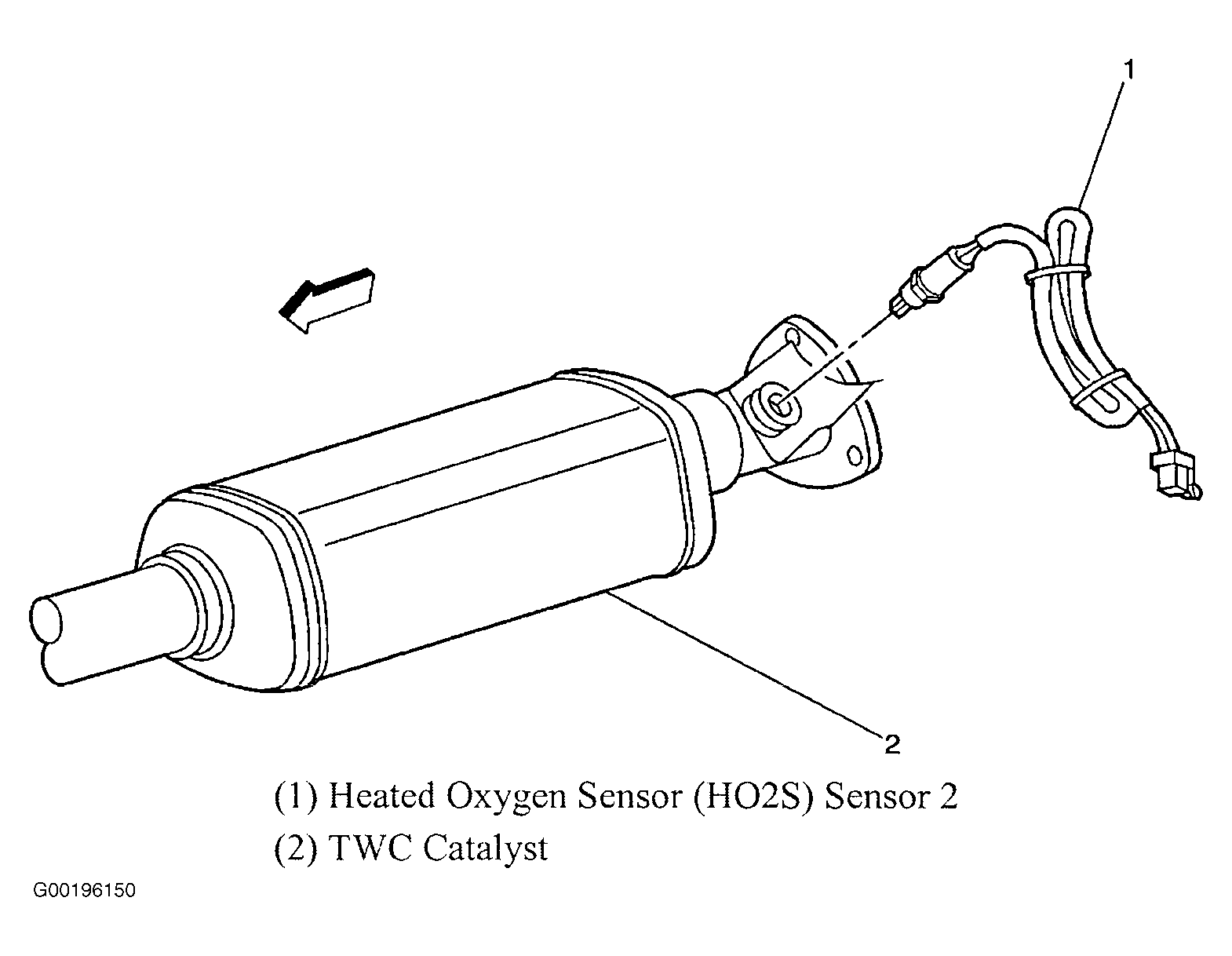

Fig 9: Locating HO2S 2 (Cavalier & Sunfire)

G00196150

Courtesy of GENERAL MOTORS CORP.

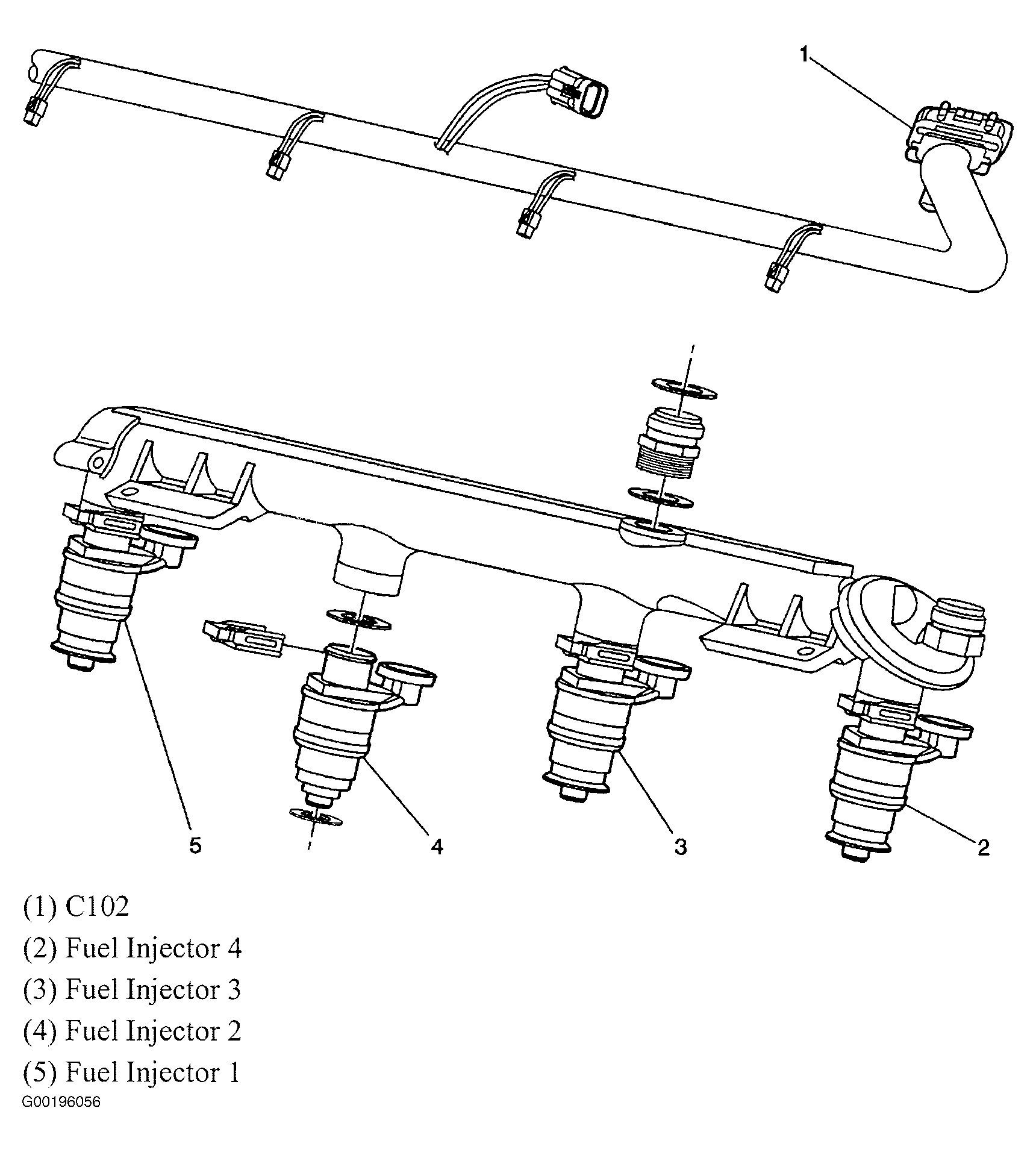

Fig 10: Locating Fuel Injectors & Connector C102

G00196056

Courtesy of GENERAL MOTORS CORP.

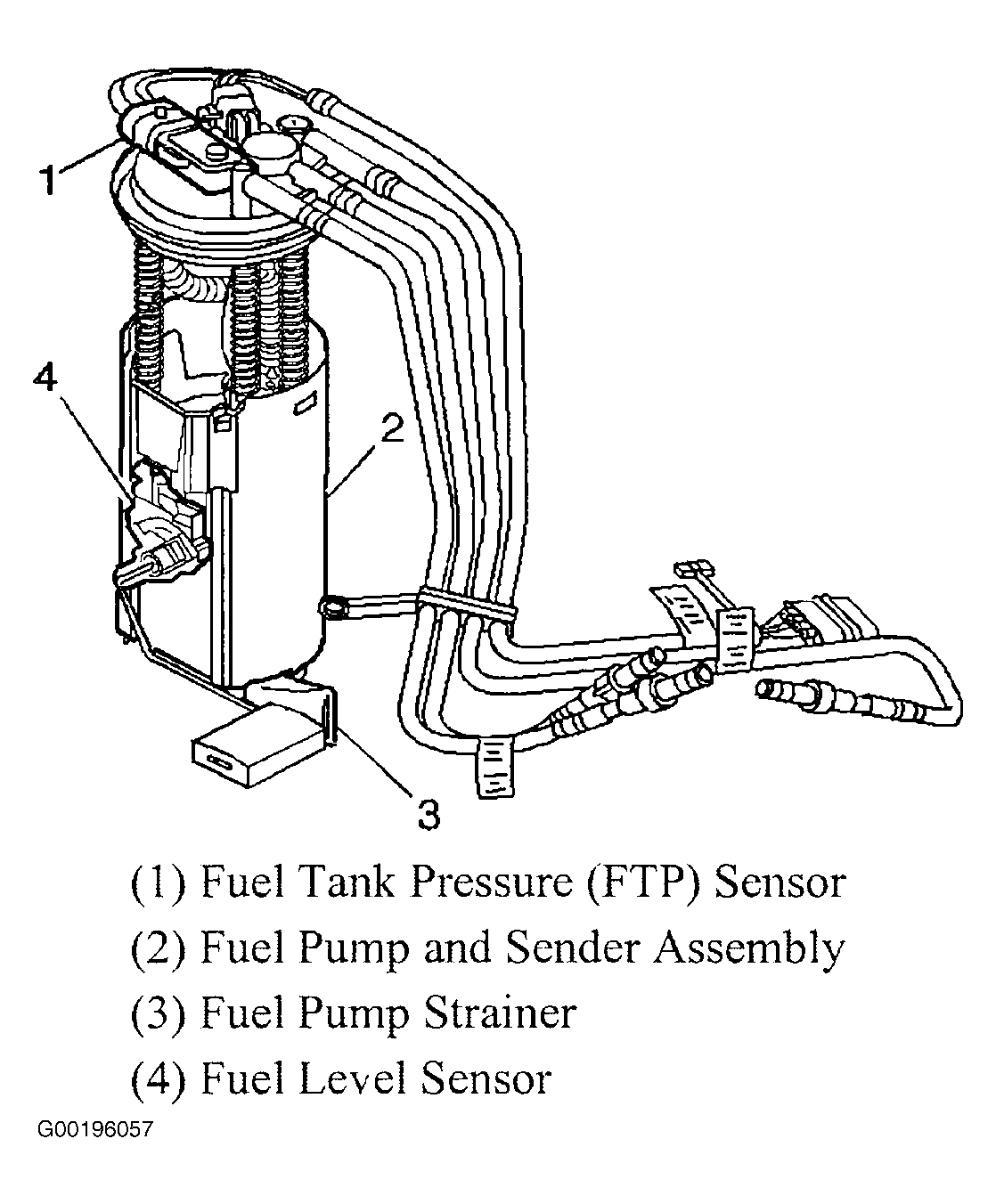

Fig 11: Locating Fuel Pump & Sender Assembly Components

G00196057

Courtesy of GENERAL MOTORS CORP.

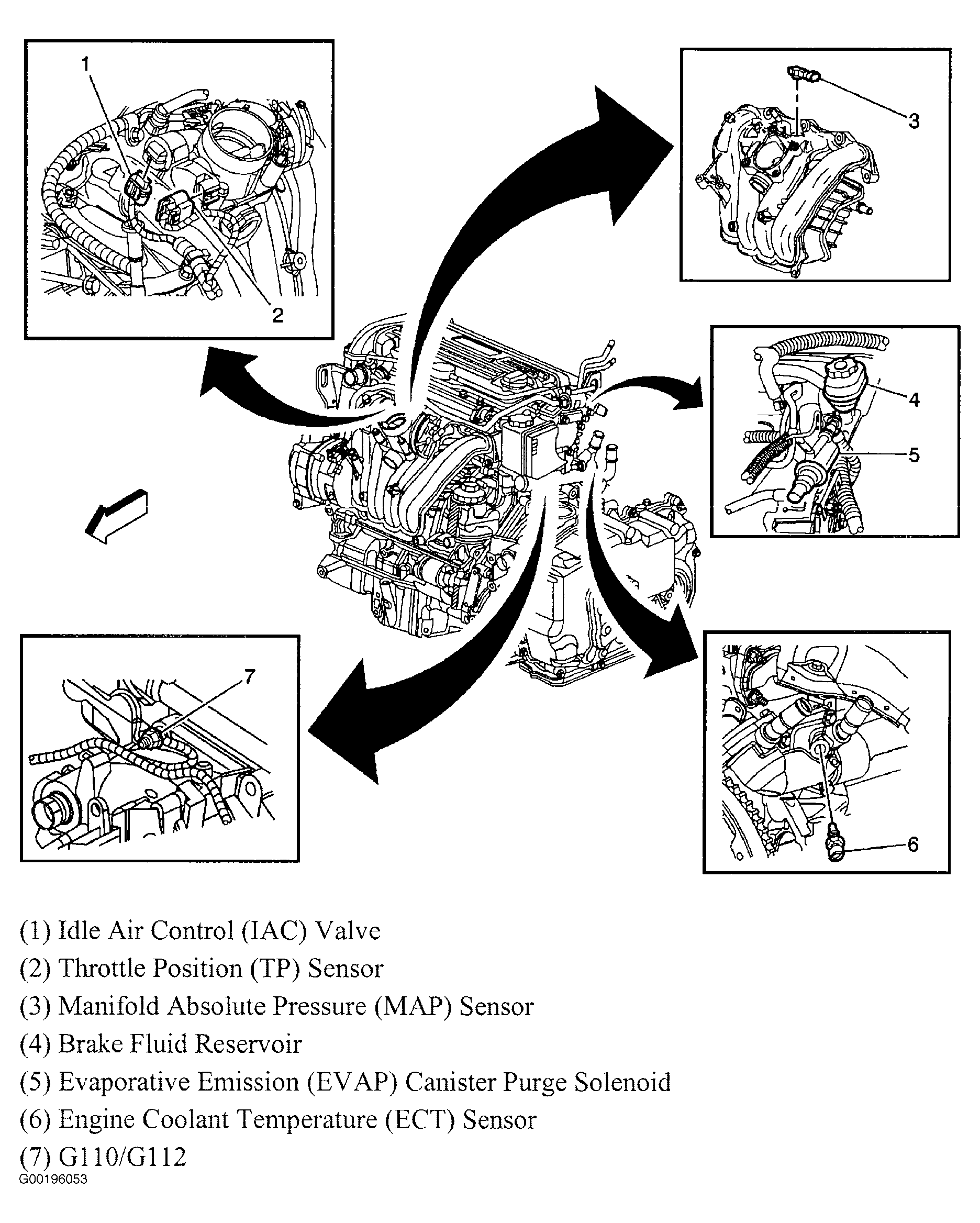

Fig 12: Locating IAC Valve, TP, MAP, ECT Sensors, EVAP Canister Purge Solenoid & Ground Points G110/112 (Cavalier & Sunfire)

G00196053

Courtesy of GENERAL MOTORS CORP.

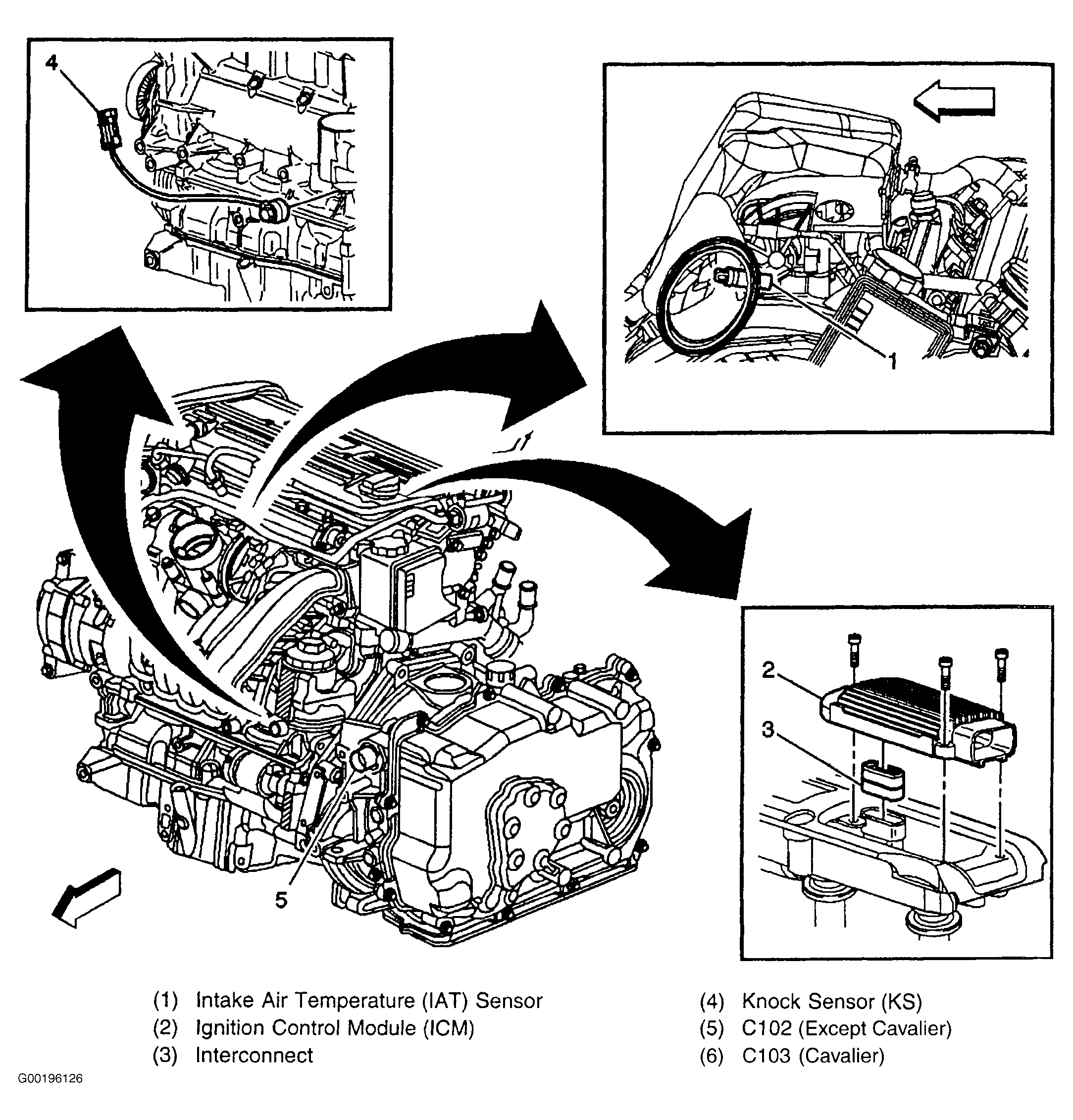

Fig 13: Locating IAT Sensor, ICM, ICM Interconnect, Knock Sensor & Connectors C102 & C103

G00196126

Courtesy of GENERAL MOTORS CORP.

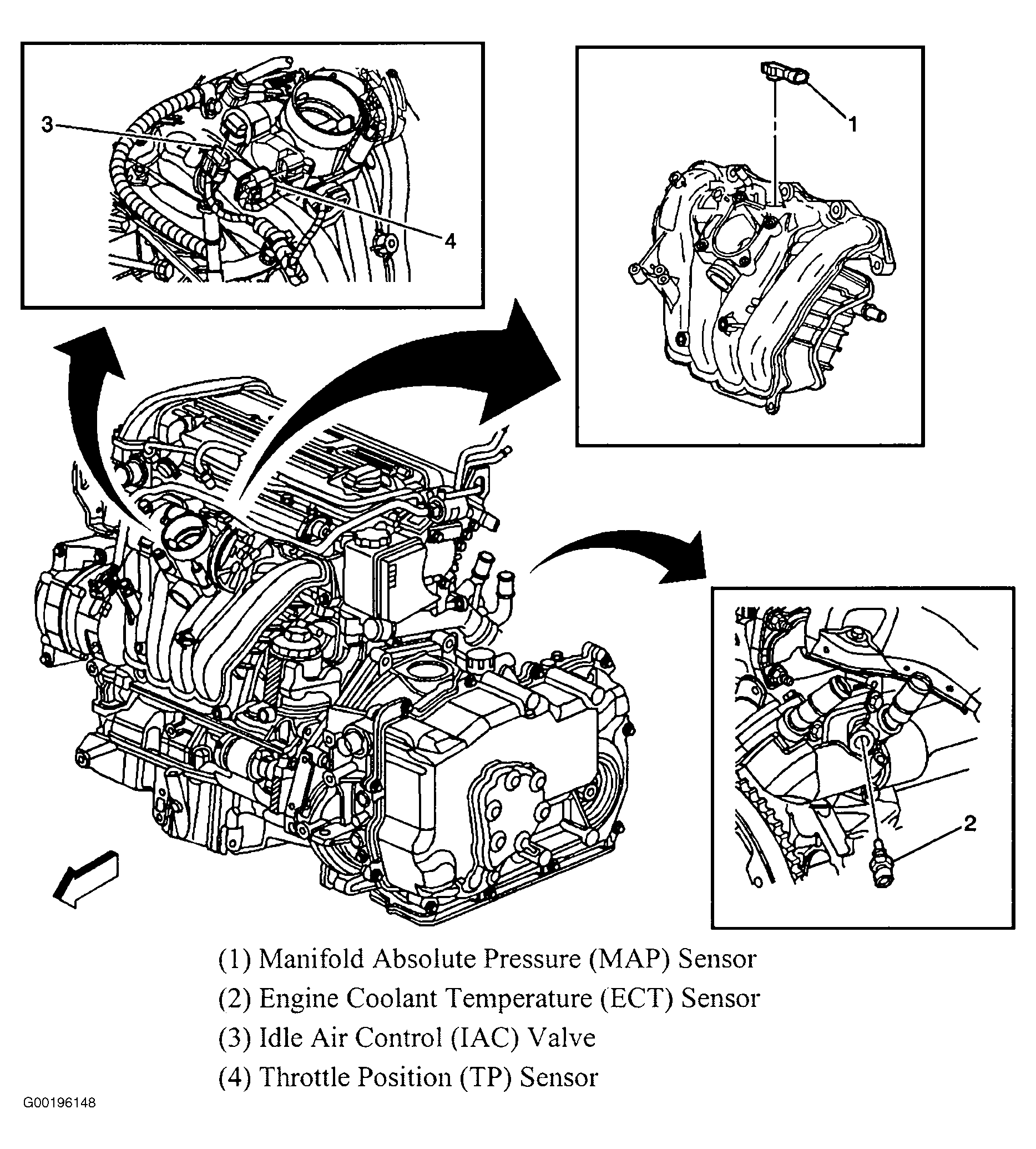

Fig 14: Locating MAP, ECT, TP Sensors & IAC Valve (Alero & Grand Am)

G00196148

Courtesy of GENERAL MOTORS CORP.

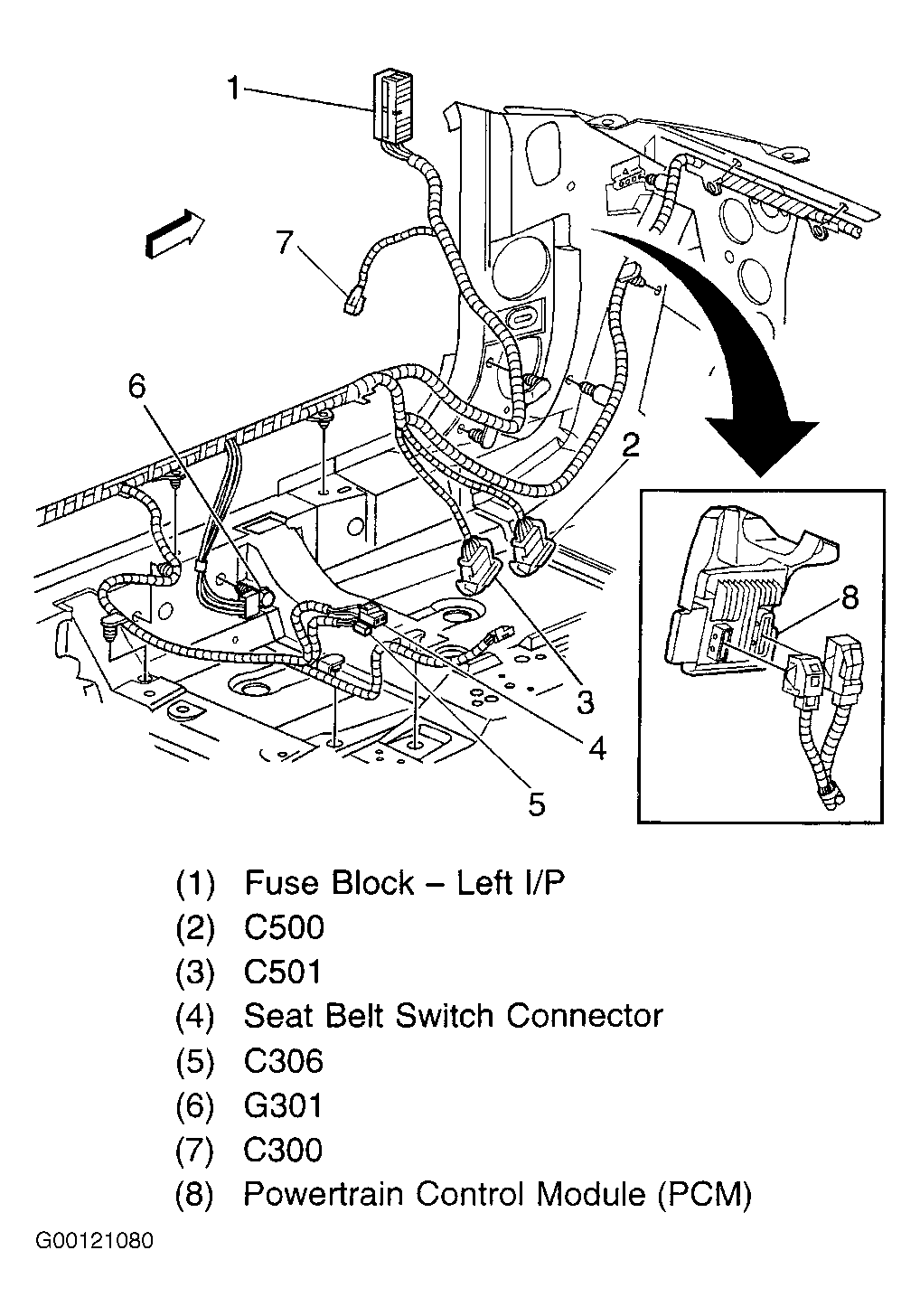

Fig 15: Locating PCM (Alero & Grand Am)

G00121080

Courtesy of GENERAL MOTORS CORP.

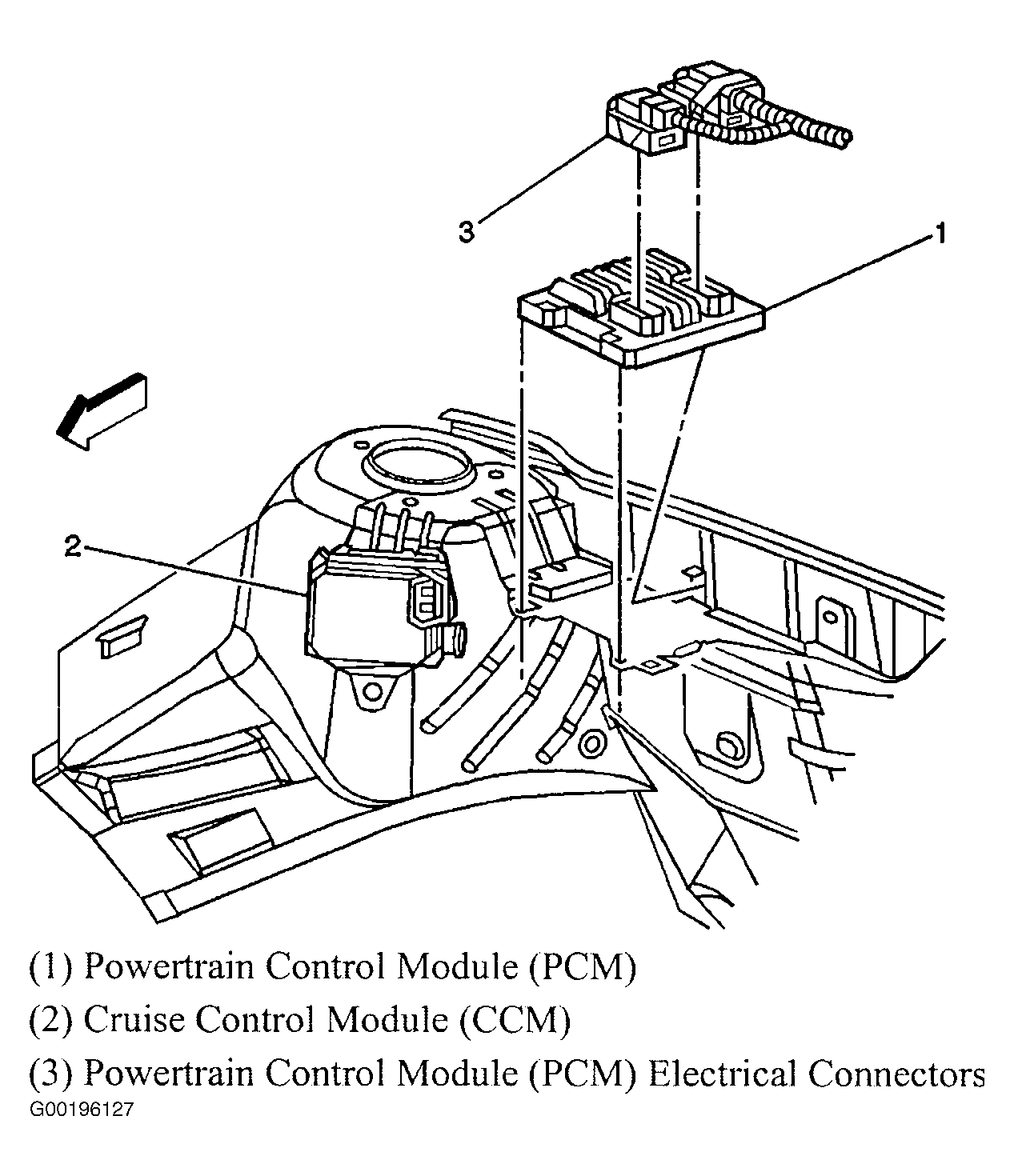

Fig 16: Locating PCM (Cavalier & Sunfire)

G00196127

Courtesy of GENERAL MOTORS CORP.

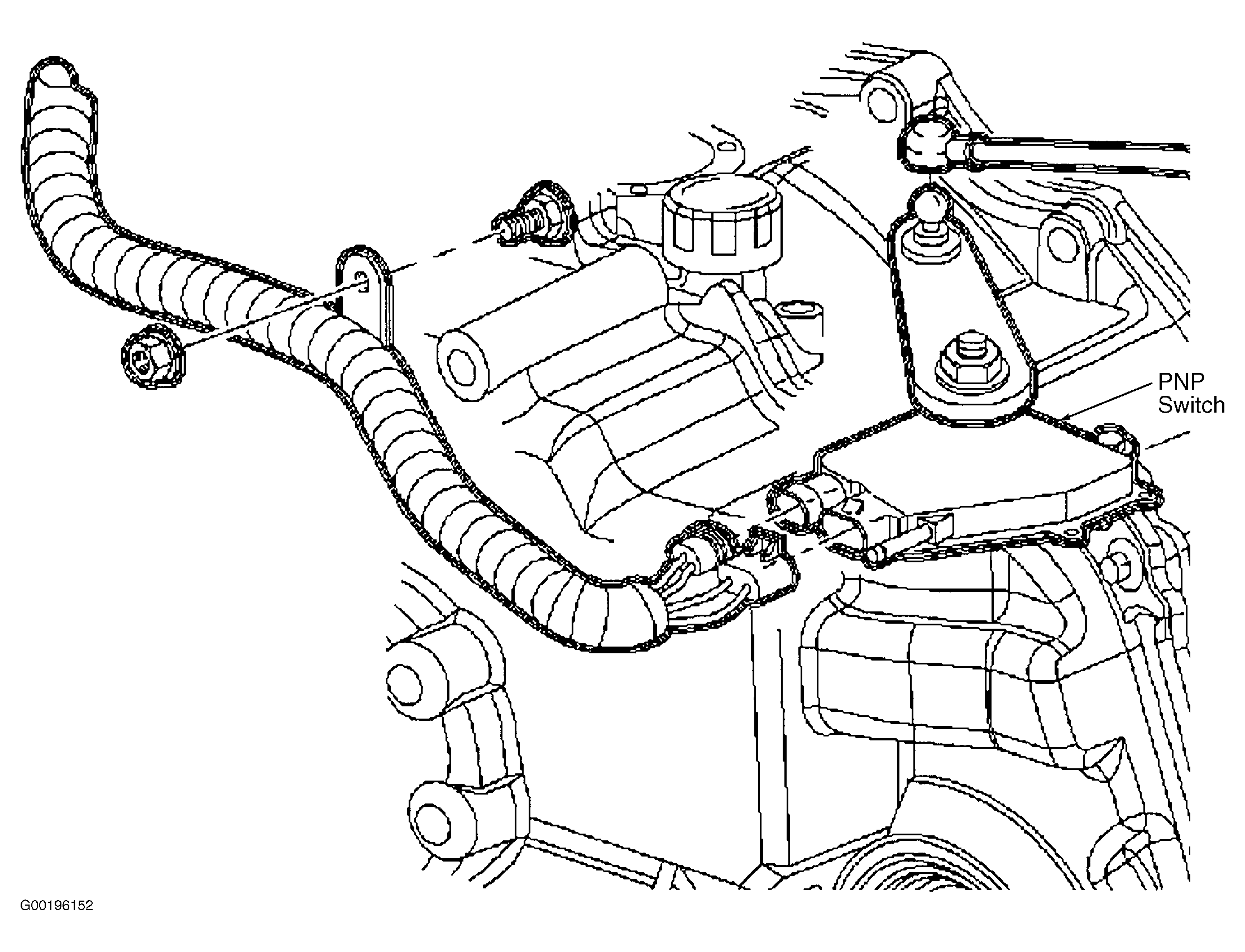

Fig 17: Locating PNP Switch (Alero & Grand AM)

G00196152

Courtesy of GENERAL MOTORS CORP.

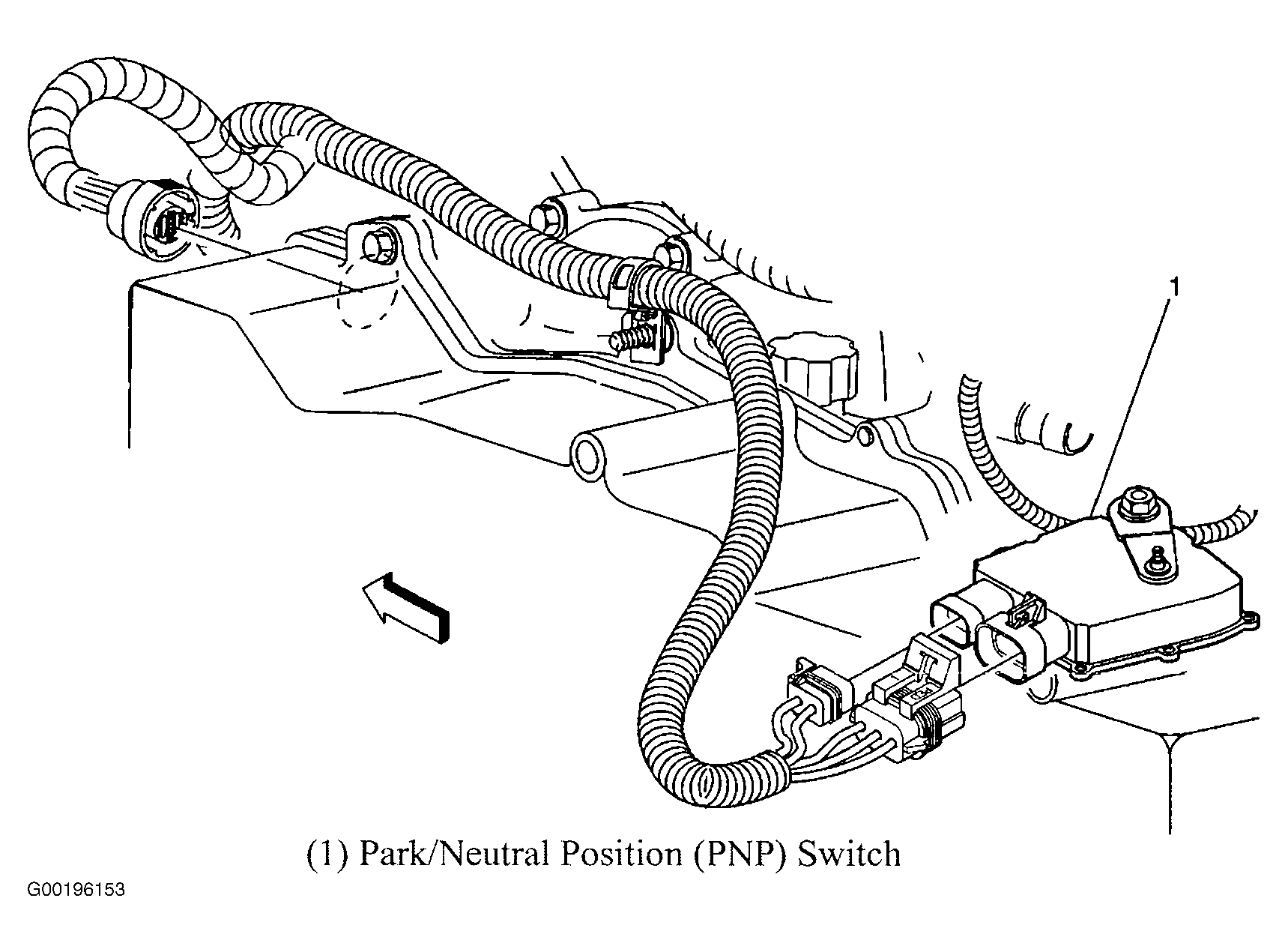

Fig 18: Locating PNP Switch (Cavalier & Sunfire)

G00196153

Courtesy of GENERAL MOTORS CORP.

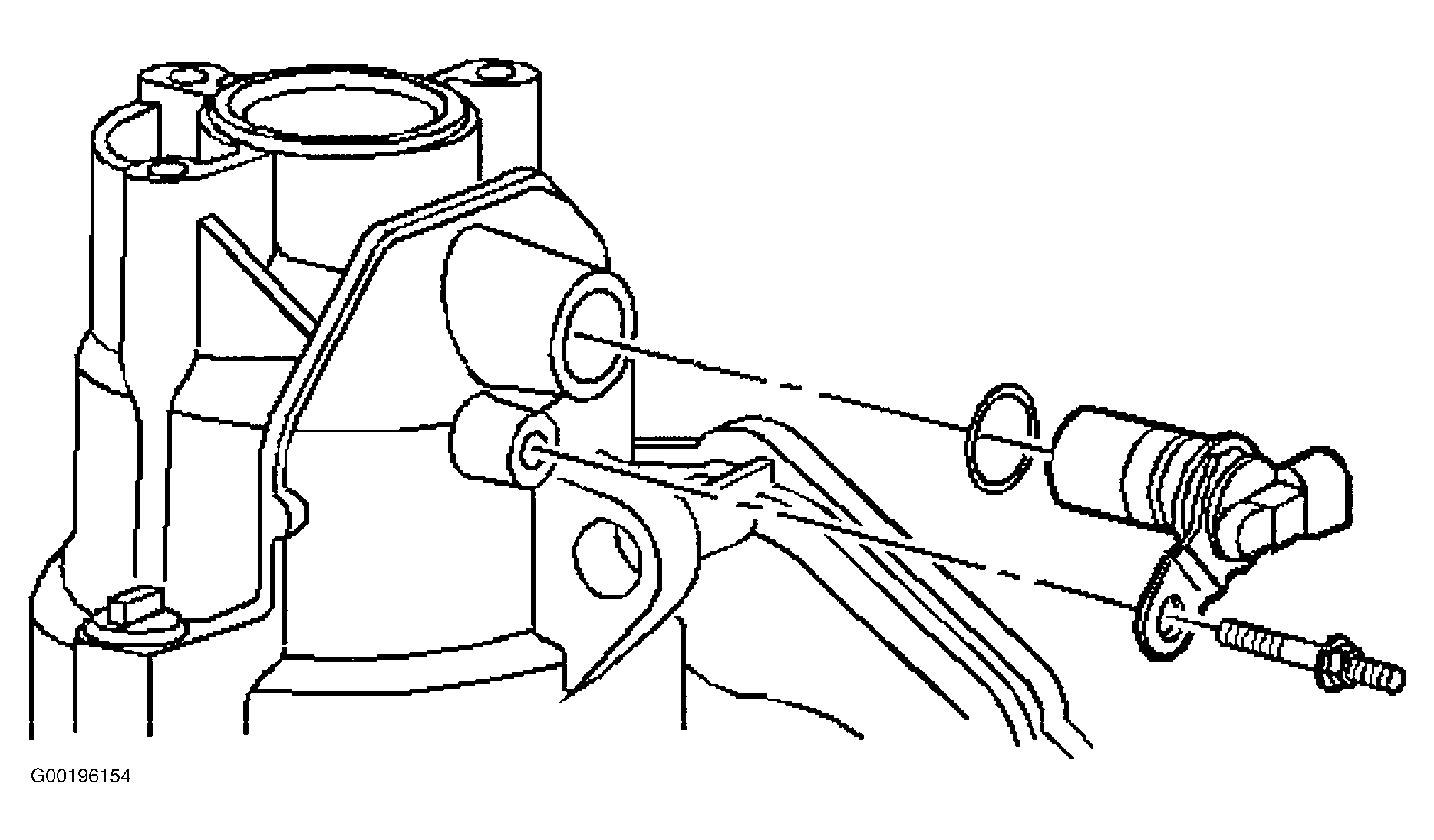

Fig 19: Locating VSS (A/T)

G00196154

Courtesy of GENERAL MOTORS CORP.

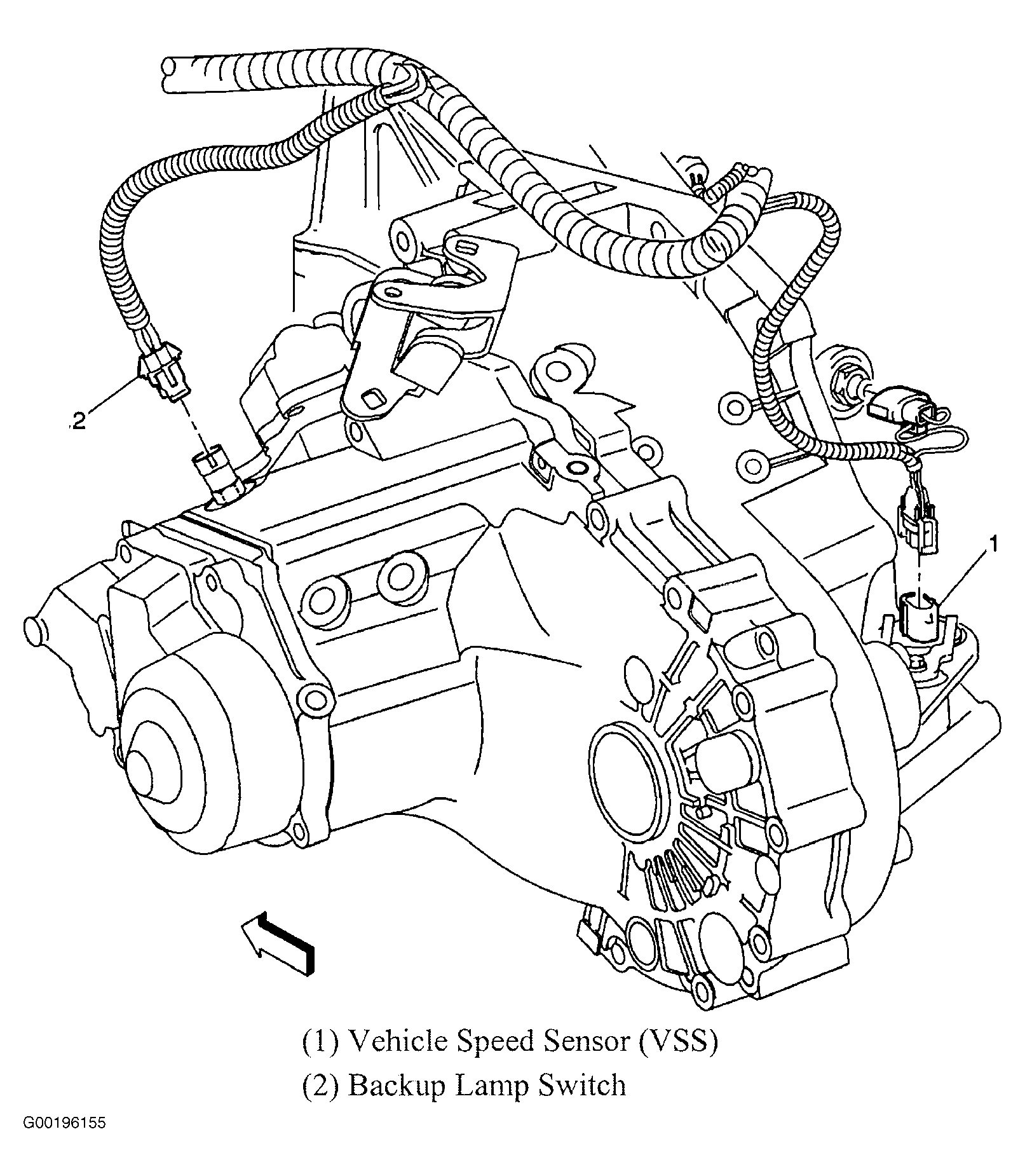

Fig 20: Locating VSS (M/T)

G00196155

Courtesy of GENERAL MOTORS CORP.
