Connector Identification

NOTE: For CNG related connector identification, see SELF-DIAGNOSTICS - 2.2L CAVALIER - BI-FUEL - CNG/GASOLINE article.

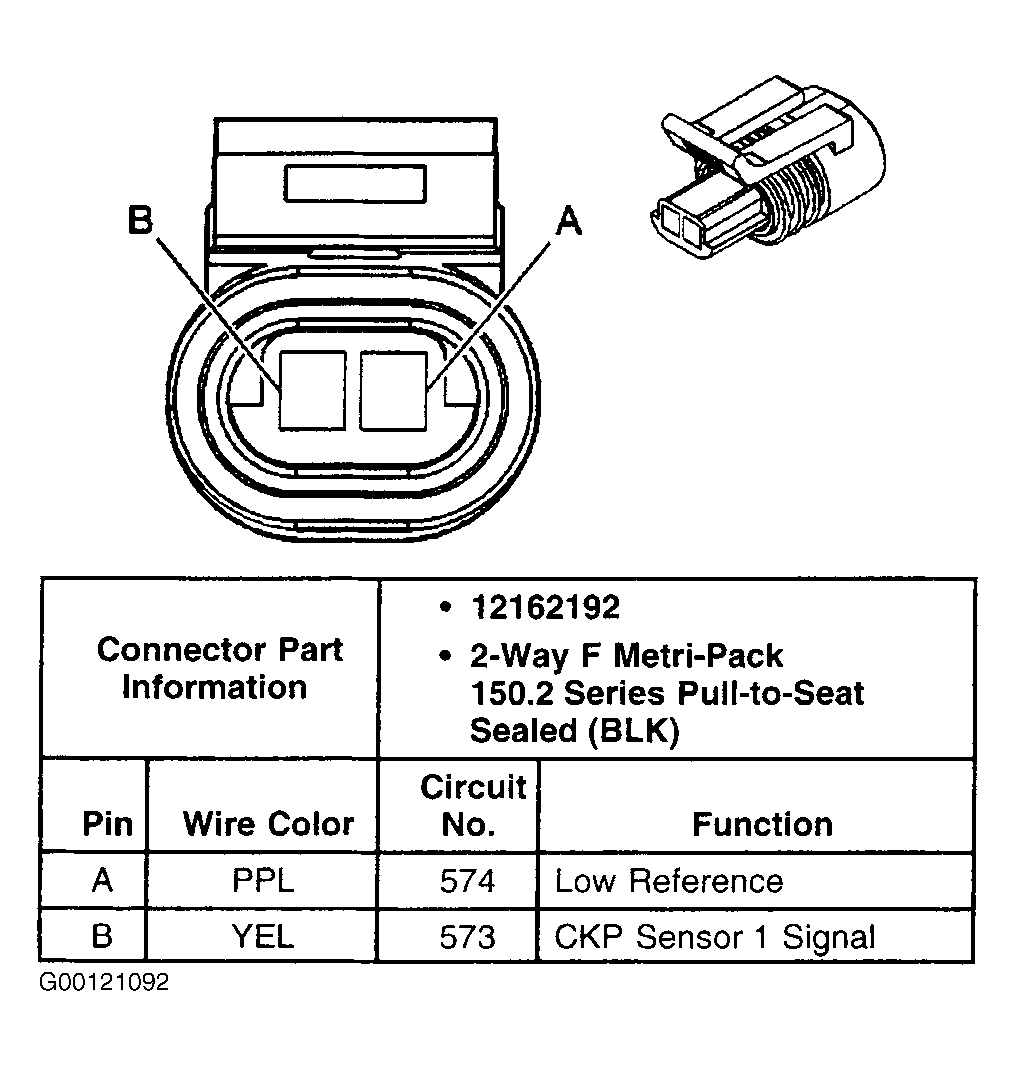

Fig 1: Identifying Crankshaft Position Sensor Harness Connector Terminals
G00121092Courtesy of GENERAL MOTORS CORP.

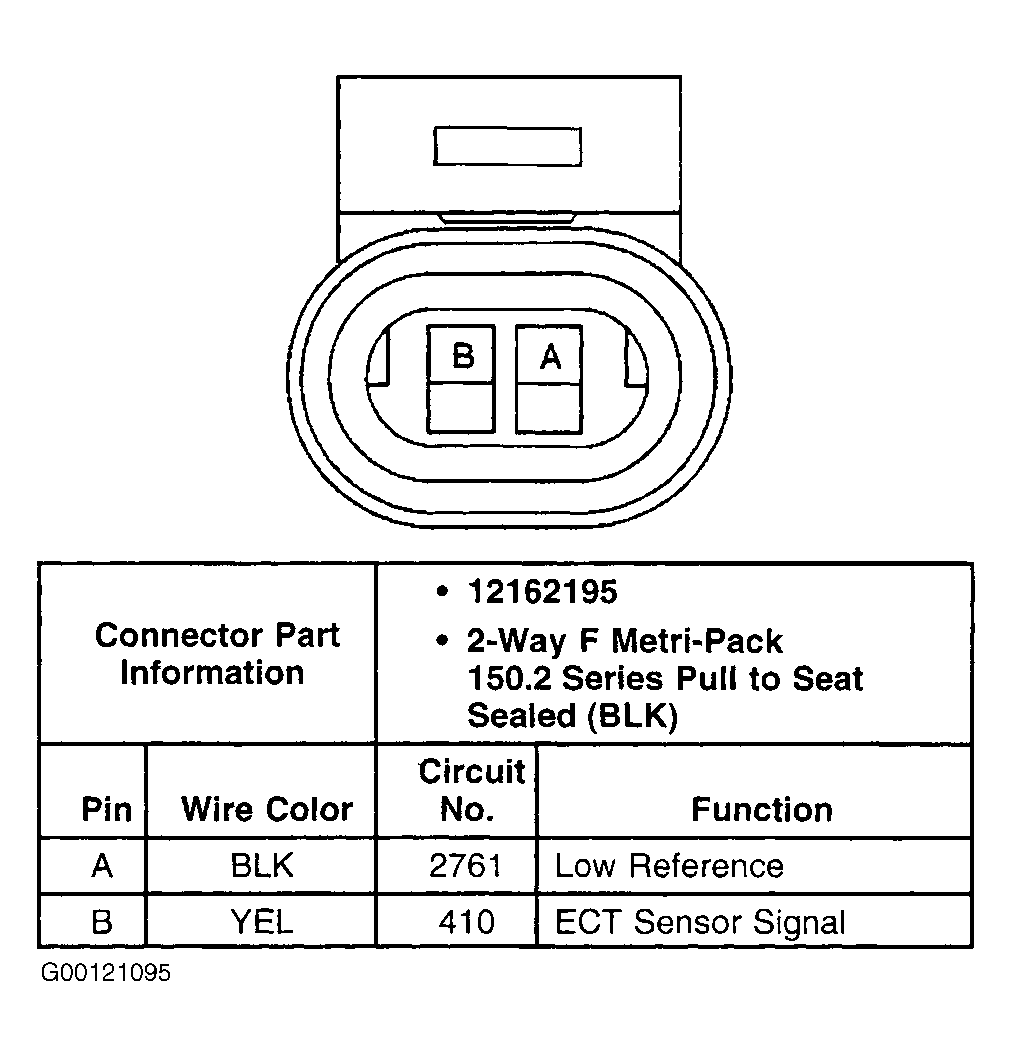

Fig 2: Identifying ECT Sensor Harness Connector Terminals (Cavalier)
G00121095Courtesy of GENERAL MOTORS CORP.

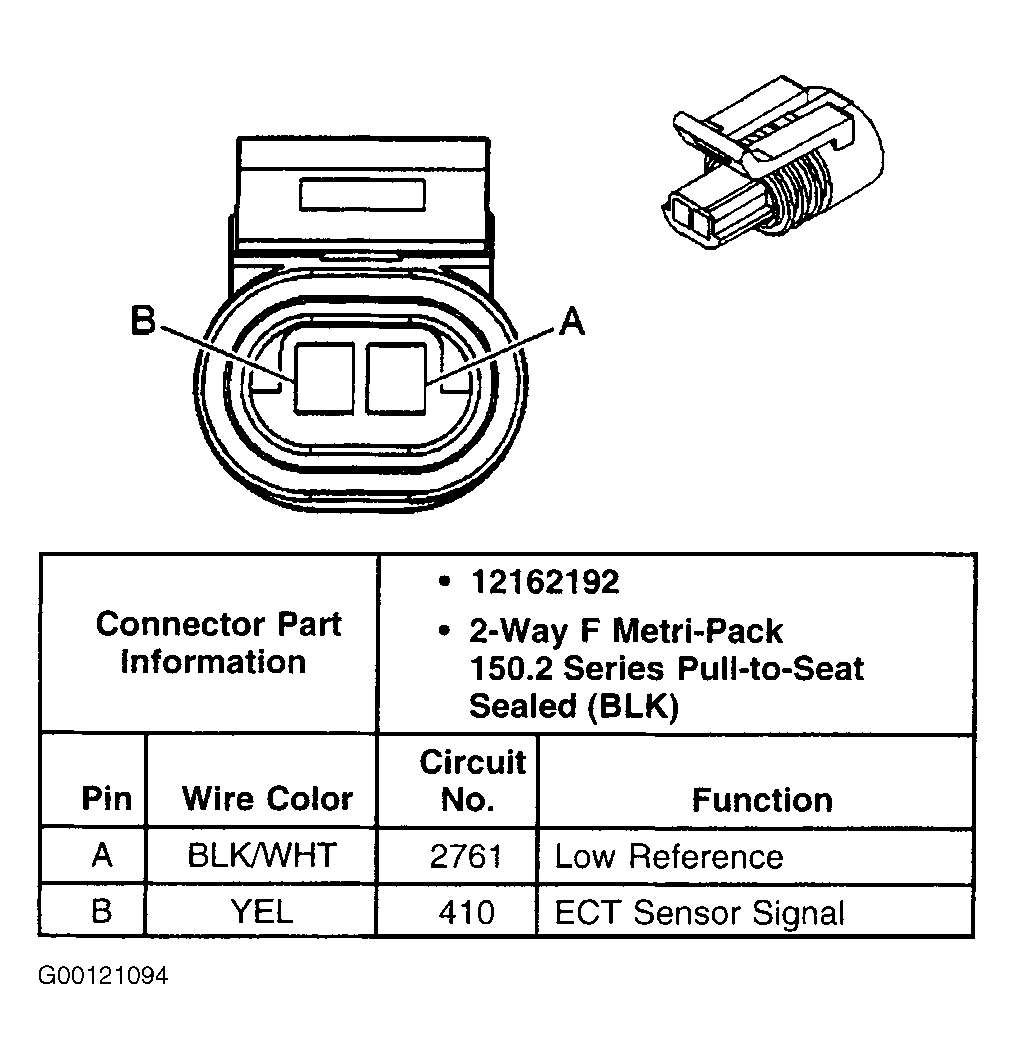

Fig 3: Identifying ECT Sensor Harness Connector Terminals (Except Cavalier)
G00121094Courtesy of GENERAL MOTORS CORP.

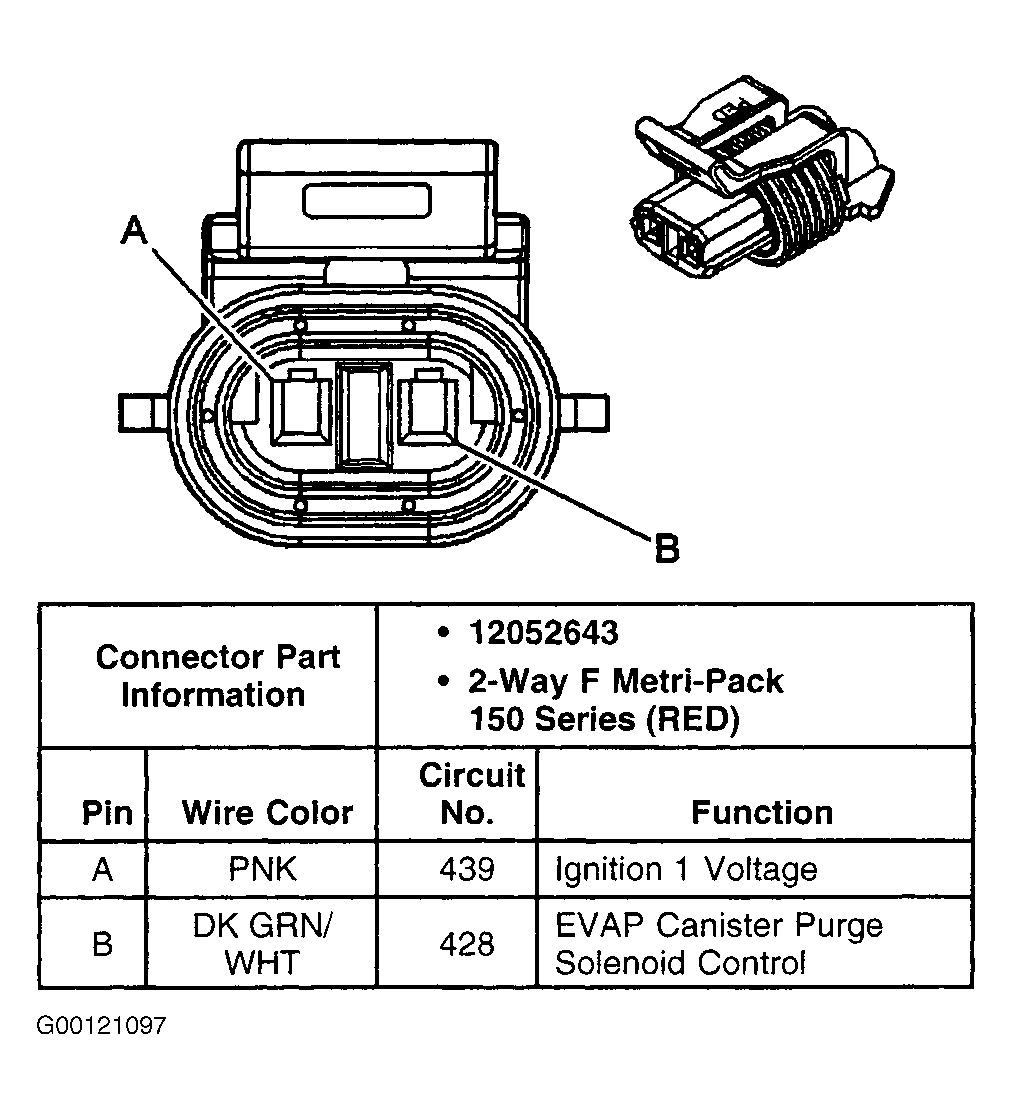

Fig 4: Identifying EVAP Canister Purge Solenoid Harness Connector Terminals (Cavalier)
G00121097Courtesy of GENERAL MOTORS CORP.

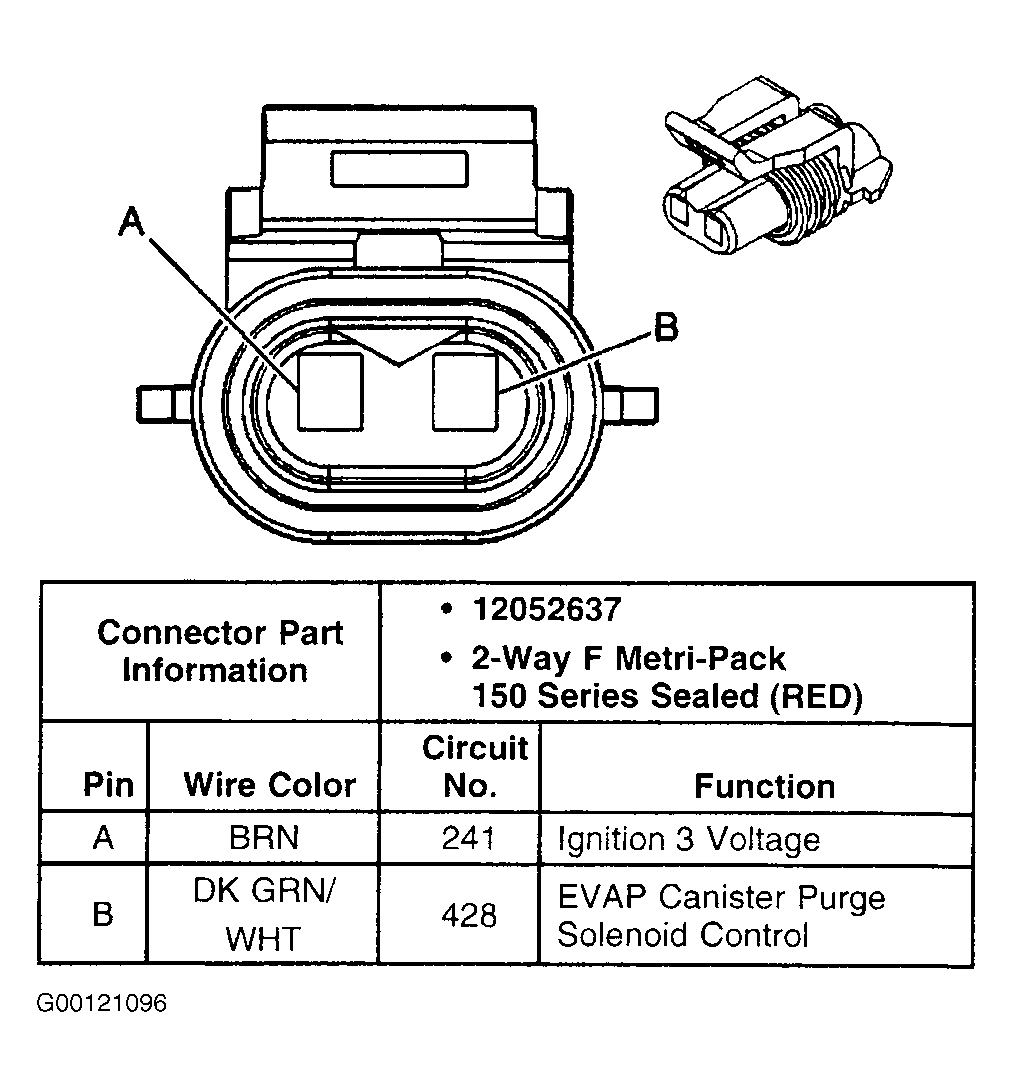

Fig 5: Identifying EVAP Canister Purge Solenoid Harness Connector Terminals (Except Cavalier)
G00121096Courtesy of GENERAL MOTORS CORP.

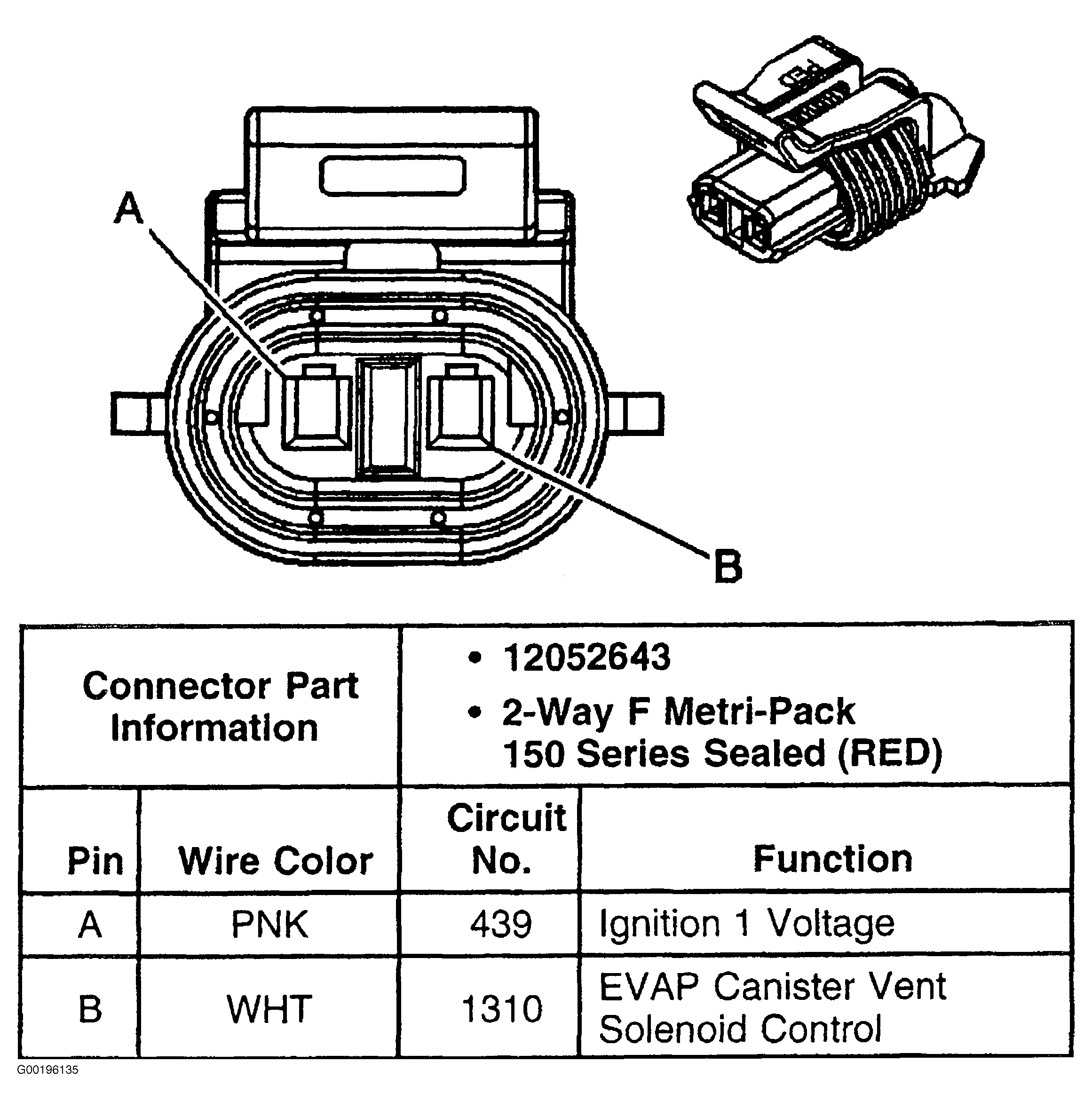

Fig 6: Identifying EVAP Canister Vent Solenoid Harness Connector Terminals (Cavalier)
G00196135Courtesy of GENERAL MOTORS CORP.

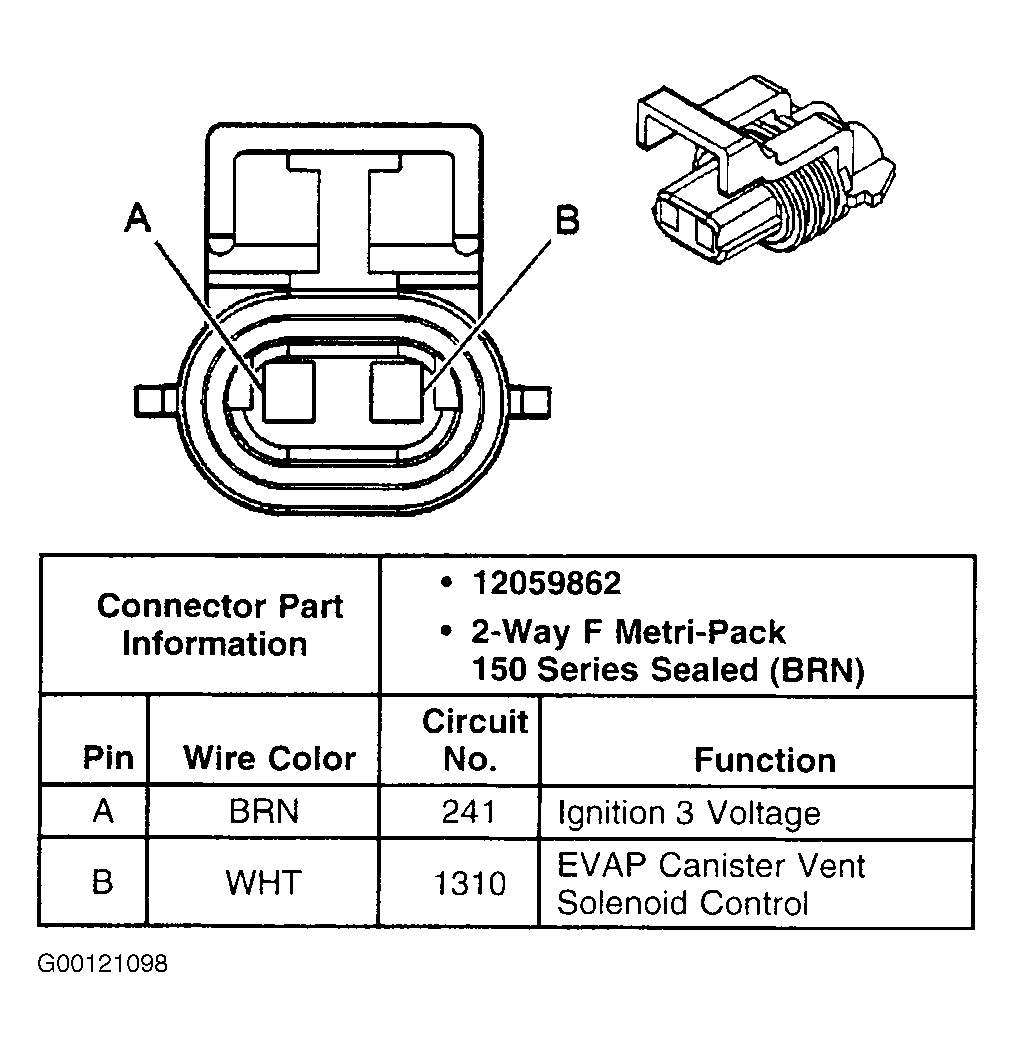

Fig 7: Identifying EVAP Canister Vent Solenoid Harness Connector Terminals (Except Cavalier)
G00121098Courtesy of GENERAL MOTORS CORP.
Fig 8: Identifying Fuel Injector No. 1 Harness Connector Terminals
G00196136Courtesy of GENERAL MOTORS CORP.

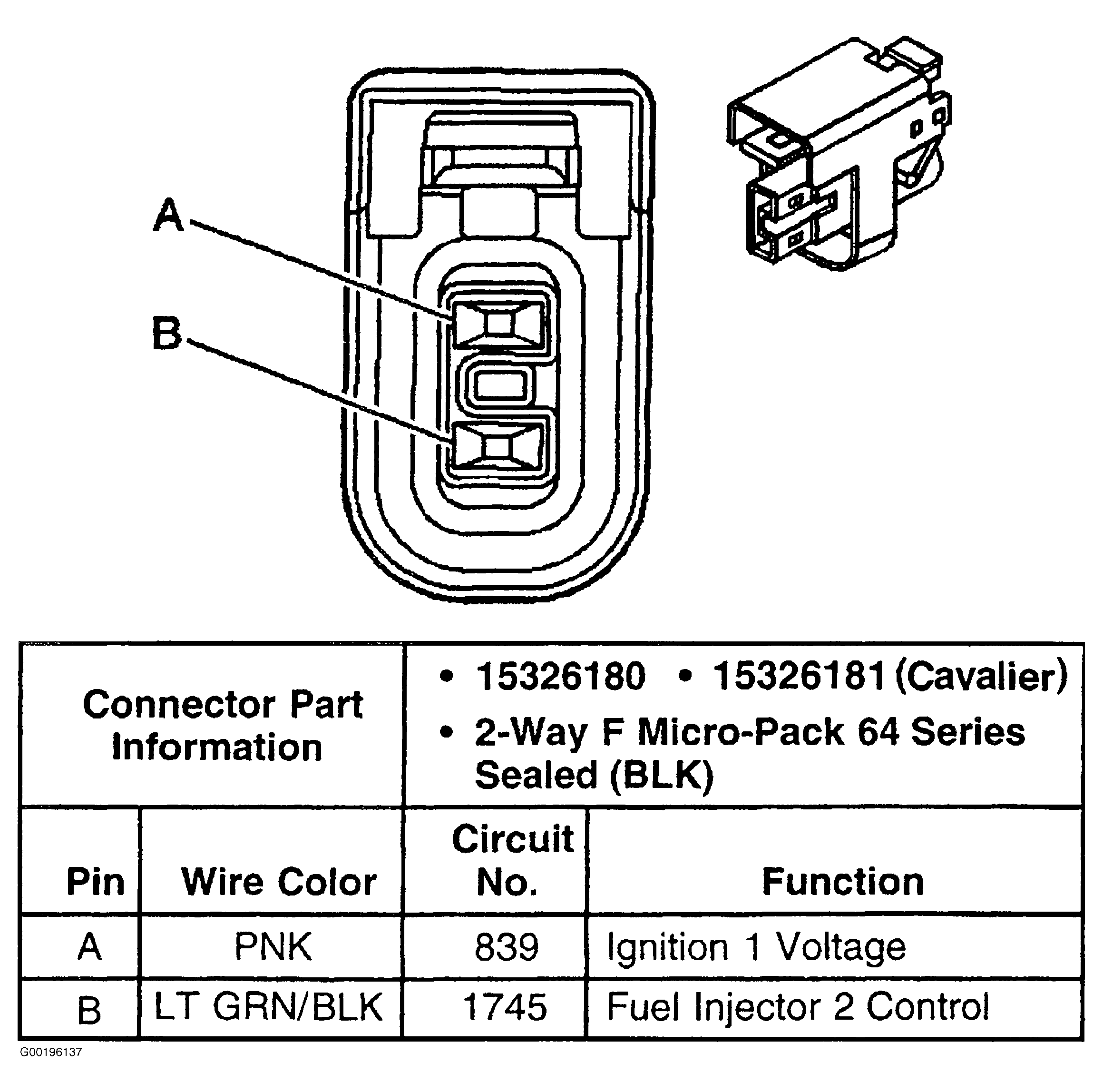

Fig 9: Identifying Fuel Injector No. 2 Harness Connector Terminals
G00196137Courtesy of GENERAL MOTORS CORP.
Fig 10: Identifying Fuel Injector No. 3 Harness Connector Terminals
G00196138Courtesy of GENERAL MOTORS CORP.
Fig 11: Identifying Fuel Injector No. 4 Harness Connector Terminals
G00196139Courtesy of GENERAL MOTORS CORP.

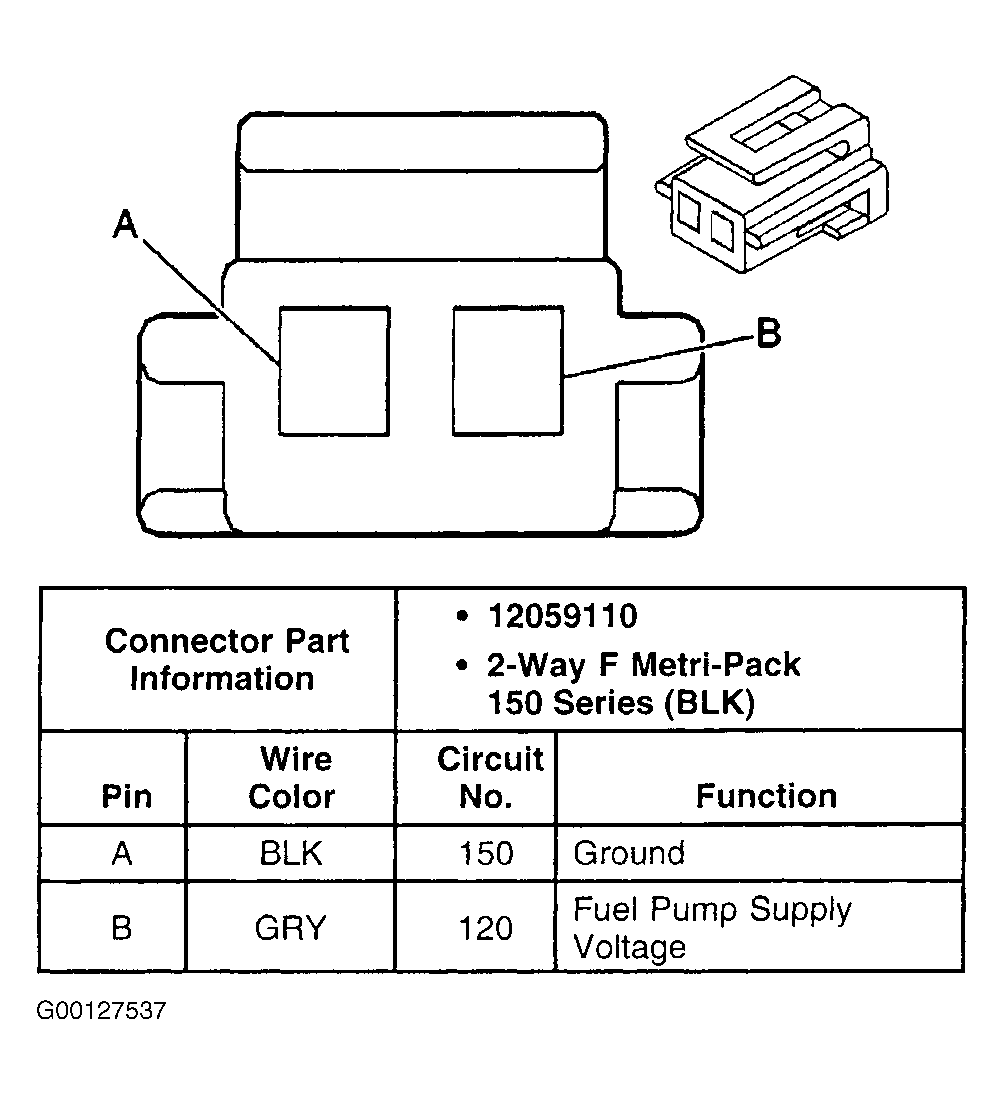

Fig 12: Identifying Fuel Pump & Sender Assembly Harness Connector Terminals (Alero & Grand Am)
G00127537Courtesy of GENERAL MOTORS CORP.

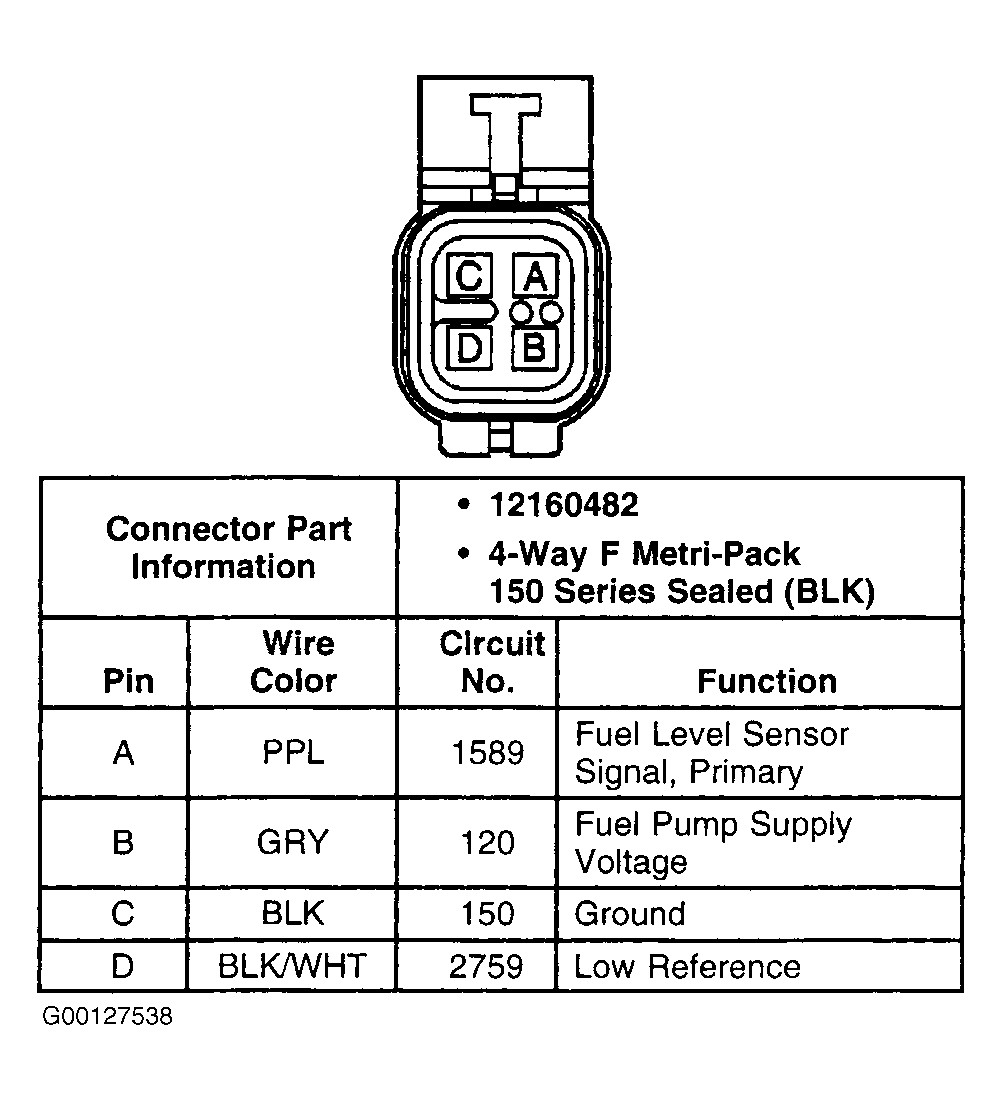

Fig 13: Identifying Fuel Pump & Sender Assembly Harness Connector Terminals (Cavalier & Sunfire)
G00127538Courtesy of GENERAL MOTORS CORP.

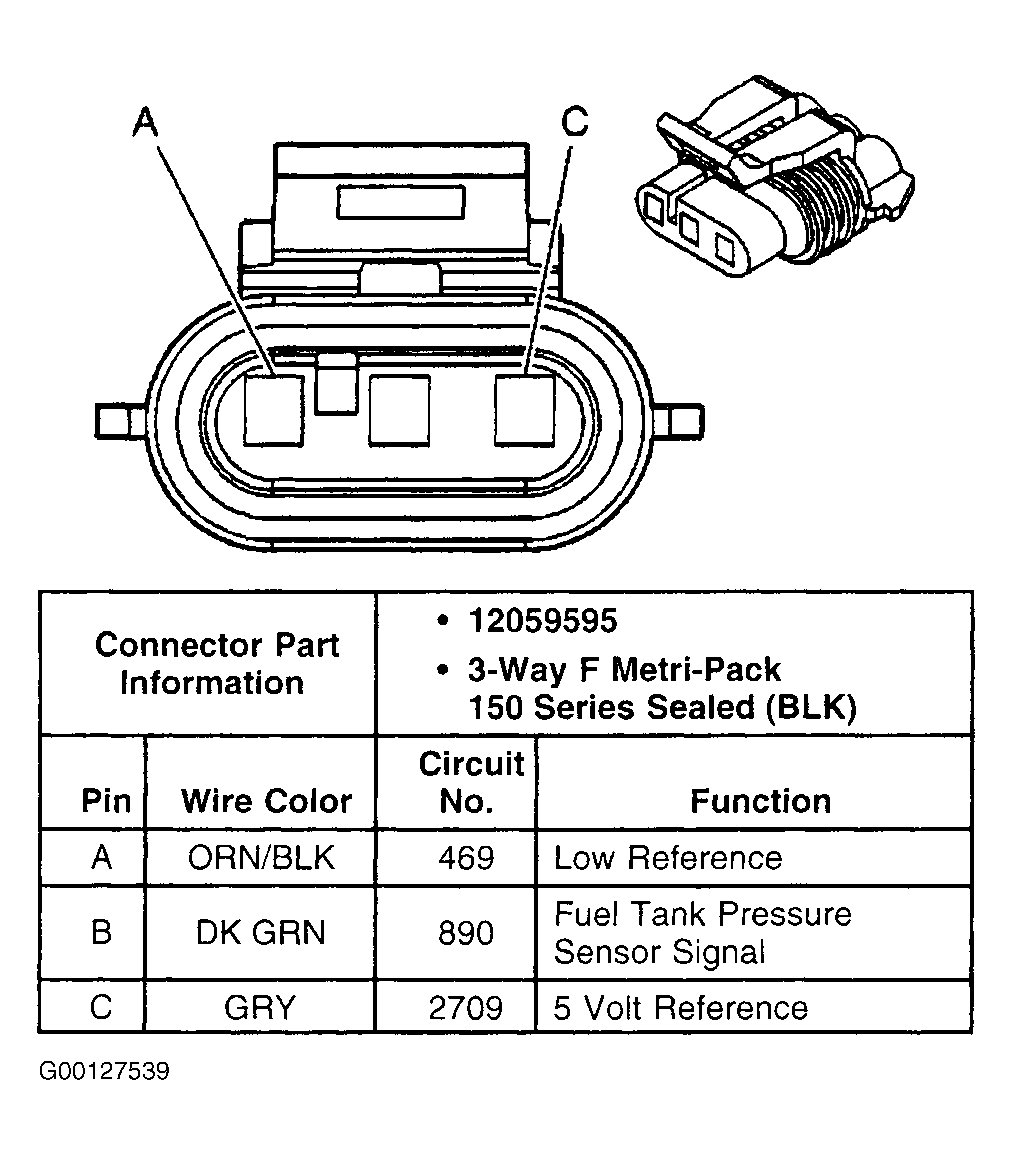

Fig 14: Identifying Fuel Tank Pressure Sensor Harness Connector Terminals (Alero & Grand Am)
G00127539Courtesy of GENERAL MOTORS CORP.

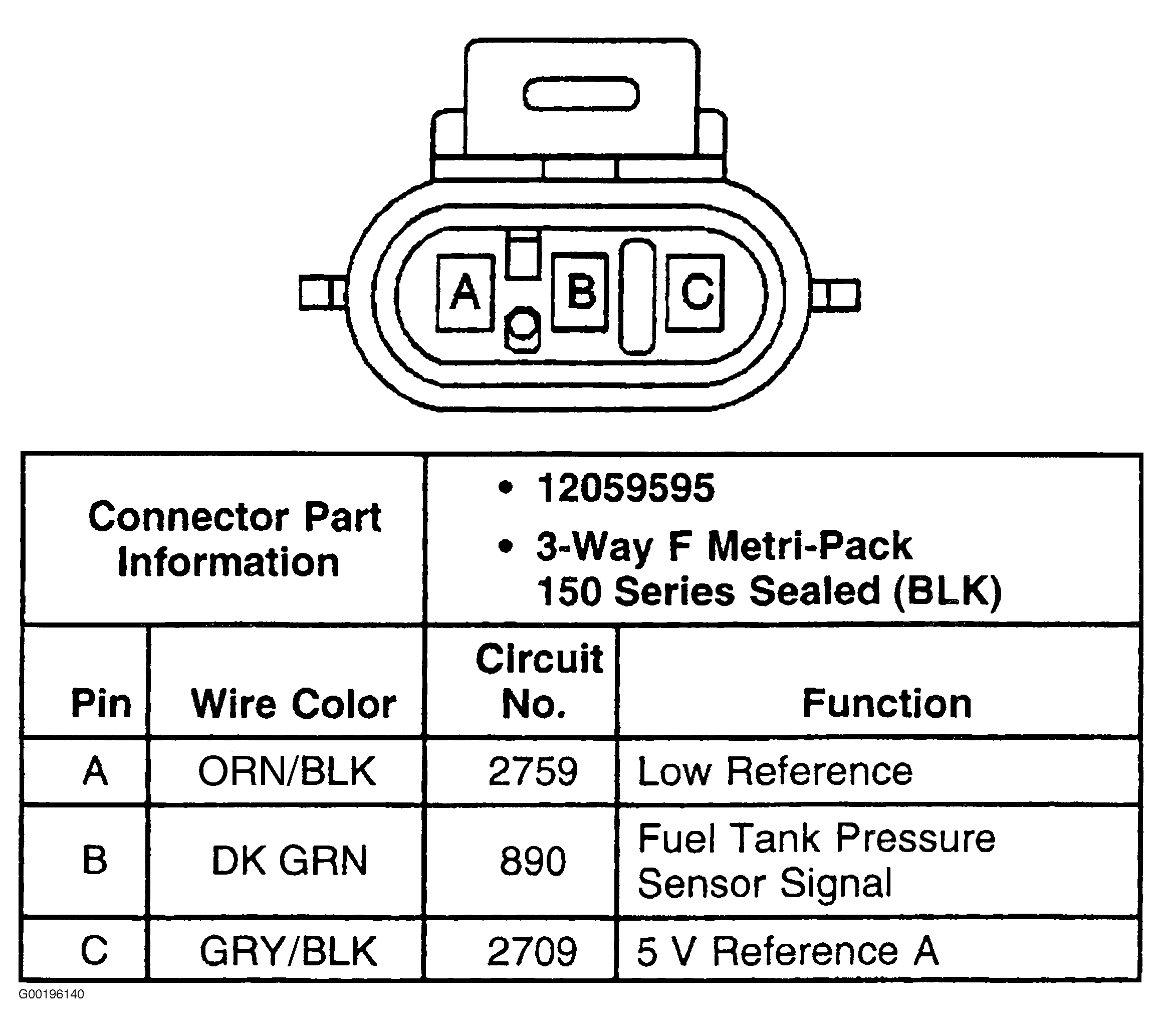

Fig 15: Identifying Fuel Tank Pressure Sensor Harness Connector Terminals (Cavalier & Sunfire)
G00196140Courtesy of GENERAL MOTORS CORP.

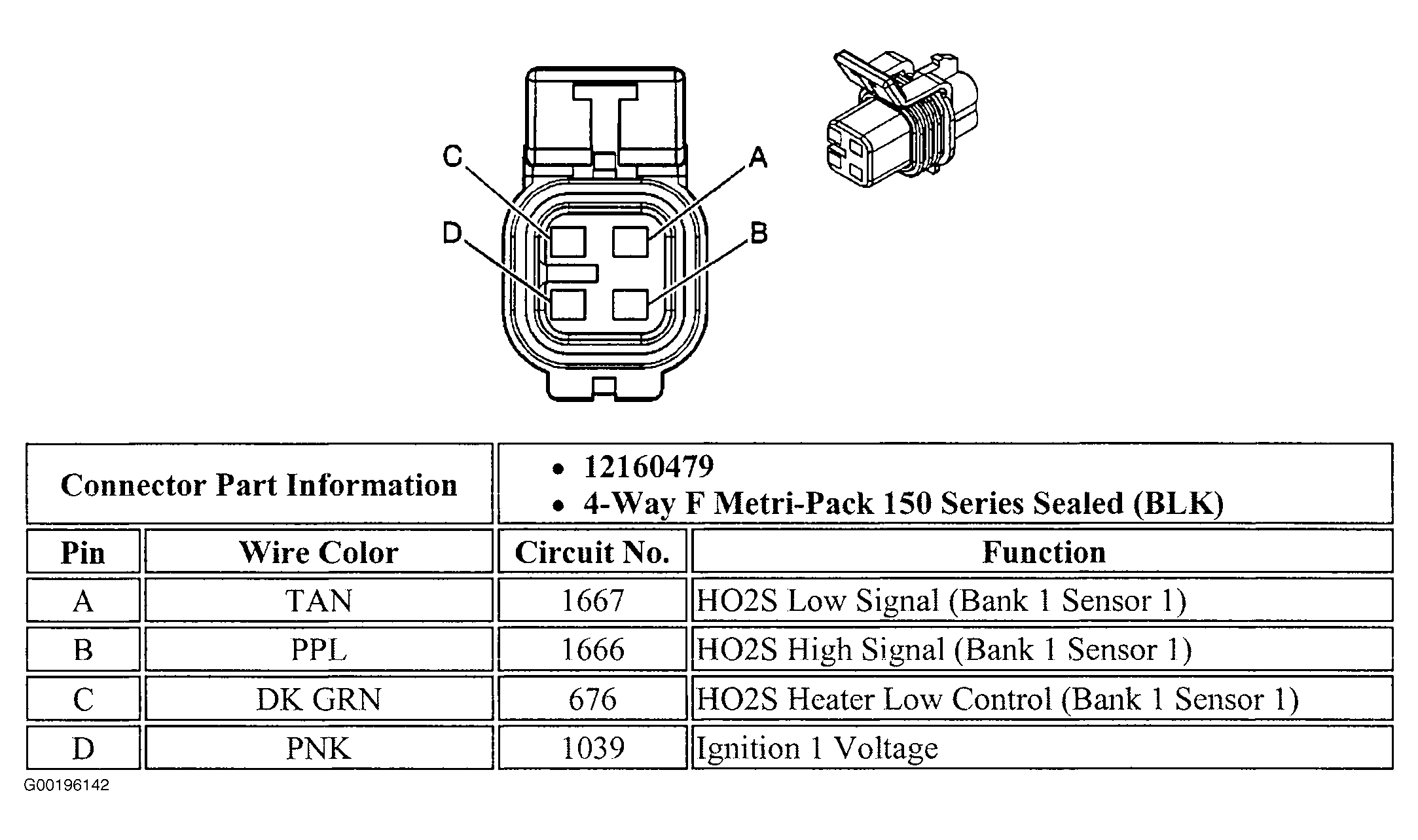

Fig 16: Identifying HO2S 1 Harness Connector Terminals (Alero & Grand Am)
G00196142Courtesy of GENERAL MOTORS CORP.

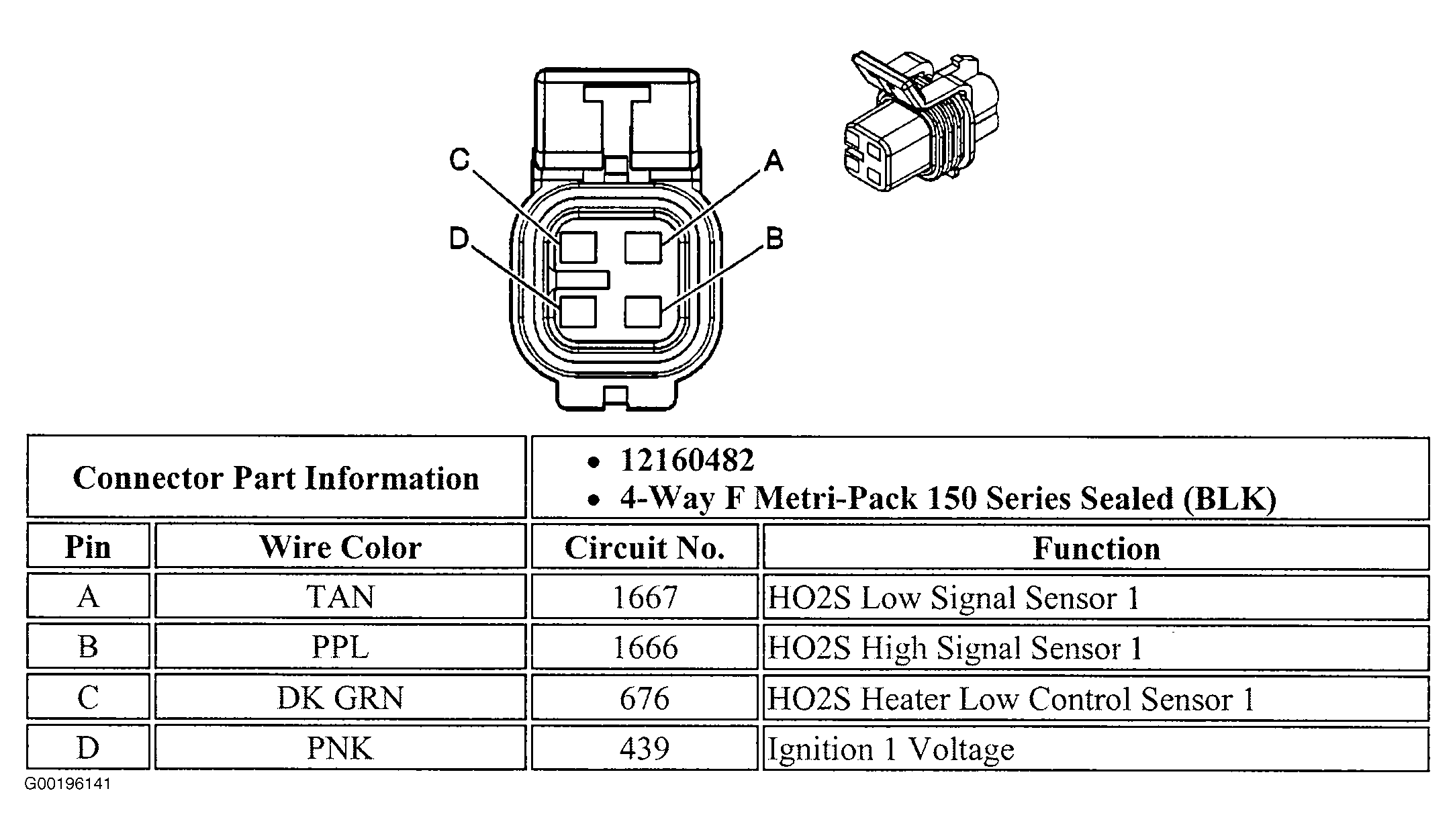

Fig 17: Identifying HO2S 1 Harness Connector Terminals (Cavalier & Sunfire)
G00196141Courtesy of GENERAL MOTORS CORP.

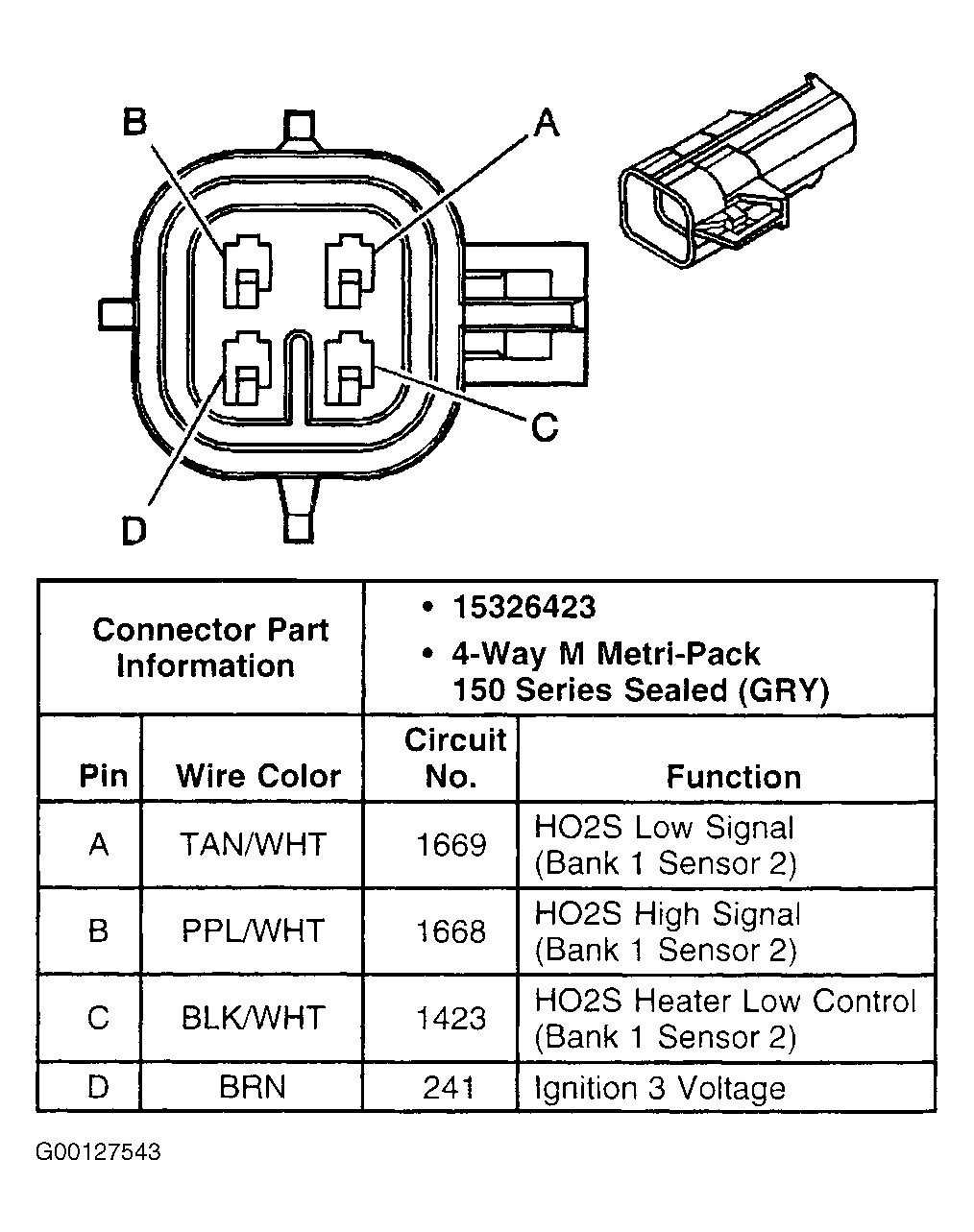

Fig 18: Identifying HO2S 2 Harness Connector Terminals (Alero & Grand Am)
G00127543Courtesy of GENERAL MOTORS CORP.

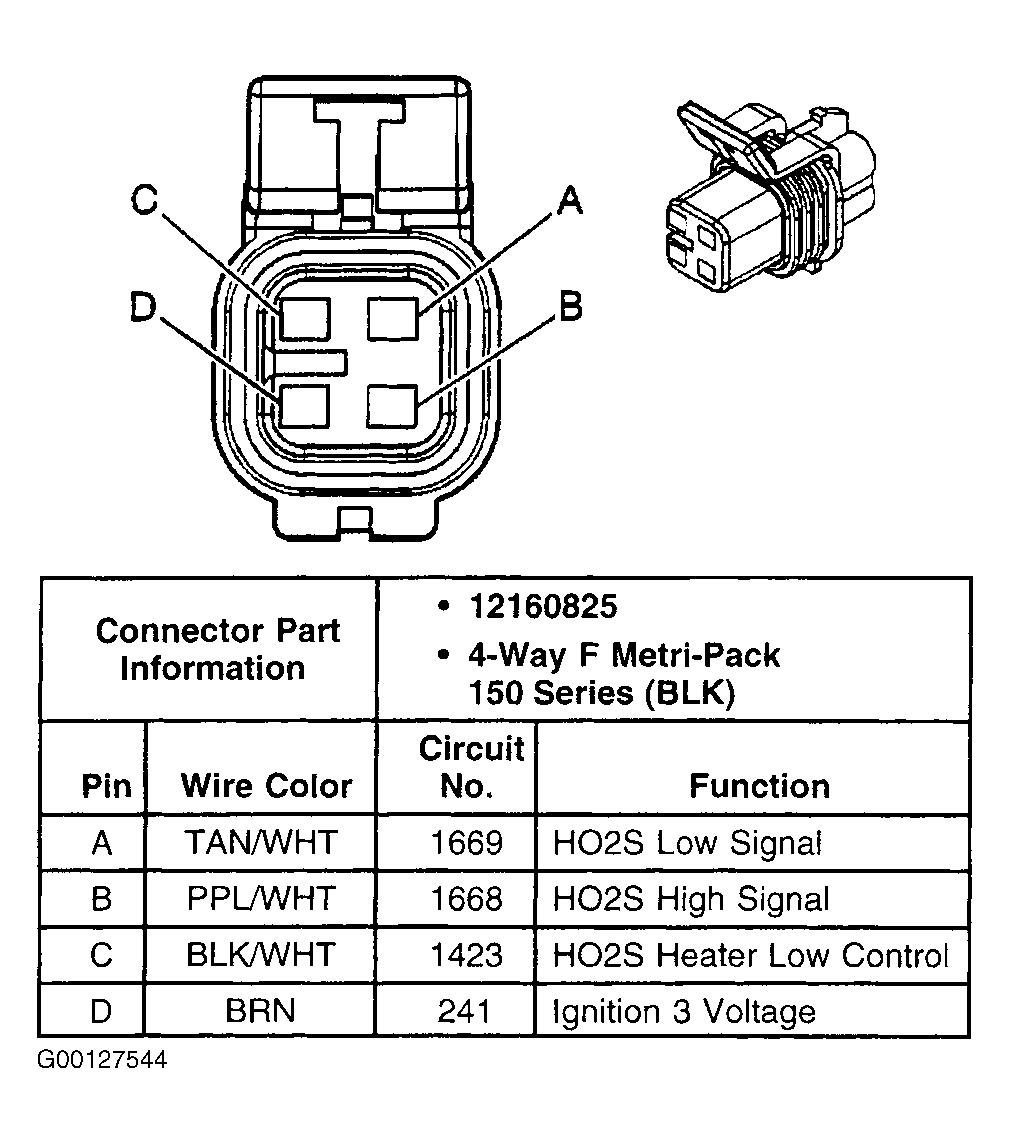

Fig 19: Identifying HO2S 2 Harness Connector Terminals (Cavalier & Sunfire)
G00127544Courtesy of GENERAL MOTORS CORP.

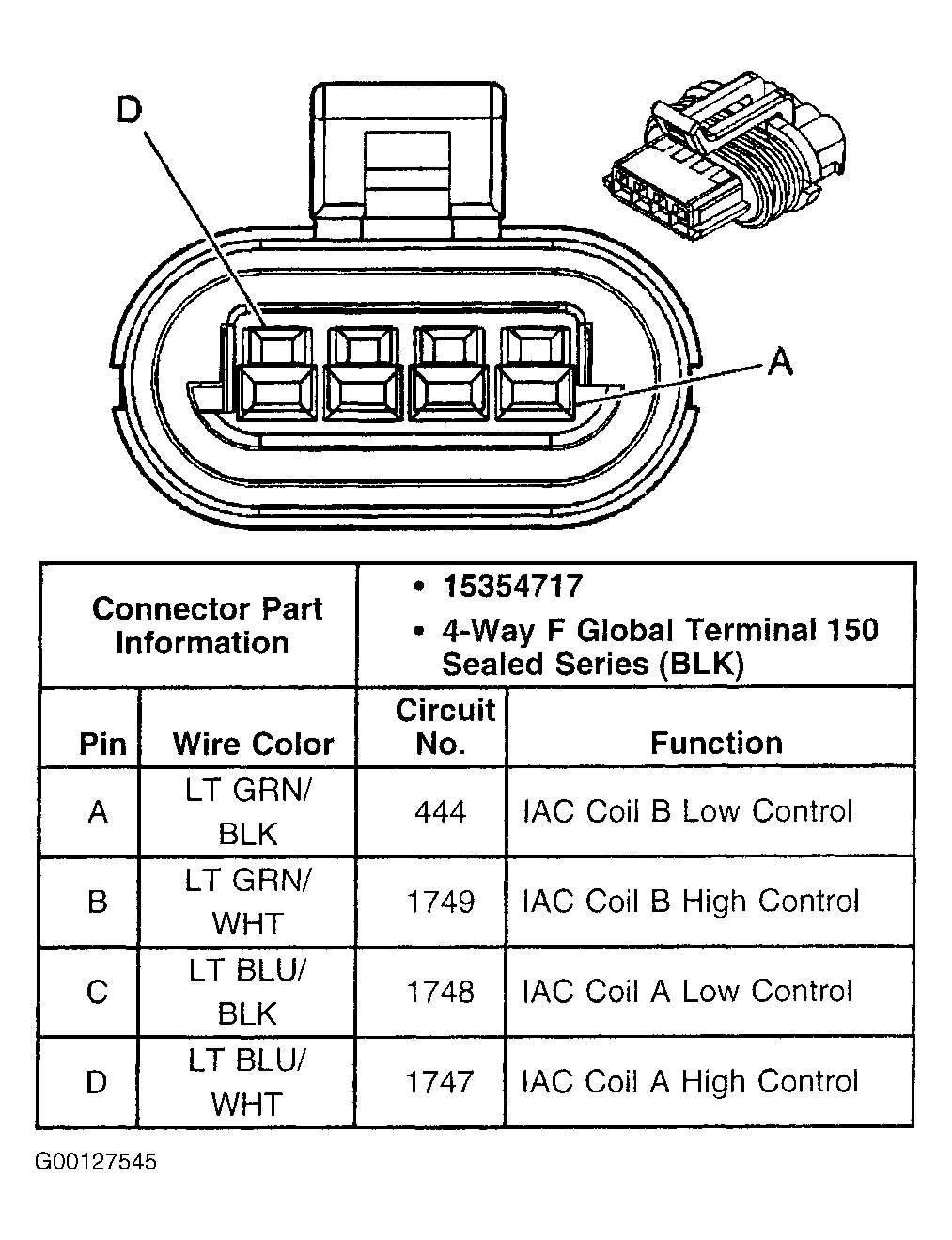

Fig 20: Identifying IAC Valve Harness Connector Terminals (Alero & Grand Am)
G00127545Courtesy of GENERAL MOTORS CORP.

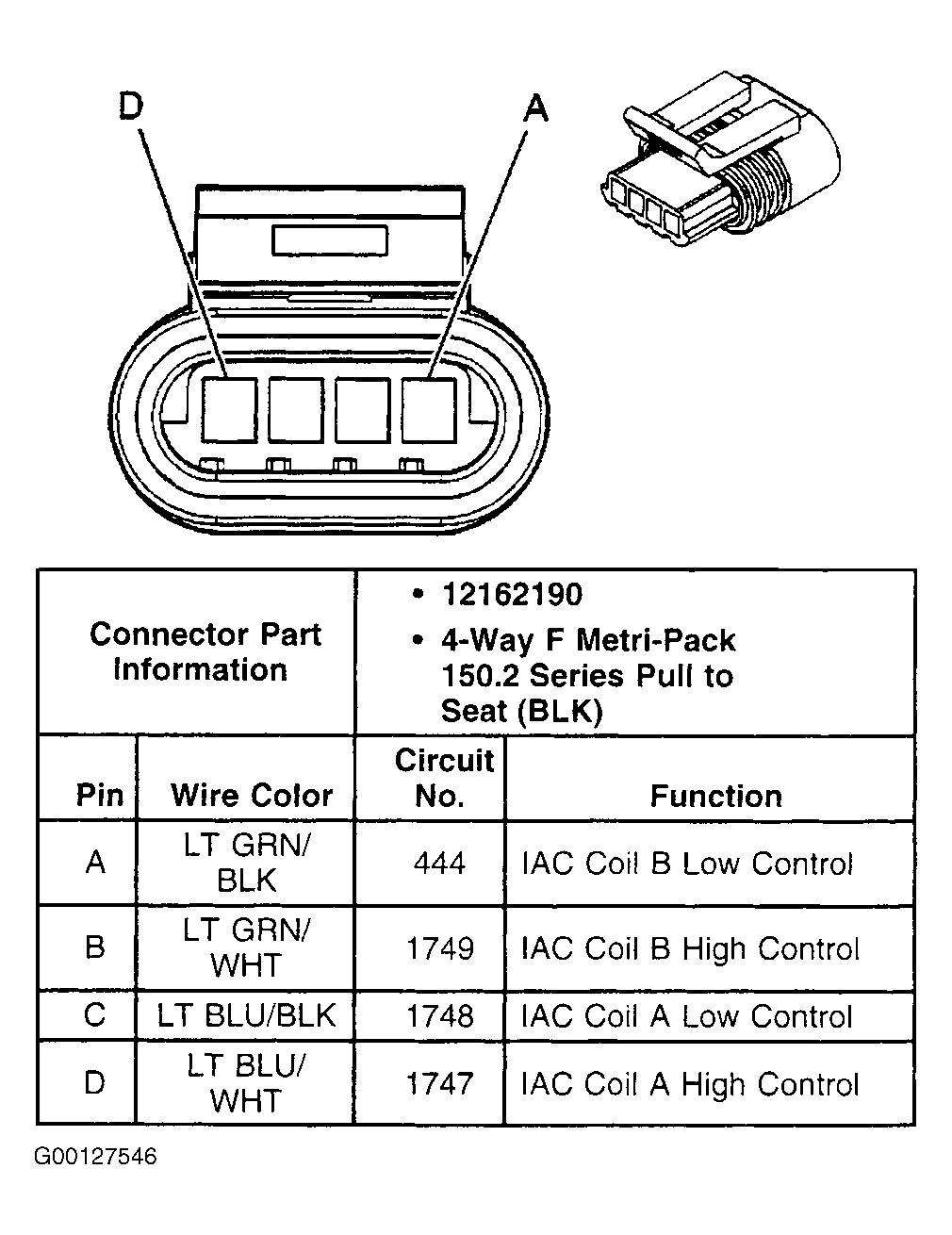

Fig 21: Identifying IAC Valve Harness Connector Terminals (Cavalier & Sunfire)
G00127546Courtesy of GENERAL MOTORS CORP.

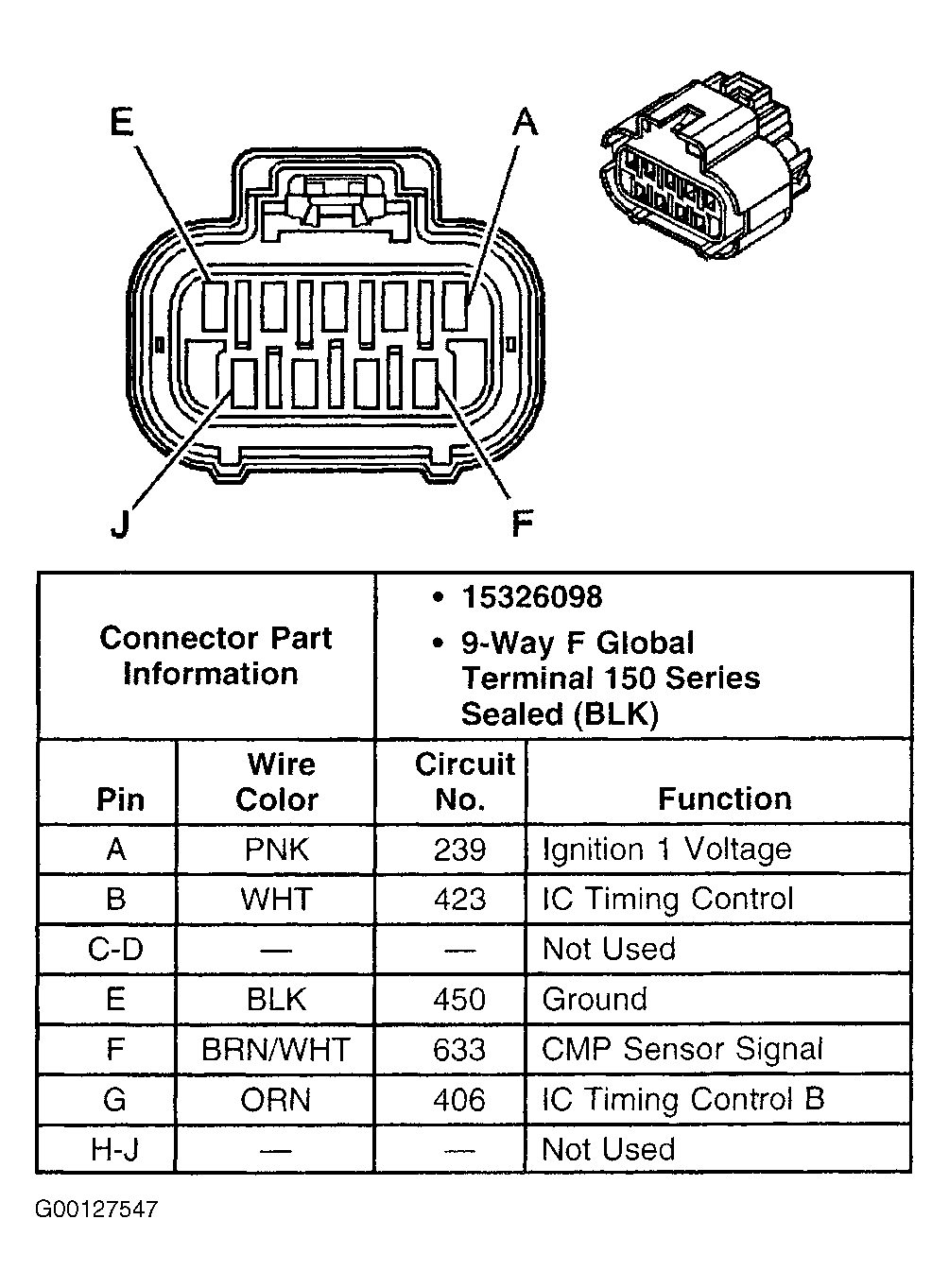

Fig 22: Identifying Ignition Control Module Harness Connector Terminals (Alero & Grand Am)
G00127547Courtesy of GENERAL MOTORS CORP.

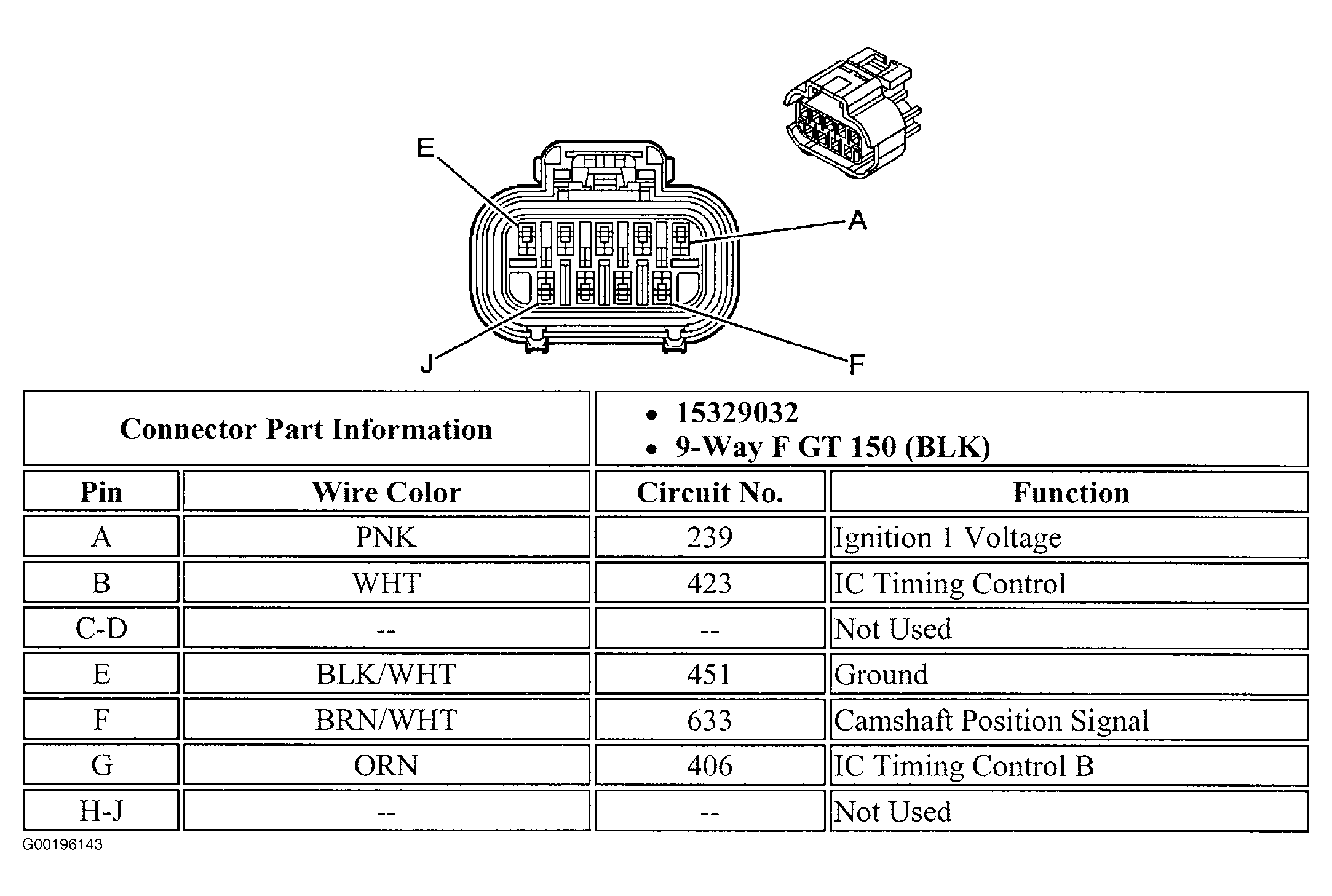

Fig 23: Identifying Ignition Control Module Harness Connector Terminals (Cavalier & Sunfire)
G00196143Courtesy of GENERAL MOTORS CORP.

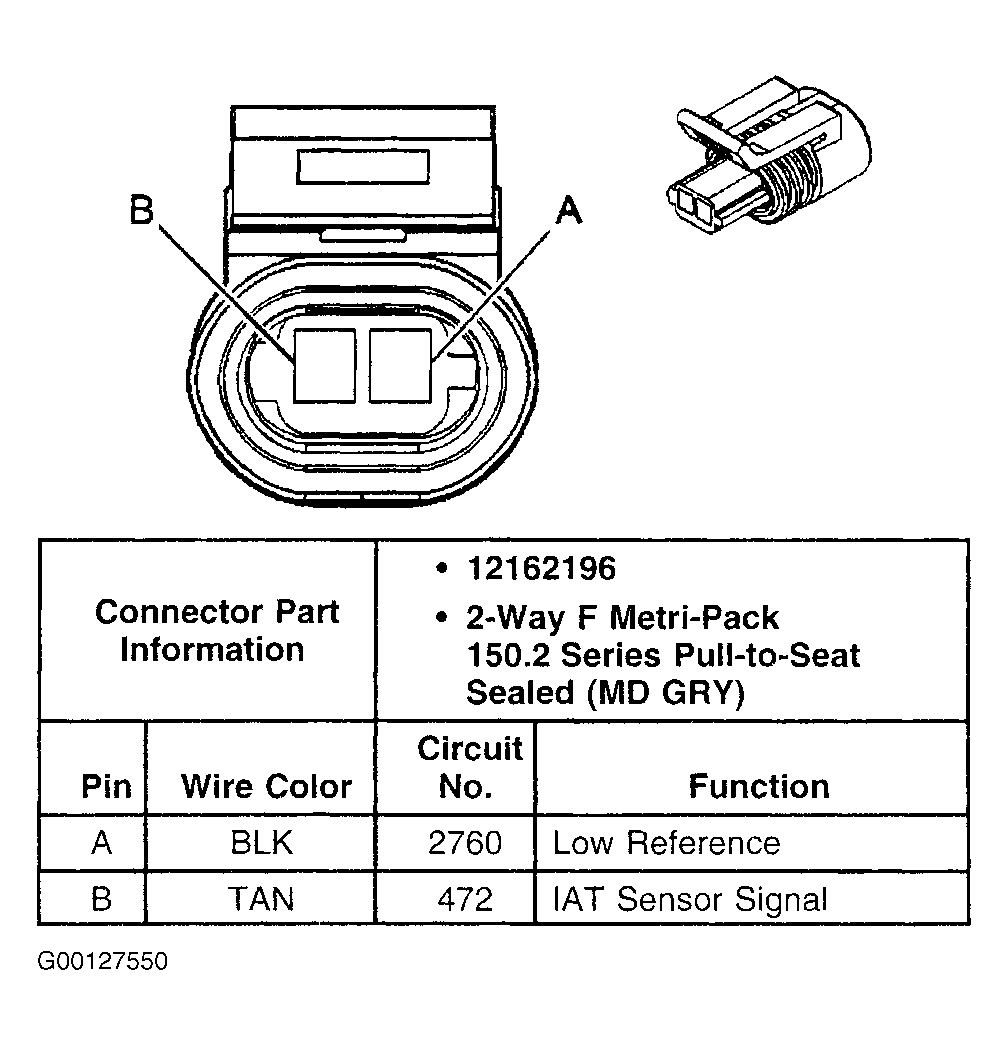

Fig 24: Identifying Intake Air Temperature Sensor Harness Connector Terminals (Alero & Grand Am)
G00127550Courtesy of GENERAL MOTORS CORP.

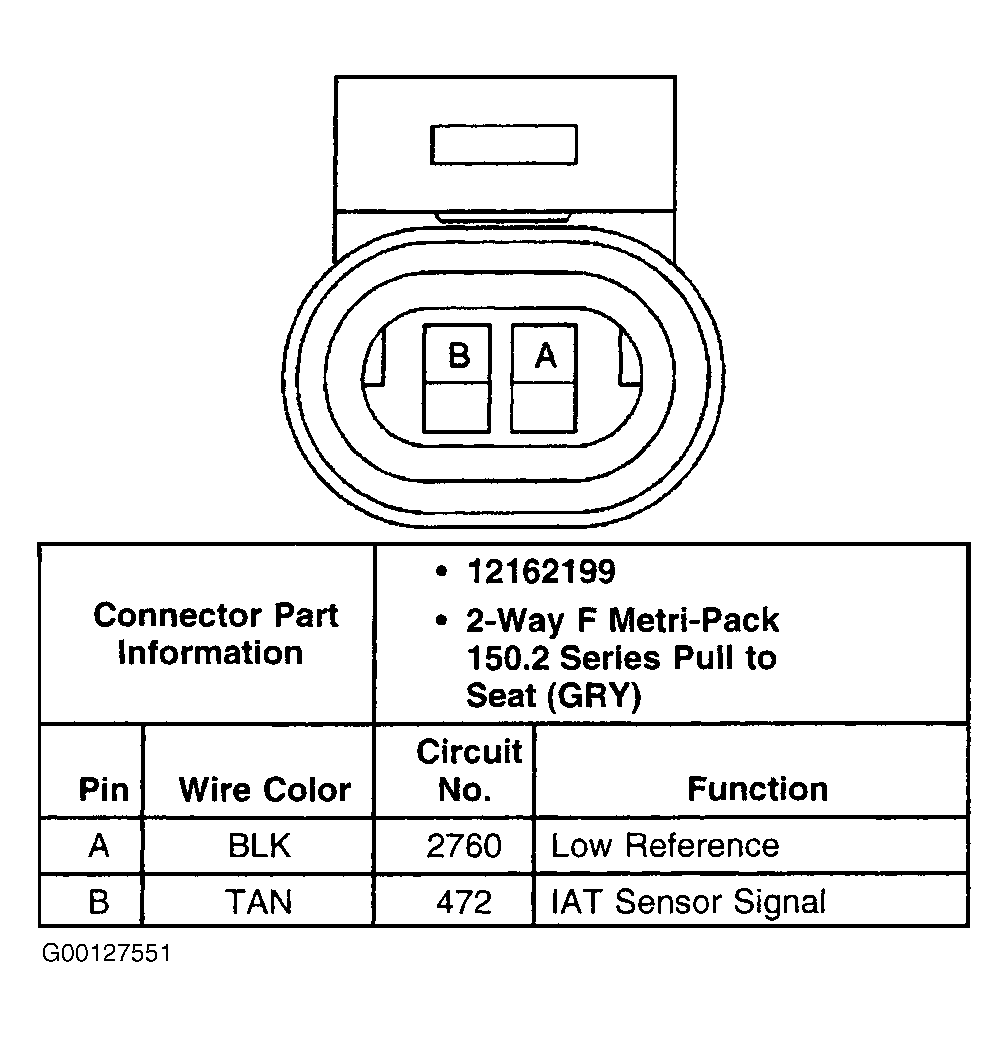

Fig 25: Identifying Intake Air Temperature Sensor Harness Connector Terminals (Cavalier & Sunfire)
G00127551Courtesy of GENERAL MOTORS CORP.

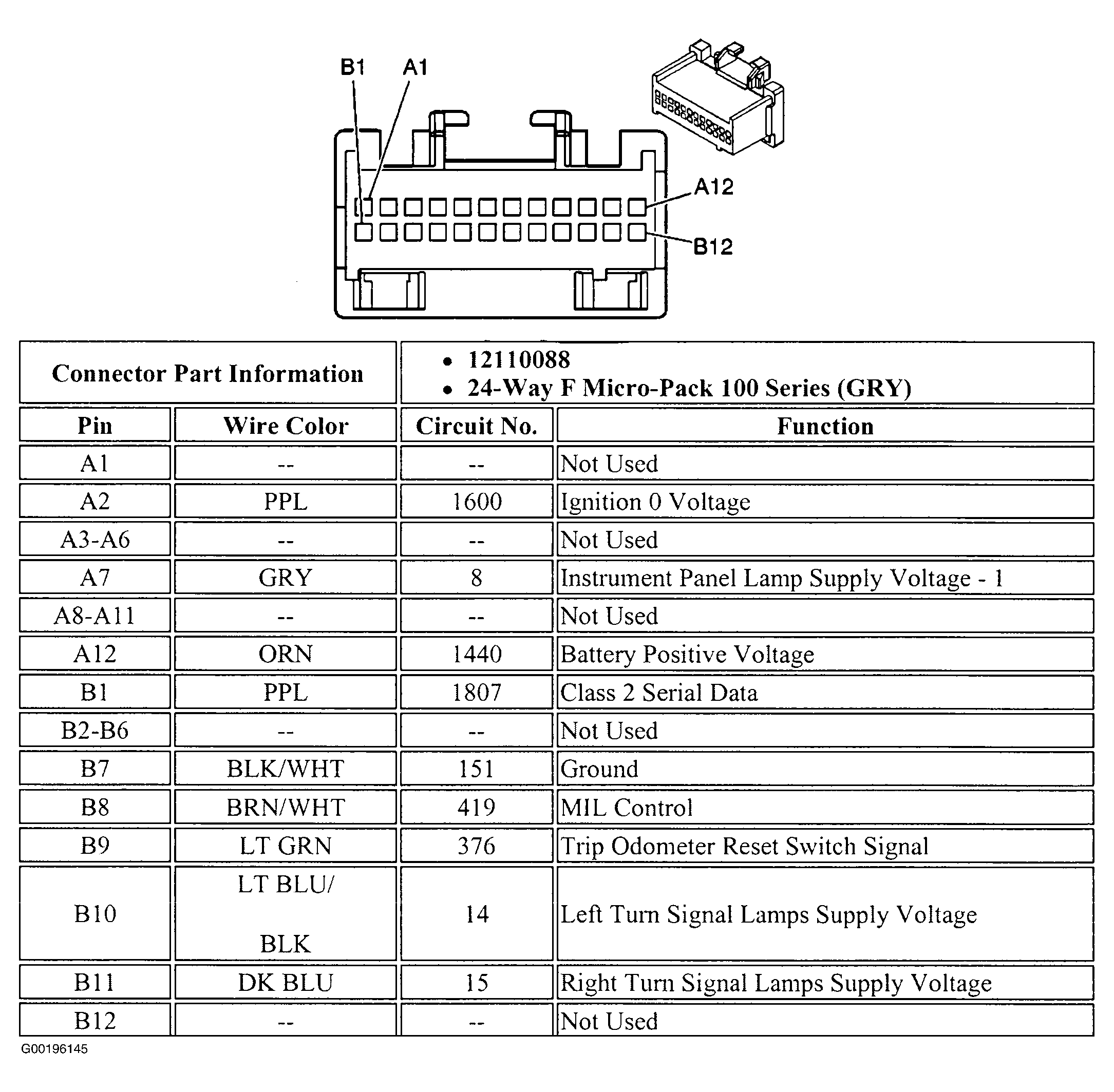

Fig 26: Identifying Instrument Panel Cluster Harness Connector Terminals (Alero)
G00196145Courtesy of GENERAL MOTORS CORP.

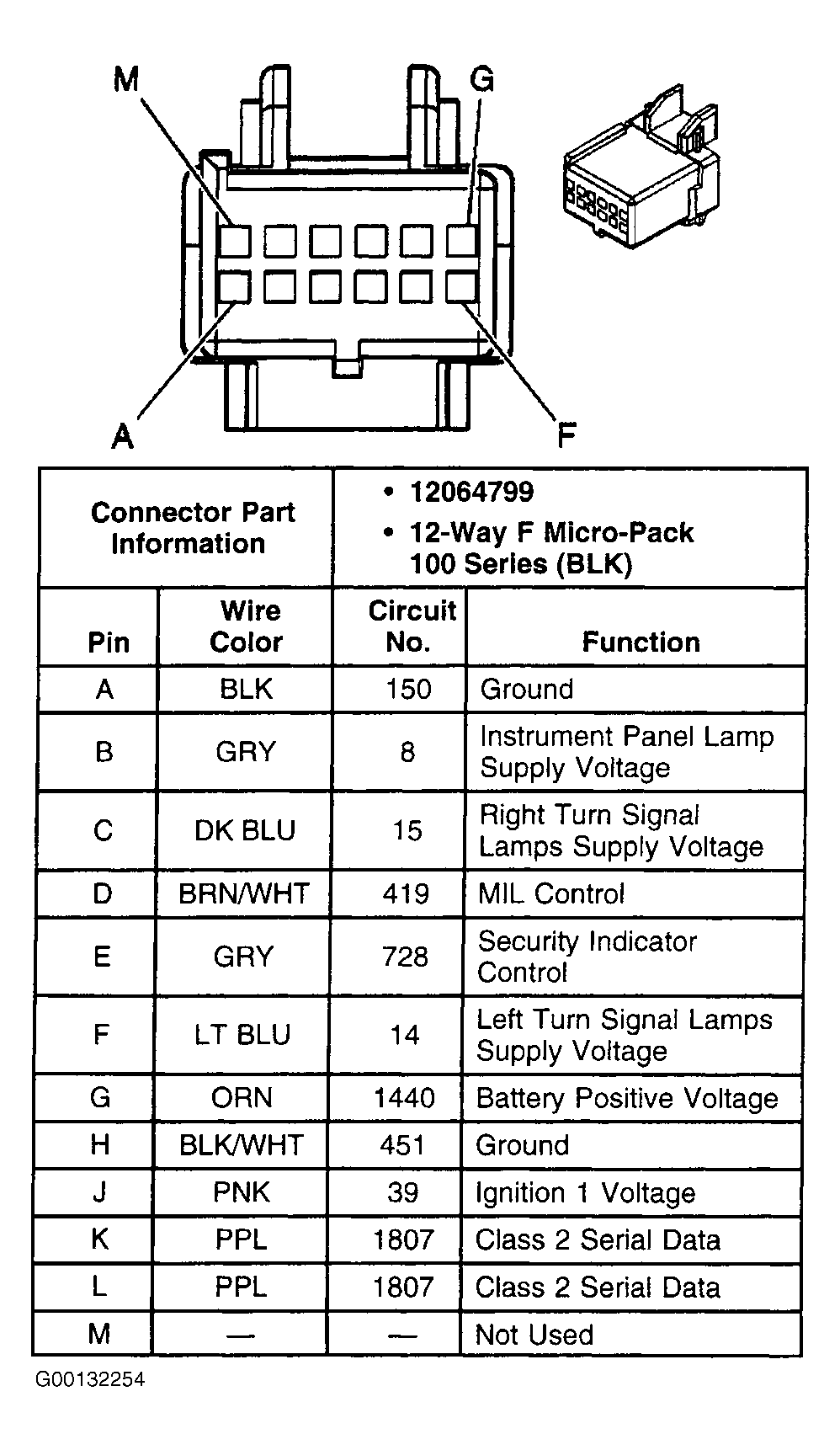

Fig 27: Identifying Instrument Panel Cluster Harness Connector Terminals (Cavalier & Sunfire)
G00132254Courtesy of GENERAL MOTORS CORP.

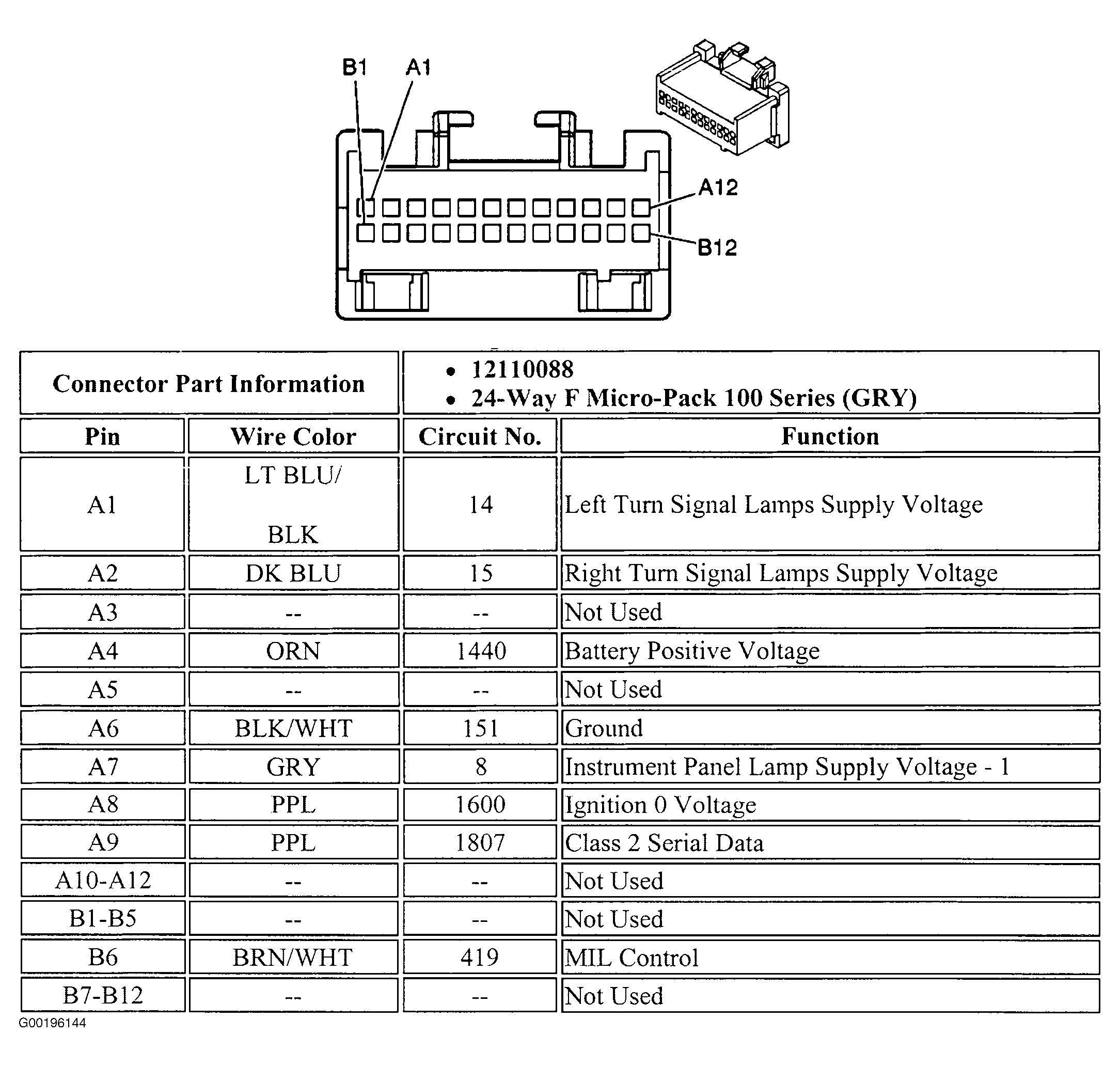

Fig 28: Identifying Instrument Panel Cluster Harness Connector Terminals (Grand Am)
G00196144Courtesy of GENERAL MOTORS CORP.

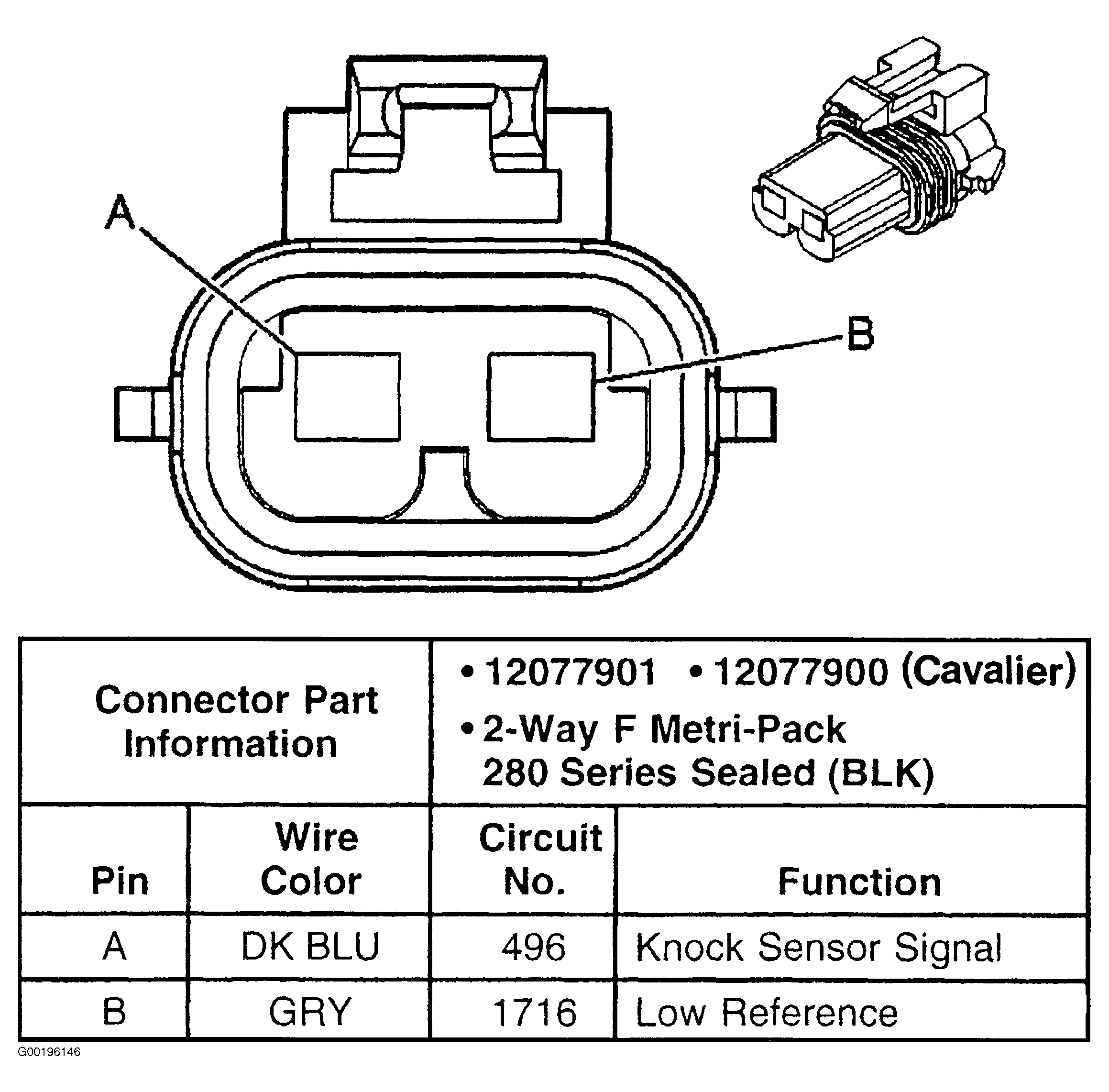

Fig 29: Identifying Knock Sensor Harness Connector Terminals
G00196146Courtesy of GENERAL MOTORS CORP.

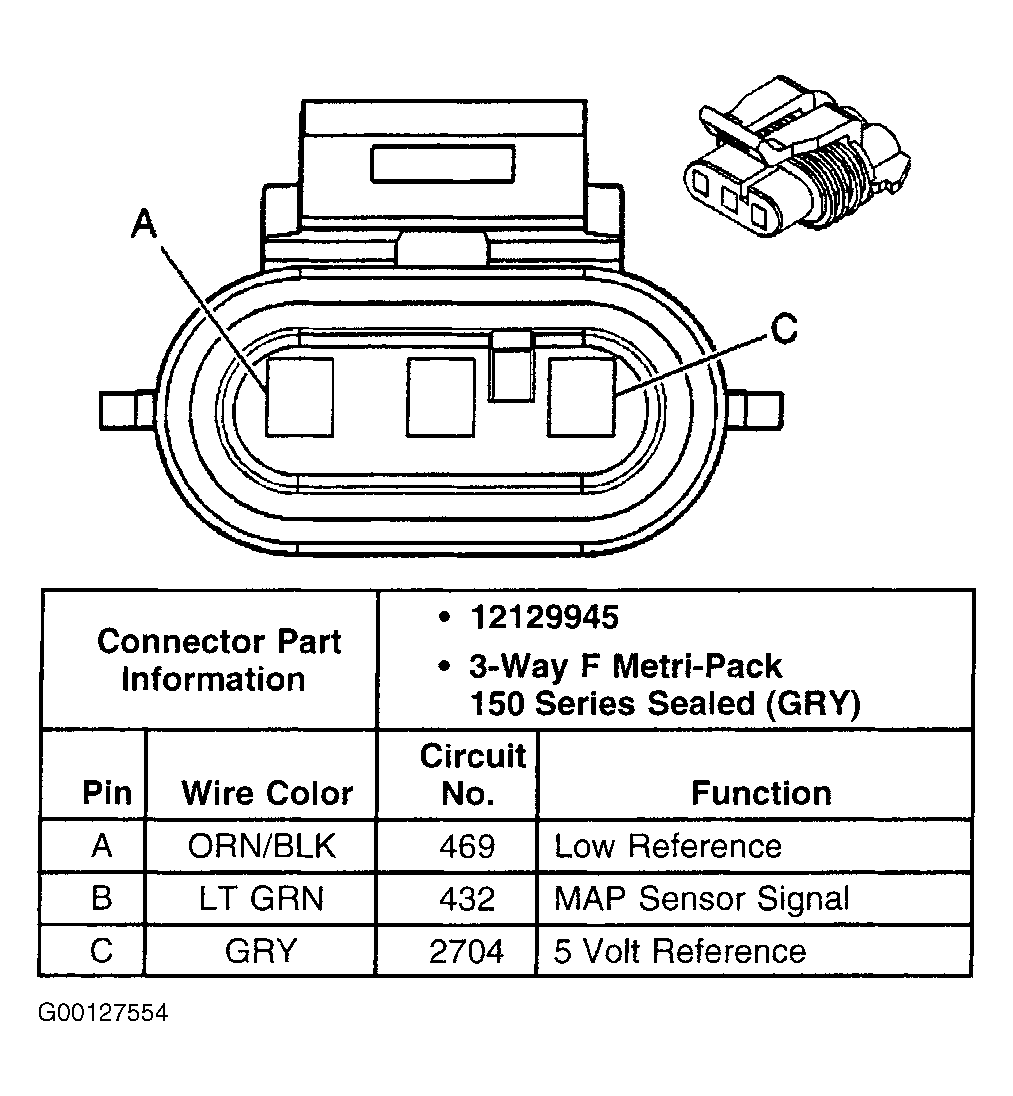

Fig 30: Identifying MAP Sensor Harness Connector Terminals (Alero & Grand Am)
G00127554Courtesy of GENERAL MOTORS CORP.

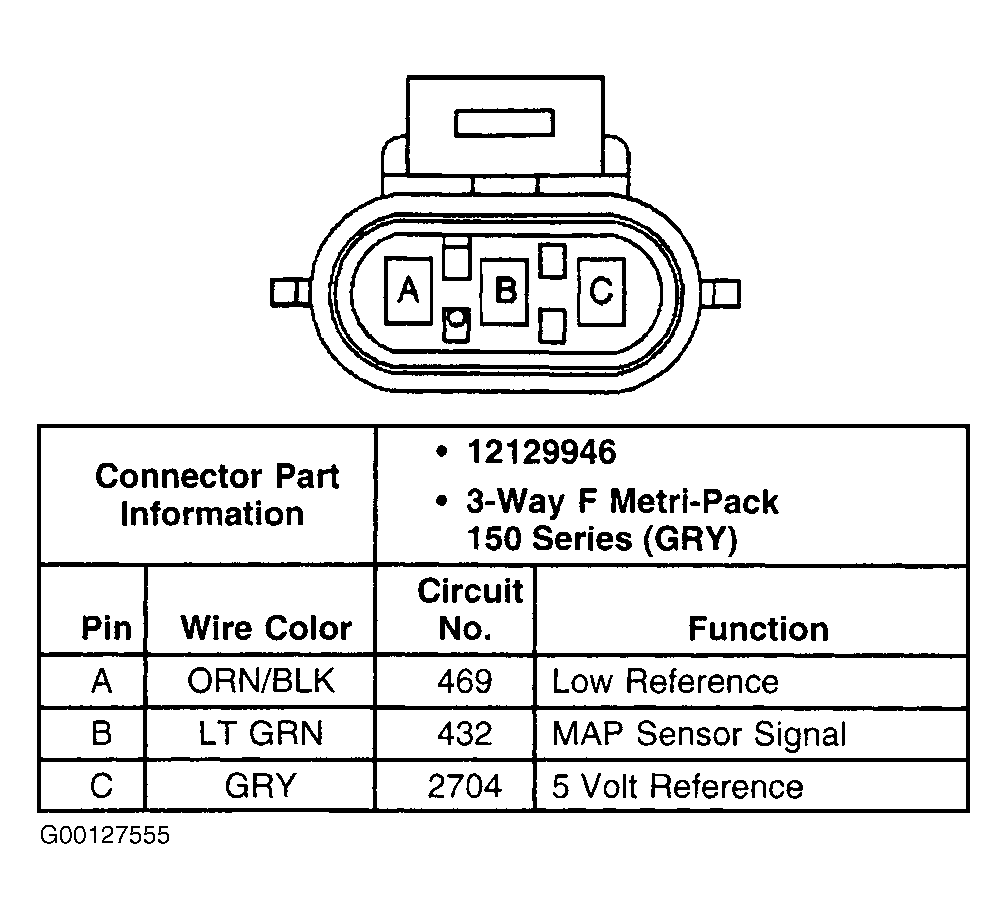

Fig 31: Identifying MAP Sensor Harness Connector Terminals (Cavalier & Sunfire)
G00127555Courtesy of GENERAL MOTORS CORP.

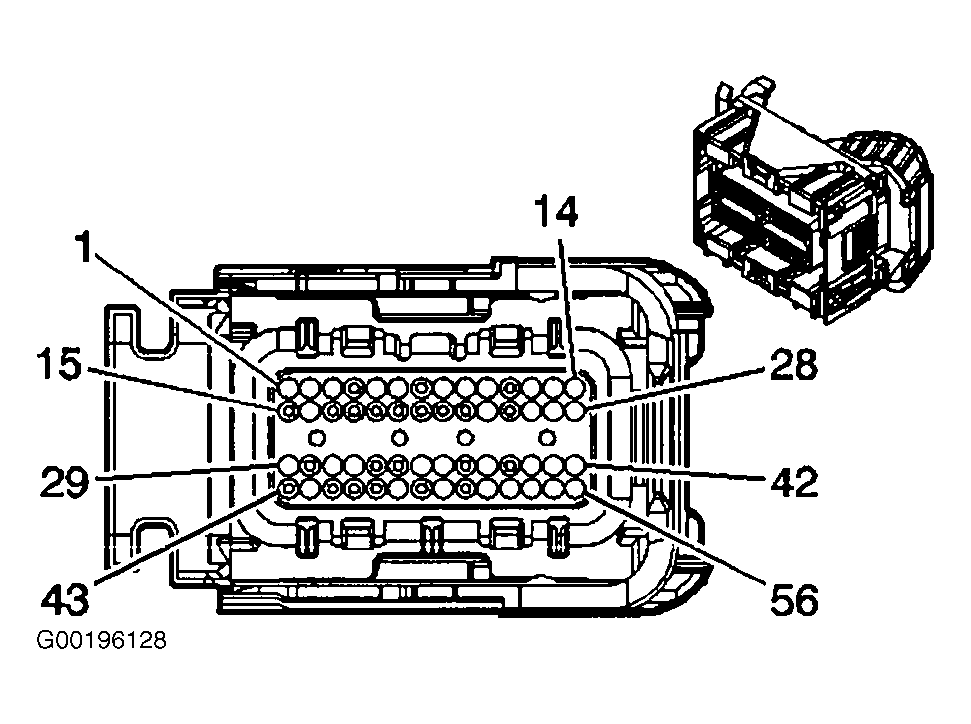

Fig 32: Identifying PCM 56-Pin Harness Connector C1 Terminals
G00196128Courtesy of GENERAL MOTORS CORP.

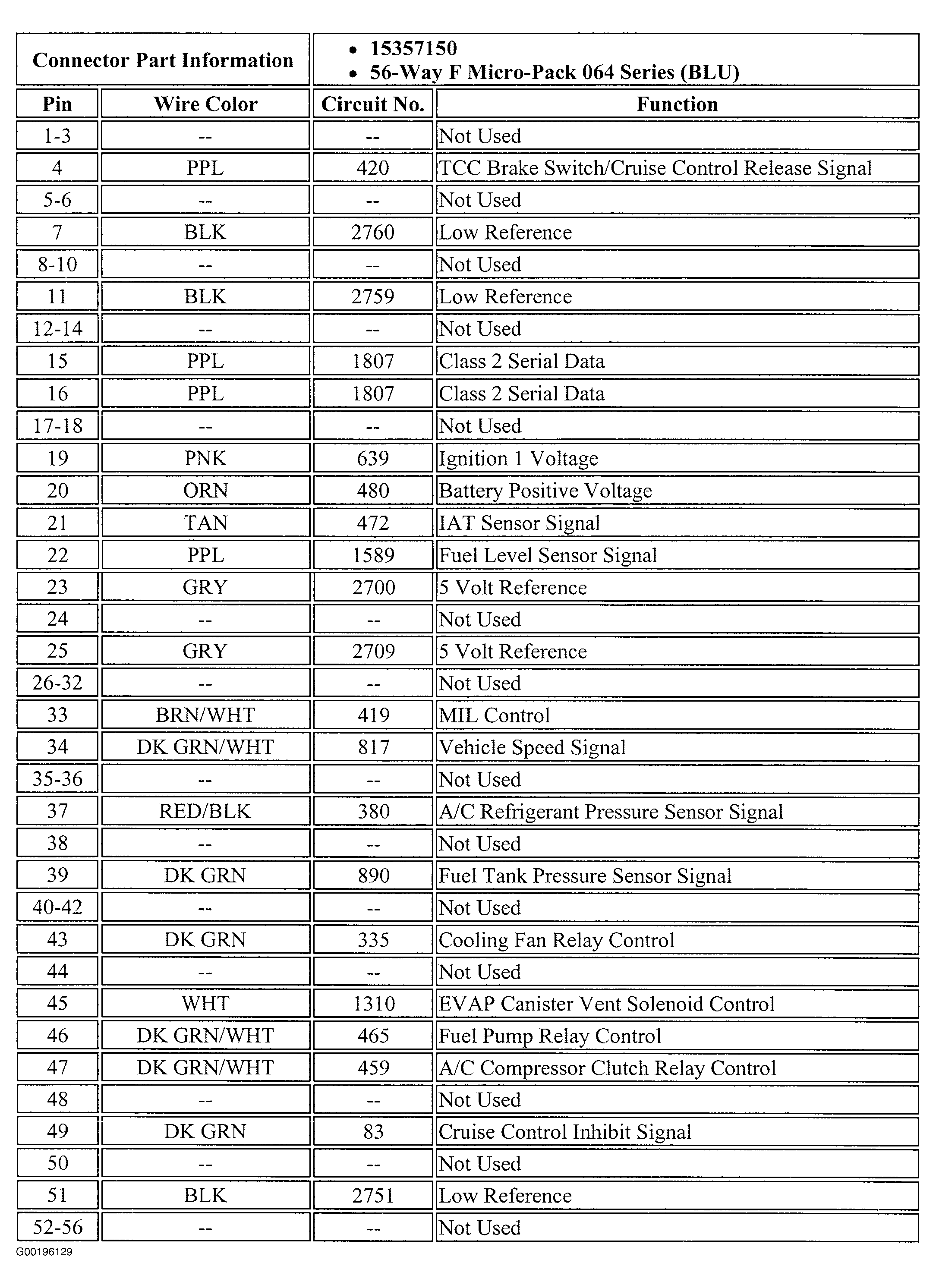

Fig 33: Identifying PCM Harness Connector C1 Terminals, Wire Color, Circuit No. & Function (Cavalier)
G00196129Courtesy of GENERAL MOTORS CORP.

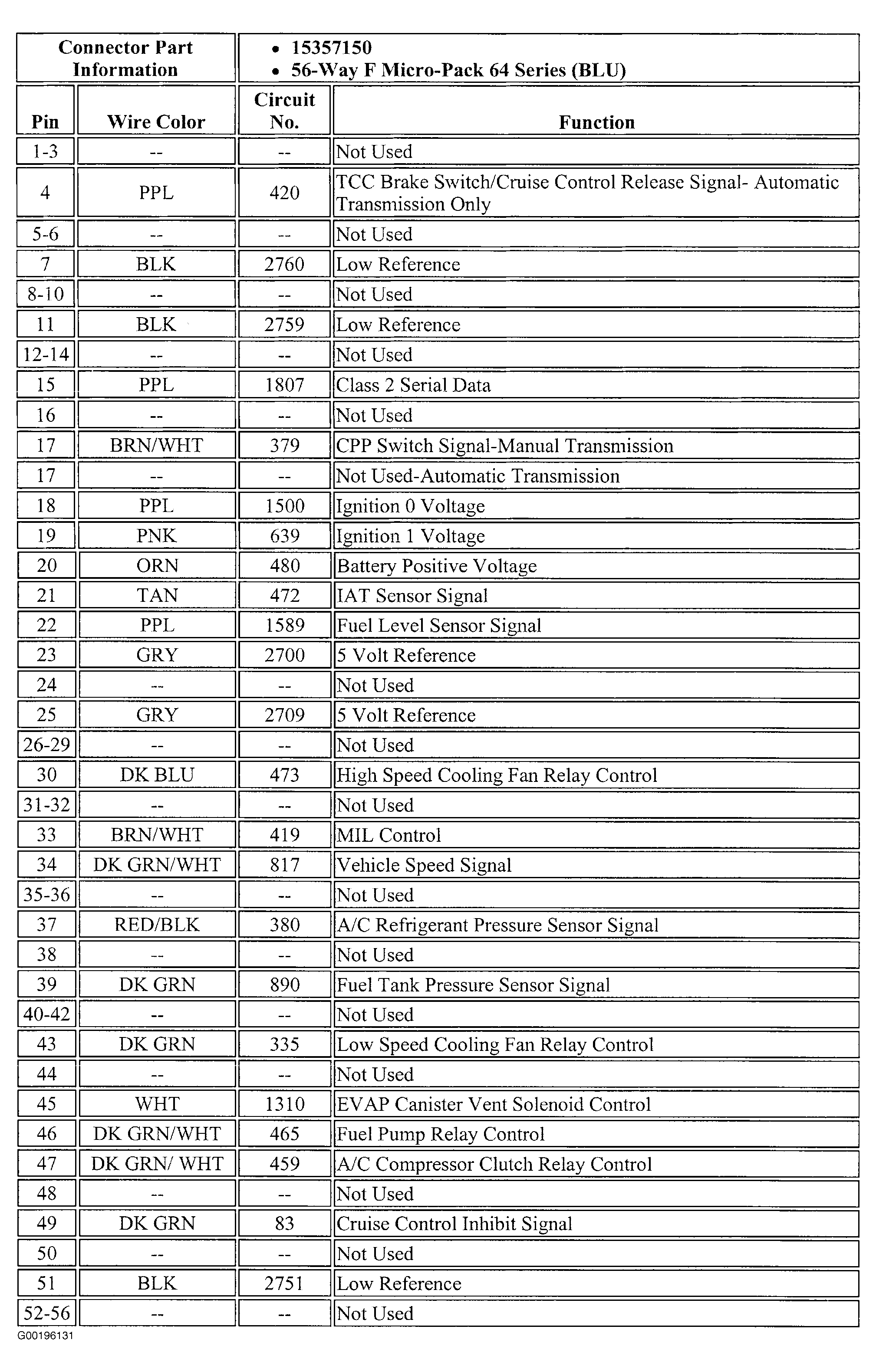

Fig 34: Identifying PCM Harness Connector C1 Terminals, Wire Color, Circuit No. & Function (Except Cavalier)
G00196131Courtesy of GENERAL MOTORS CORP.

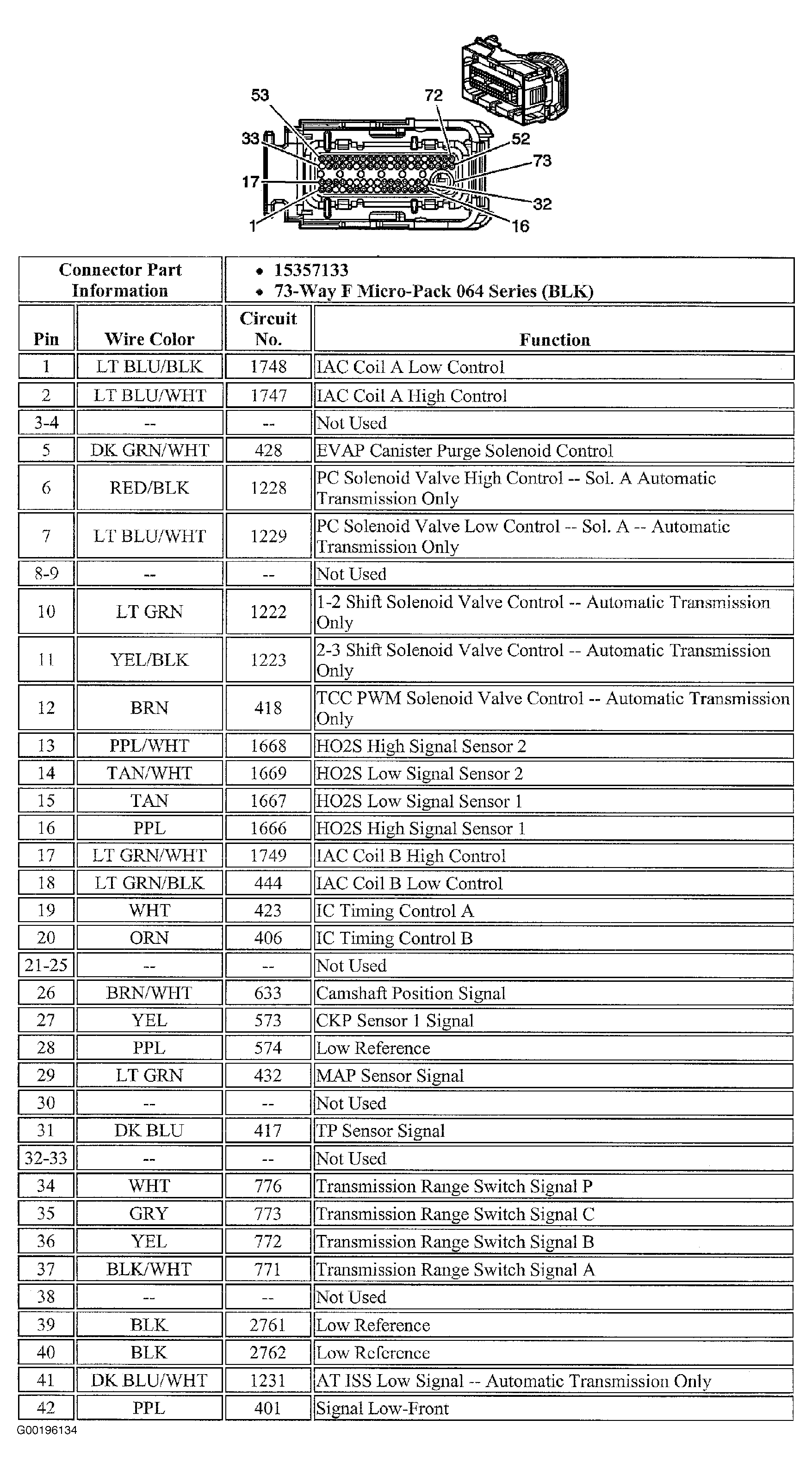

Fig 35: Identifying PCM Harness Connector C2 Terminals (Cavalier - 1 Of 2)
G00196134Courtesy of GENERAL MOTORS CORP.

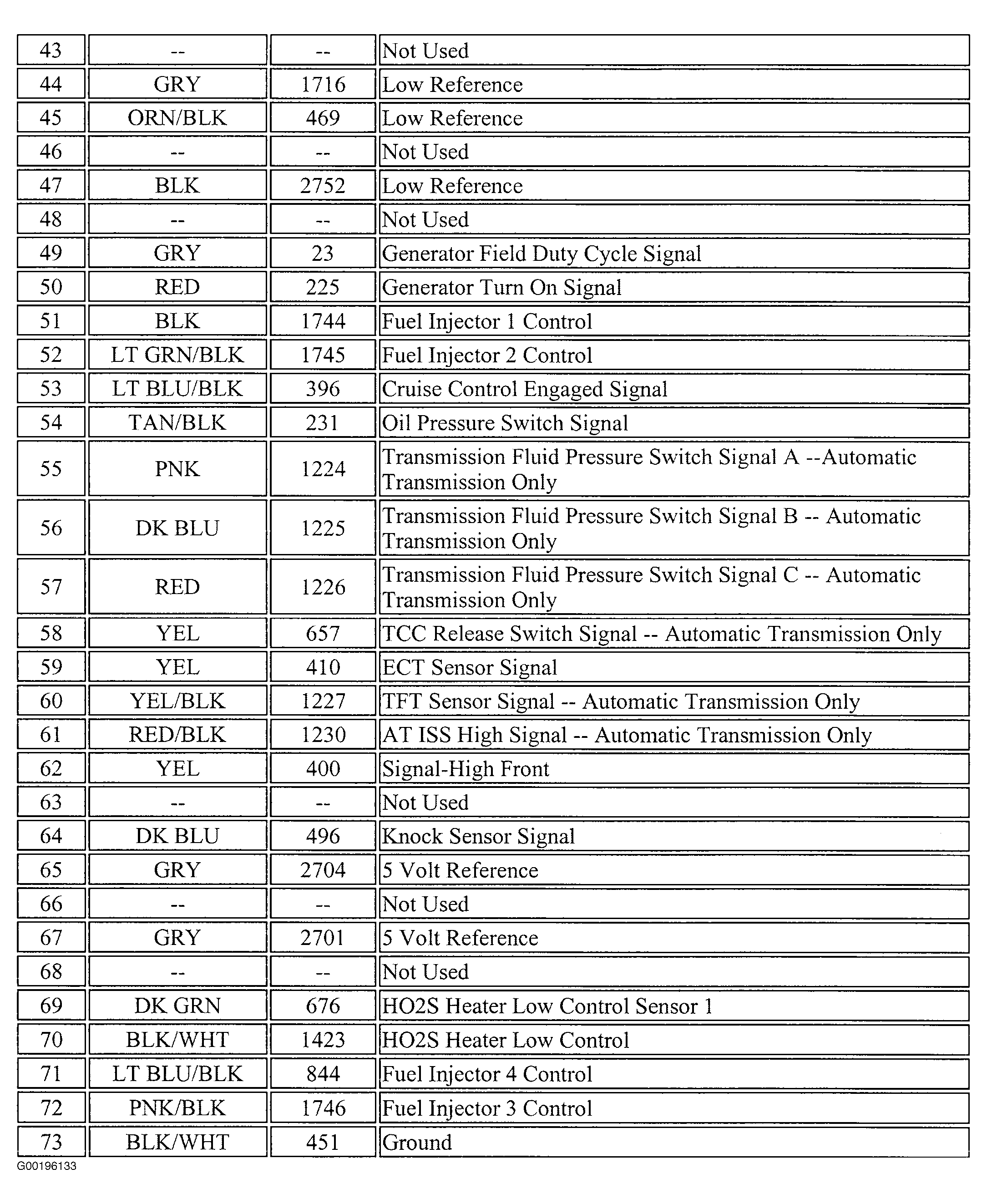

Fig 36: Identifying PCM Harness Connector C2 Terminals (Cavalier - 2 Of 2)
G00196133Courtesy of GENERAL MOTORS CORP.

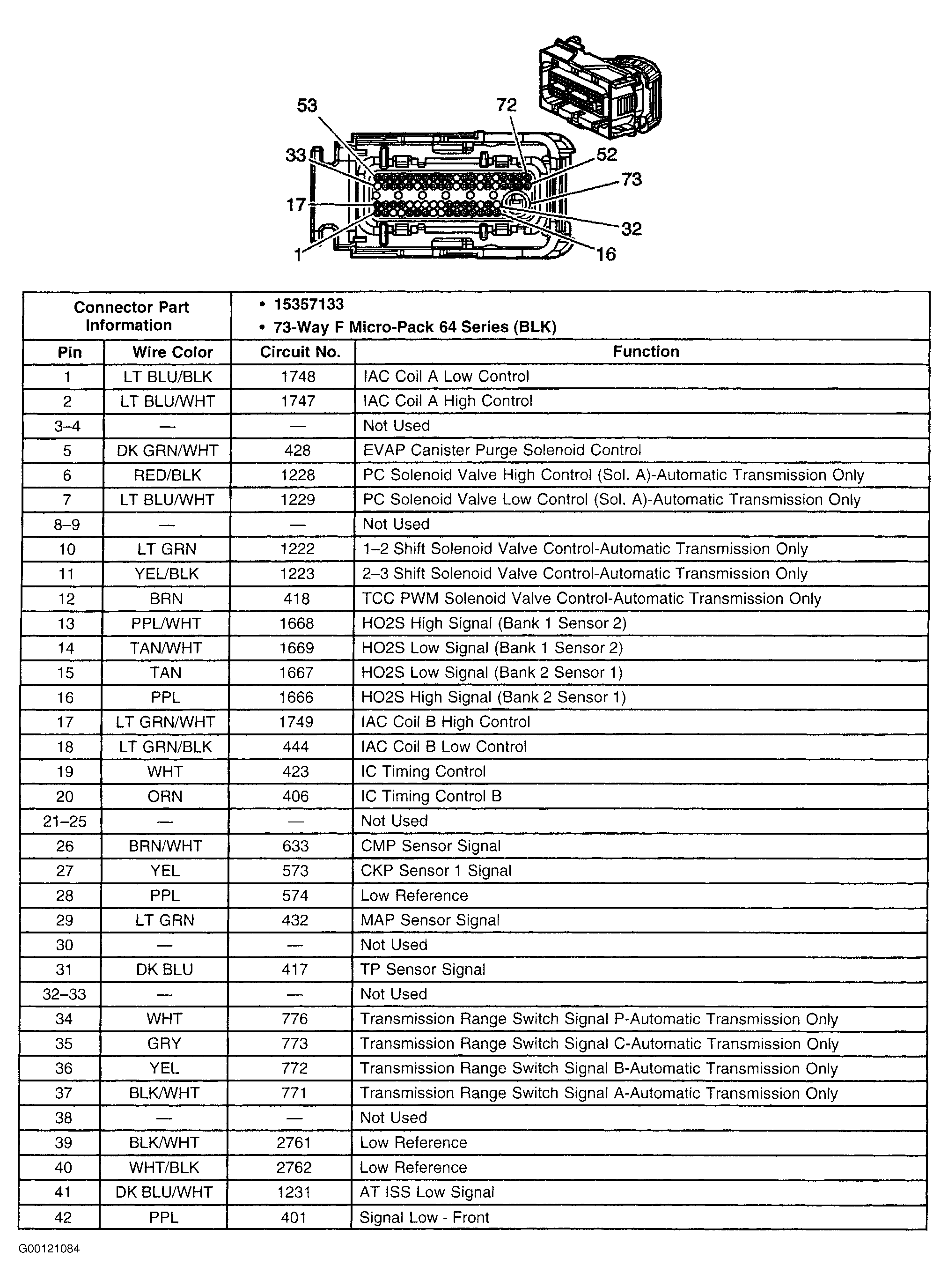

Fig 37: Identifying PCM Harness Connector C2 Terminals (Except Cavalier - 1 Of 2)
G00121084Courtesy of GENERAL MOTORS CORP.

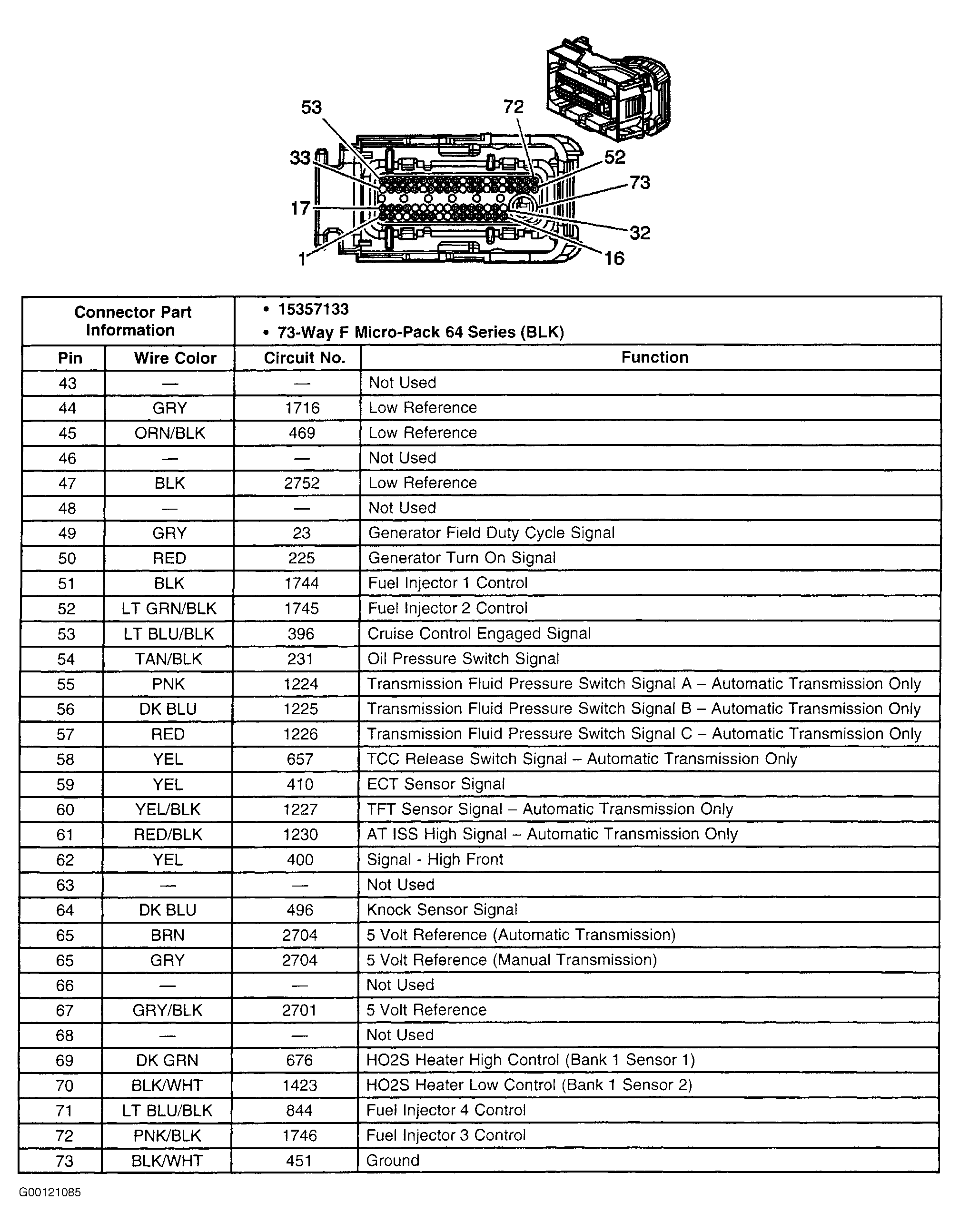

Fig 38: Identifying PCM Harness Connector C2 Terminals (Except Cavalier - 2 Of 2)
G00121085Courtesy of GENERAL MOTORS CORP.

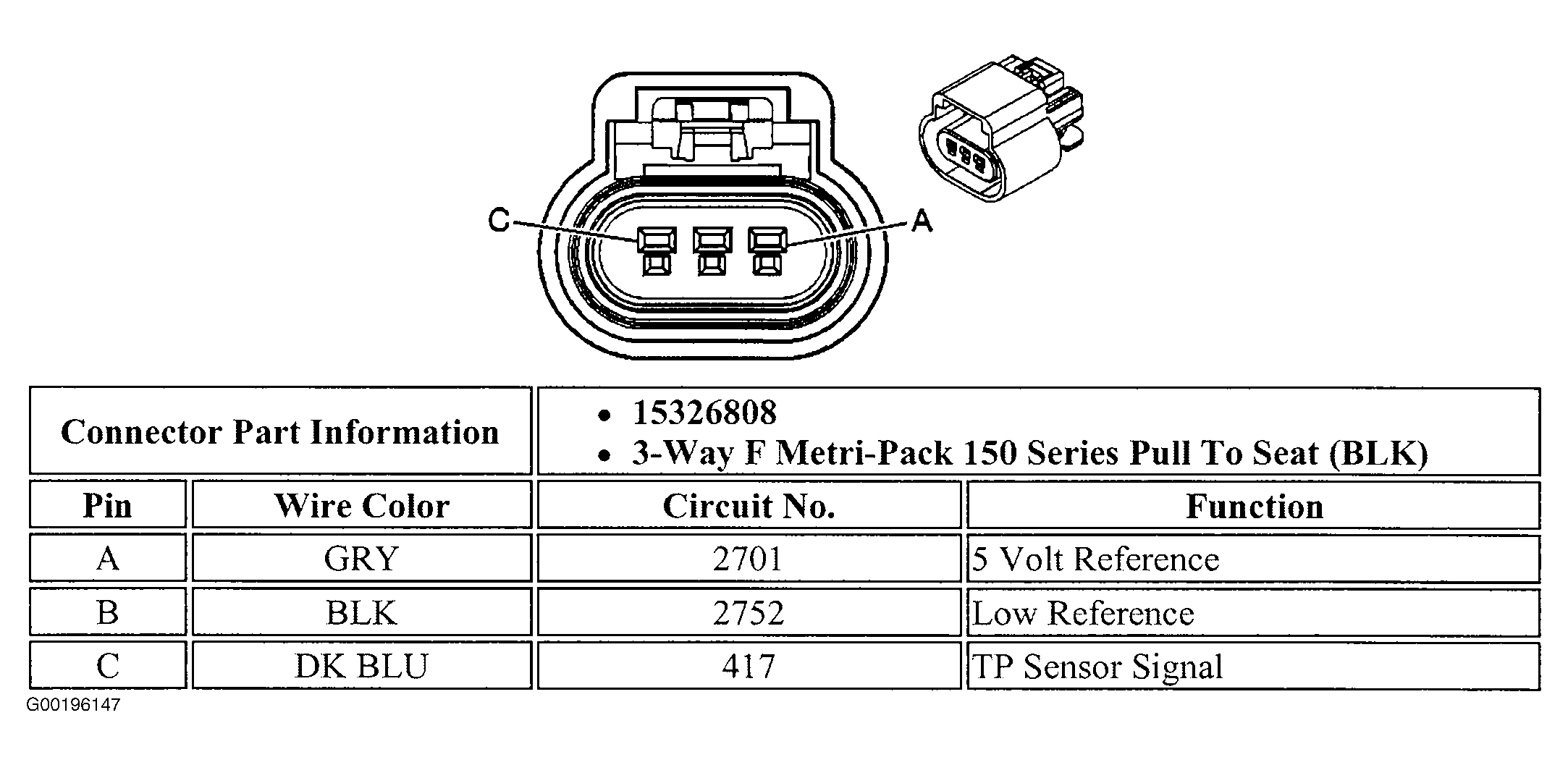

Fig 39: Identifying TP Sensor Harness Connector Terminals (Cavalier)
G00196147Courtesy of GENERAL MOTORS CORP.
Fig 40: Identifying TP Sensor Harness Connector Terminals (Except Cavalier)
G00127556Courtesy of GENERAL MOTORS CORP.
