Automatic Transmission Shift Lock Control Schematics

Fig 1: Pontiac Schematic

GM1403242

Courtesy of GENERAL MOTORS CORP.

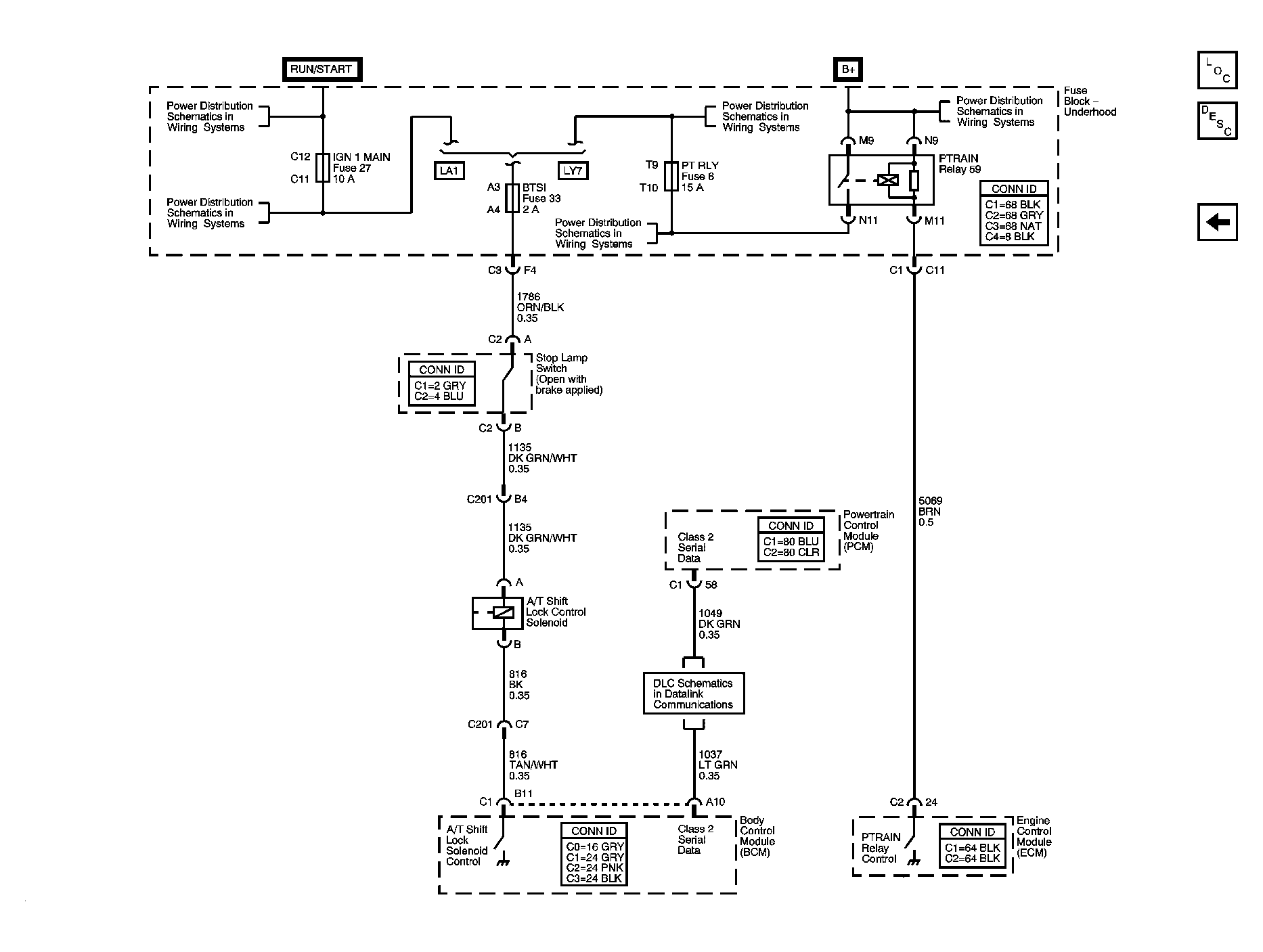

Fig 2: Buick Schematic

GM1553621

Courtesy of GENERAL MOTORS CORP.
