Installation Procedure

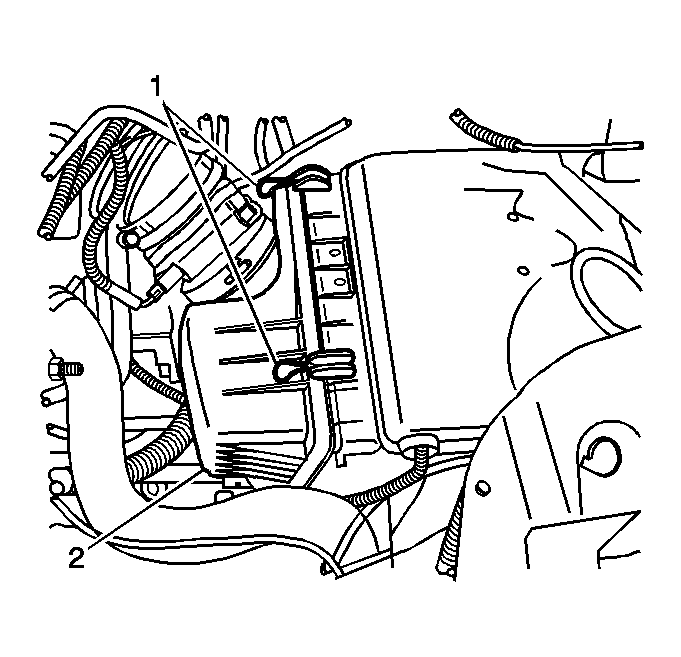

    Fig 1: Identifying Air Cleaner Cover Clips
    GM763010Courtesy of GENERAL MOTORS CORP.
  1. Install the air intake duct to the MAF sensor.
  2. Install the air intake duct to the throttle body and the air cleaner cover to the air cleaner assembly.
  3. Latch the air cleaner cover clips (1).

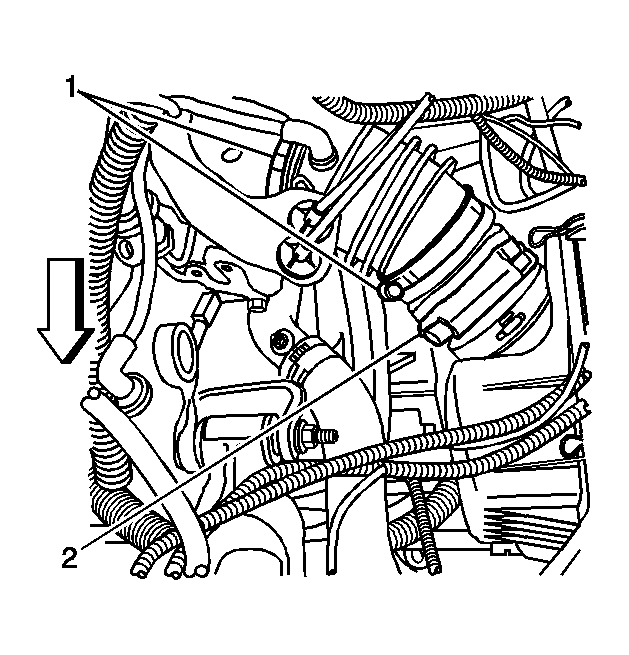

    4. Fig 2: Locating Intake Air Duct Clamps From MAF Sensor & Throttle Body
    GM763014Courtesy of GENERAL MOTORS CORP.
  4. Reconnect the MAF sensor electrical connector (2).
  5. Reconnect the vent tube to the air intake duct.
  6. Install the IAT sensor.
    7. NOTE: Refer to Fastener Notice in Cautions and Notices.
  7. Tighten the 2 intake air duct clamps (1).

    Tighten:  Tighten the intake air duct clamps to 2 N.m (18 lb in).
