Engine Controls - 3.4L - Introduction
>>
Schematic and Routing Diagrams
>>
Engine Controls Schematics
Engine Controls Schematics

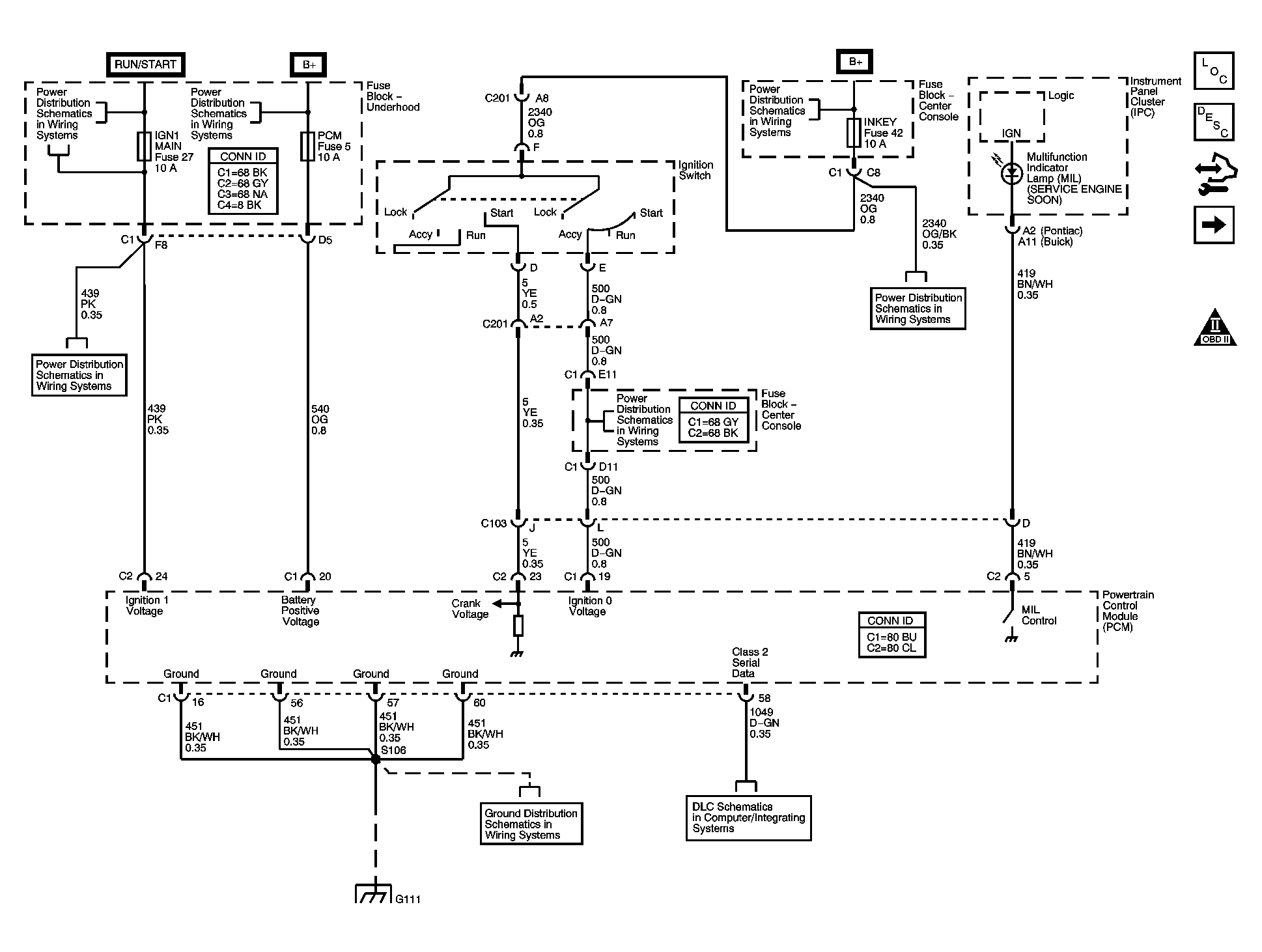

Fig 1: Power, DLC, Ground, and MIL
Courtesy of GENERAL MOTORS CORP.

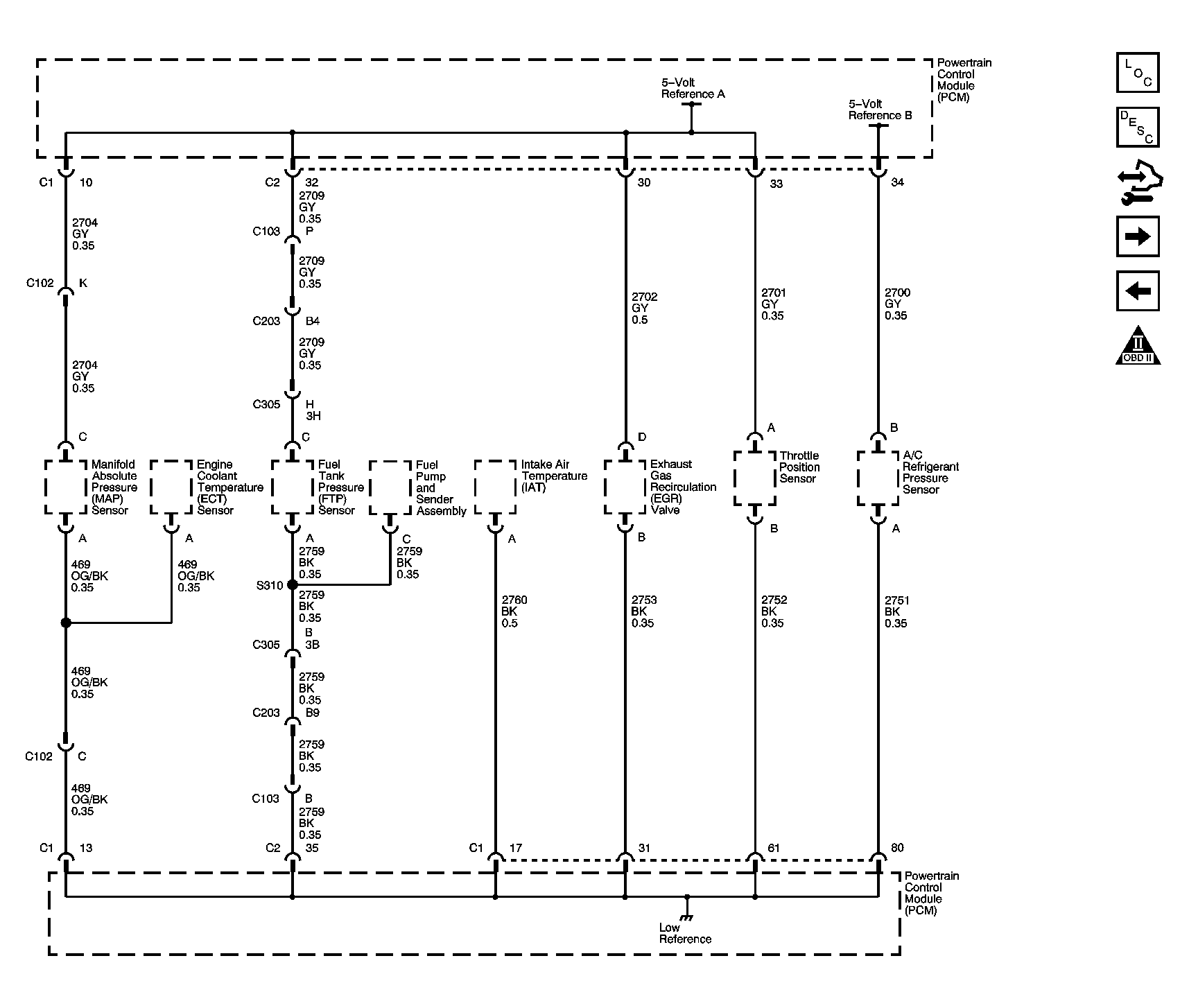

Fig 2: 5-Volt References and Low Reference
Courtesy of GENERAL MOTORS CORP.

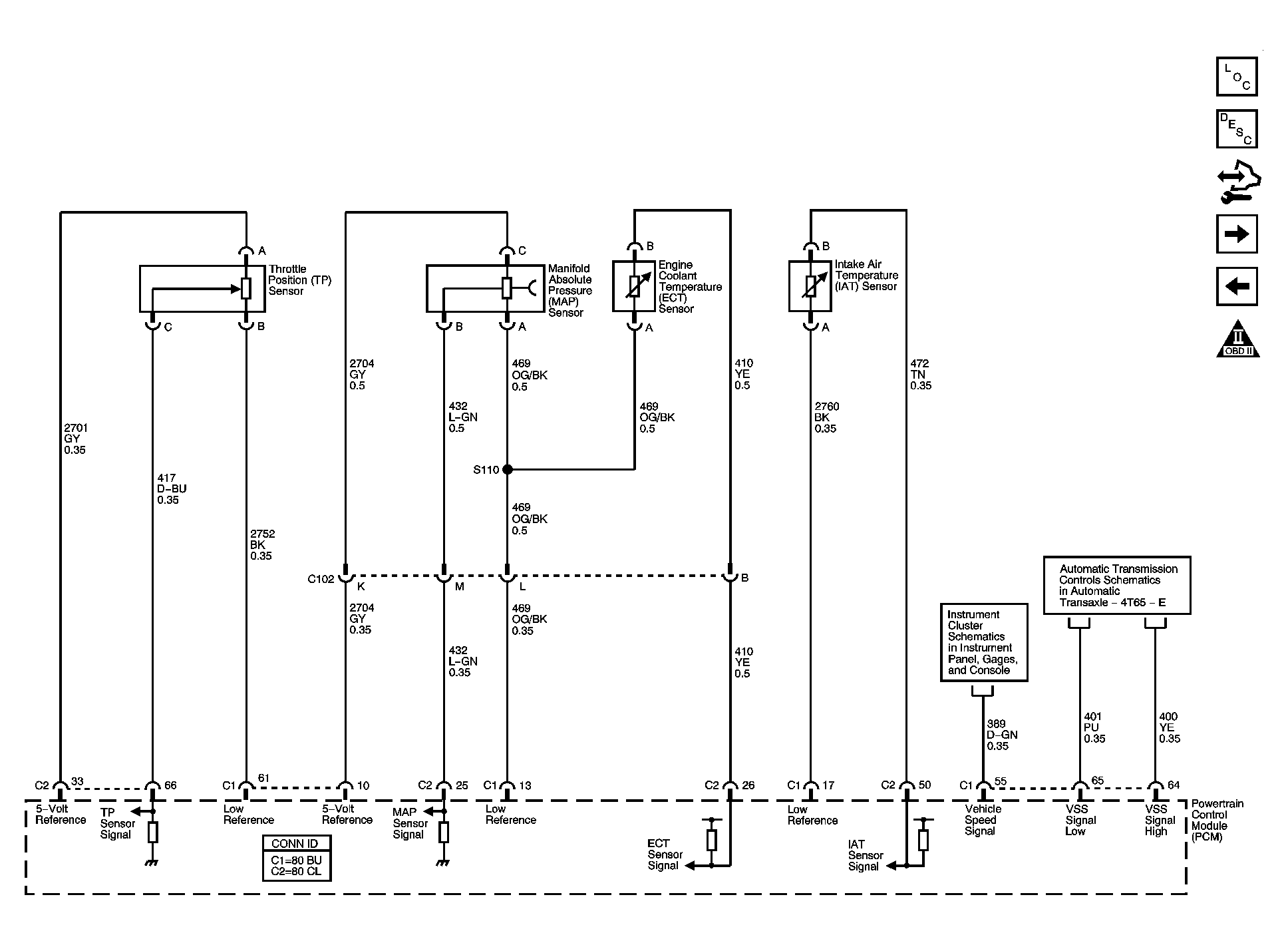

Fig 3: Sensors
Courtesy of GENERAL MOTORS CORP.

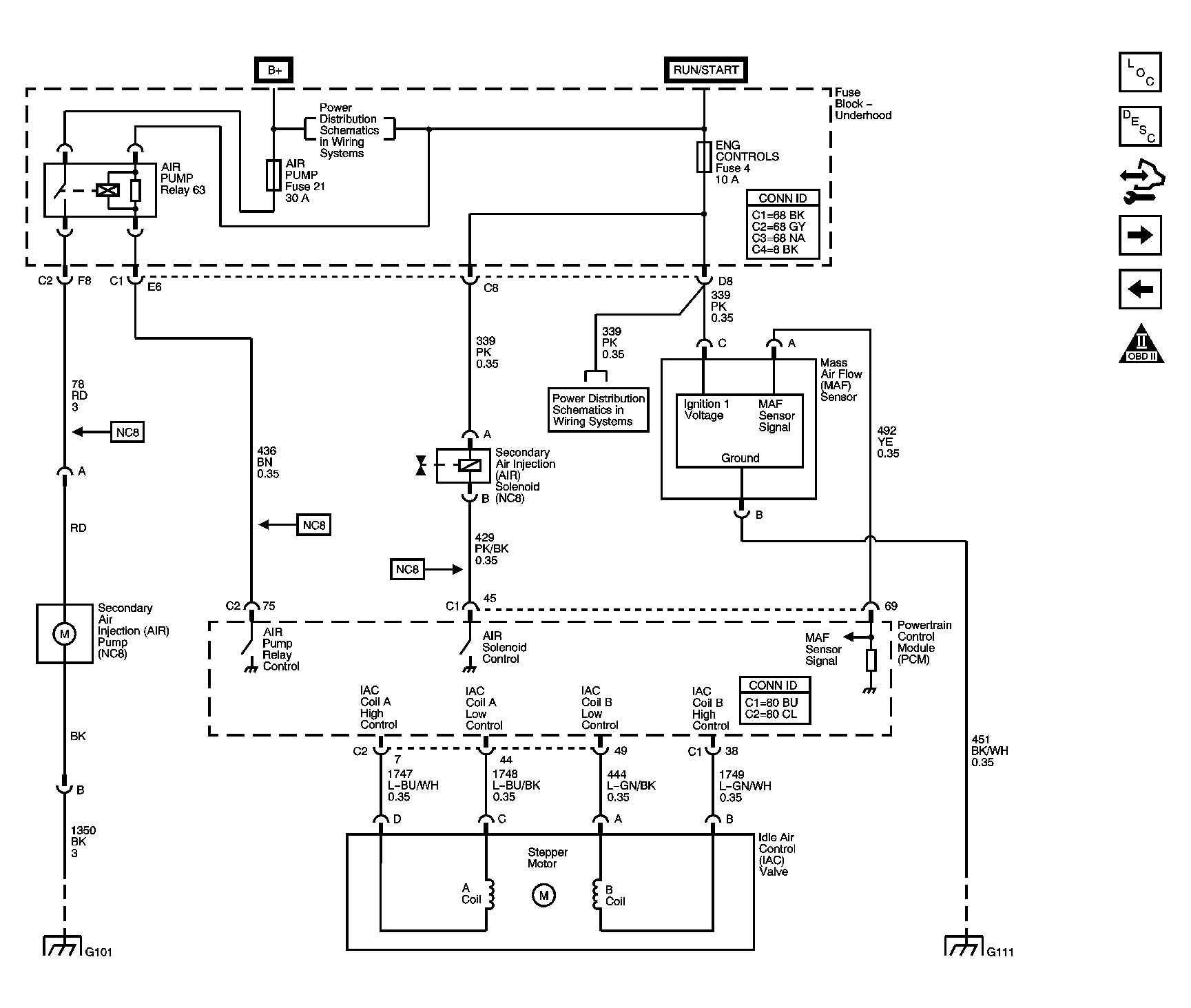

Fig 4: IAC and MAF
Courtesy of GENERAL MOTORS CORP.

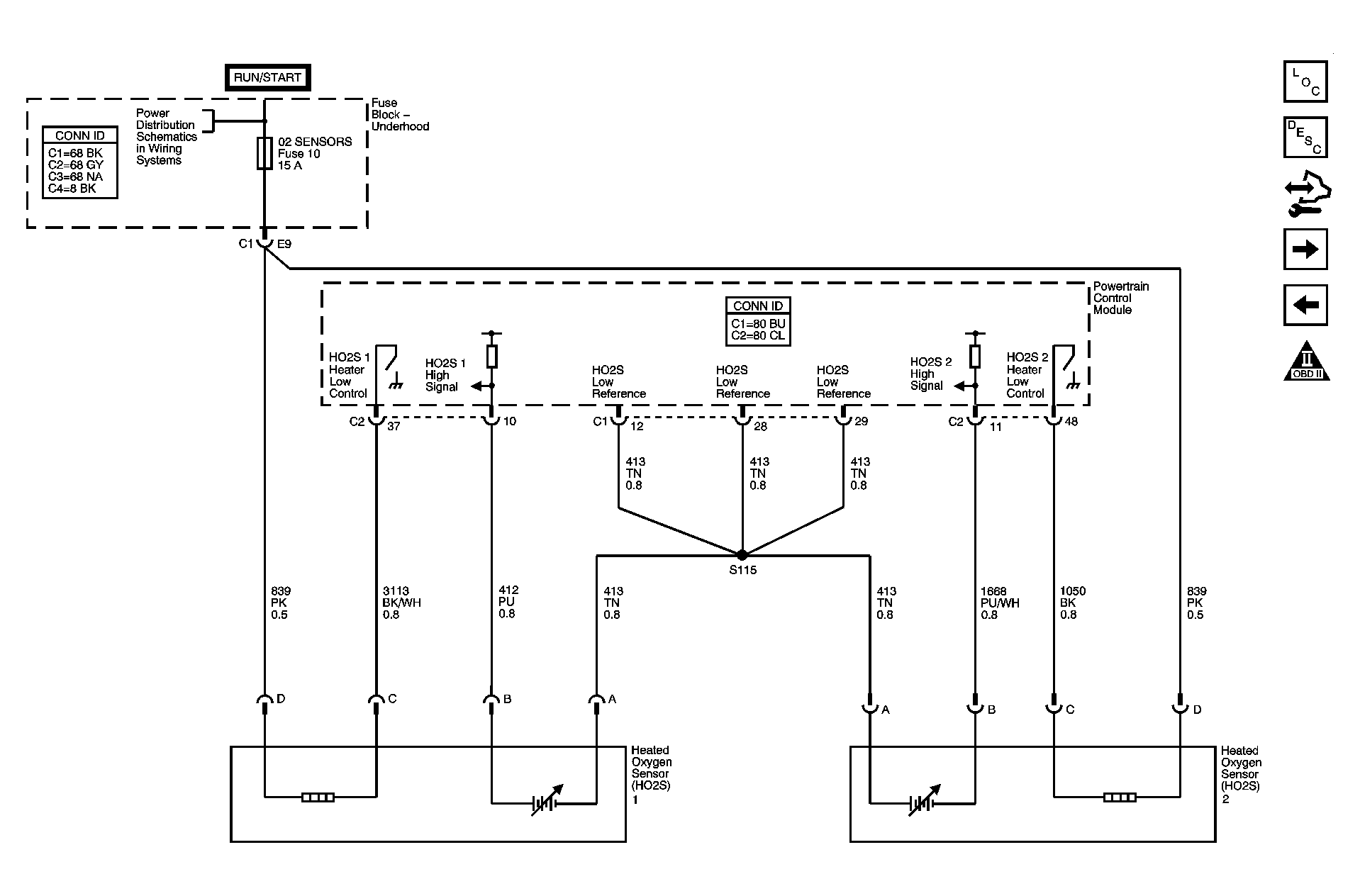

Fig 5: HO2S
Courtesy of GENERAL MOTORS CORP.

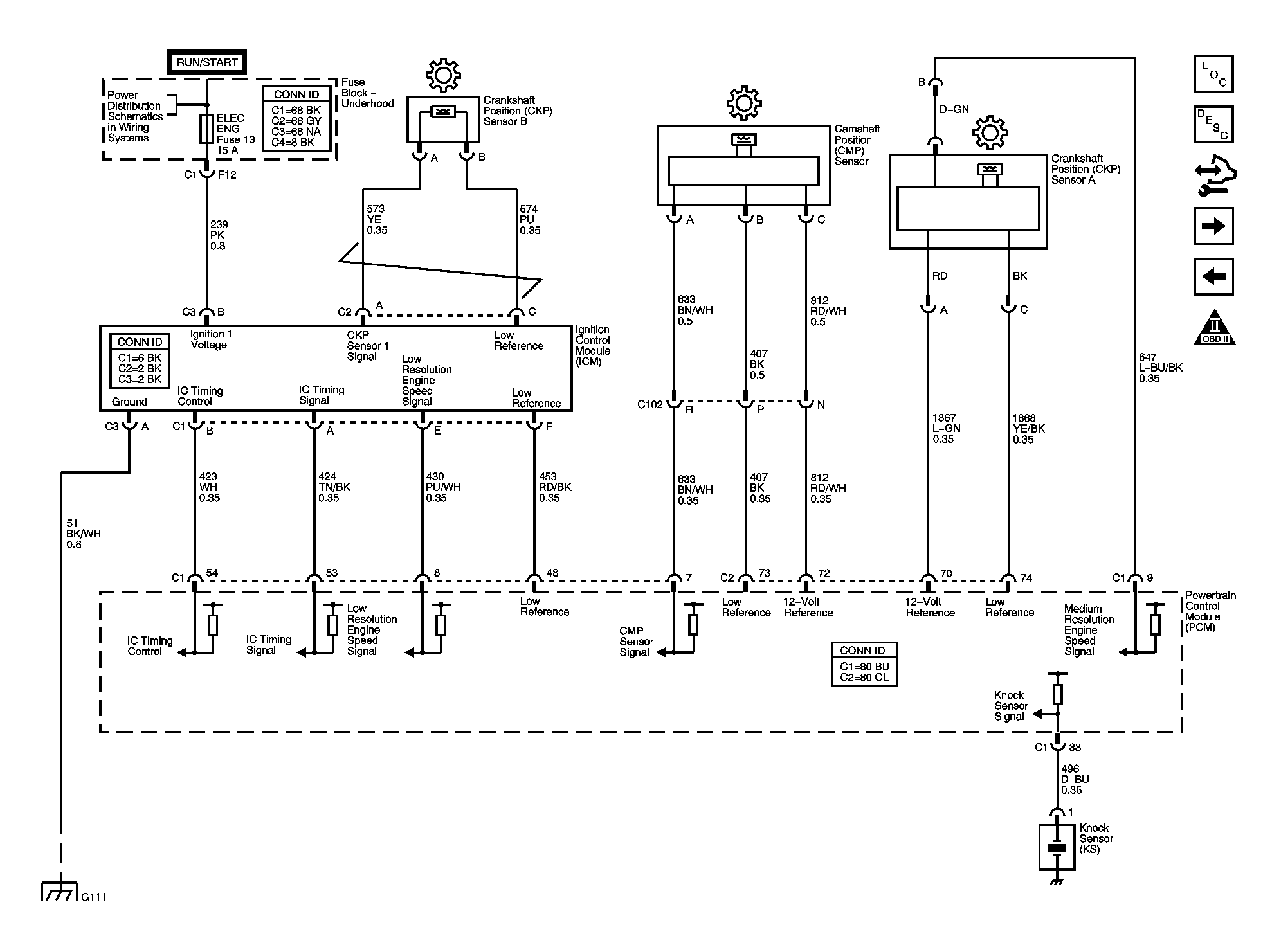

Fig 6: Ignition Control, KS
Courtesy of GENERAL MOTORS CORP.

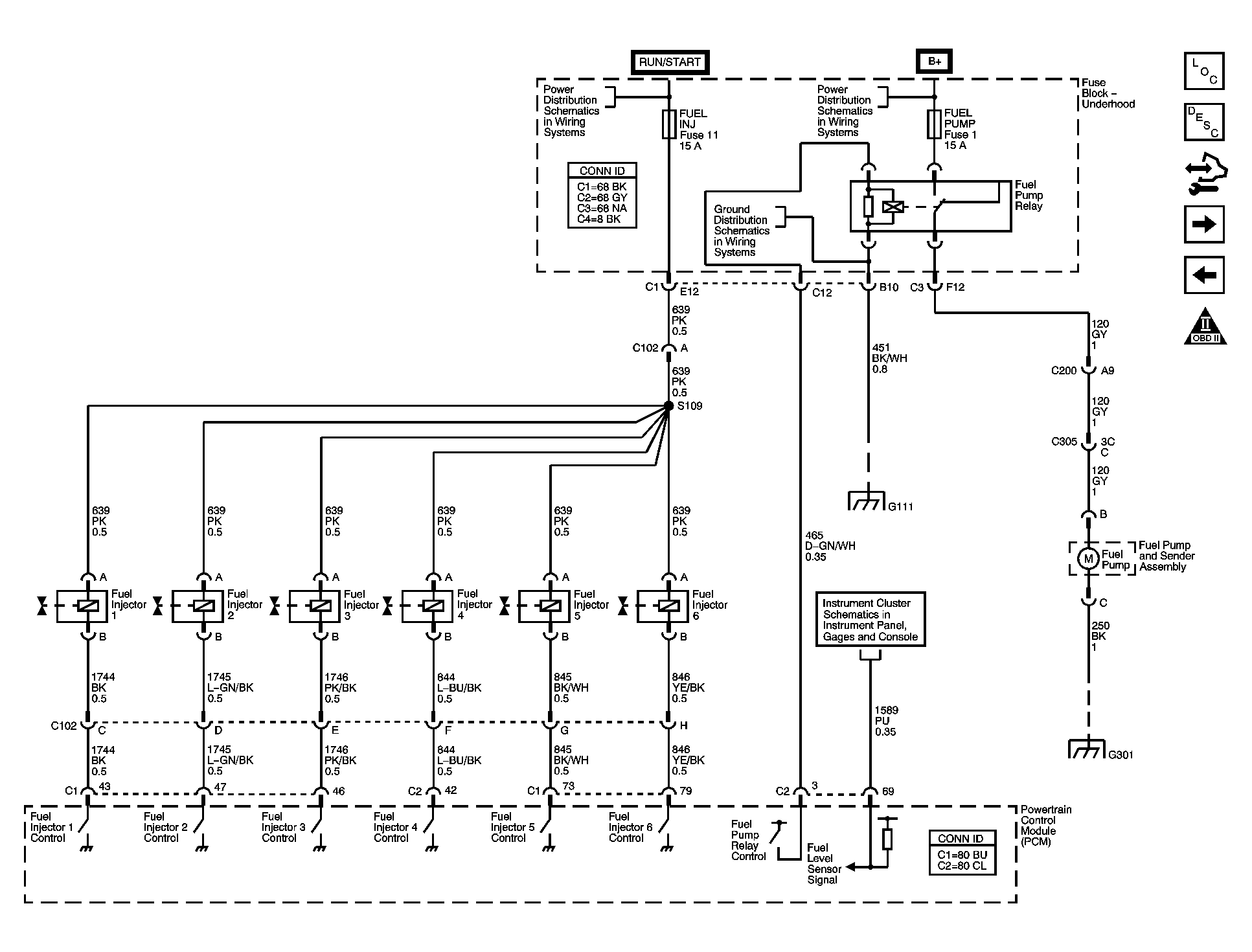

Fig 7: Fuel Injectors, Fuel Pump
Courtesy of GENERAL MOTORS CORP.

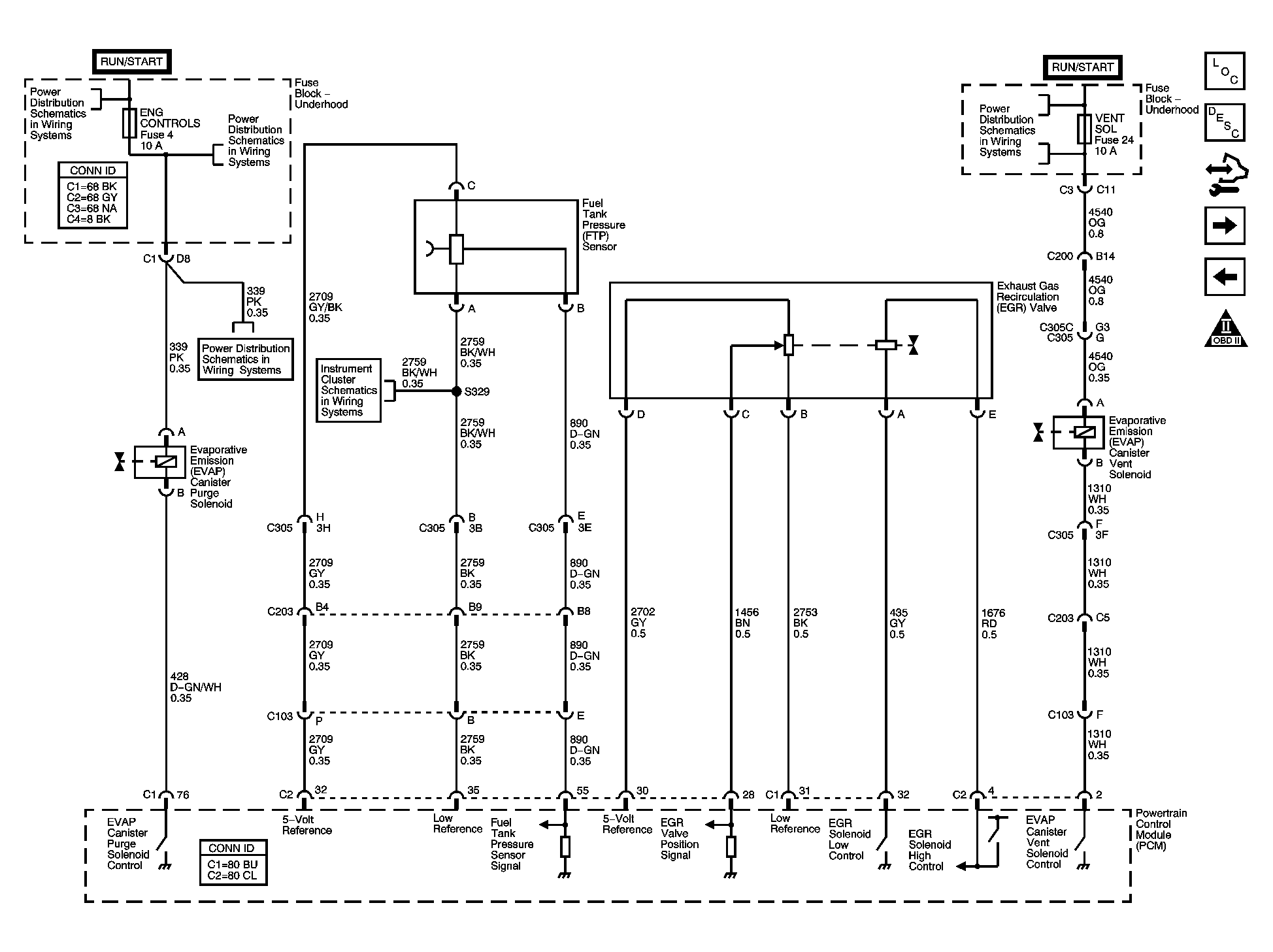

Fig 8: EGR, EVAP
Courtesy of GENERAL MOTORS CORP.
Fig 9: PCM References - 1 of 2
Courtesy of GENERAL MOTORS CORP.

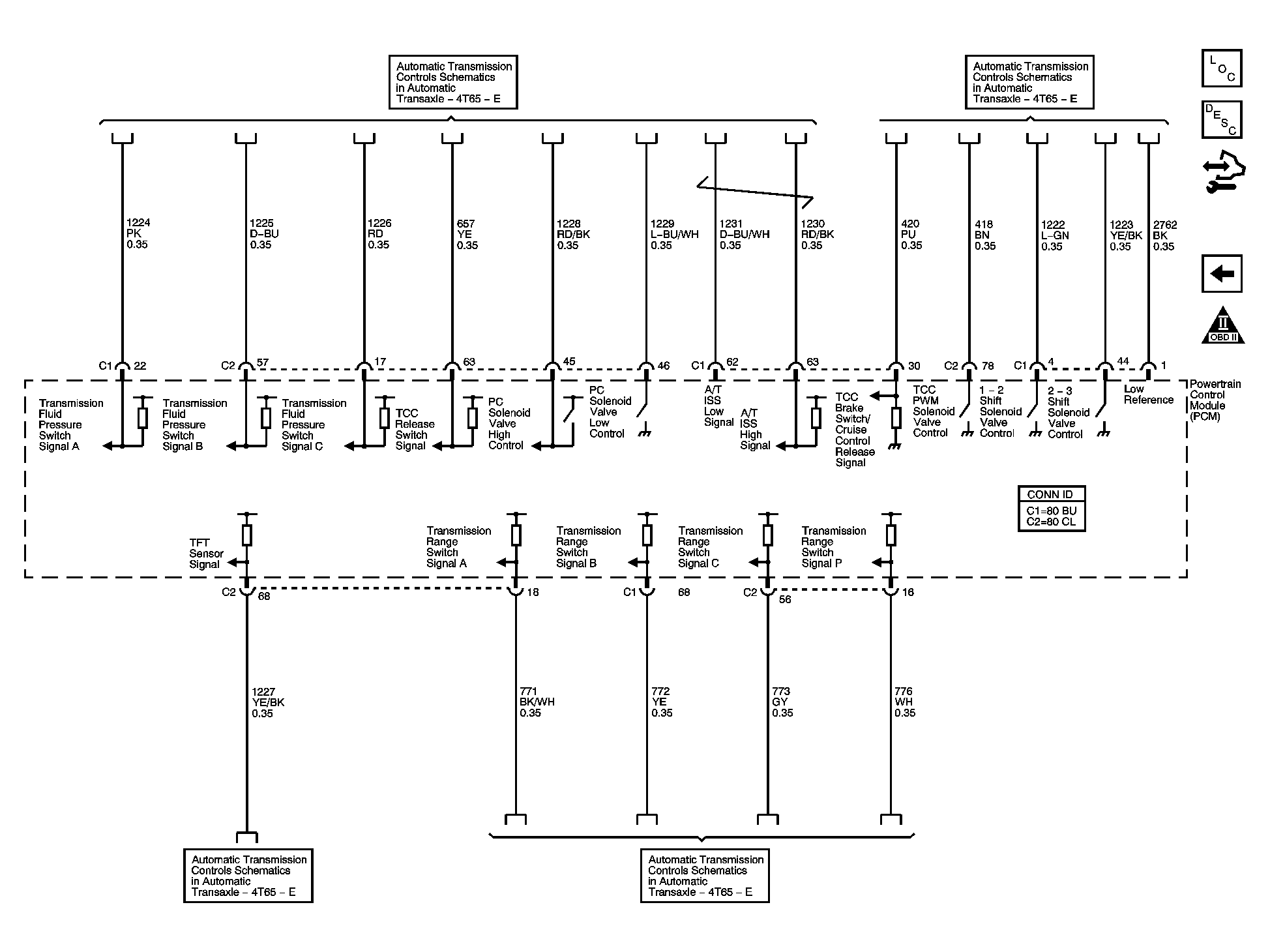

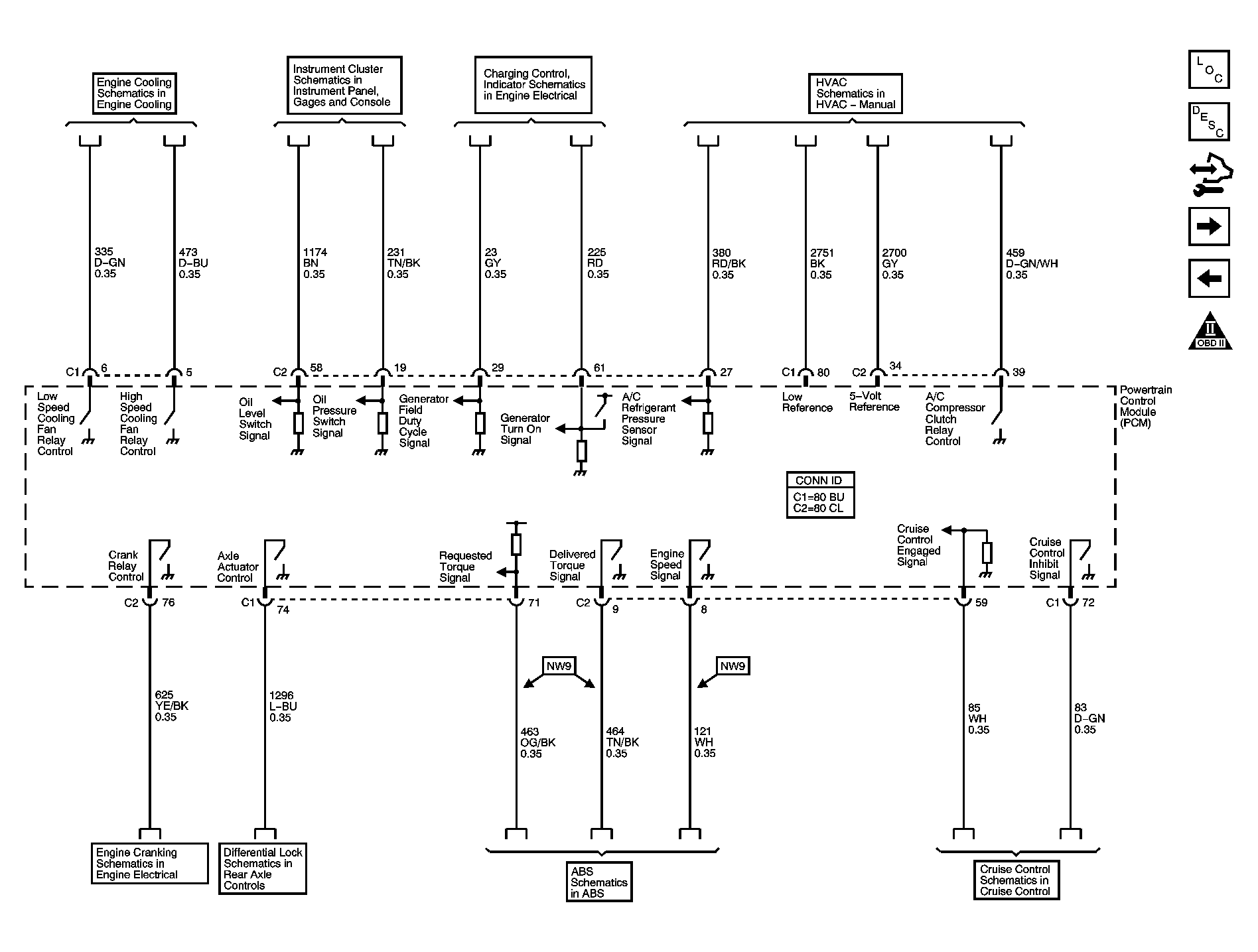

Fig 10: PCM References - 2 of 2
Courtesy of GENERAL MOTORS CORP.
