Installation Procedure

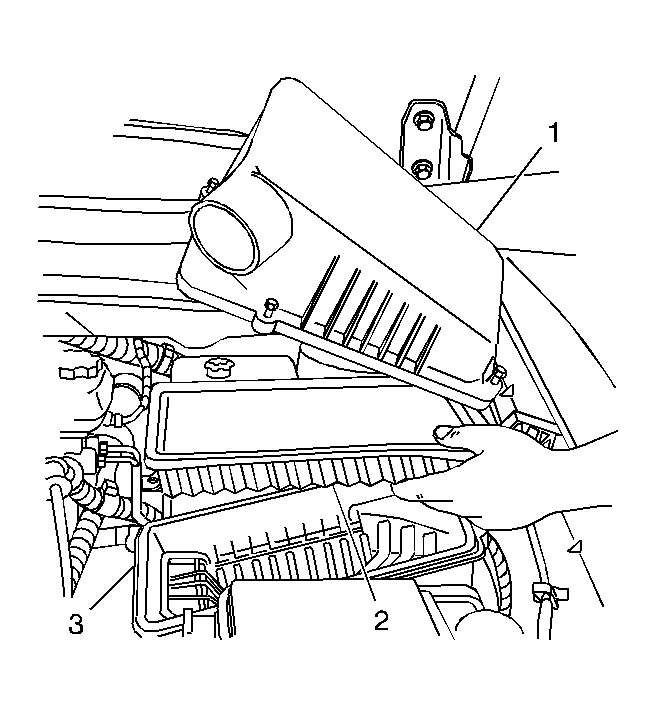

    Fig 1: View Of Air Cleaner Filter
    GM102397Courtesy of GENERAL MOTORS CORP.
  1. Install the air cleaner filter (2) into the lower air cleaner housing (3).
  2. Install the upper air cleaner cover (1) to lower air cleaner housing.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the upper air cleaner screws.

    Tighten:  Tighten the upper air cleaner cover screws to 3 N.m (27 lb in).
