Installation Procedure

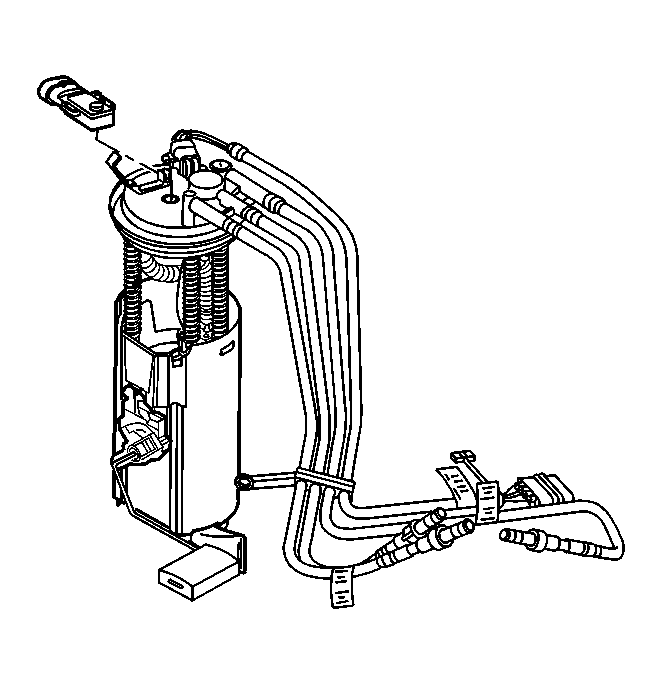

    Fig 1: Identifying Fuel Tank Pressure (FTP) Sensor
    GM61928Courtesy of GENERAL MOTORS CORP.
  1. Install the FTP sensor to the fuel sender.

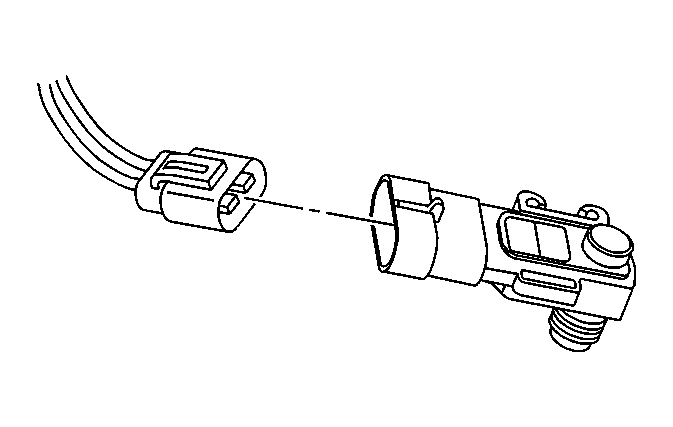

    2. Fig 2: View Of Fuel Tank Pressure (FTP) Sensor Connector
    GM373185Courtesy of GENERAL MOTORS CORP.
  2. Connect the FTP sensor connector.
  3. Install the fuel tank. Refer to Fuel Tank Replacement .
