Automatic Transmission Shift Lock Control Component Views

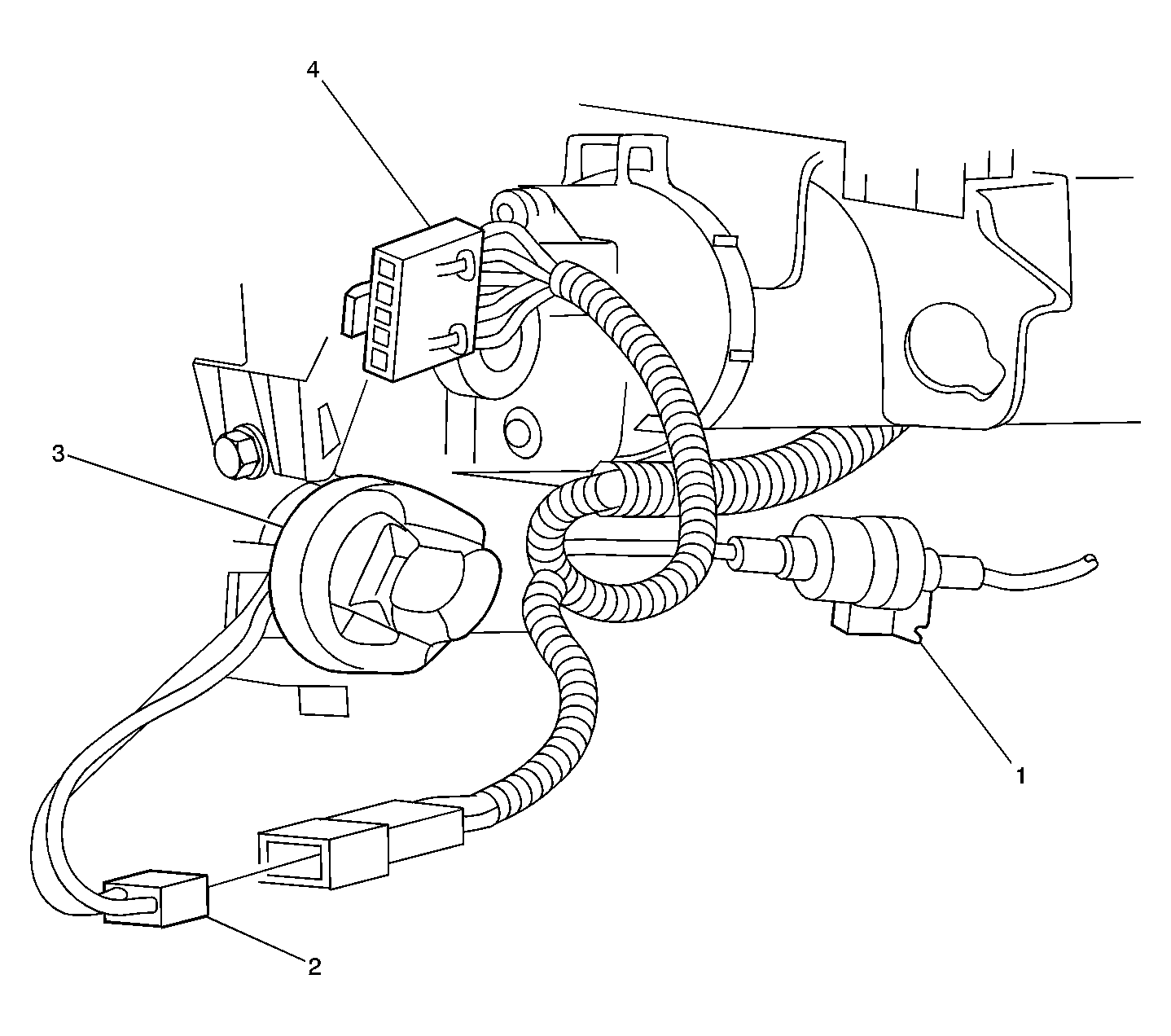

Fig 1: Under Steering Column Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/T Shift Lock Solenoid
2	Passlock™ Lock Sensor Connector
3	Ignition Key Cylinder
4	Windshield Wiper Lead
