Shift Lock Control Component Views

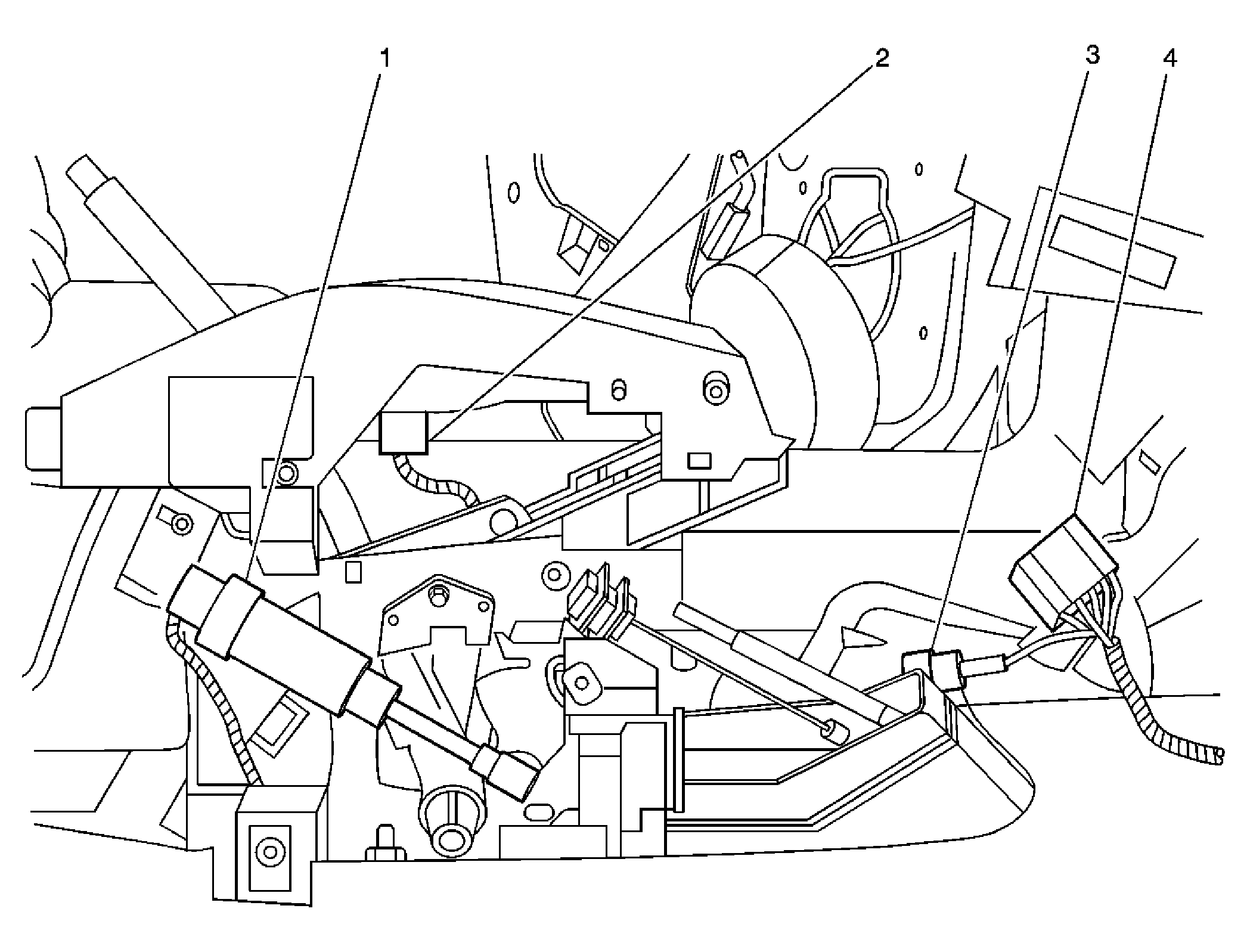

Fig 1: Inside Center Console Component Views
GM1211267Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 A/T Shift Lock Control Solenoid
2 PRNDL Lamp
3 C241
4 C240
