Rear Toe Adjustment

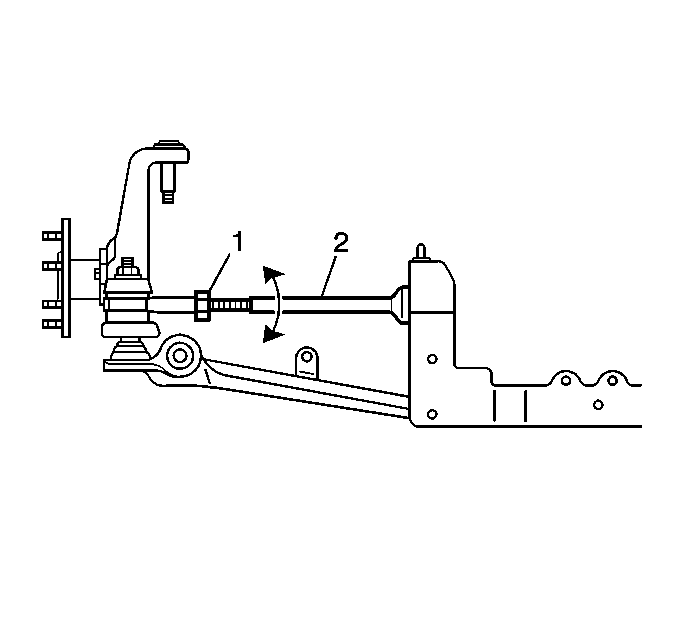

    Fig 1: Rear Suspension Adjustment Link Lock Nut & Inner Tie Rod
    GM192836Courtesy of GENERAL MOTORS CORP.
  1. Loosen the rear suspension adjustment link lock nut (1).
  2. Rotate the inner tie rod (2) to the required toe specification setting. Refer to Wheel Alignment Specifications .
    3. NOTE: Refer to Fastener Notice .
  3. Tighten the rear suspension adjustment link lock nut.

    Tighten:  Tighten the rear suspension adjustment link lock nut to 60 N.m (44 lb ft).

  4. Check the toe setting after tightening.
  5. Adjust the toe setting if necessary.
