Shiftlock Control Module
Shiftlock Control Module Connector & Terminal Parts Information
Connector Part Information
|

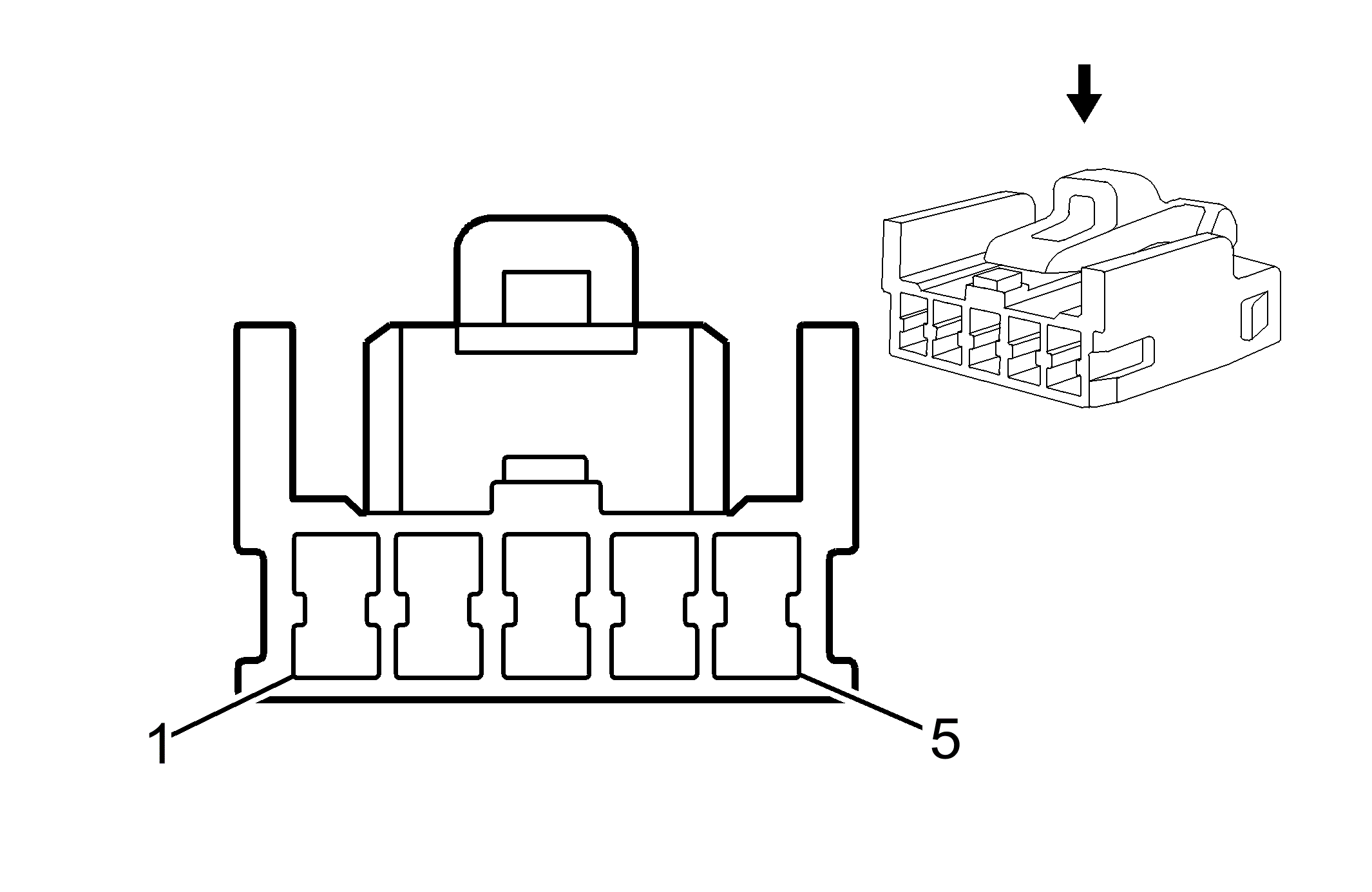

Shiftlock Control Module Terminal Identification
| Pin | Wire Color | Function |
|---|---|---|
| 1 | WH/BK | Ground |
| 2 | - | Not Used |
| 3 | GN/WH | Stop Lamp Switch Signal |
| 4 | - | Not Used |
| 5 | BK/WH | Shiftlock Control Module Feed Circuit |
