Removal Procedure

  1. Remove the bezel. Refer to Instrument Panel Cluster Trim Plate Bezel Replacement .
  2. Remove the steering column trim covers. Refer to Steering Column Trim Covers Replacement .
  3. Remove the instrument panel trim panel. Refer to Instrument Panel Center Trim Panel Replacement .
  4. Remove the front floor trim plate. Refer to Front Floor Console Trim Plate Replacement .
  5. Remove the front floor console cover. Refer to Front Floor Console Replacement .
    6. Fig 1: Disconnecting/Connecting Park Lock Cable From Shift Lock Lever
    GM859215Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the park lock cable from the shift lock lever.

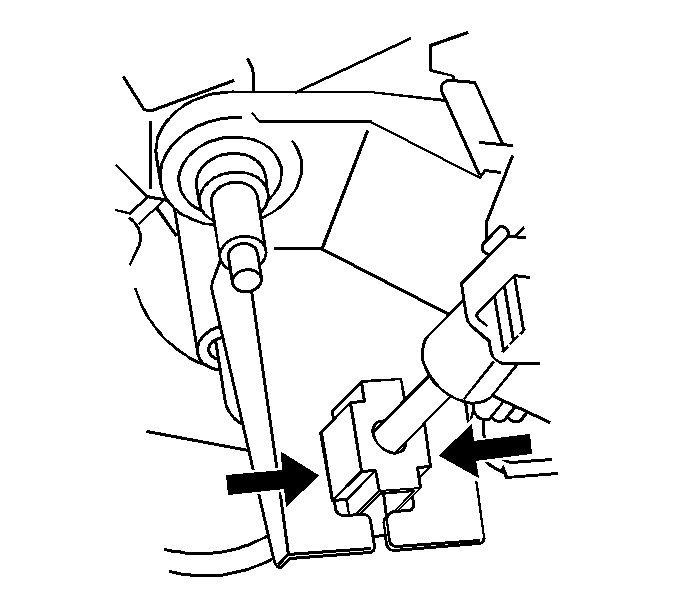

    7. Fig 2: Disconnecting/Connecting Park Lock Cable From Shift Lever Plate
    GM859218Courtesy of GENERAL MOTORS CORP.
  7. Disconnect the park lock cable from the shift lever plate.

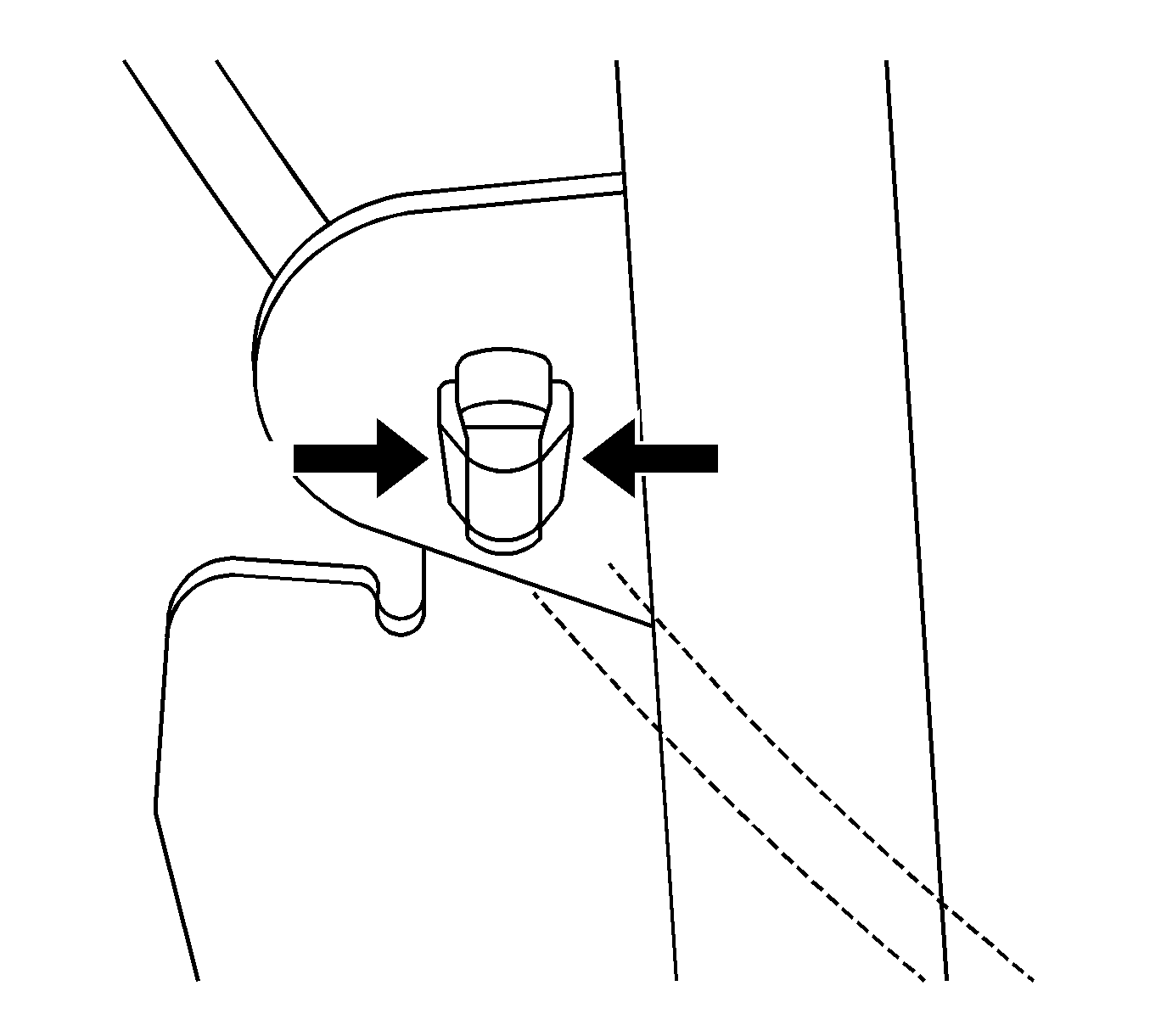

    8. Fig 3: Park Lock Cable Clamp
    GM889848Courtesy of GENERAL MOTORS CORP.
  8. Disconnect the cable clamp.

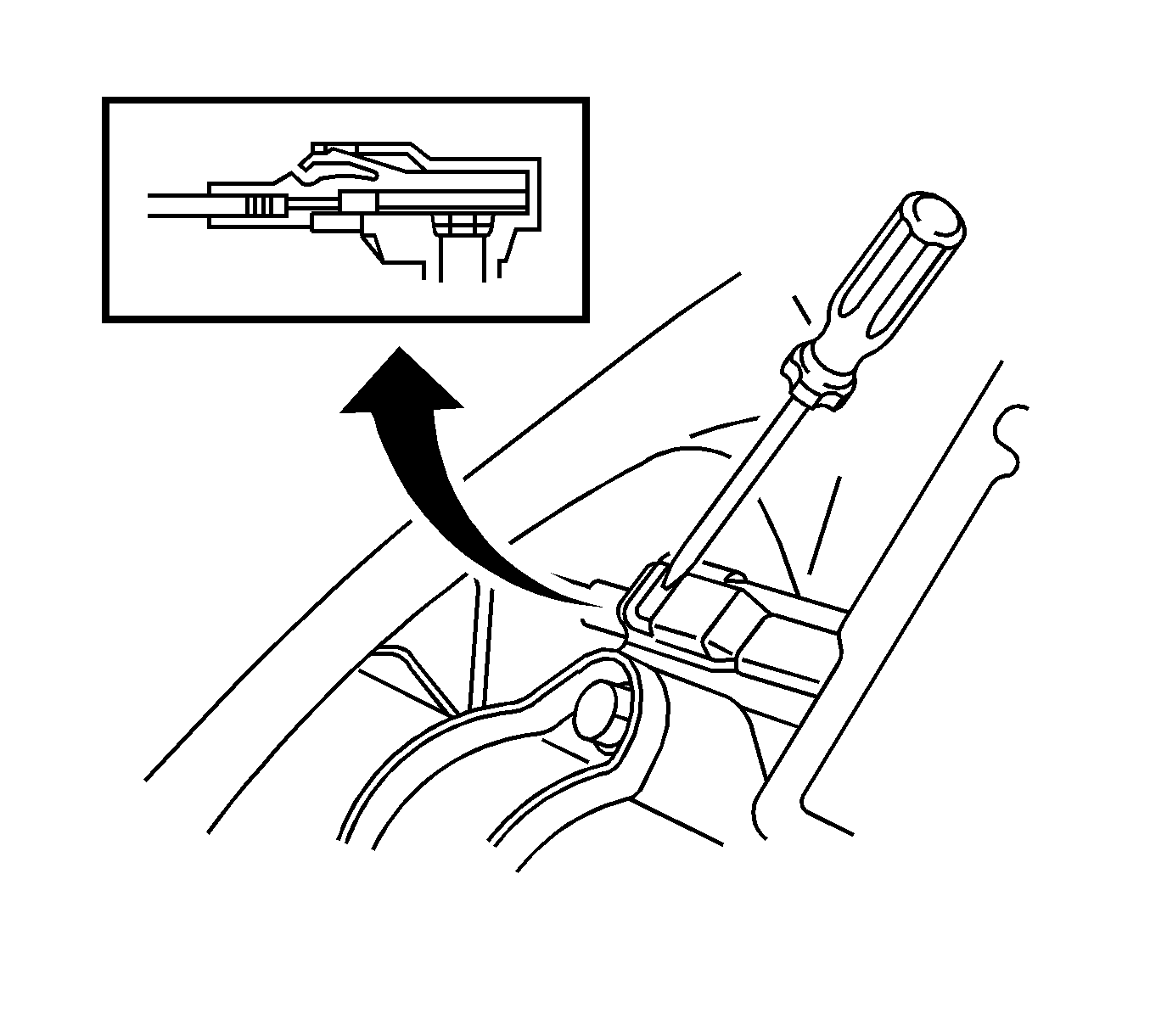

    9. Fig 4: Disconnecting Cable From Upper Bracket
    GM889851Courtesy of GENERAL MOTORS CORP.
  9. Turn the ignition switch to the ACC or Run position.
  10. Using a screwdriver, disconnect the cable from the upper bracket.
  11. Turn the ignition switch to the OFF position.
