Data Communication Schematics

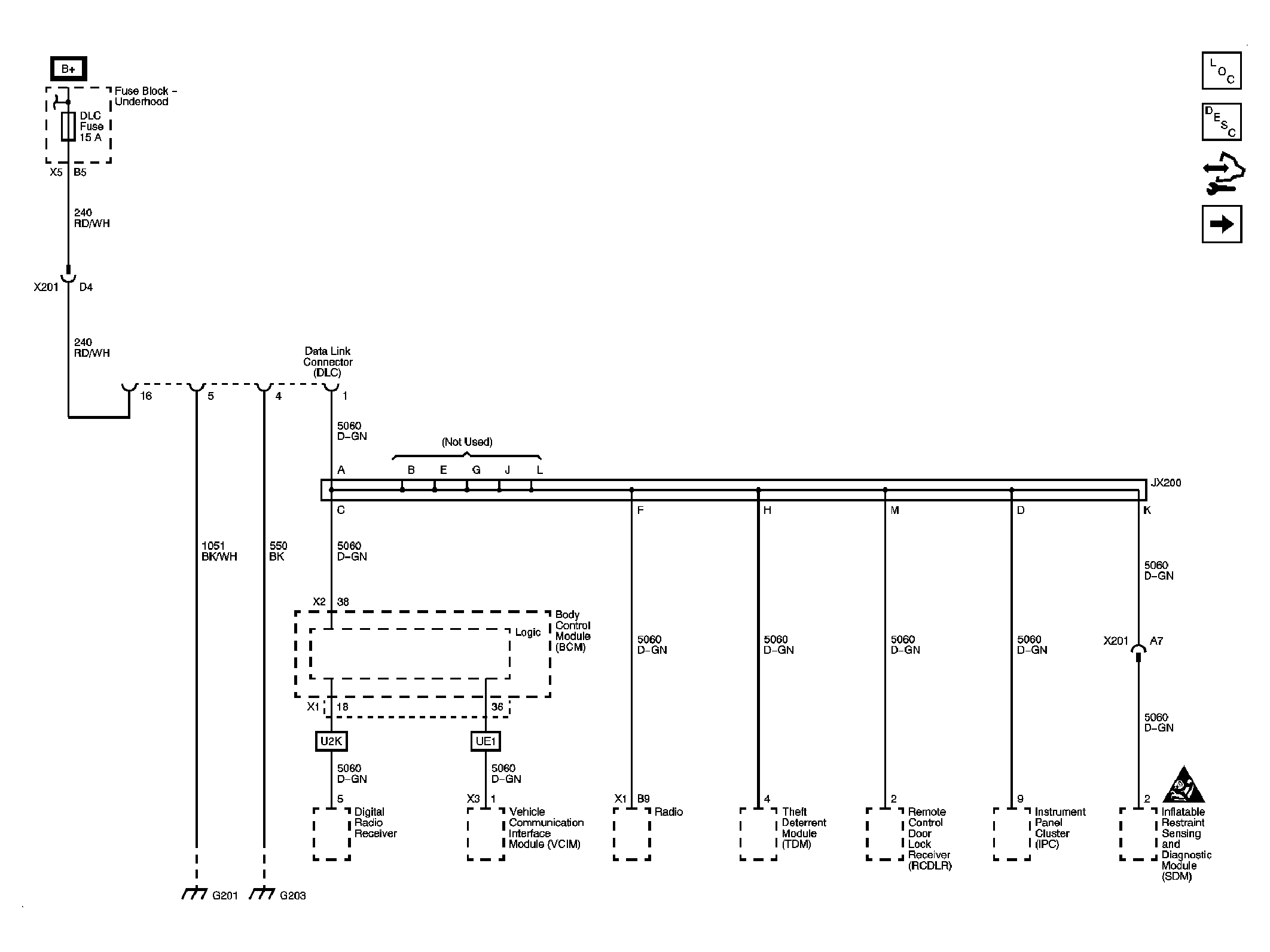

Fig 1: Power, Ground, Low Speed GMLAN

GM2249282

Courtesy of GENERAL MOTORS CORP.

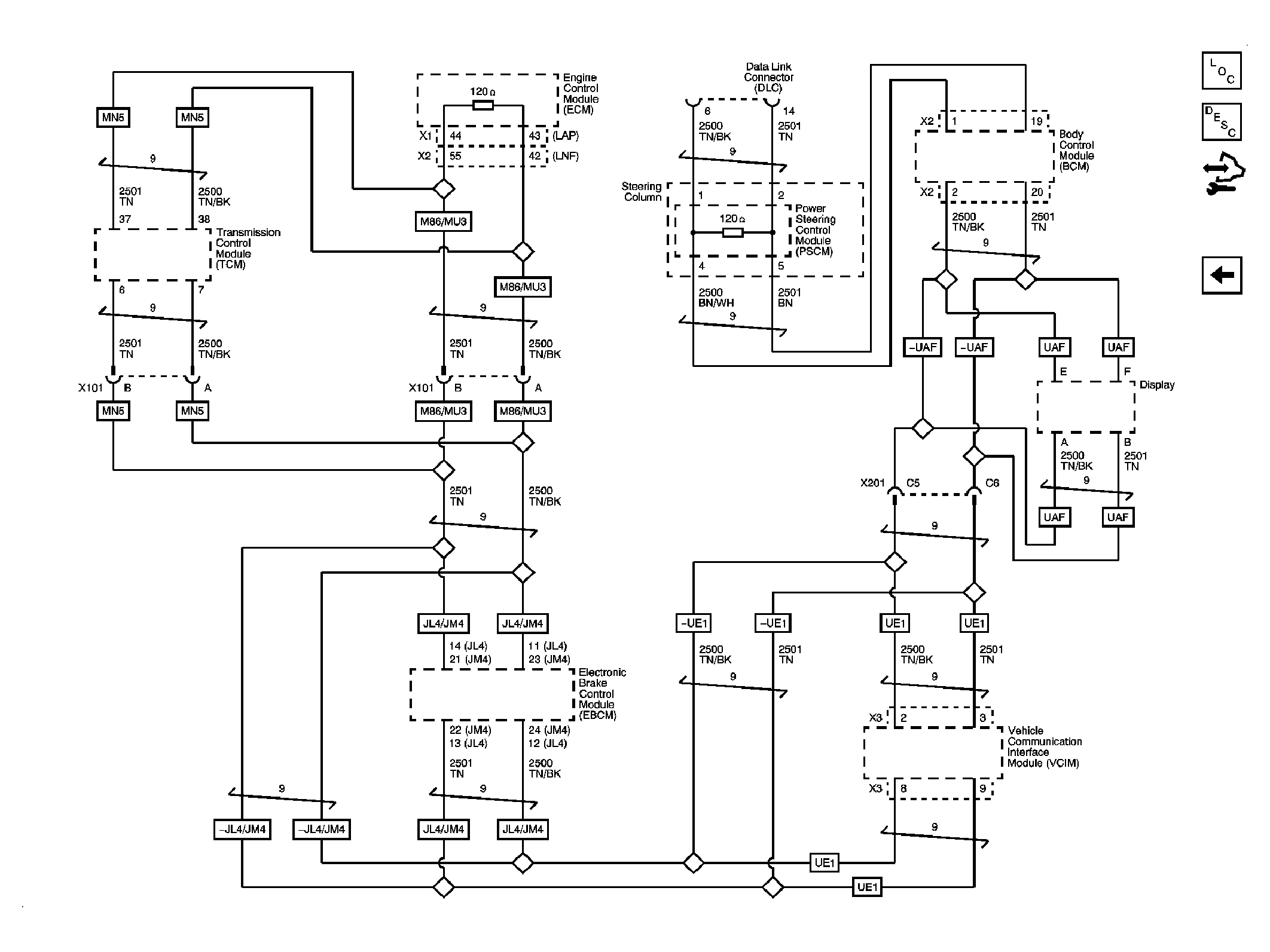

Fig 2: High Speed GMLAN

GM2249285

Courtesy of GENERAL MOTORS CORP.
