Data Communication Schematics

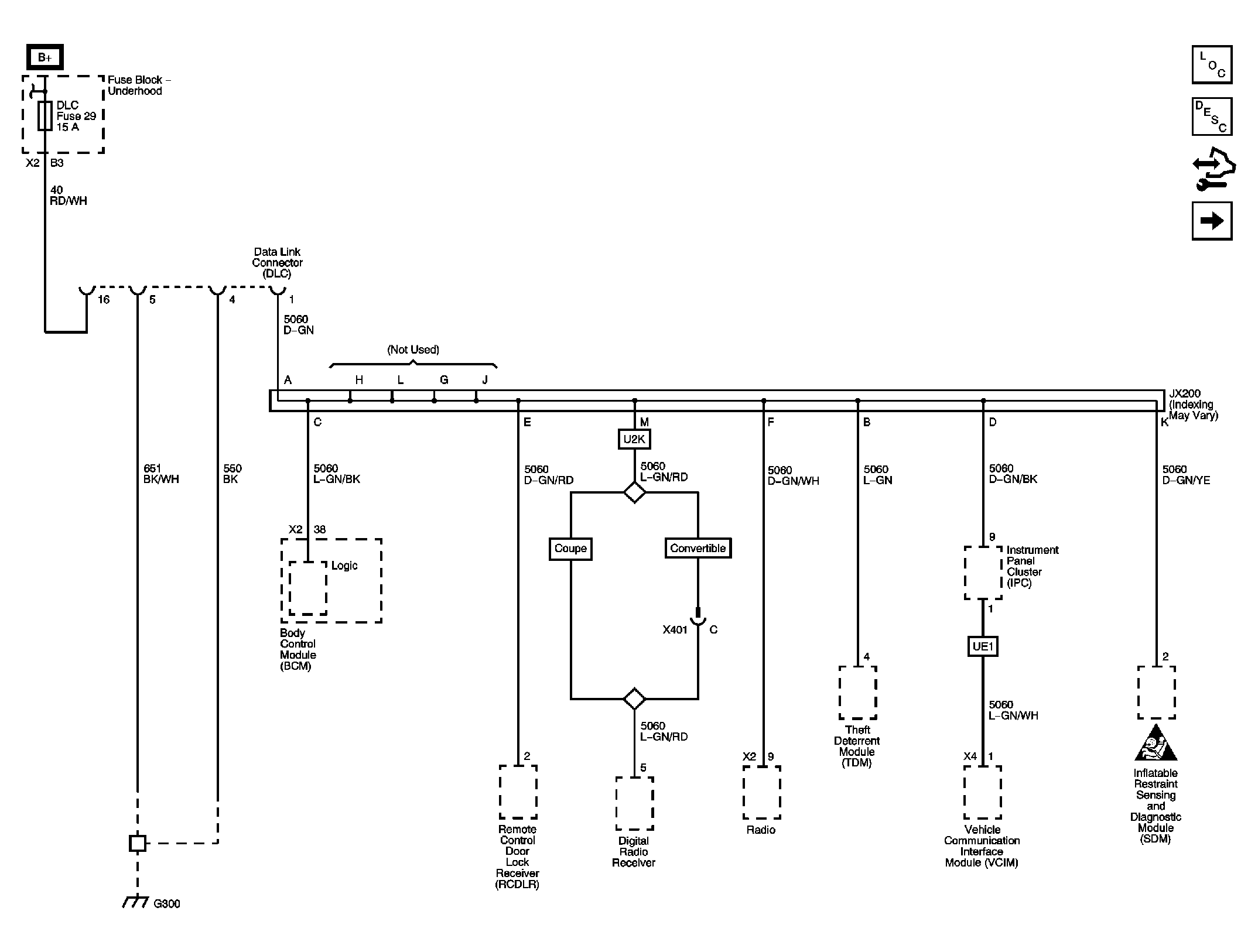

Fig 1: Low Speed LAN Circuit Schematic

GM2225188

Courtesy of GENERAL MOTORS CORP.

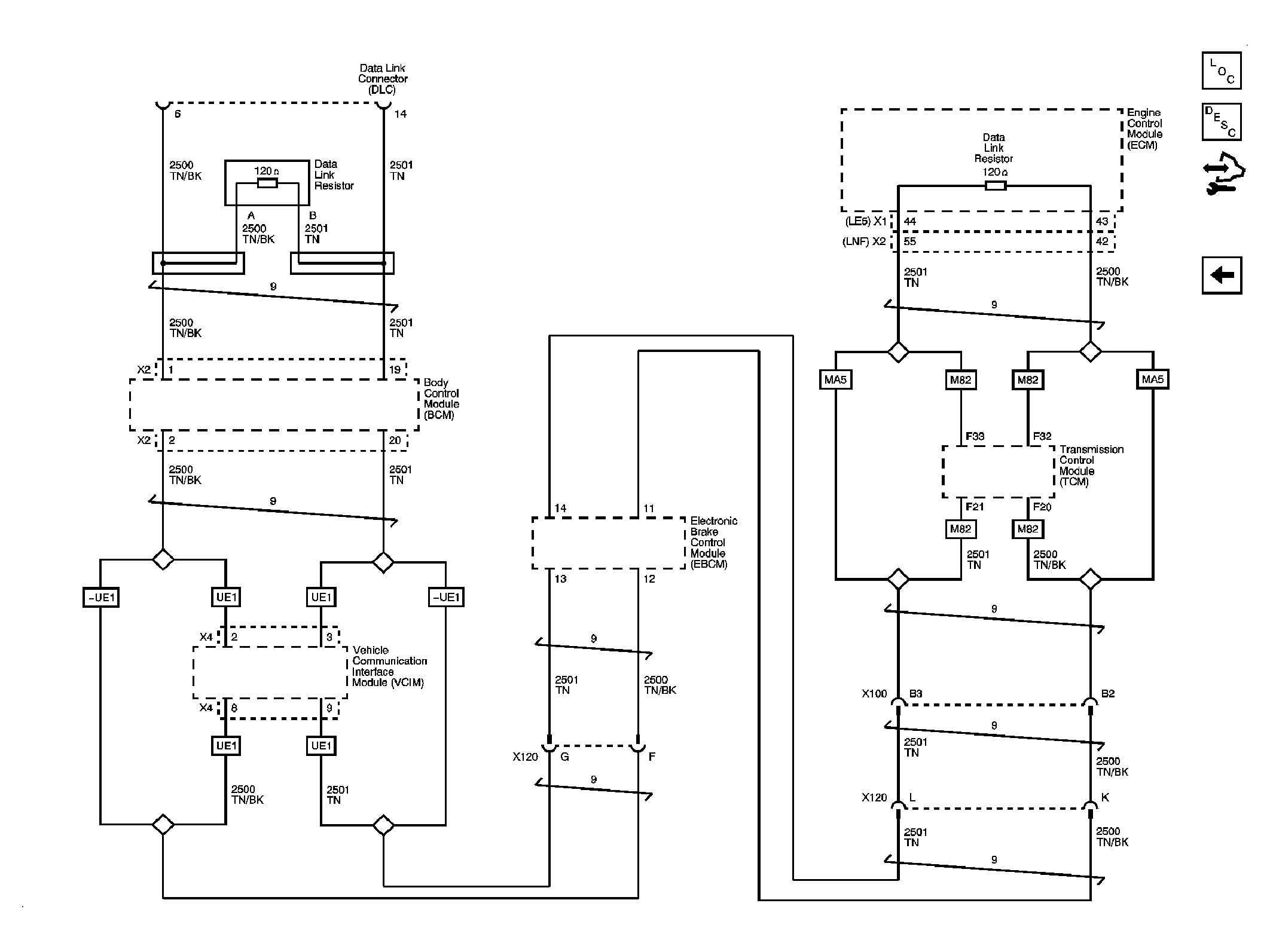

Fig 2: High Speed LAN Circuit Schematic

GM2225193

Courtesy of GENERAL MOTORS CORP.
