Removing and installing rotor for hall sensor: Removal

  1. Heat rotor area with a hot-air gun. Pull off rotor with a commercially available extractor. Place a spacer, for example VW 545/2, between the spindle and camshaft.

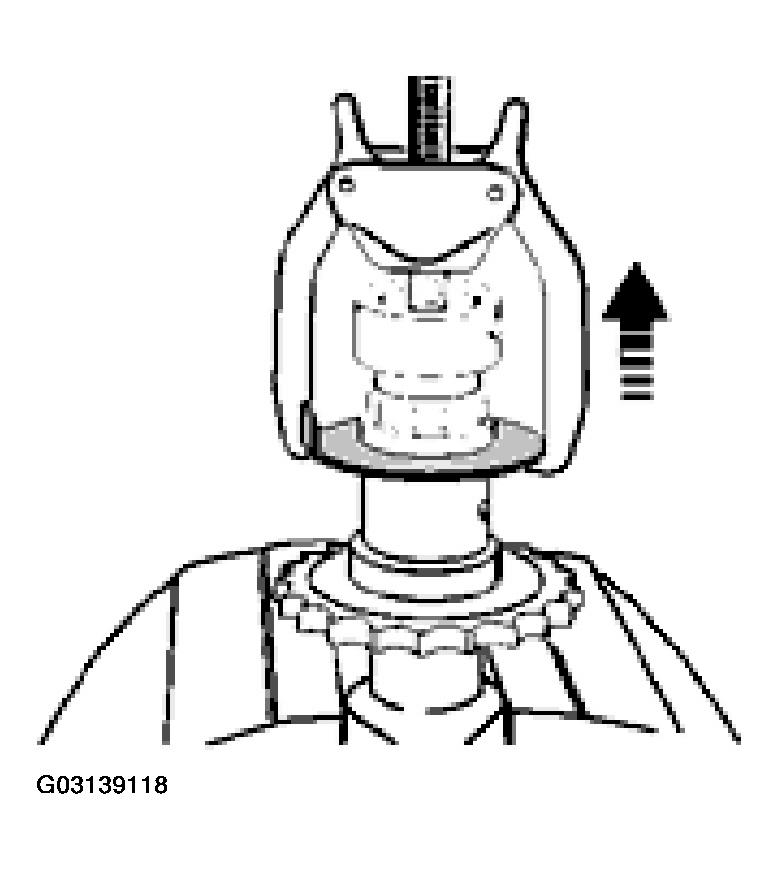

    Fig 1: Pulling Off Rotor With A Commercially Available Extractor
    G03139118Courtesy of PORSCHE OF NORTH AMERICA, INC.
