Control Units

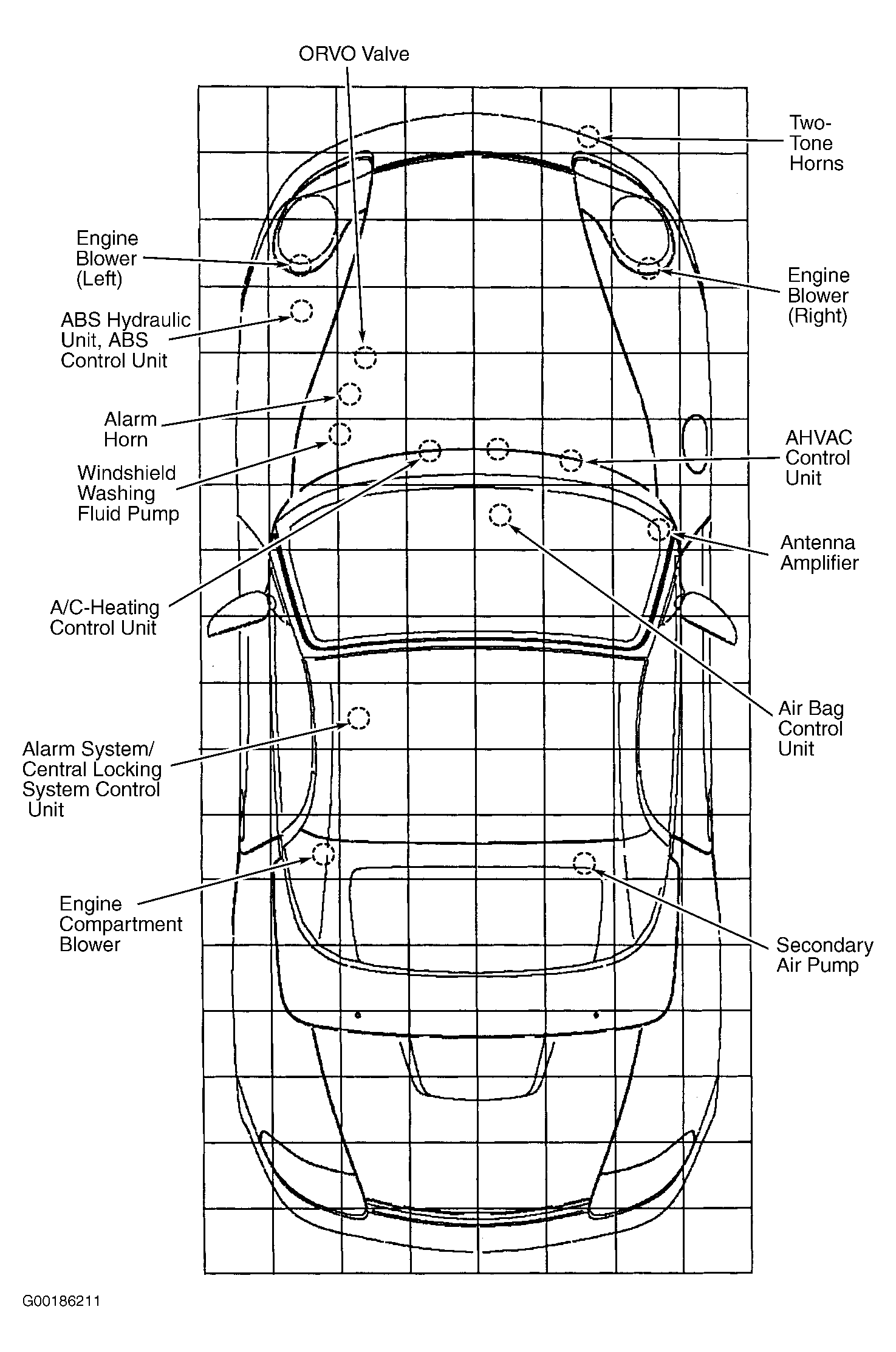

CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| ABS Control Unit | On left side of front luggage compartment. See Figure . |
| ABS Hydraulic Unit | On left side of front luggage compartment. See Figure . |
| A/C-Heating Control Unit | Behind center of dash. See Figure . |
| AHVAC Control Unit | At right rear side of front luggage compartment. See Figure . |
| Air Bag Control Unit | Under center console. See Figure . |
| Alarm System/Central Locking System Control Unit | Under driver's seat. See Figure . |

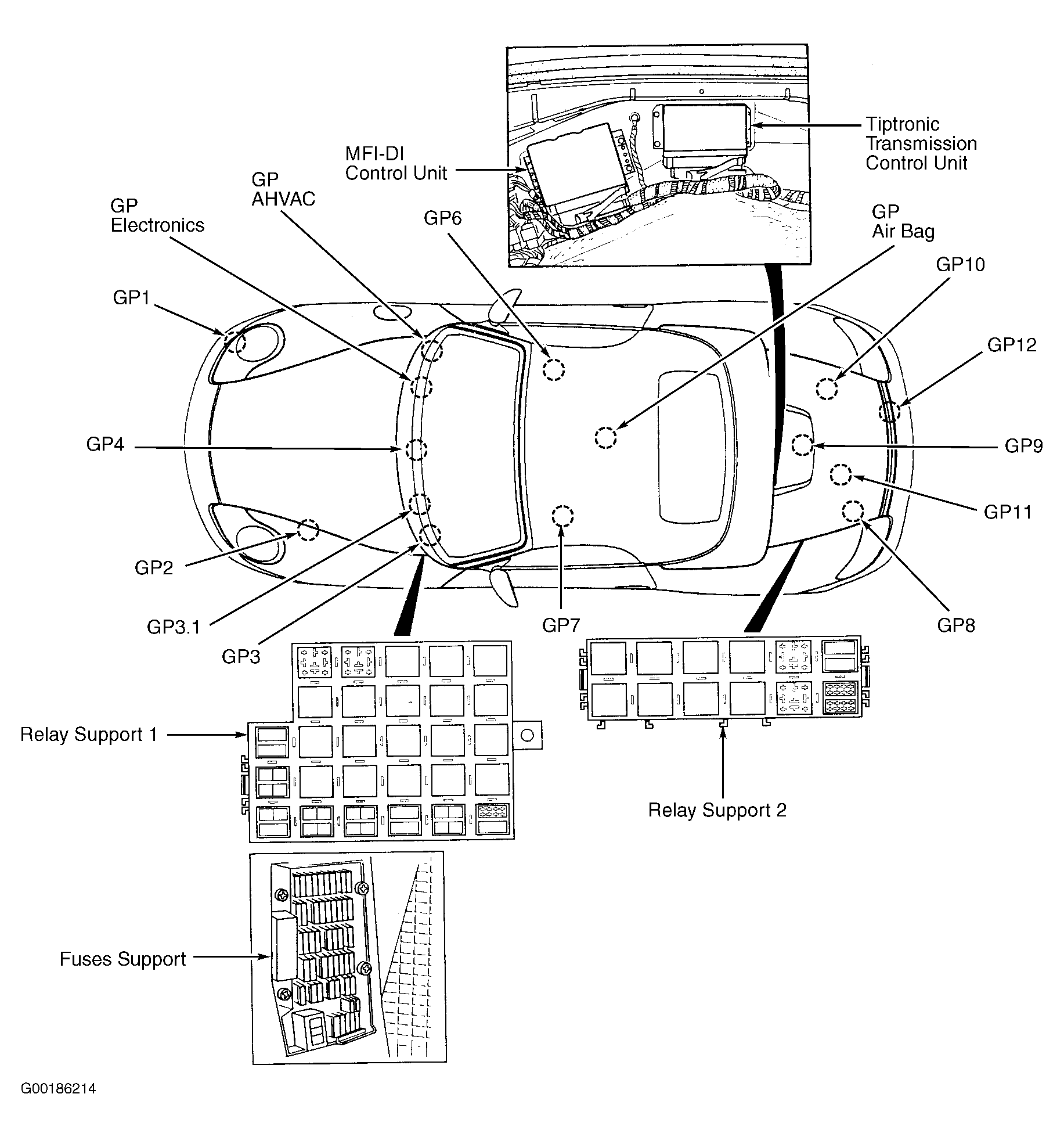

| MFI-DI Control Unit | On left side of rear luggage compartment. See Figure . |
| Tiptronic Transmission Control Unit | On left side of rear luggage compartment. See Figure . |
