Removing And Installing Sealing Ring For Intermediate Shaft: Notes

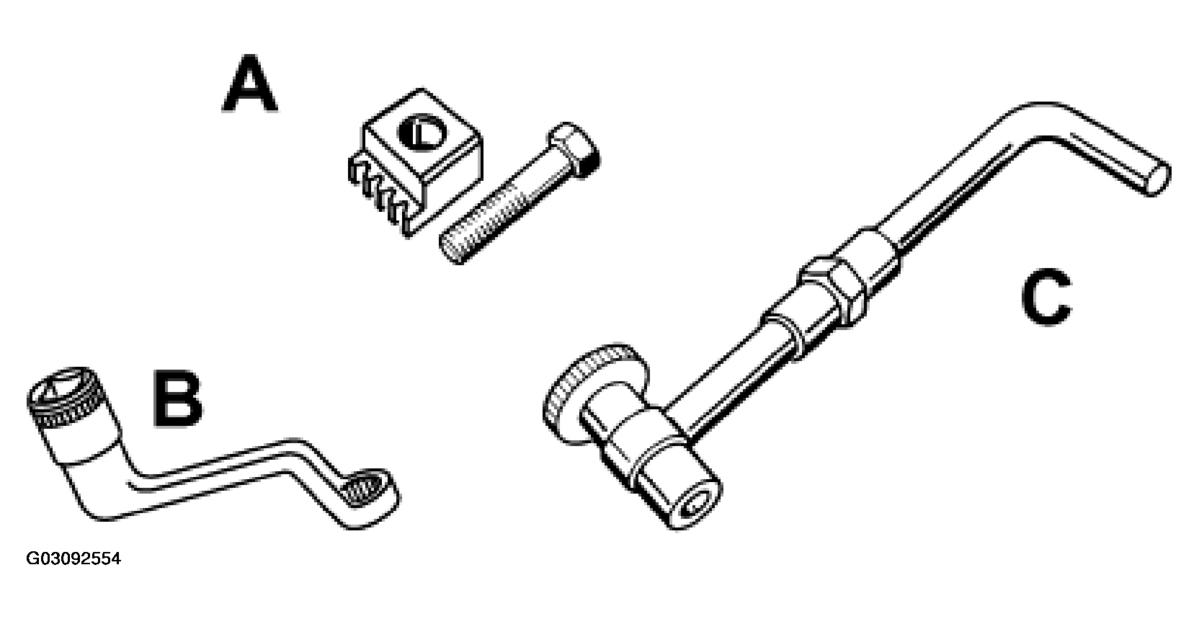

Fig 1: Identifying Special Tools
G03092554Courtesy of PORSCHE OF NORTH AMERICA, INC.
SPECIAL TOOLS

Item Remarks
-A- (1) For fixing the crankshaft
-B- (1) For undoing and tightening collar nut
-C- (1) Fixes the intermediate shaft
(1) For explanation see Fig 1.
