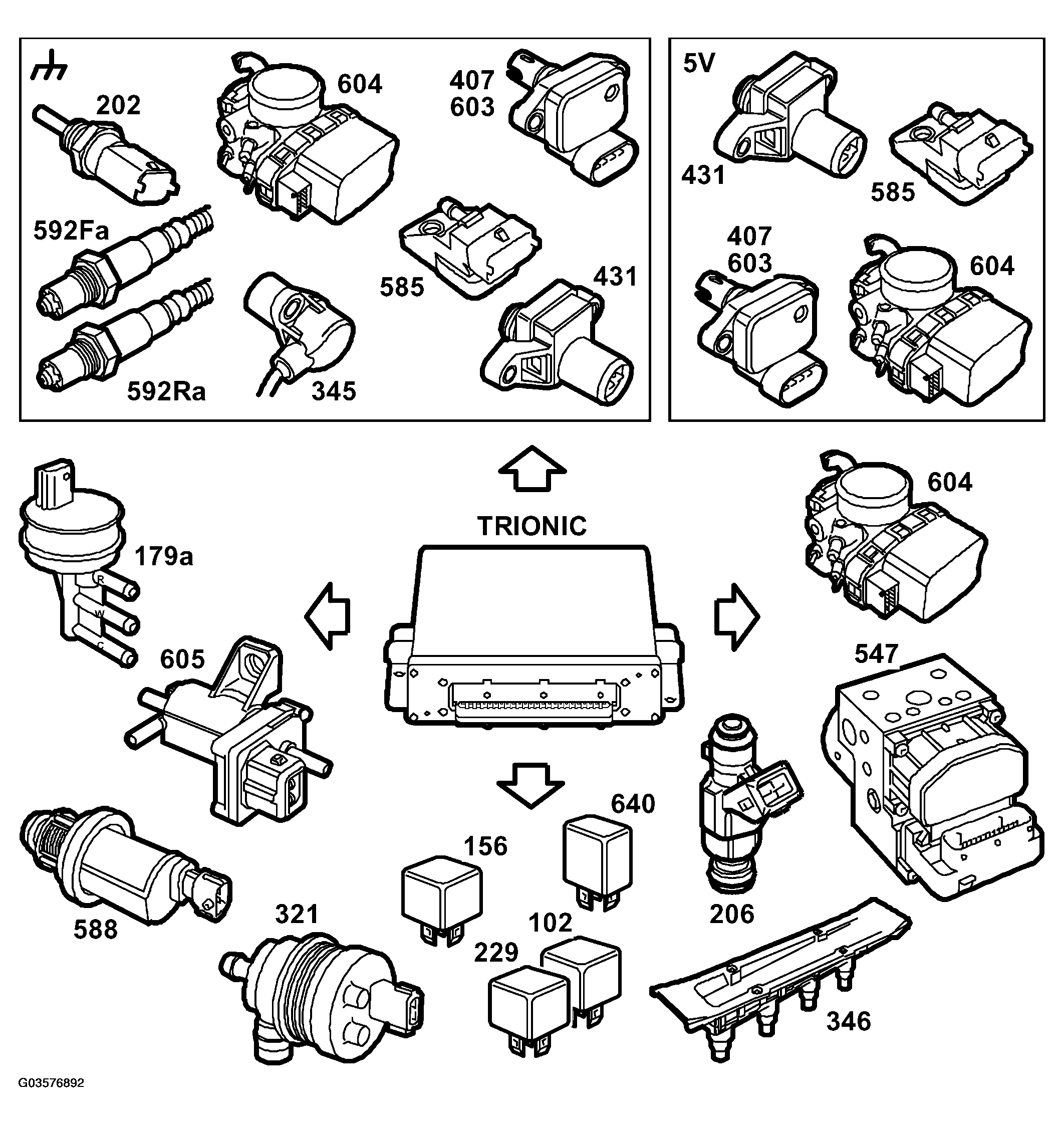

Control Module Outputs
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Sensor ground, reference ground, see GROUND
- 5 V supply to sensor, see 5V SUPPLY
- Main relay and fuel pump relay.
- A/C relay (156), see A/C RELAY
- Throttle motor, see THROTTLE CONTROL
- RELAY, LIMP-HOME SOLENOID (640) , see THROTTLE CONTROL
- CHARGE AIR CONTROL VALVE (179A) , see TURBO CONTROL
- CONTROL VALVE, BYPASS (605) , see CONTROL VALVE, BYPASS
- EVAP canister purge valve (321) , see PURGING
- Shut-off valve, EVAP canister (588), see PURGING
- INJECTORS (206) , see INJECTORS
- IGNITION DISCHARGE MODULE (346) , see IGNITION DISCHARGE MODULE
- Pedal position, wire to ABS (547), see BUS COMMUNICATION
- Engine torque, wire to ABS (547), see BUS COMMUNICATION
- Engine speed, wire to ABS (547), see BUS COMMUNICATION
