Home >> Saab >> 2003 >> 9-3 Vector, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> TRIONIC T7 Fuel Control System >> Adjustment-Replacement >> Brake pedal switch >> To fit

To fit

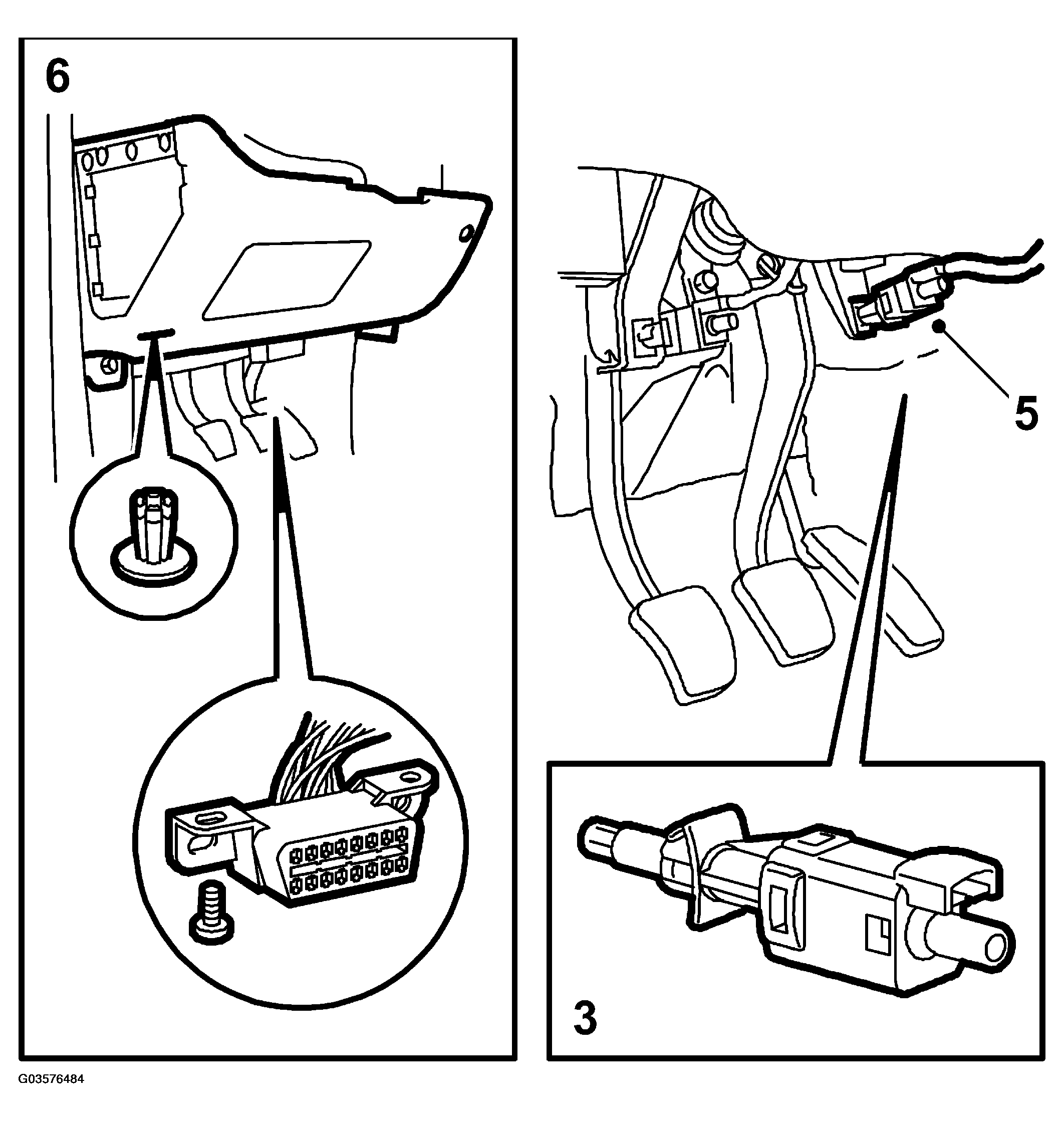

Fig 1: Illustration For Steps 3-6
G03576484Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Spray the connector with Kontakt 61 (part no. 30 04 520).
  2. Carefully pull out the switch pushrod to its end position.
  3. Depress the brake pedal and fit the switch.
  4. Carefully release the pedal.
  5. Plug in the connector.
  6. Fit the lower dashboard panel.
