Home >> Saab >> 2003 >> 9-3 Vector, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> TRIONIC T7 Fuel Control System >> Adjustment-Replacement >> Brake pedal switch >> To remove

To remove

  1. Remove the lower dashboard panel.

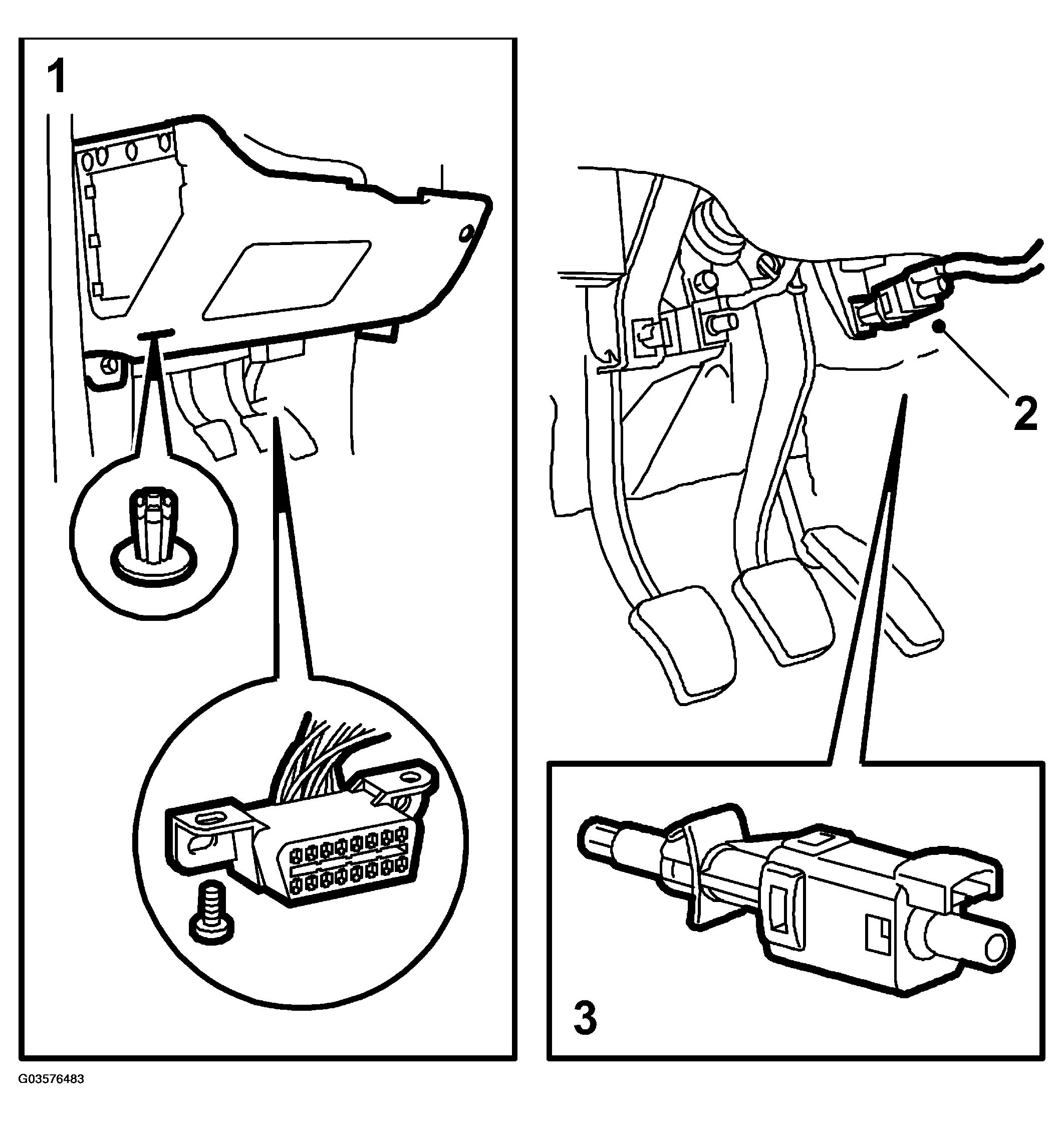

    Fig 1: Illustration For Steps 1-3
    G03576483Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Unplug the brake pedal switch connector.
  3. Detach the brake pedal switch with a screwdriver.
