To remove

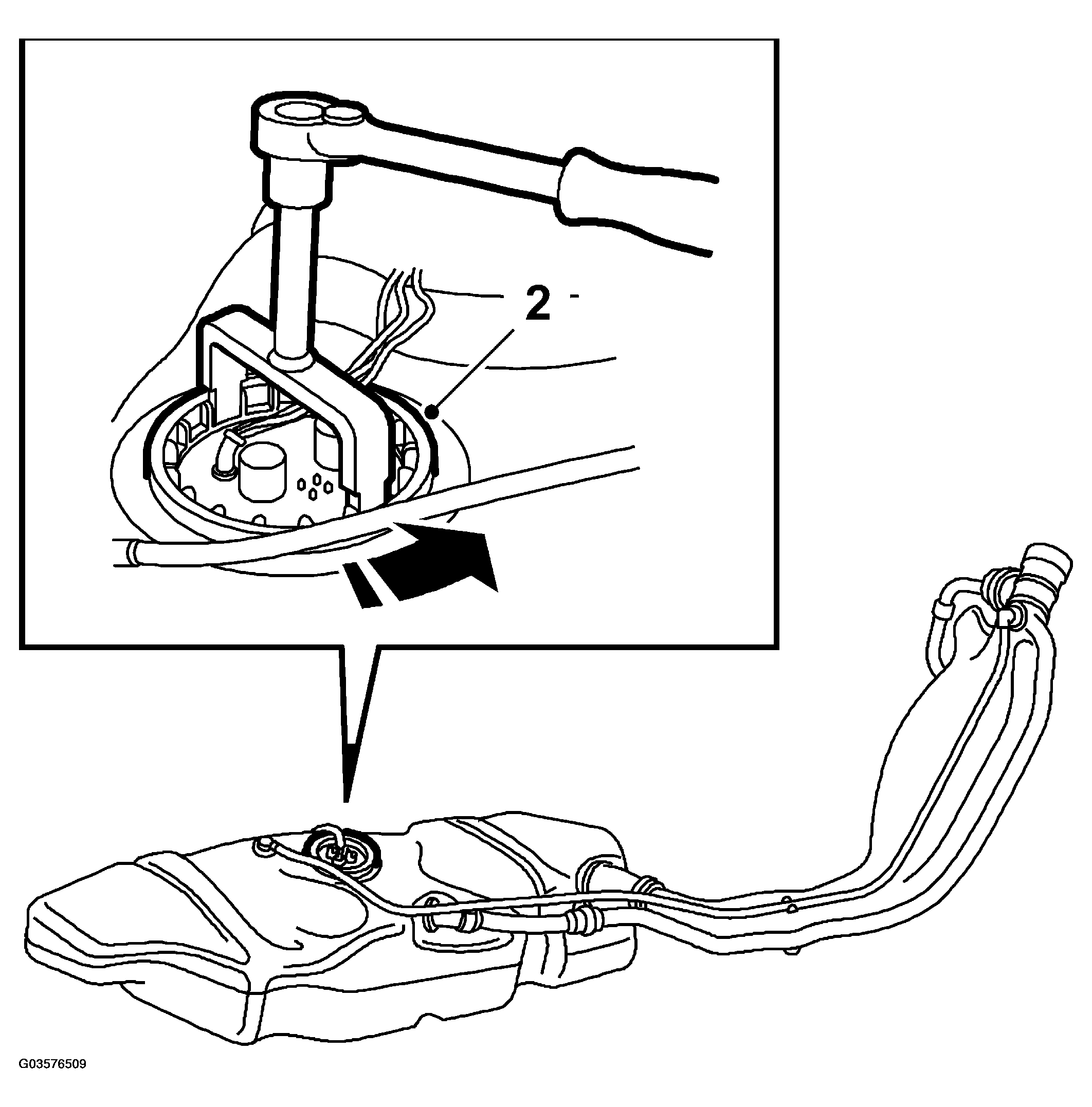

Fig 1: Illustration For Step 2
G03576509Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the fuel tank. See FUEL TANK .
  2. Remove the screw ring from the top of the fuel pump. Use special tool no. 83 94 462.
  3. Lift the pump until it upper part is approx. 50 mm above the petrol tank. Then, turn it clockwise approx 80 degrees and carefully remove the pump.

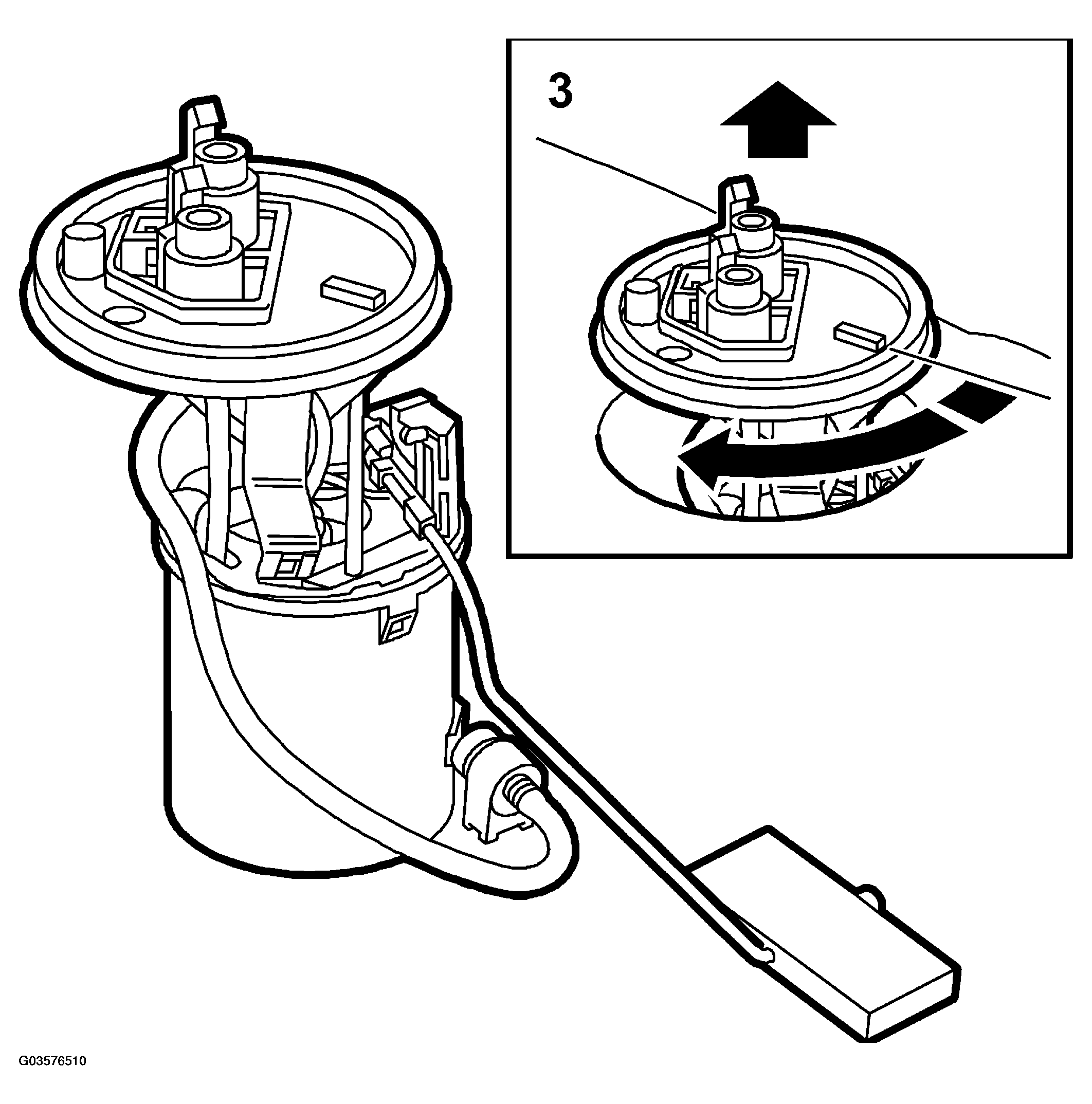

    Fig 2: Illustration For Step 3
    G03576510Courtesy of SAAB-SCANIA OF AMERICA, INC.
