Home >> Saab >> 2003 >> 9-3 Vector, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> TRIONIC T7 Fuel Control System >> Adjustment-Replacement >> Ignition discharge module >> To remove

To remove

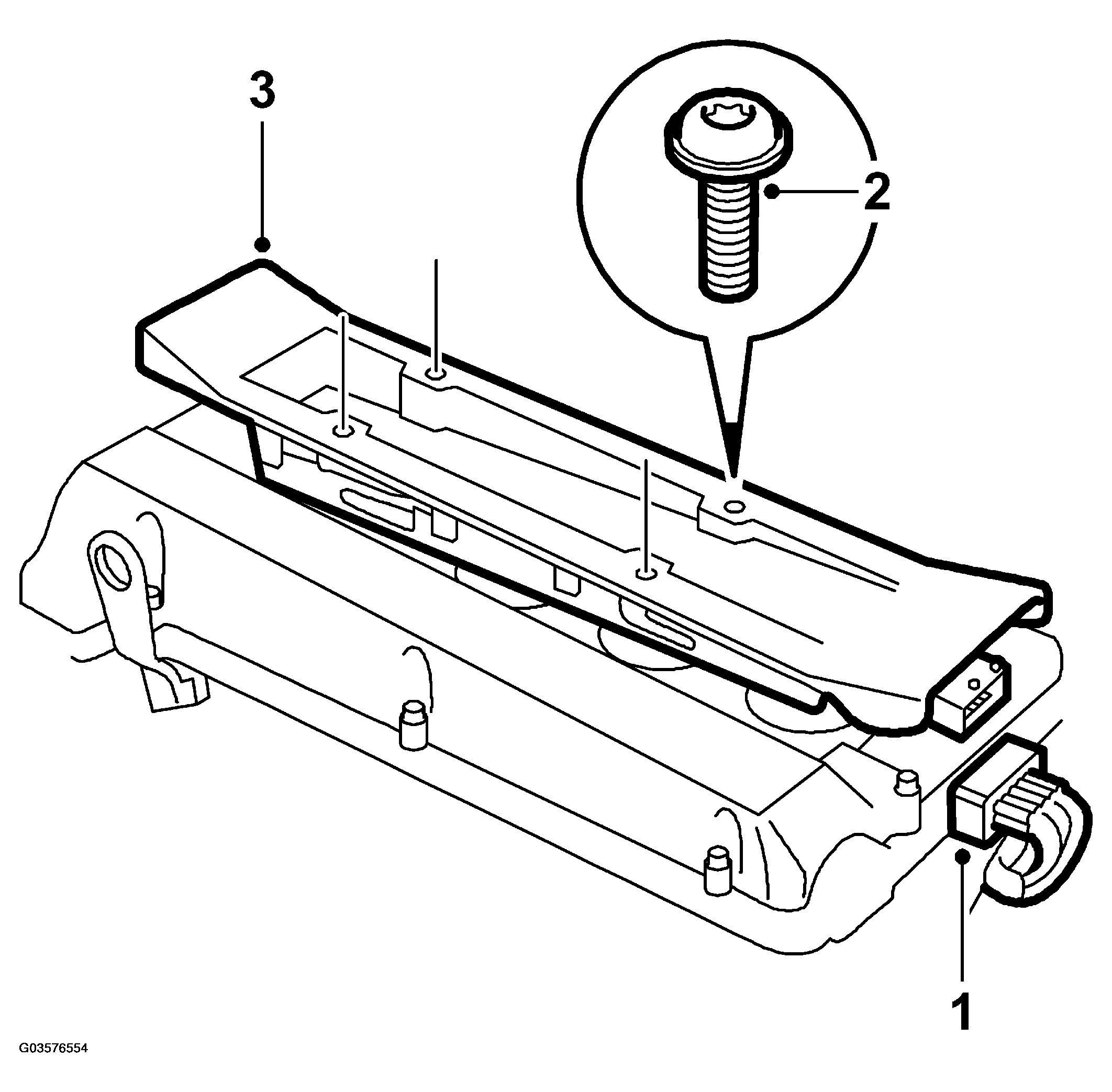

Fig 1: Illustration For Steps 1-3
G03576554Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Unplug the 10-pin ignition discharge module connector.
  2. Remove the 4 screws.
  3. Lift up the module.
