To fit

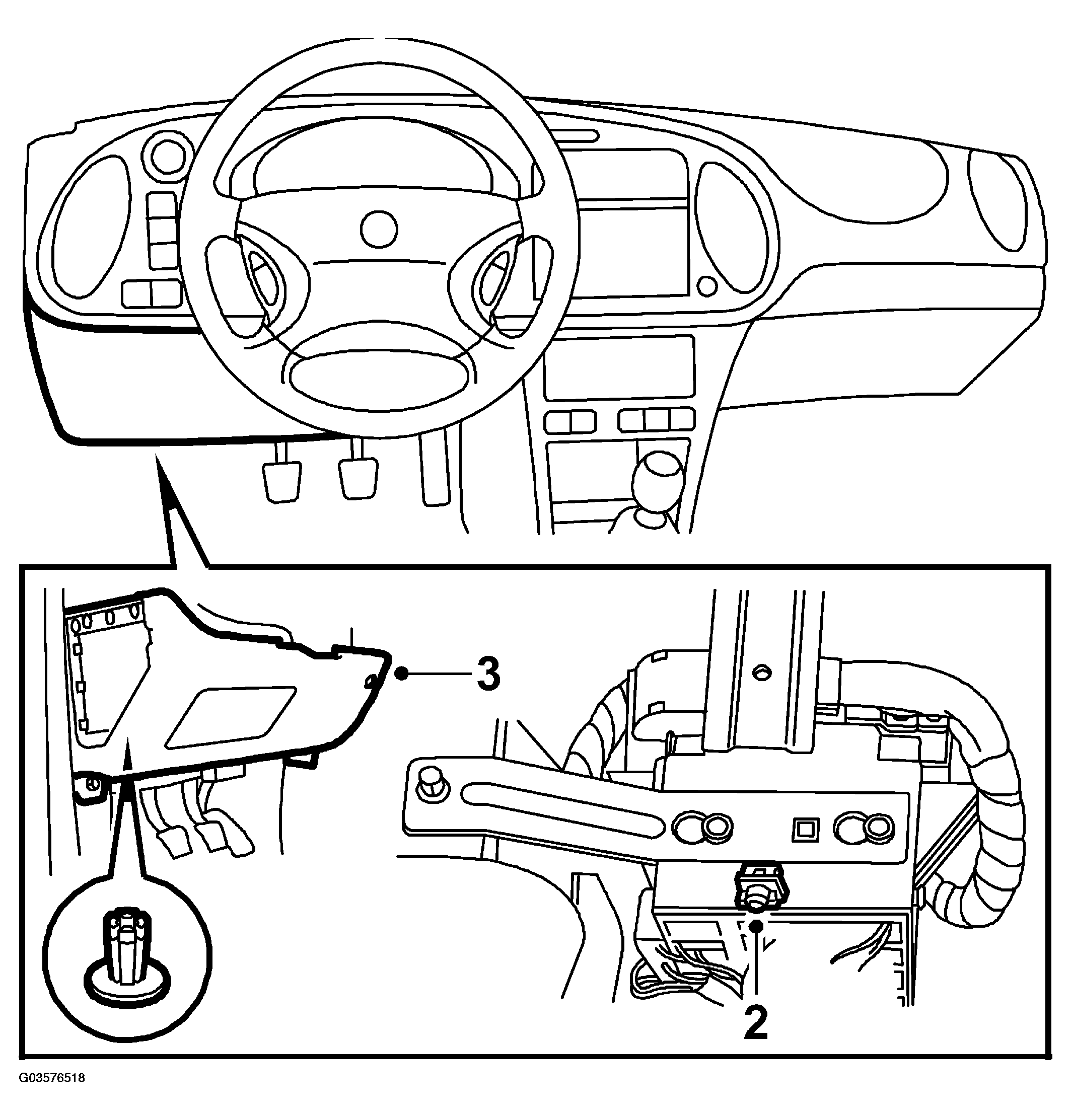

Fig 1: Illustration For Steps 2-3
G03576518Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Spray the connectors in the relay holder with Kontakt 61 (part no. 30 04 520) and fit the relay.
  2. Tilt up the relay holder and fit the screw.
  3. Fit the cover on the knee protection.
