Home >> Saab >> 2003 >> 9-3 Vector, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> TRIONIC T7 Fuel Control System >> Adjustment-Replacement >> Switch, cruise control >> To fit

To fit

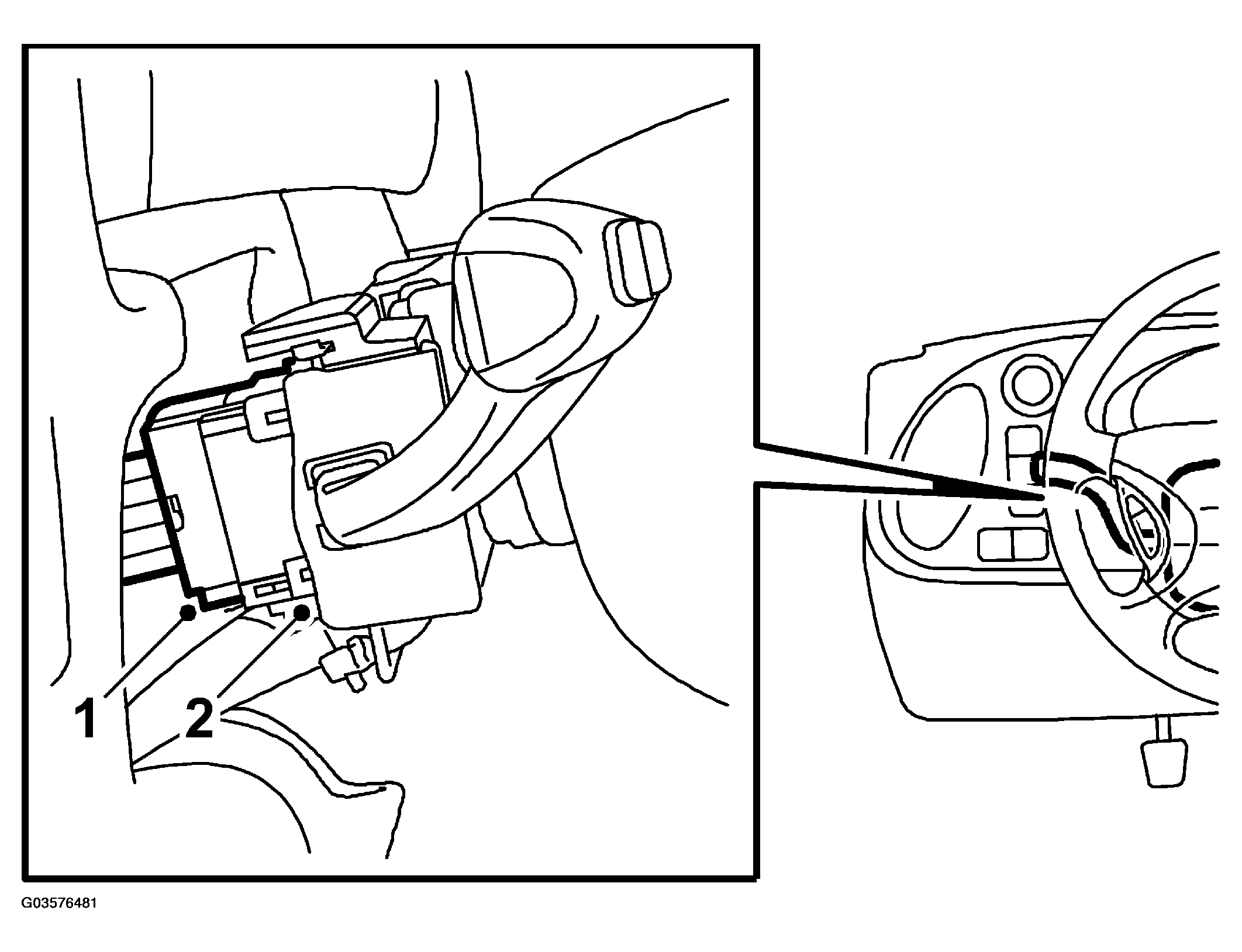

Fig 1: Illustration For Steps 1-2
G03576481Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Position the switch.
  2. Spray the connector with Kontakt 61 (part no. 30 04 520) and plug it in.
  3. Fit the covers. Pay attention to the catch on the covers.
    Fig 2: Illustration For Steps 1-2
    G03576482Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Adjust the cover on the steering column bearing bracket and tighten it.
  5. Readjust the steering wheel.
