Brake pedal switch (134)

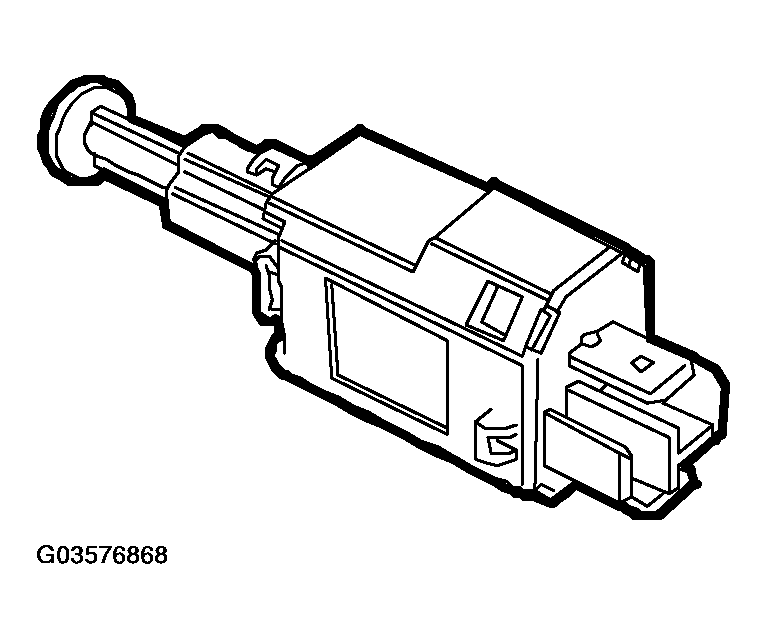

Fig 1: Identifying Brake Pedal Switch
G03576868Courtesy of SAAB-SCANIA OF AMERICA, INC.
TECHNICAL DATA - BRAKE PEDAL SWITCH

Location On pedal bracket
Characteristics, pins 1-2 Normally closed when pedal released
