Main relay (229)

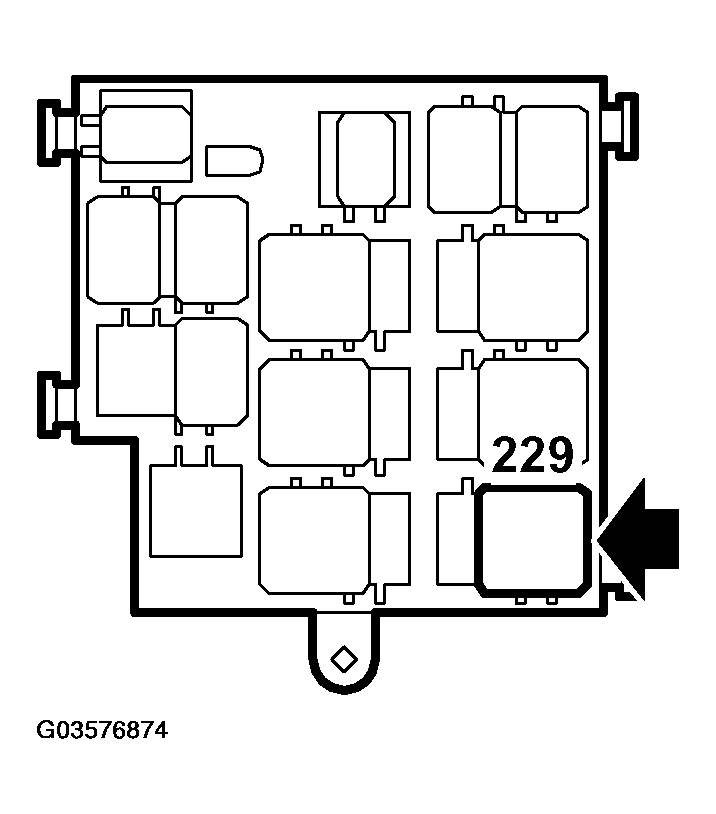

Fig 1: Identifying Main Relay
G03576874Courtesy of SAAB-SCANIA OF AMERICA, INC.
TECHNICAL DATA - MAIN RELAY

Location   In dashboard main relay board
Resistance, winding at 20°C (68°F) Ohms 85+/-5
Nominal control voltage V 12
Rated current A 30
