Home >> Saab >> 2004 >> 9-3 Linear, Automatic >> Repair and Diagnosis >> Electrical >> Body Electrical >> Control Module >> Adjustment - Replacement >> Telematics unit (468), CV >> To remove

To remove

  1. Carry out procedures before removing a control module. See PROCEDURES BEFORE DISMANTLING CONTROL MODULE  .
  2. Remove the front luggage compartment trim.

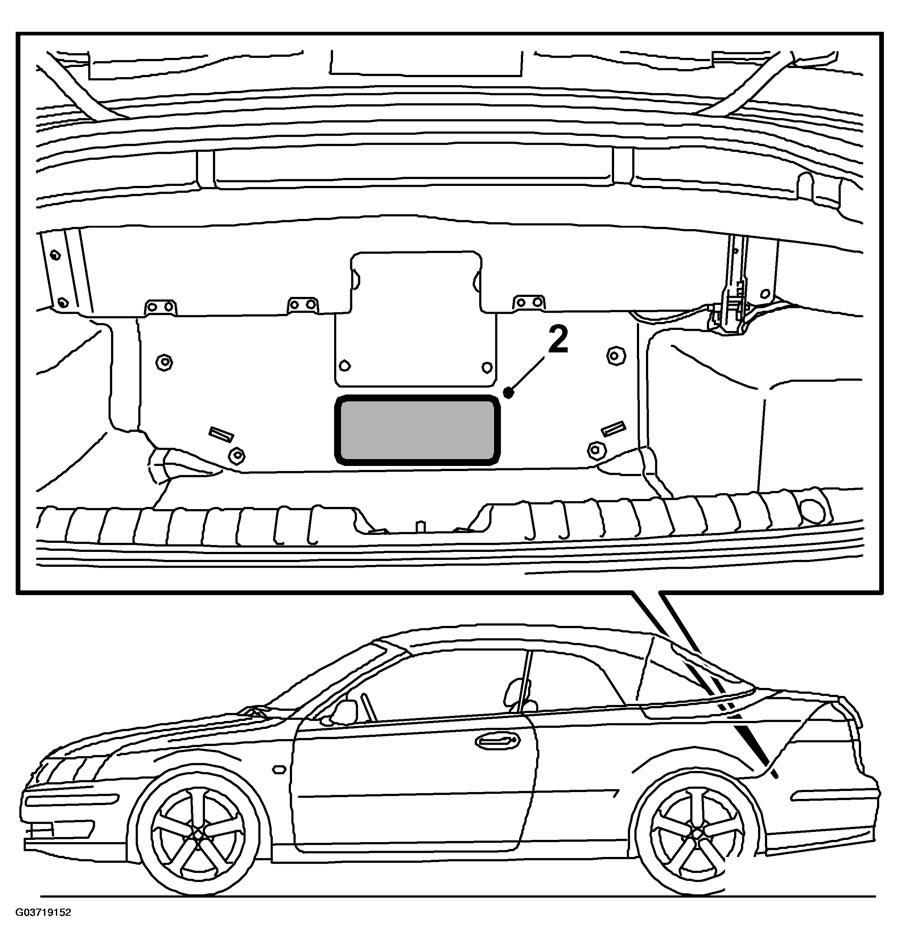

    Fig 1: Illustration For Step 2
    G03719152Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the two bracket bolts.

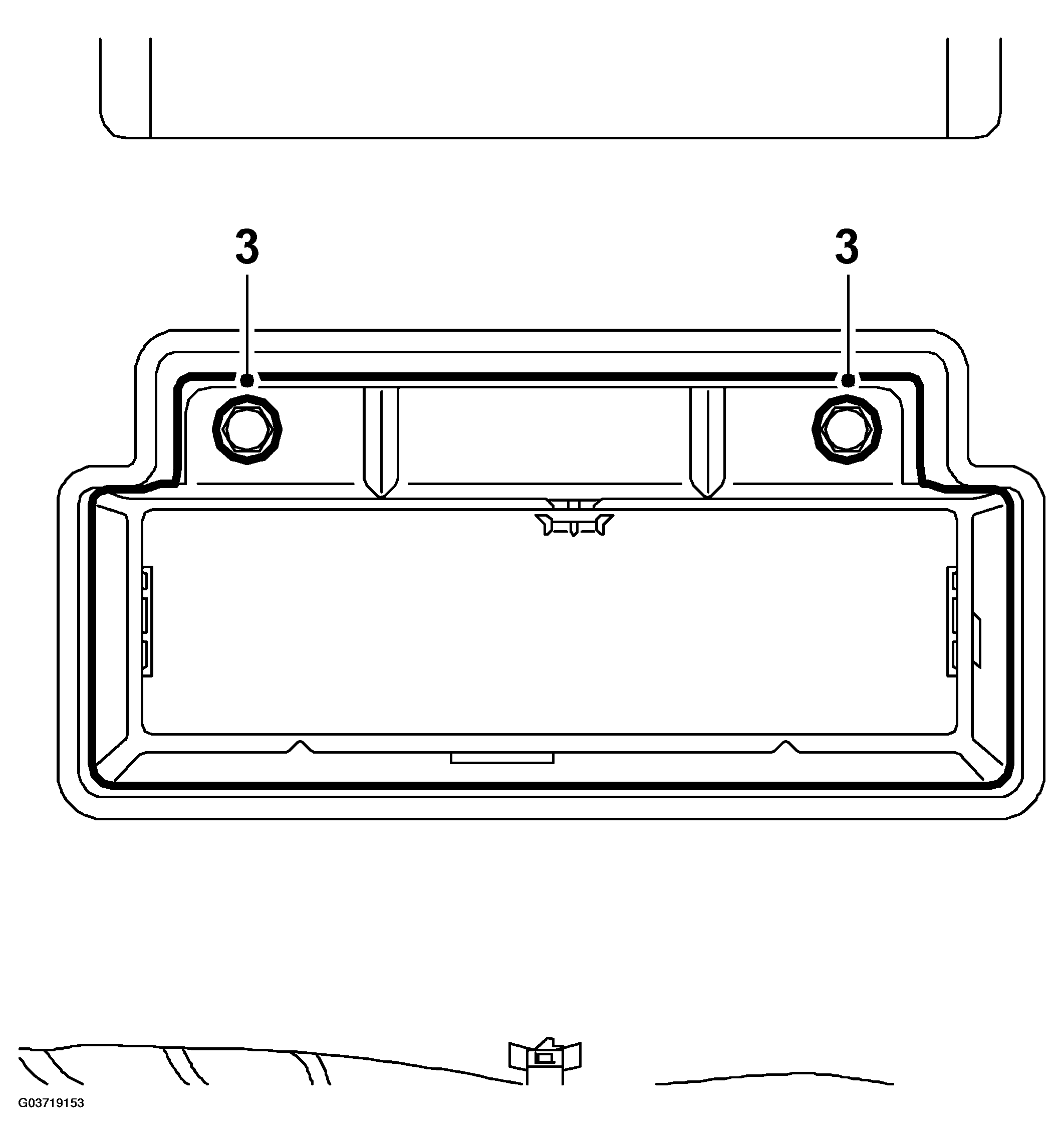

    Fig 2: Illustration For Step 3
    G03719153Courtesy of SAAB-SCANIA OF AMERICA, INC.
    IMPORTANT: Take care when releasing the locking mechanism on the connector so as not to damage the connector. Pull the halves straight apart to avoid bending the pins. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION  .
  4. Unplug the connectors.

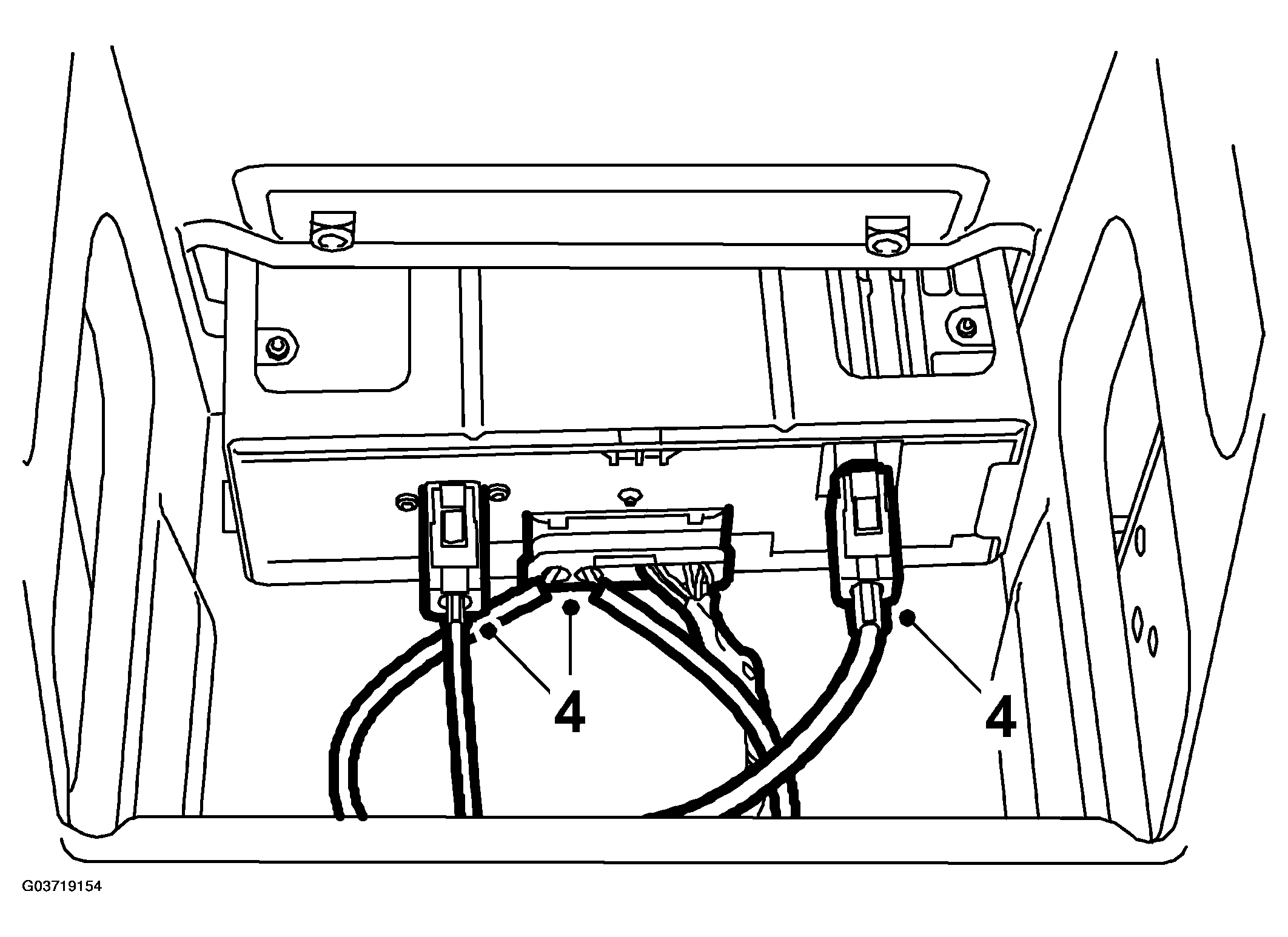

    Fig 3: Illustration For Step 4
    G03719154Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Remove the telematics unit with bracket.

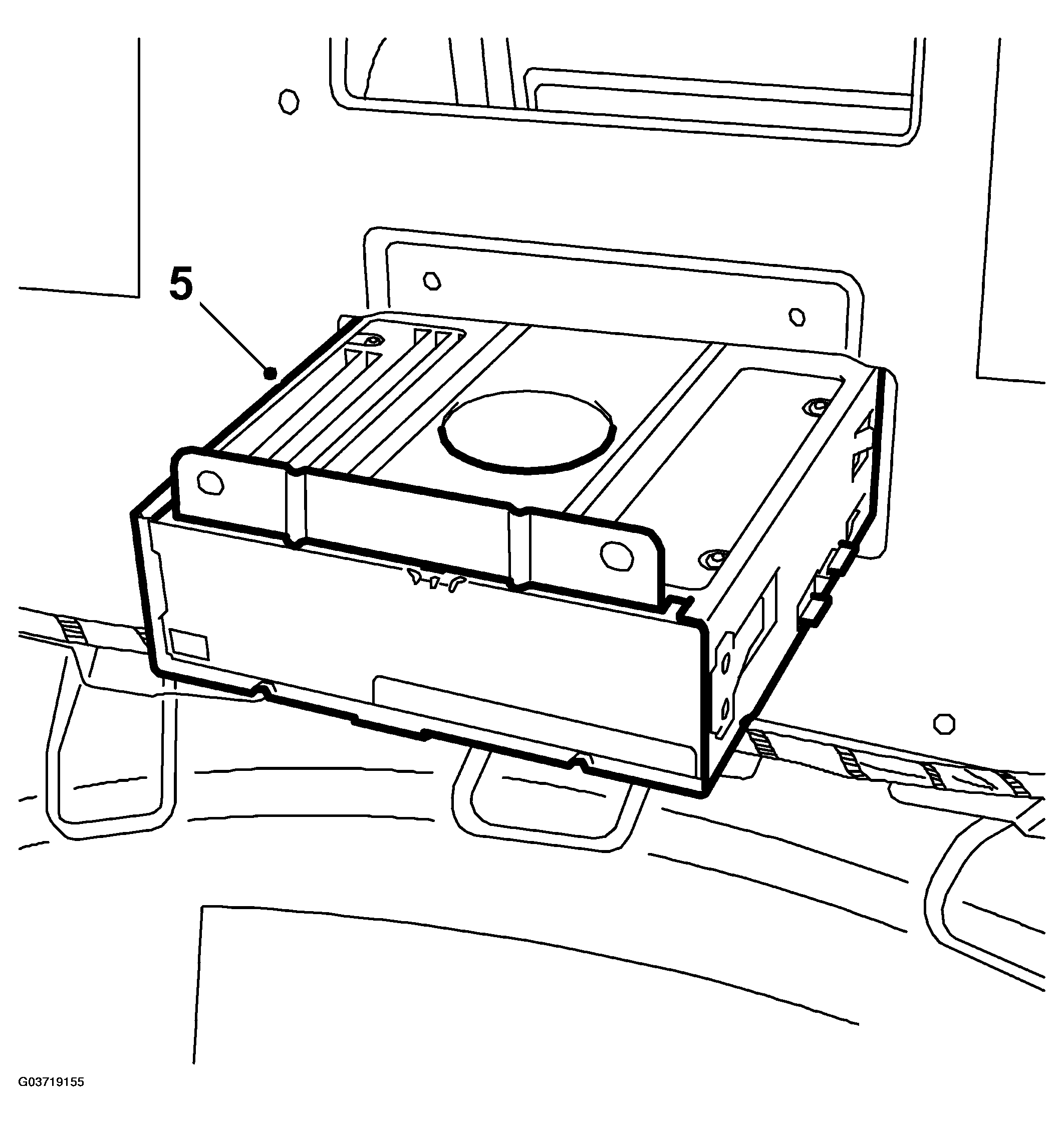

    Fig 4: Illustration For Step 5
    G03719155Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Remove the bracket by pressing out the telematics unit.
