Installation Procedure

  1. Connect the electrical connector to the IAT sensor.

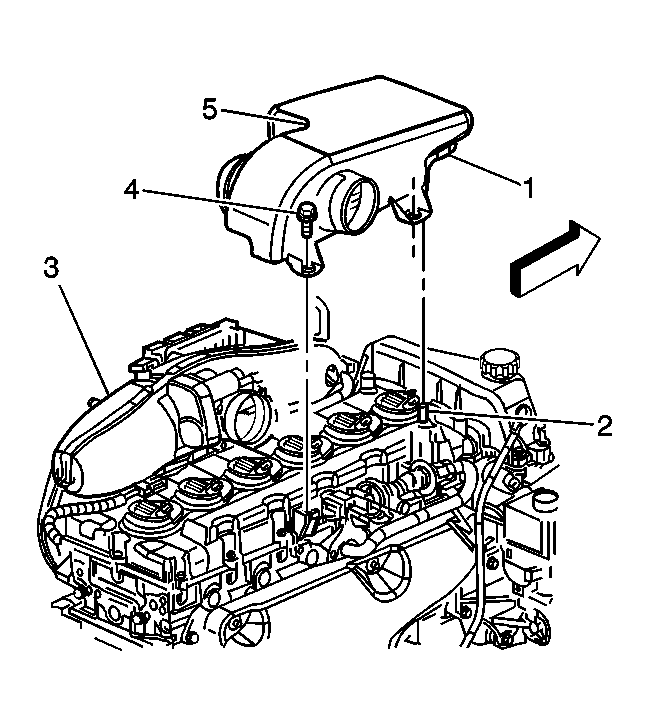

    2. Fig 1: View Of Engine Bolts & Air Cleaner Outlet Resonator
    GM730135Courtesy of GENERAL MOTORS CORP.
  2. Install the air cleaner outlet resonator assembly (5) to the engine making sure of the following:
    • The crankcase ventilation hose (1) is connected to the valve cover port (2).
    • The air cleaner outlet resonator (5) is properly fit to the throttle body assembly.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the 2 air cleaner outlet resonator to engine bolts (4).

    Tighten:  Tighten the resonator to engine bolts to 6 N.m (53 lb in).

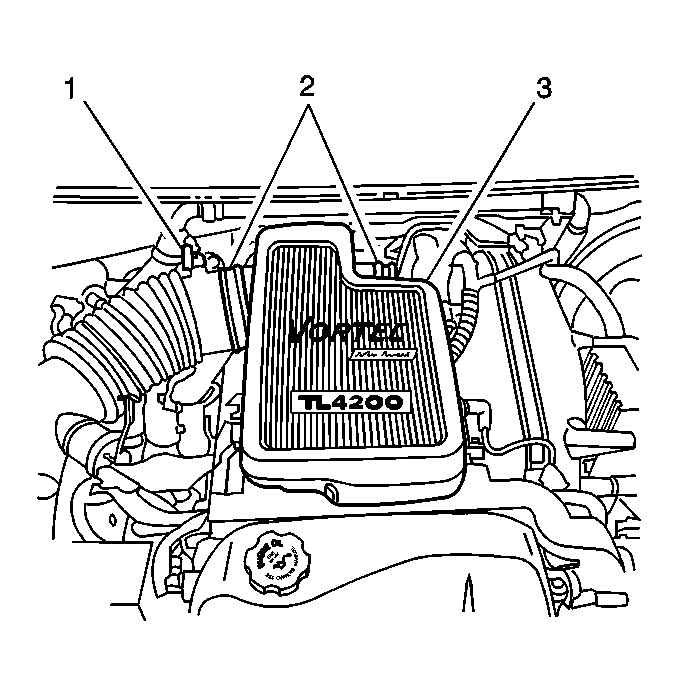

    4. Fig 2: Top Of Engine View
    GM732051Courtesy of GENERAL MOTORS CORP.
  4. Connect the air cleaner outlet duct to the air cleaner outlet resonator (3).
  5. Properly position the air cleaner outlet duct and air cleaner outlet resonator clamps (2).

    Tighten:  Tighten the clamps (2) to 4 N.m (35 lb in).
