Automatic Transmission Shift Lock Control Schematics

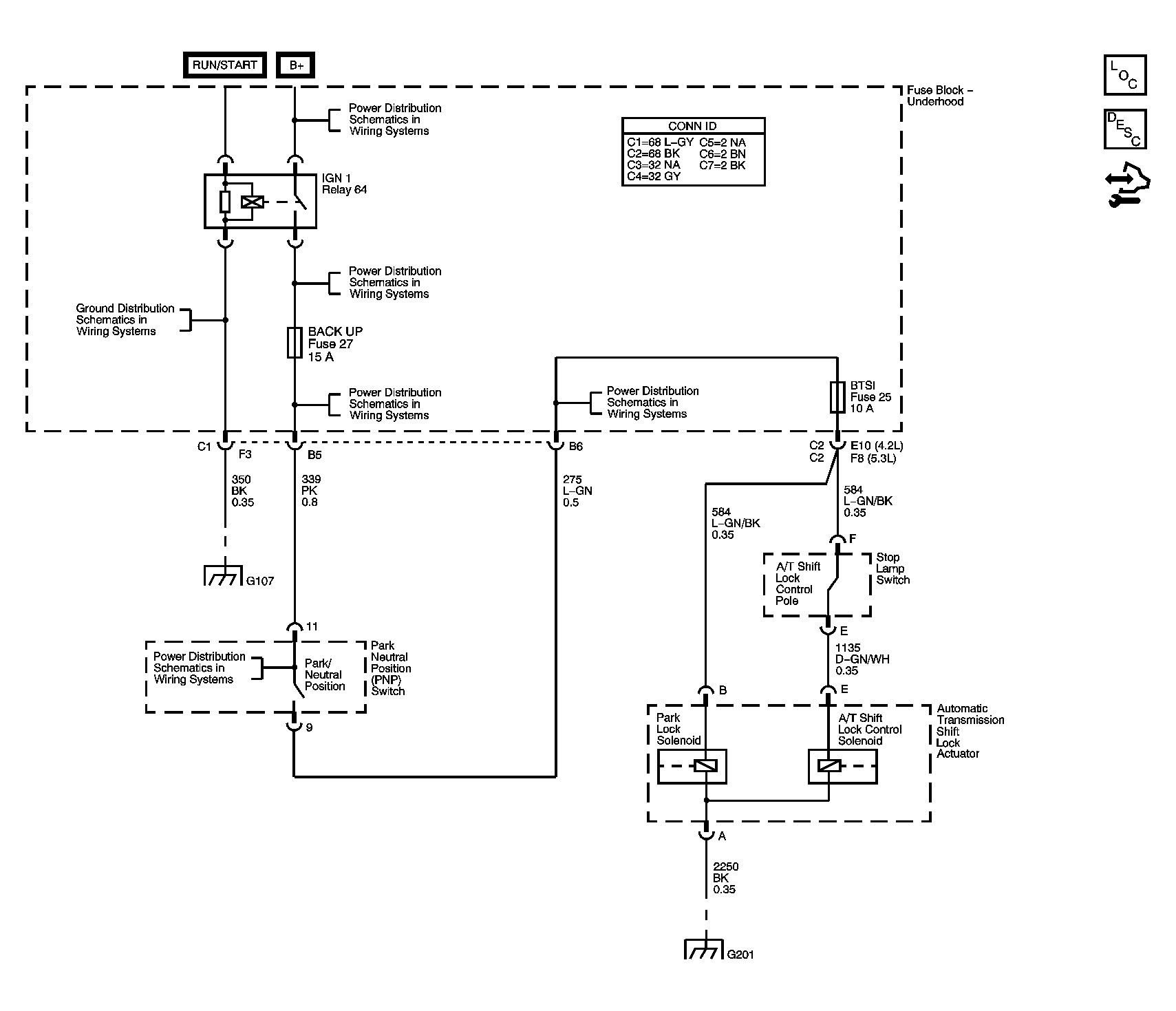

Fig 1: A/T Shift Lock Schematic
GM1533270Courtesy of GENERAL MOTORS CORP.
