Temperature increase or decrease
Selection of interior temperature for the driver and passenger zone in increments of 1°C between 16°C and 27°C (or between 60°F and 80°F). An indicator LED in the temperature knob indicates the selected temperature.
The following values are used when the ignition is switched on:
Recommended setting is 21+/-3°C, or 69+/-5 °F.
If the value is higher than 26°C or 80°F, HI is indicated with a red LED and the system is set as follows:
- fan speed, level 6
- air distribution in defrost/floor setting
- air mixture in setting for full warmth for side in question. 100% appears on the diagnostic tool.
- recirculation off
If the value is lower than 16°C or 60°F, LO is indicated with a blue LED (the passenger cannot select LO unless the driver has done so) and the system is set as follows:
- fan speed MAX, level 8
- A/C ON/OFF
- air distribution in panel setting
- air mixture in setting for full cooling for side in question. 0% appears on the diagnostic tool.
- recirculation on when A/C is active

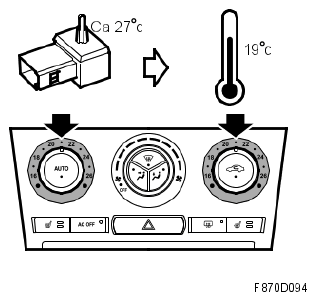

Using the diagnostic tool, the ACC unit can be adjusted to increase or decrease the temperature in the left and right temperature zone compared to that which has been set via the steering wheel control.
