Home >> Saab >> 2011 >> 9-3X Automatic >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel System >> Component Location >> Fuel pump module (689)

Fuel pump module (689)

Location:  in the fuel tank

Petrol, US/CA market

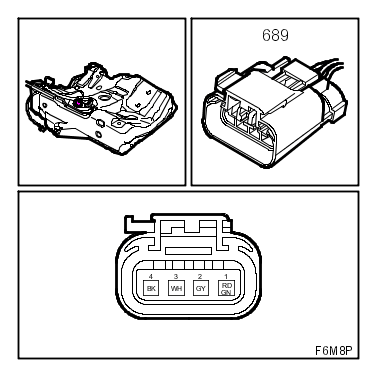

Fig 1: Identifying Fuel Pump Module Connector (689) Petrol, US/CA Market
G06230115Courtesy of SAAB-SCANIA OF AMERICA, INC.

Petrol, other markets

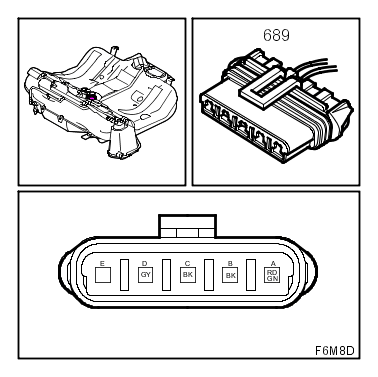

Fig 2: Identifying Fuel Pump Module Connector (689) Petrol, Other Market
G06230116Courtesy of SAAB-SCANIA OF AMERICA, INC.

Diesel

Fig 3: Identifying Fuel Pump Module Connector (689) Diesel
G06230116Courtesy of SAAB-SCANIA OF AMERICA, INC.
