To remove

  1. Drain the fuel tank if necessary. See Emptying The Fuel Tank  or Emptying The Fuel Tank, 4WD .
  2. Remove the rear wheel.
  3. Remove the REAR WING LINER .
  4. Remove the fuel filler flap.
  5. Raise the car.
  6. Undo the filler pipe clamp.

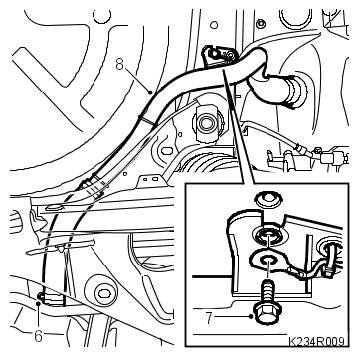

    Fig 1: Illustration For Steps 6-8
    G06229927Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Remove the filler pipe screw.
  8. Remove the filler pipe. Pull the pipe out of the fuel filler flap port.
