To remove

Reduce the oil pressure by removing fuse 2 for the fuel pump while the engine is running (fuse 2 is located in the main fuse box in front of the battery). Once the engine has stopped, turn the ignition key to LOCK and refit the fuse (A).

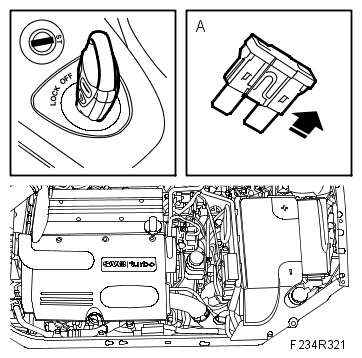

Fig 1: Refitting Fuse
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the upper engine cover (A).

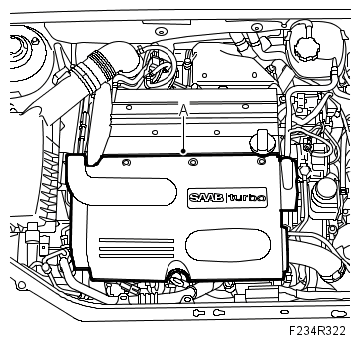

Fig 2: Identifying Upper Engine Cover
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the vacuum hose (A).

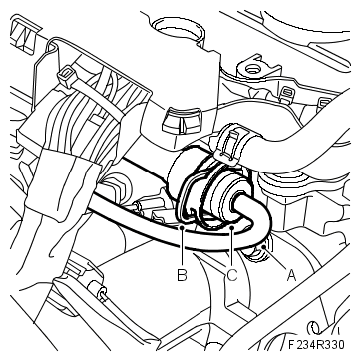

Fig 3: Identifying Vacuum Hose And Retaining Clip
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Undo the fuel pressure regulator retaining clip (B).
Remove the fuel pressure regulator (C). Collect any fuel spill with a rag.
