To remove

  1. Remove the fuel tank. See FUEL TANK, TO REMOVE .
  2. To prevent dirt entering the fuel system, clean the outside of the tank if necessary before removing the fuel pump.
  3. Unplug the fuel pump connector.

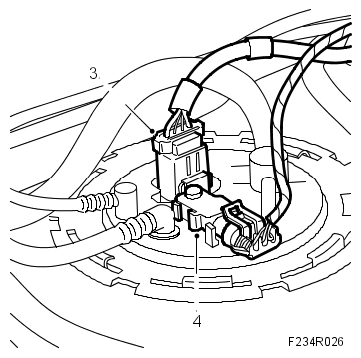

    Fig 1: Illustration For Steps 3-4
    G06230012Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. On cars with ORVR, unplug the connector for the pressure sensor.
  5. Remove the fuel pump. Use tool 83 96 194 FITTING TOOL , fuel armature to undo the fuel pump lock ring.

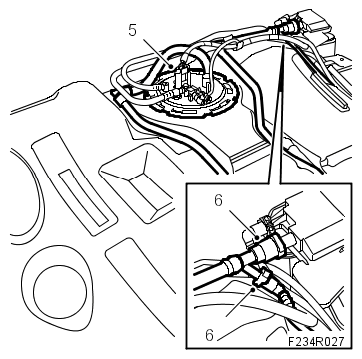

    Fig 2: Illustration For Steps 5-6
    G06230013Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Disconnect the quick-release couplings on the EVAP emission canister.
  7. Lift up the fuel pump slightly and disconnect the quick-release coupling for the tank ventilation from the fuel pump.
  8. Carefully lift up the fuel pump and place it in a receptacle.
    IMPORTANT: Take care not to damage the fuel level sensor.

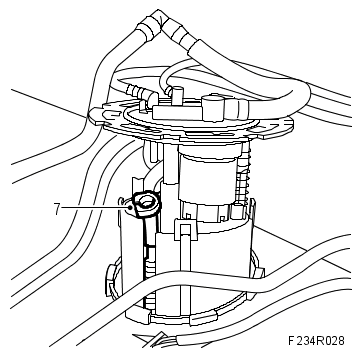

    Fig 3: Identifying Fuel Pump Quick-Release Coupling
    G06230014Courtesy of SAAB-SCANIA OF AMERICA, INC.
