Home >> Saturn >> 1997 >> SC2 Standard, MP3 >> Repair and Diagnosis >> Engine Performance >> System >> Connector Identification >> Brake Switch

Brake Switch

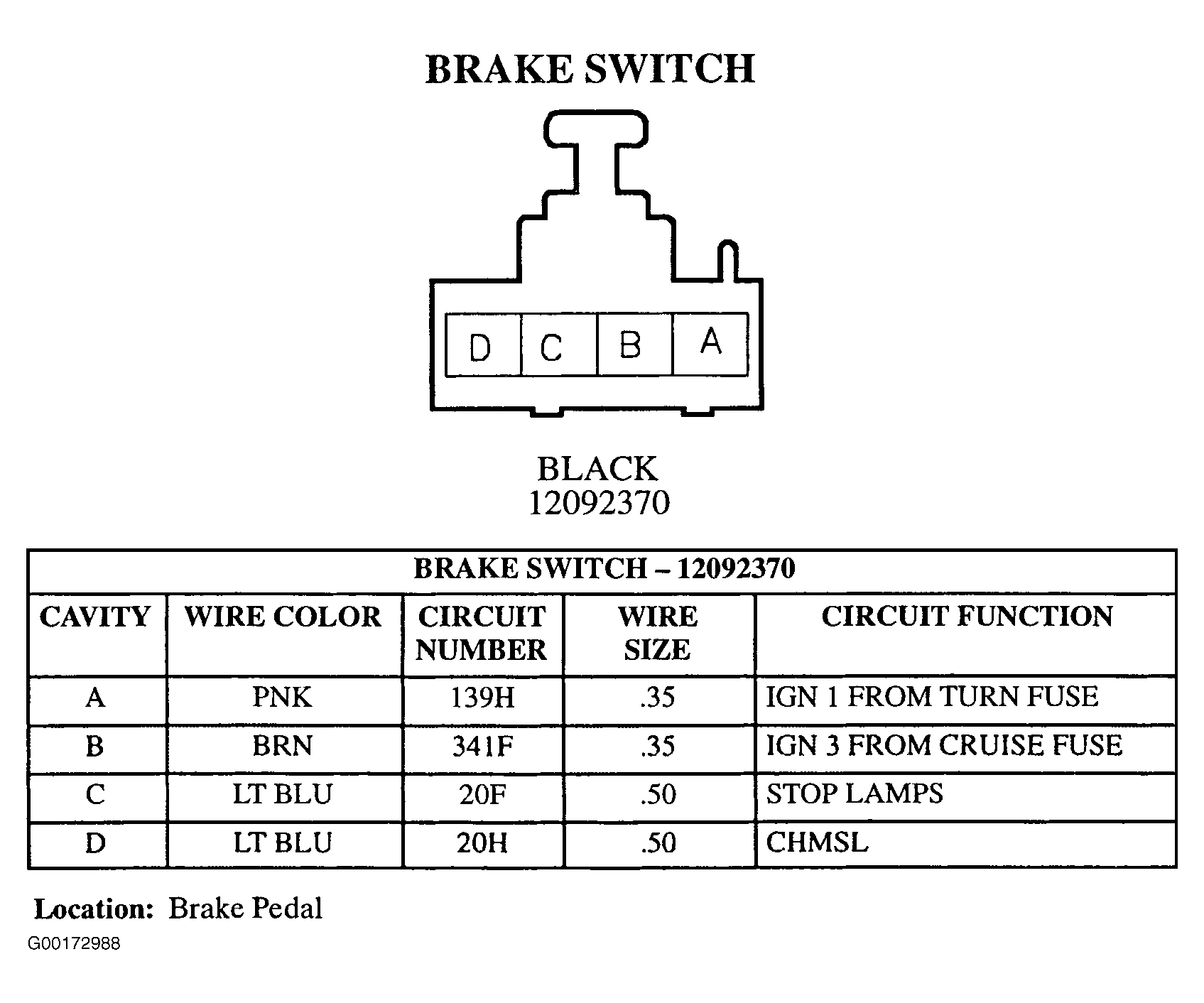

Fig 1: Brake Switch - 4-Pin Connector (12092370) - Black (1 Of 2)
G00172988Courtesy of GENERAL MOTORS CORP.

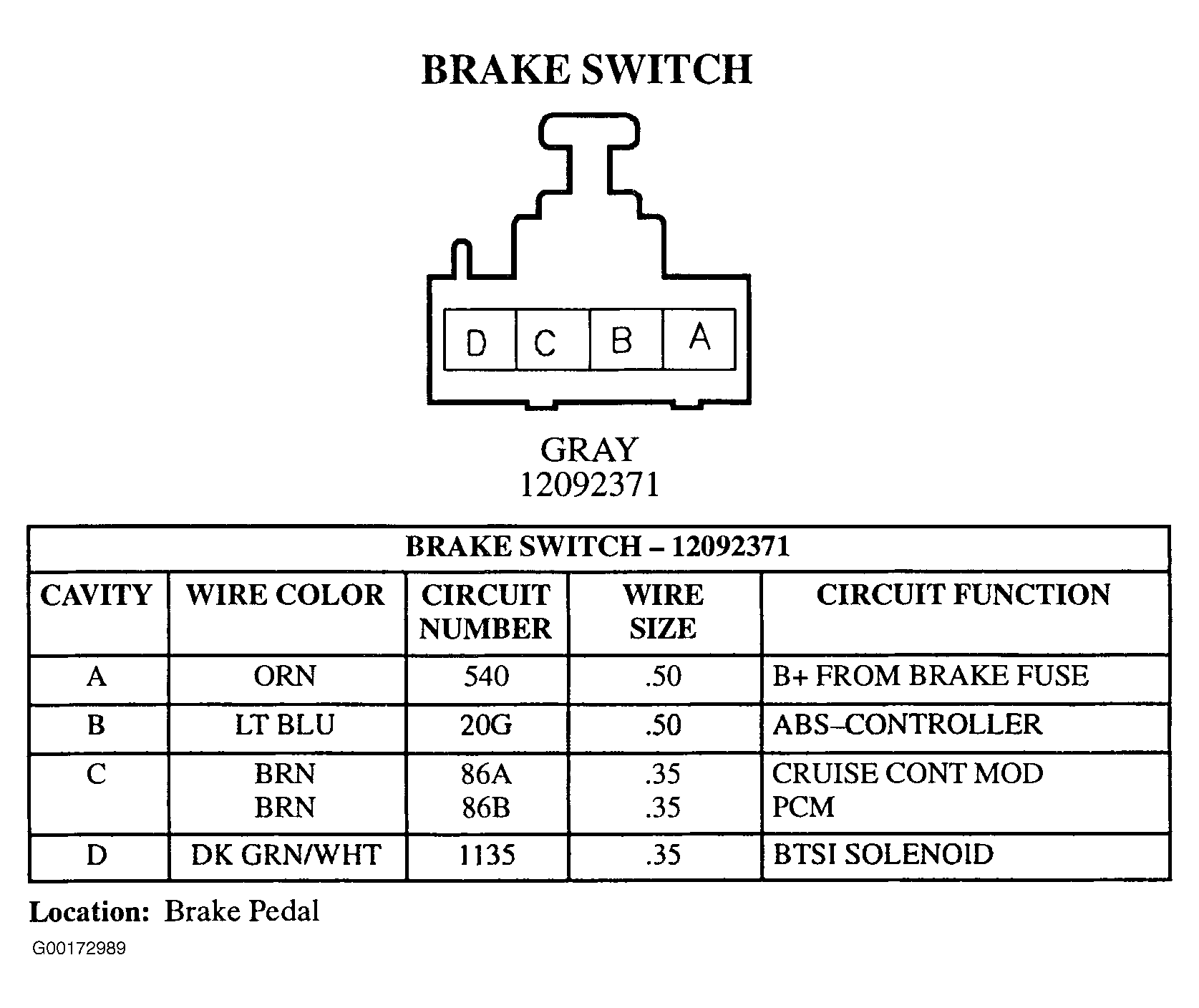

Fig 2: Brake Switch - 4-Pin Connector (12092371) - Gray (2 Of 2)
G00172989Courtesy of GENERAL MOTORS CORP.
