Connector Identification
>>
RECIRCULATION Door Motor
RECIRCULATION Door Motor

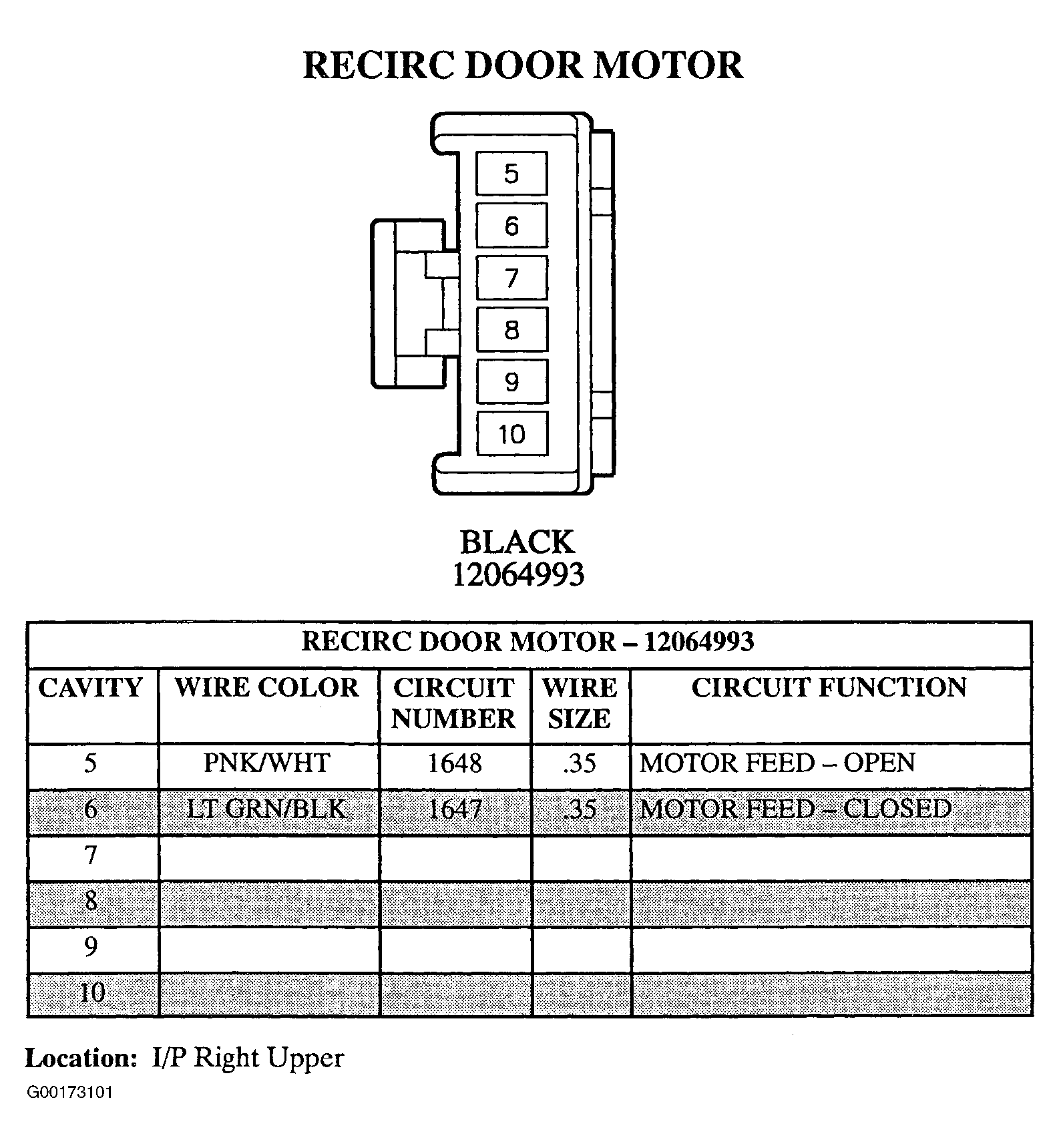

Fig 1: Recirculation Door Motor - 6-Pin Connector (12064993) - Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
