Driver Inflator - Coil Pigtail

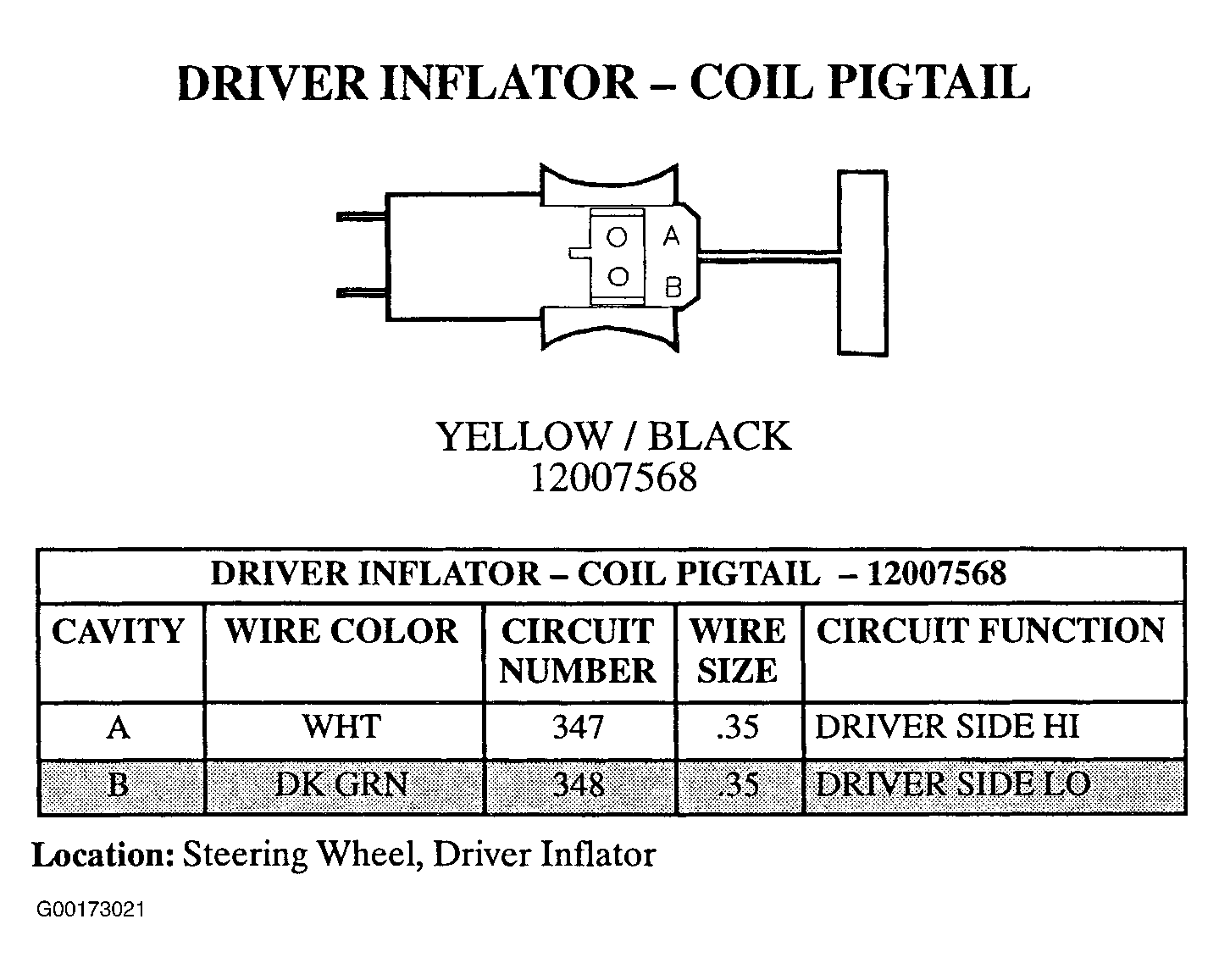

Fig 1: Driver Inflator (Coil Pigtail) - 2-Pin Connector (12007568) - Yellow/Black - (1 Of 2)
G00173021Courtesy of GENERAL MOTORS CORP.

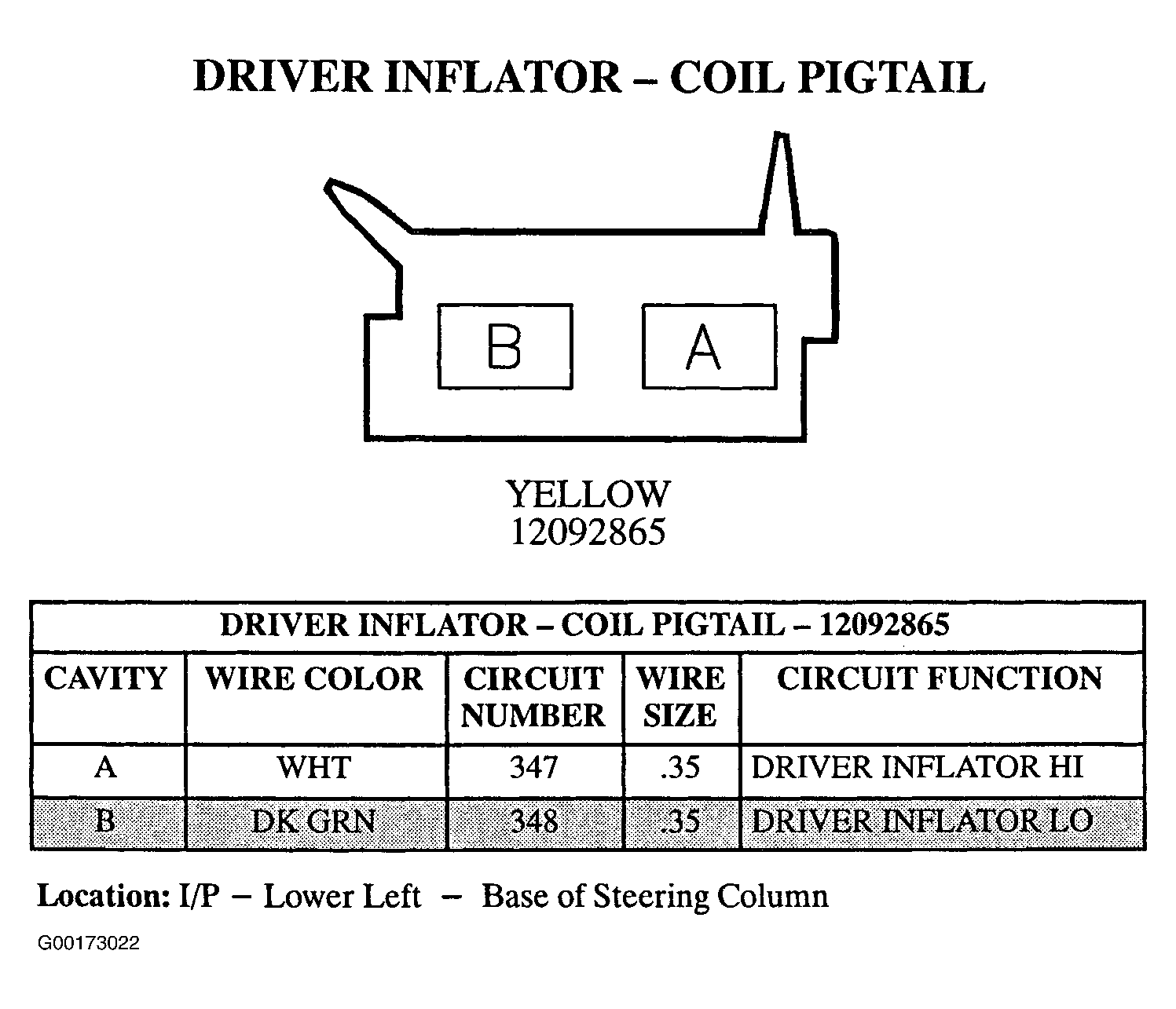

Fig 2: Driver Inflator (Coil Pigtail) - 2-Pin Connector (12092865) - Yellow - (2 Of 2)
G00173022Courtesy of GENERAL MOTORS CORP.
