Fuel Tank Inline (F)

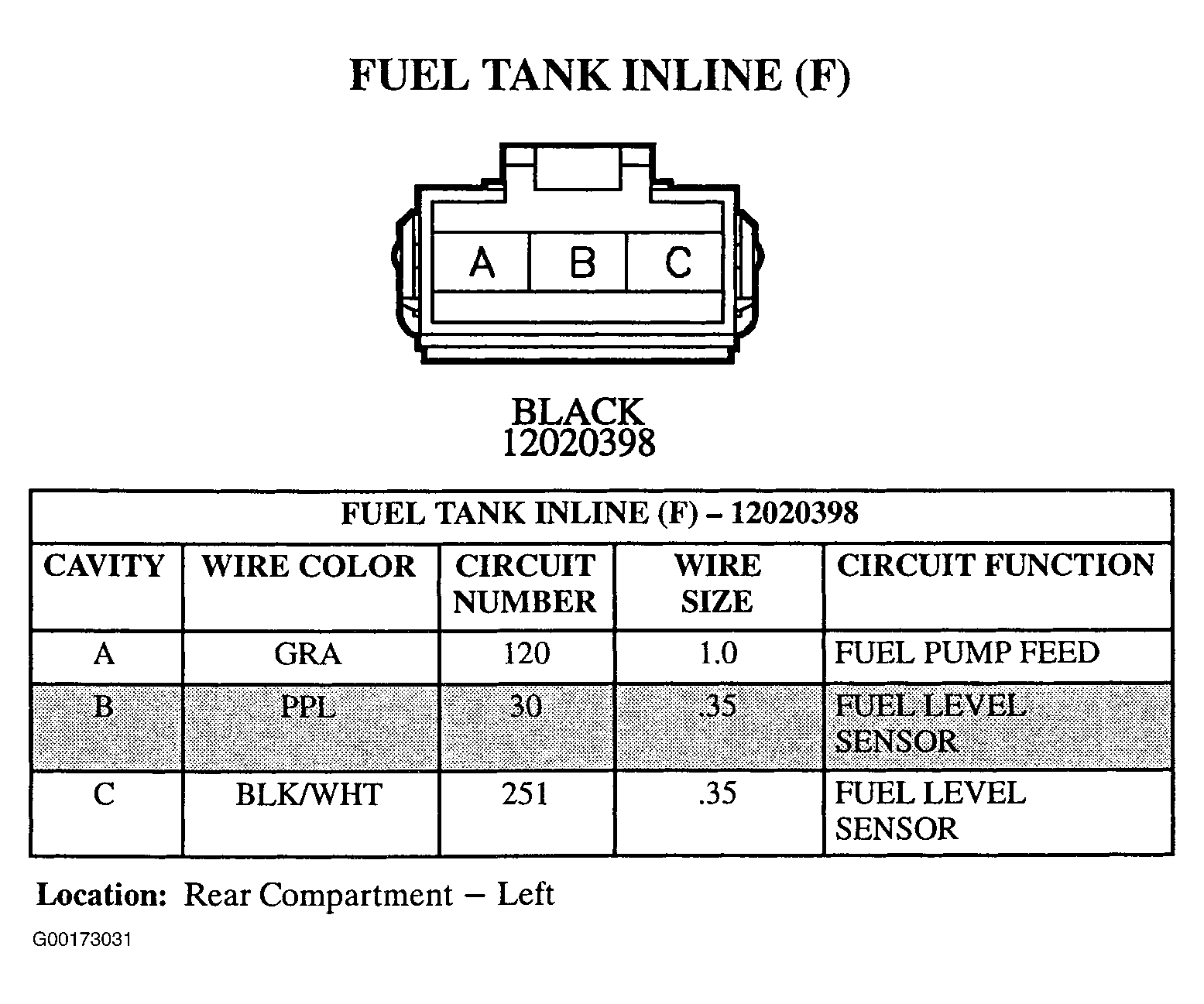

Fig 1: Fuel Tank Inline (F) - 3-Pin Connector (12020398) - Black
G00173031Courtesy of GENERAL MOTORS CORP.
