Home >> Saturn >> 1997 >> SW2 Standard >> Repair and Diagnosis >> Engine Performance >> System >> Connector Identification >> Power Window Master Switch >> Power Window Master Switch - Coupe

Power Window Master Switch - Coupe

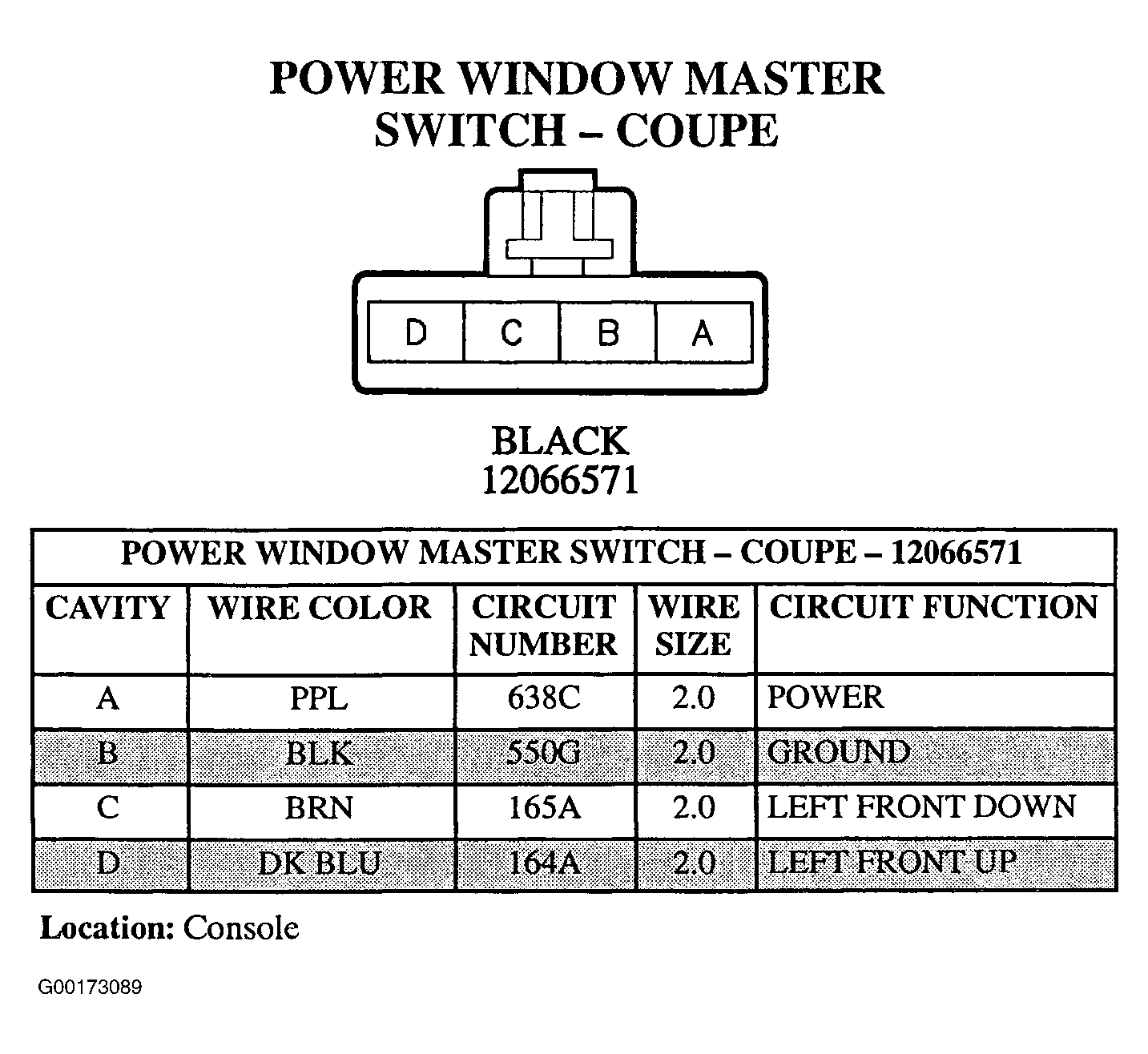

Fig 1: Power Window Master Switch (Coupe) - 4-Pin Connector (12066571) - Black
G00173089Courtesy of GENERAL MOTORS CORP.

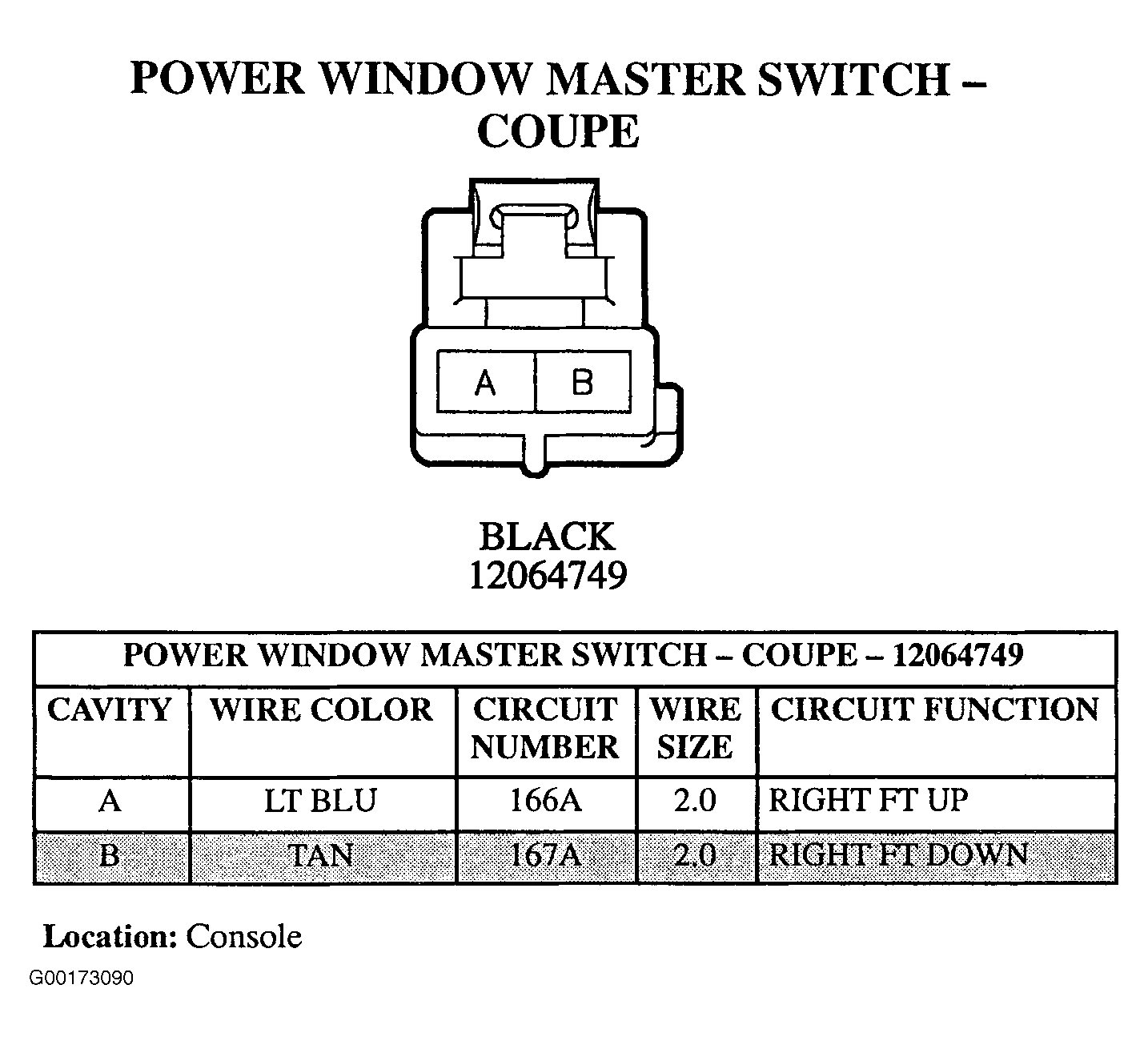

Fig 2: Power Window Master Switch (Coupe) - 2-Pin Connector (12064749) - Black
G00173090Courtesy of GENERAL MOTORS CORP.
