Power Window Master Switch - Sedan & Wagon

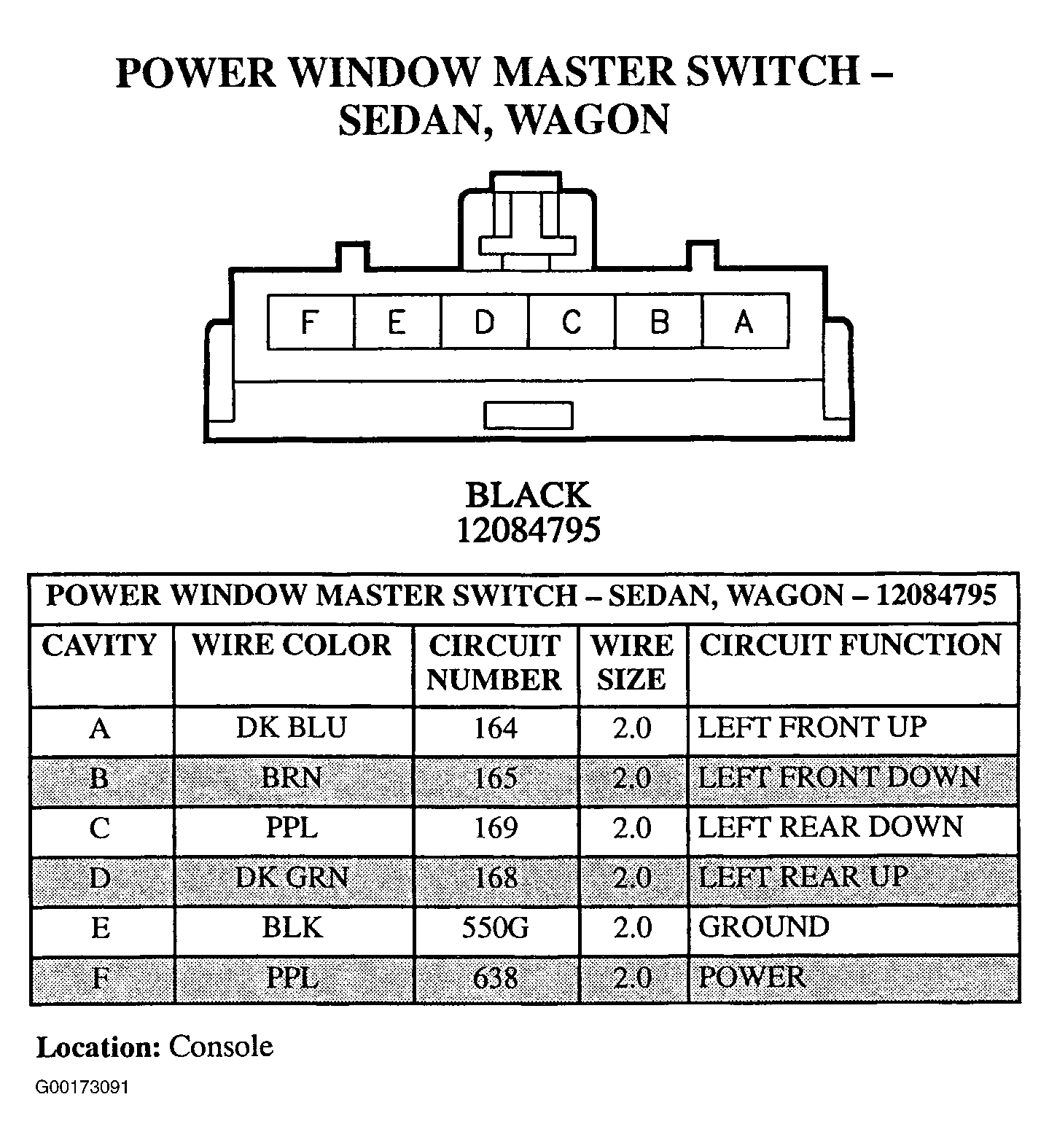

Fig 1: Power Window Master Switch (Sedan & Wagon) - 6-Pin Connector (12084795) - Black
G00173091Courtesy of GENERAL MOTORS CORP.

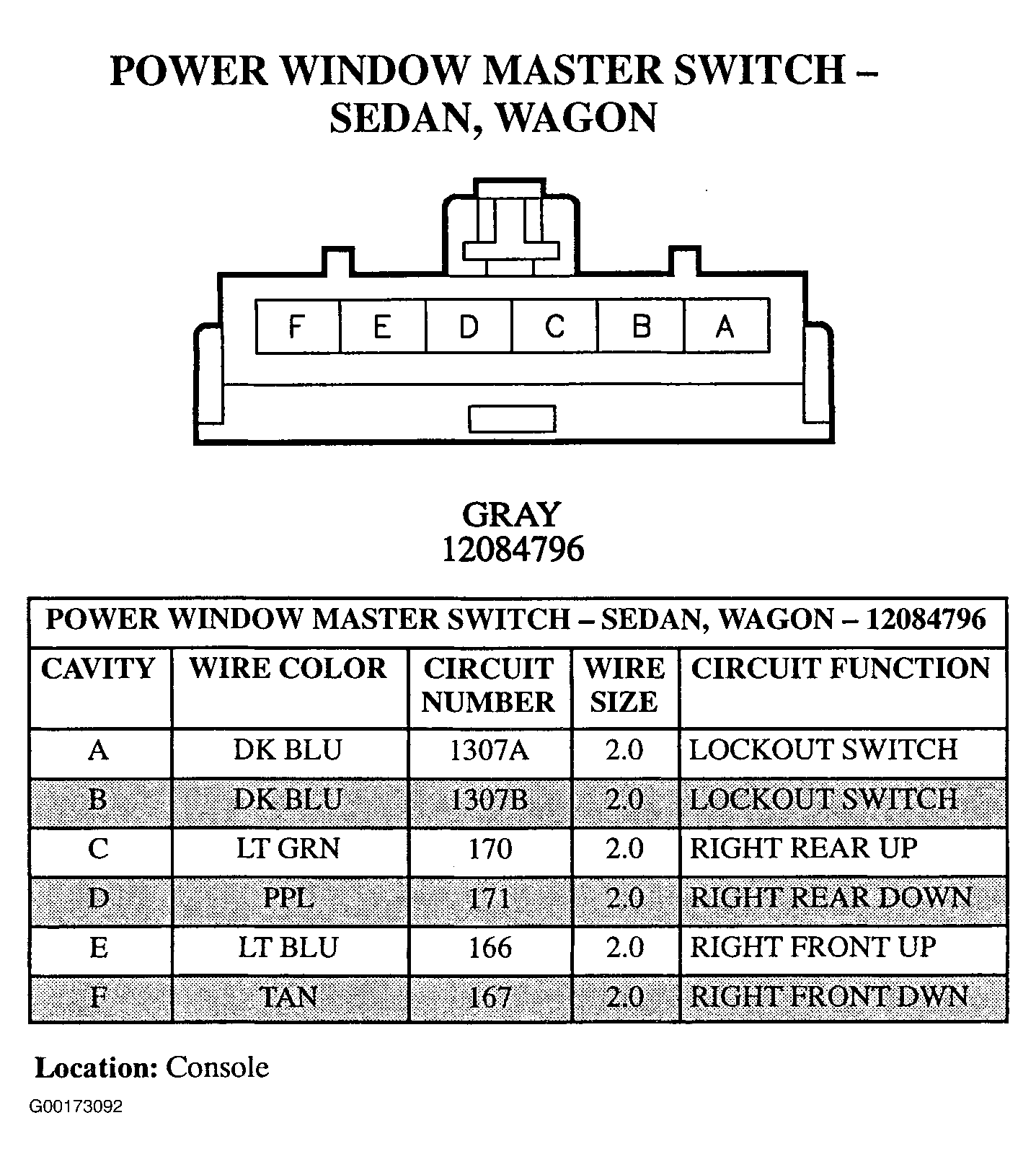

Fig 2: Power Window Master Switch (Sedan & Wagon) - 6-Pin Connector (12084796) - Gray
G00173092Courtesy of GENERAL MOTORS CORP.
