Transaxle Range Switch (Automatic)

Disconnect transaxle range switch connector. Use a fused jumper wire to bypass switch by connecting terminal A to B. Switch is faulty if engine cranks normal.

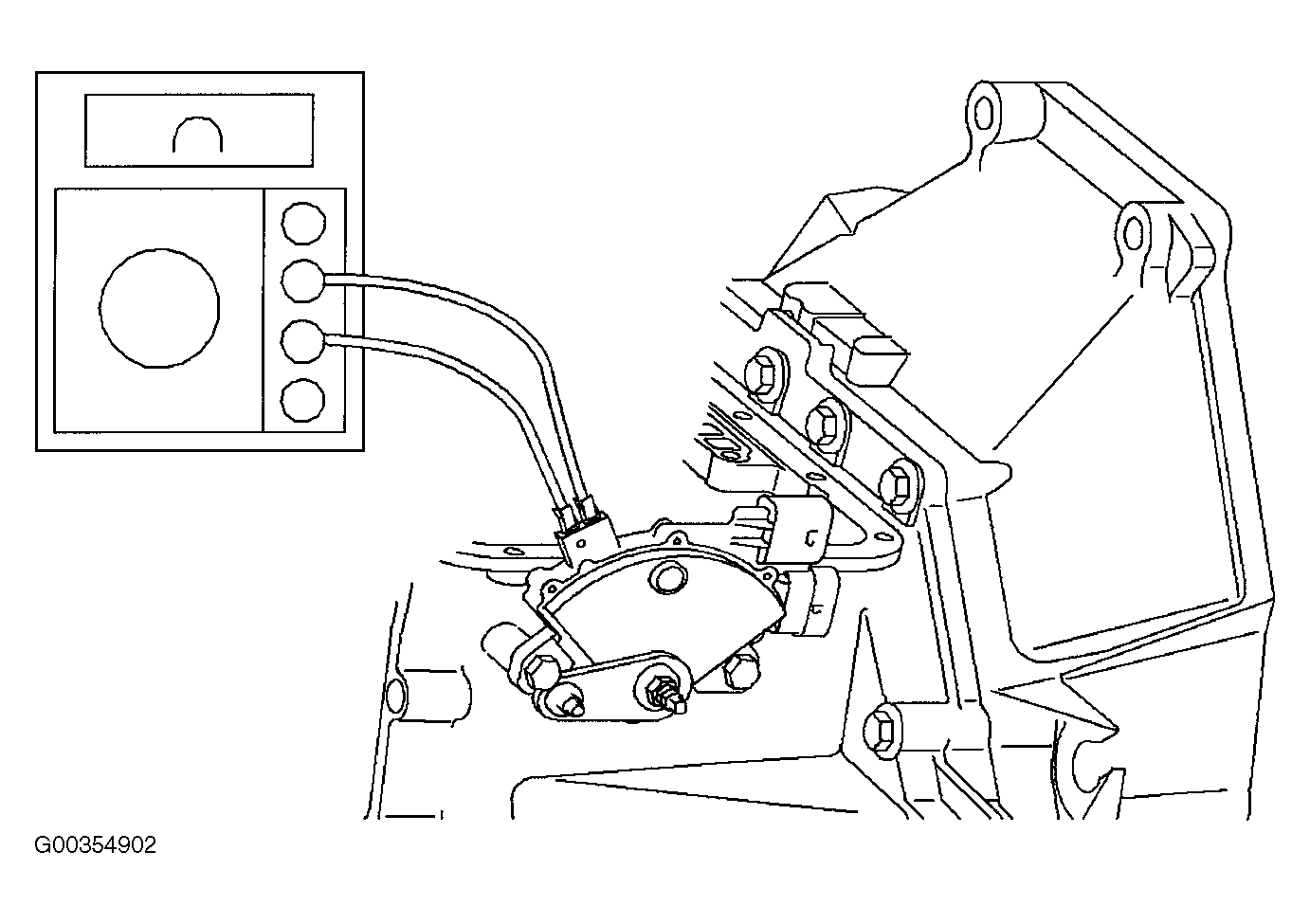

Fig 1: Testing Transaxle Range Switch (Automatic)
G00354902Courtesy of GENERAL MOTORS CORP.
