Preliminary Inspection

Verify customer complaint by operating suspected system. Visually inspect for obvious signs of mechanical and electrical damage. Inspect for blown fuses and damaged relays. See Fig 1 -Fig 4 . Inspect for loose or corroded connections, damaged wiring harnesses and/or switches. Check for a broken or partially broken wire inside insulation, which could cause system malfunction but prove good in a continuity/voltage check with system disconnected. Ensure any aftermarket electronic equipment is properly installed. Repair as necessary.

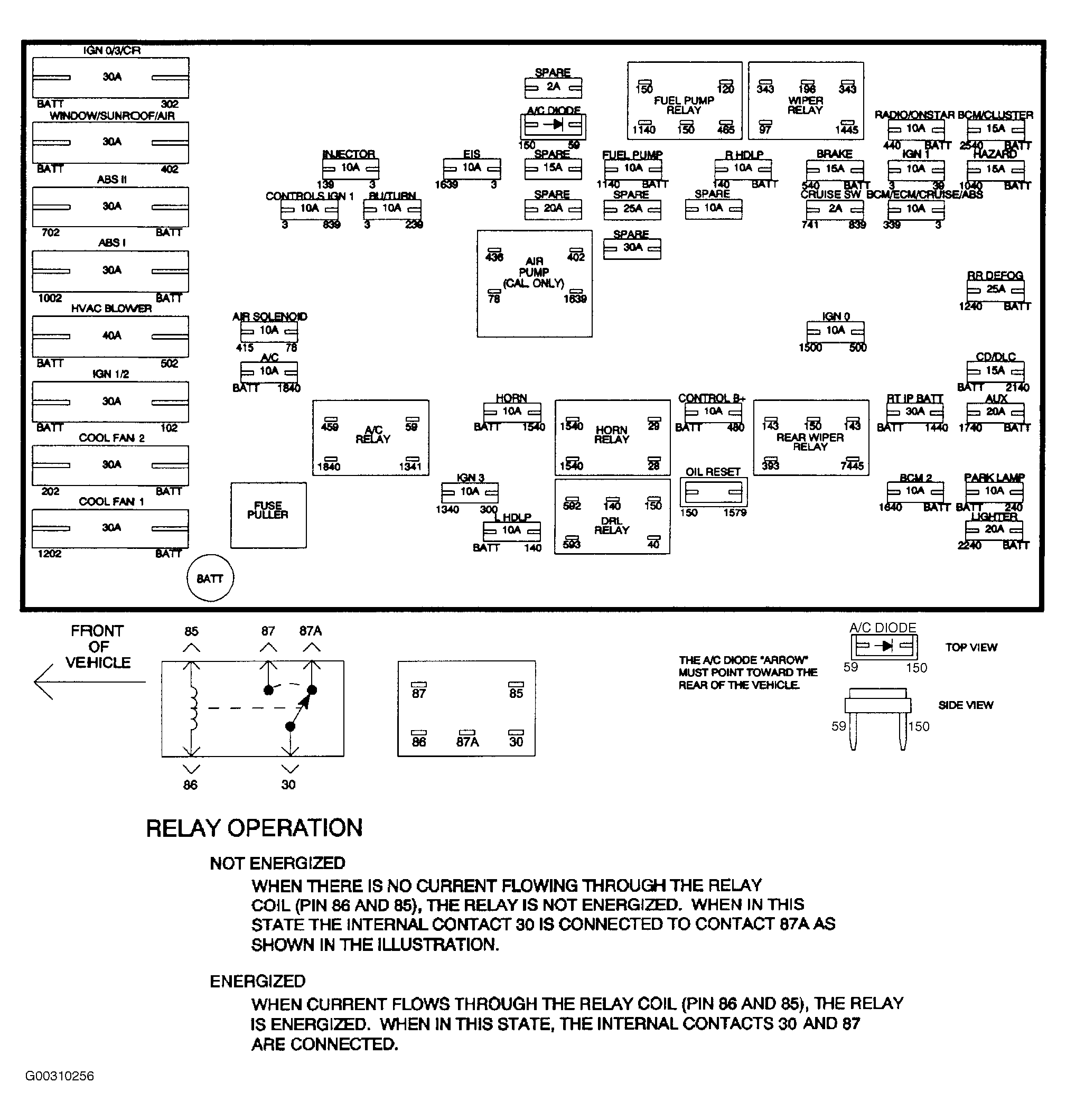

Fig 1: Identifying Left Instrument Panel Fuse Block Components

Courtesy of GENERAL MOTORS CORP.

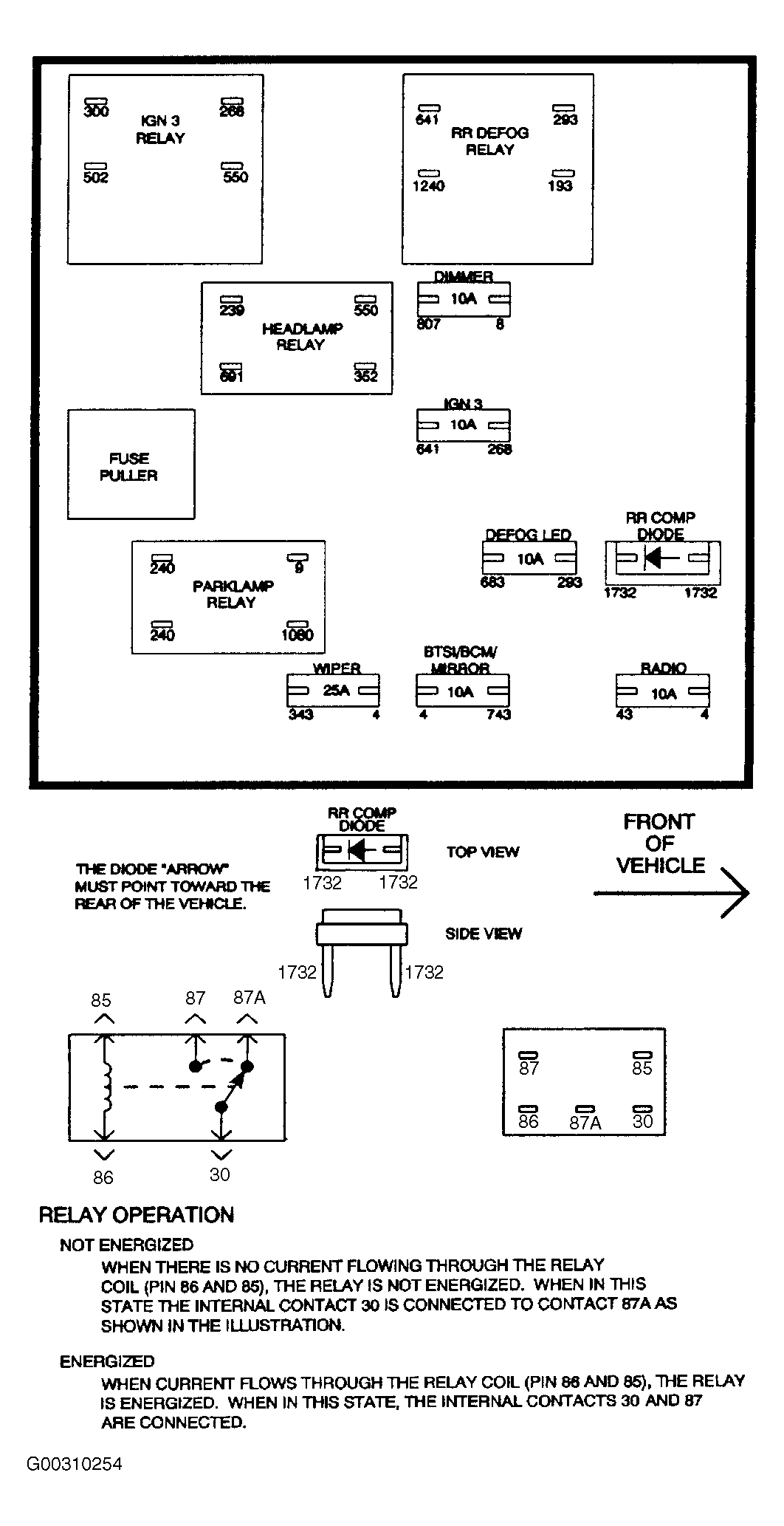

Fig 2: Identifying Right Instrument Panel Fuse Block Components

Courtesy of GENERAL MOTORS CORP.

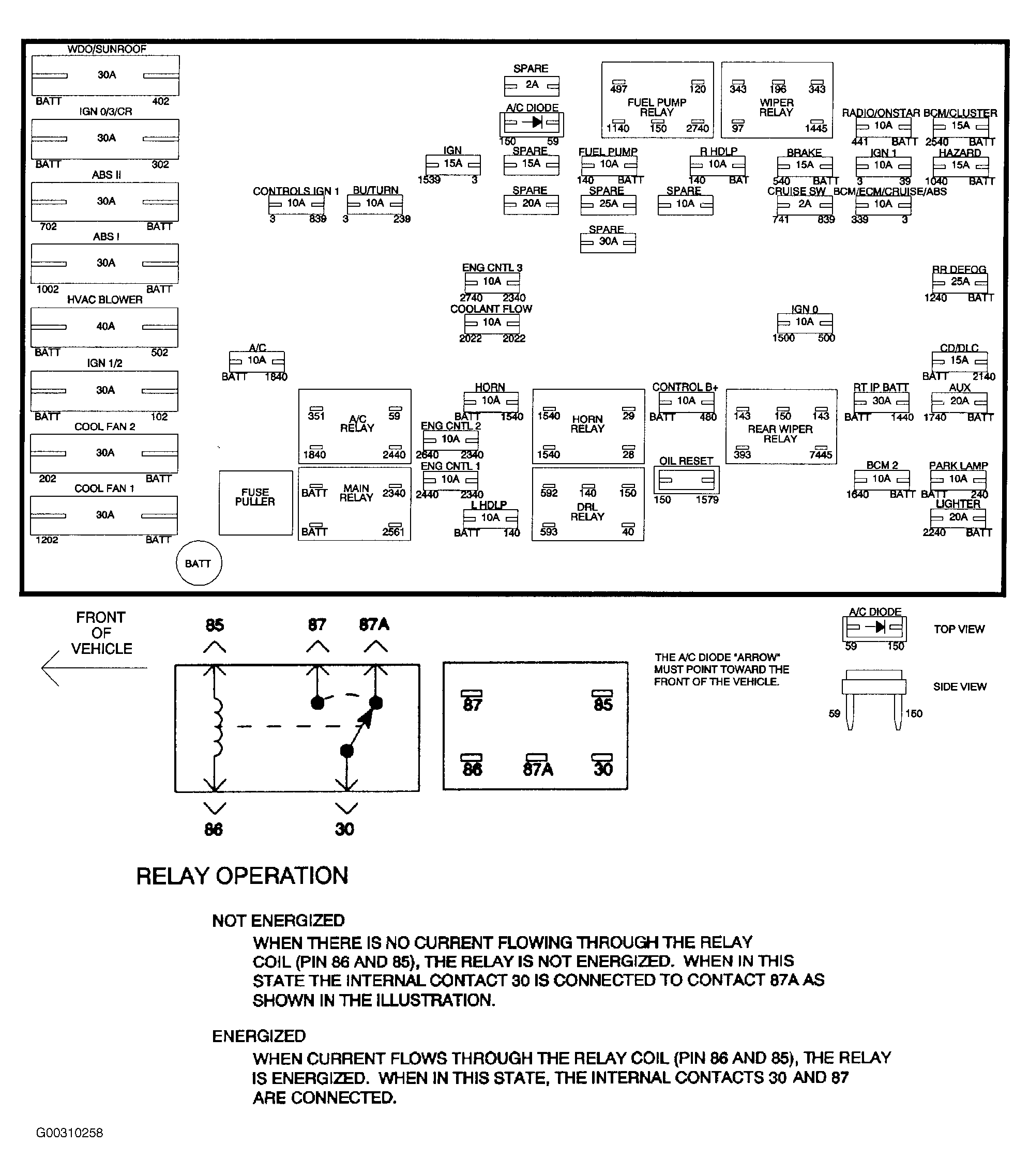

Fig 3: Identifying Underhood Fuse Block Components (2.2L)

Courtesy of GENERAL MOTORS CORP.

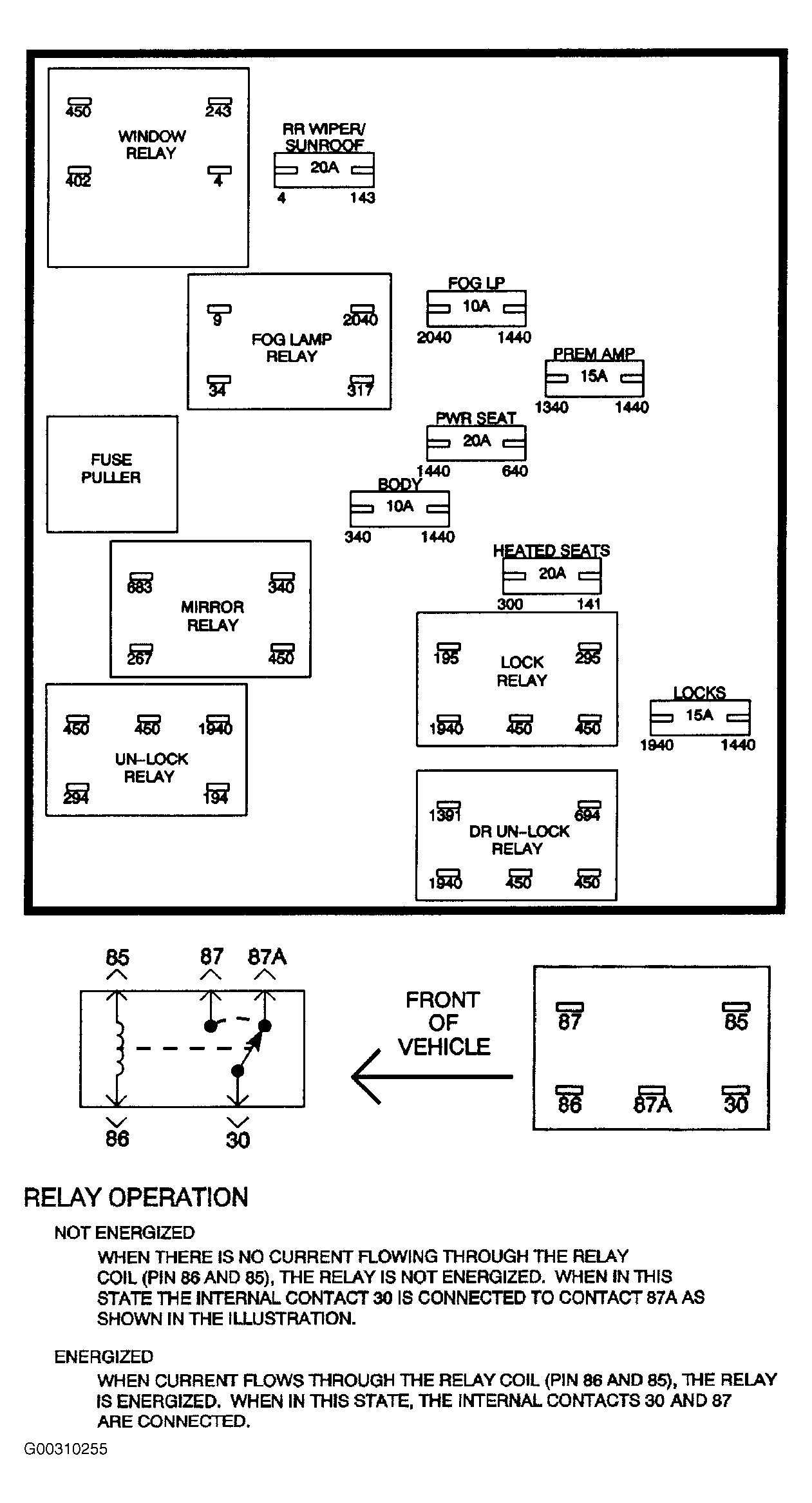

Fig 4: Identifying Underhood Fuse Block Components (3.0L)

Courtesy of GENERAL MOTORS CORP.
