Fuel Pump Module

The fuel pump module is sealed to the fuel tank with a retaining ring and O-ring seal. The module consists of:

1. Fuel Pump
2. Fuel Level Sender

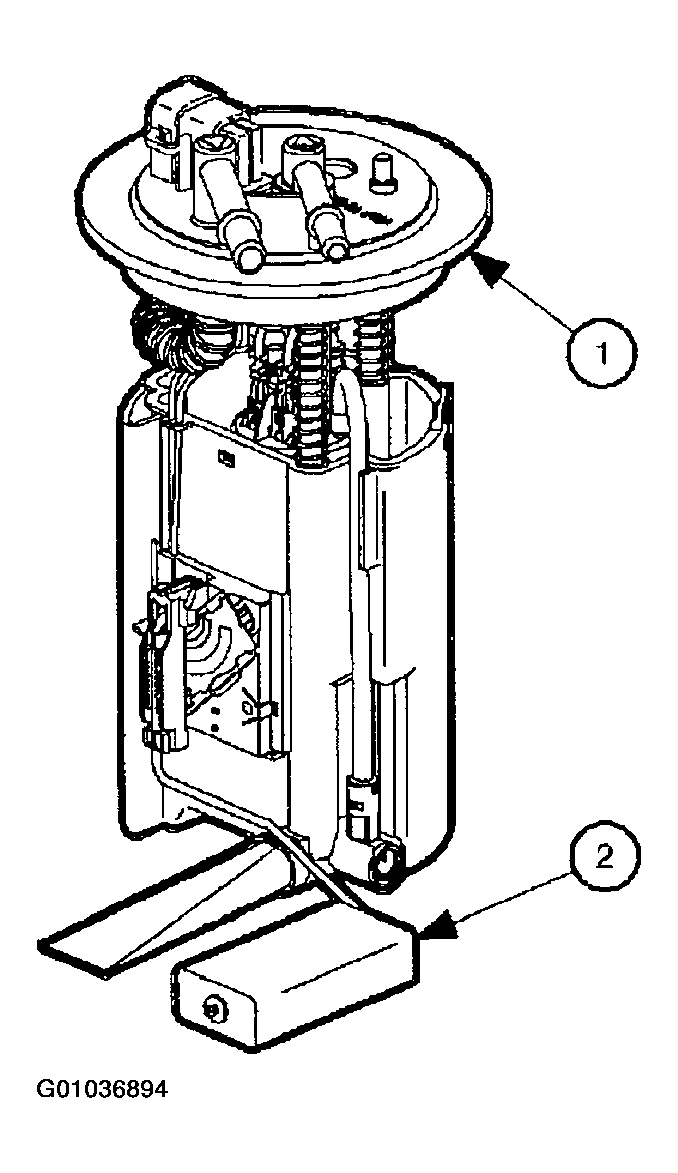

Fig 1: Identifying Fuel Pump Components

Courtesy of GENERAL MOTORS CORP.
