Fuel Pump Module

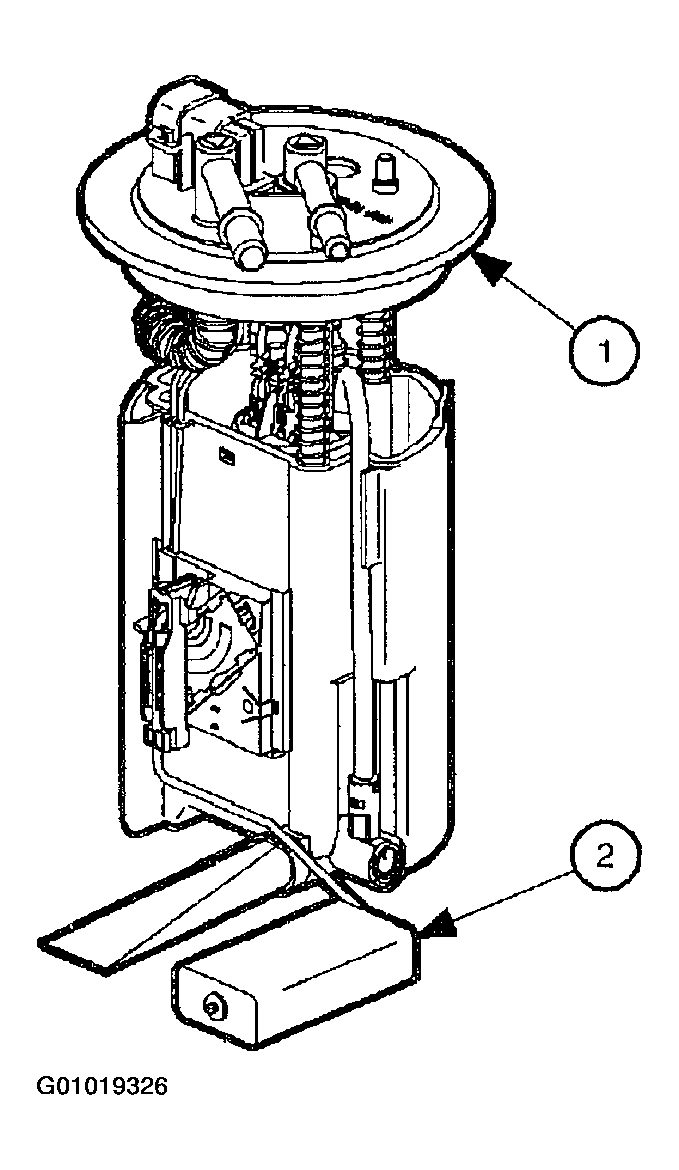

Fig 1: Identifying Fuel Pump & Level Sender

Courtesy of GENERAL MOTORS CORP.

The fuel pump module is sealed to the fuel tank with a retaining ring and O-ring seal. The module consists of:

• Fuel Pump (1).
• Fuel Level Sender (2).
